Automatic Control Membrane biogas gasholder balloon for biogas plant

Product Overview

Description



Automatic Control Membrane biogas gasholder balloon for biogas plant









AMOCO Introduction:





AMOCO was founded in 1982 in Singapore. In 1992, AMOO came into China, with the establishment of Branch Company in Chengdu, Suzhou, Xuzhou, Kunming, and Guangzhou., the company started to design, manufacture & sell the membrane products and engineering,



We are the member of IFAI,setting China building industry standard "Membrane products for building" and industry standard organization commission of "cable & membrane building structure products" authorized by the Ministry of Construction of China. we own diplomatic, skilled and unique experiences for membrane products, certificated by CE and ISO9000. Our technology of membrane biogas holder has reached and exceeded international industry level.











AMOCO Gasholder Design:

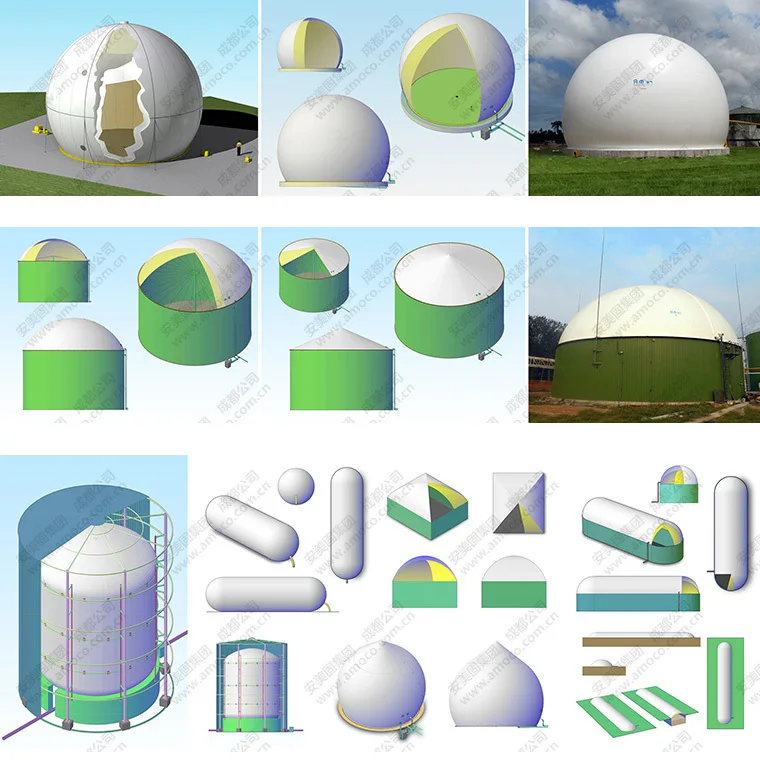

Design double membrane gasholder shape:

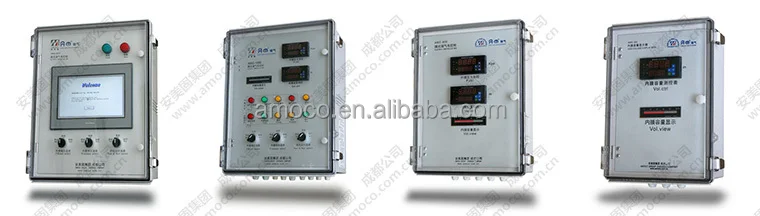

Design Auto Control System for double membrane gasholder :

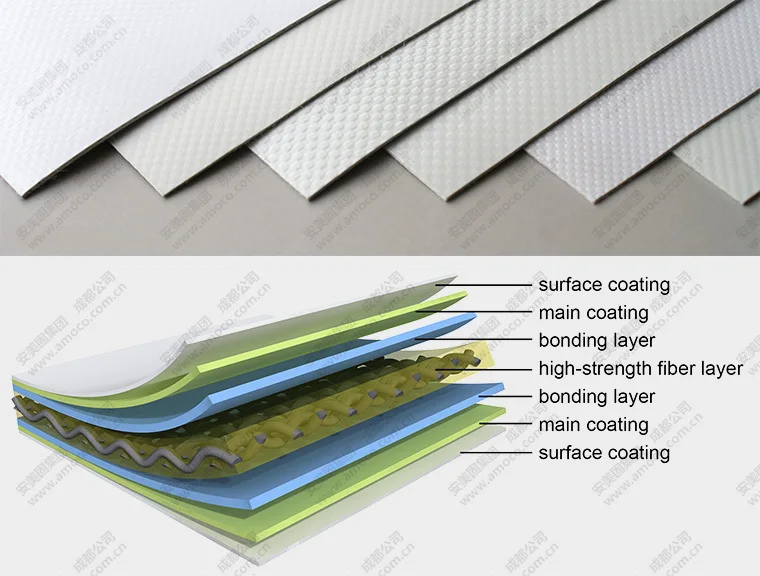

AMOCO Membrane Material Introduction:







Biogas specialized membrane material is made of imported high-strengthened, high-elastic synthetic engineering membrane and of perfect anti-acid and anti-corrosion ability, so we do not have to do regular maintain when we use membrane storage tank. The biogas specific membrane has been widely used in energy treatment, sewage treatment, agriculture waste, landfill site and other industries. The service life is over 15 years.





Advantages:



Outer membrane can be against static electricity, ultraviolet radiation and aging. Inner coat can be against biogas leakage, fire(Euro Standard B), abrasion, pleating and H2S;Biogas container is light in weight, lower weight pressure on tank body than steel tank top; Lower pressure of independent gas container on base, civil work investment can be decreased. No freezing problem in winter and can realize non-break operation.







Membrane specifications:



Type	Weight (g/m2)	Thickness (mm)	Tensile strength (N/5cm)	Fire-protection standard	Suitable temperature (°C)
Inner membrane	800-1500	0.8-1.5	3000-7000	DIN4102 B1	-30 ~ 70
Outer membrane	800-4500	0.8-1.5	3000-7000	DIN4102 B1	-30 ~ 70
Bottom membrane	800-1500	0.8-1.5	3000-7000	DIN4102 B1	-30 ~ 70

















Basic Configuration of AMOCO Double Membrane Gasholder :







1. Main material: Biogas special-used membrane material is made of highly tear-resistant polyester fabrics and generally it can be divided into inner membrane and outer membrane. Detailed information, please contact us.

2. Gas in and out system: standard pipeline

3. Boost pump: make to order

4. Observation window: standard stainless steel

5. Probing system: make to order

6. Auto-control system: make to order

7. Alarming system: make to order

8. Display system: make to order

9. Security: safe by water seal and electric decompression

10. Functional tank: different kinds of metal materials

11. Different kinds of pipe lines, valves and sealing

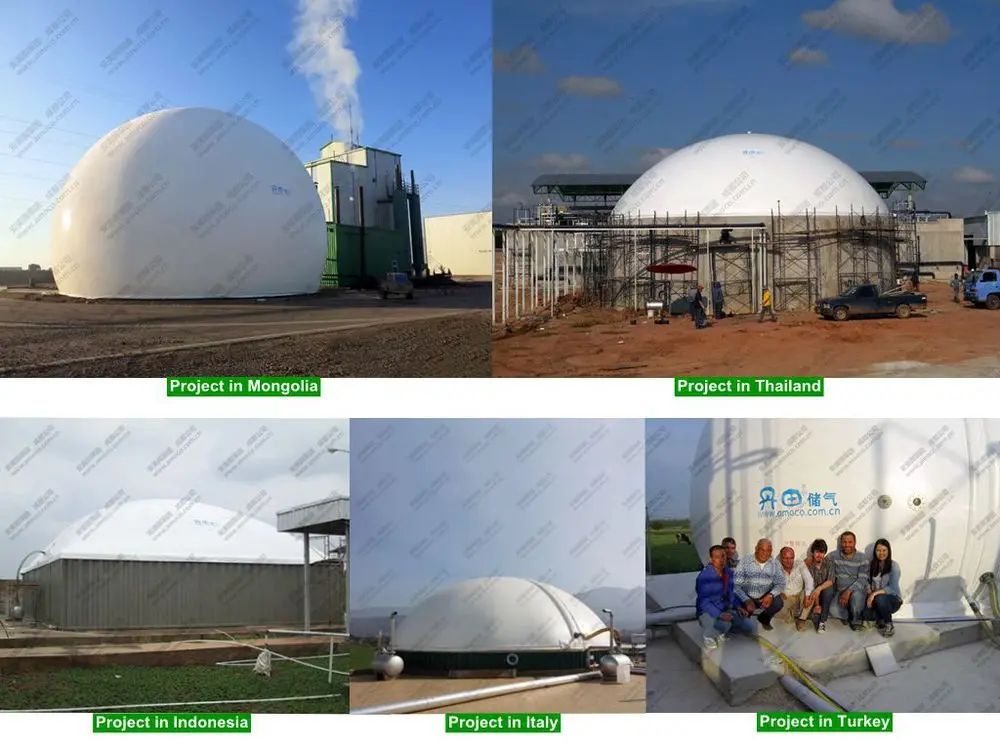

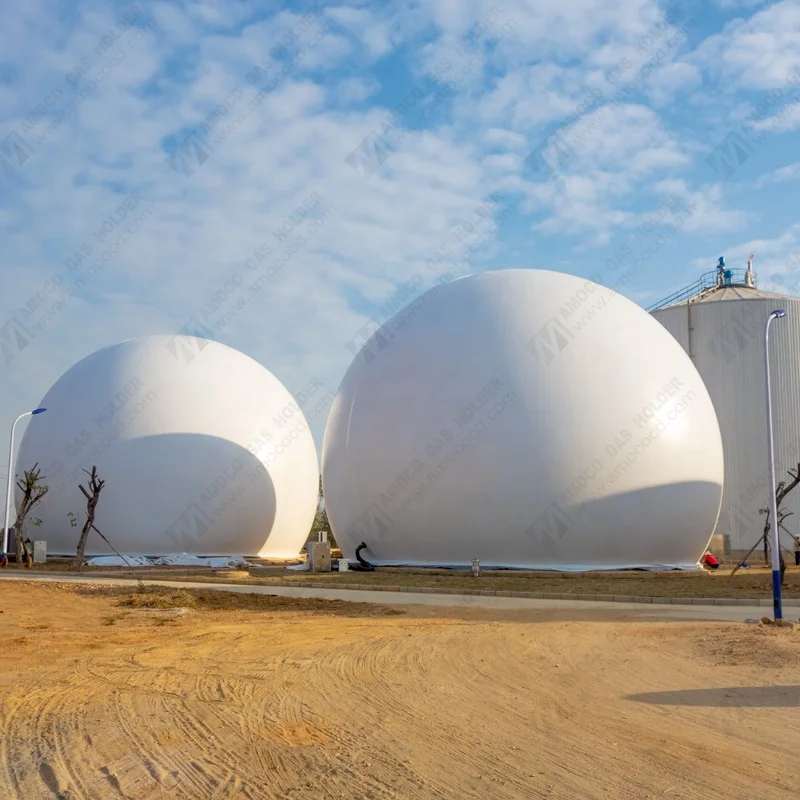

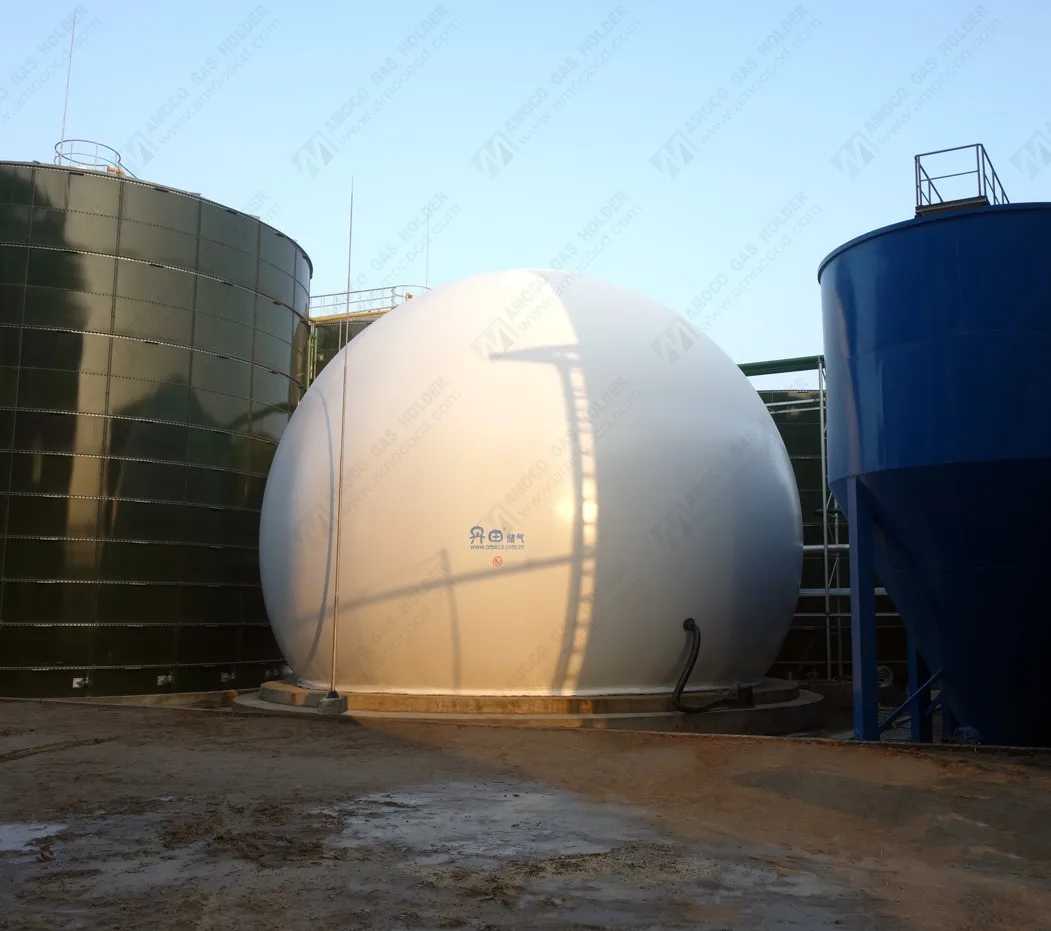

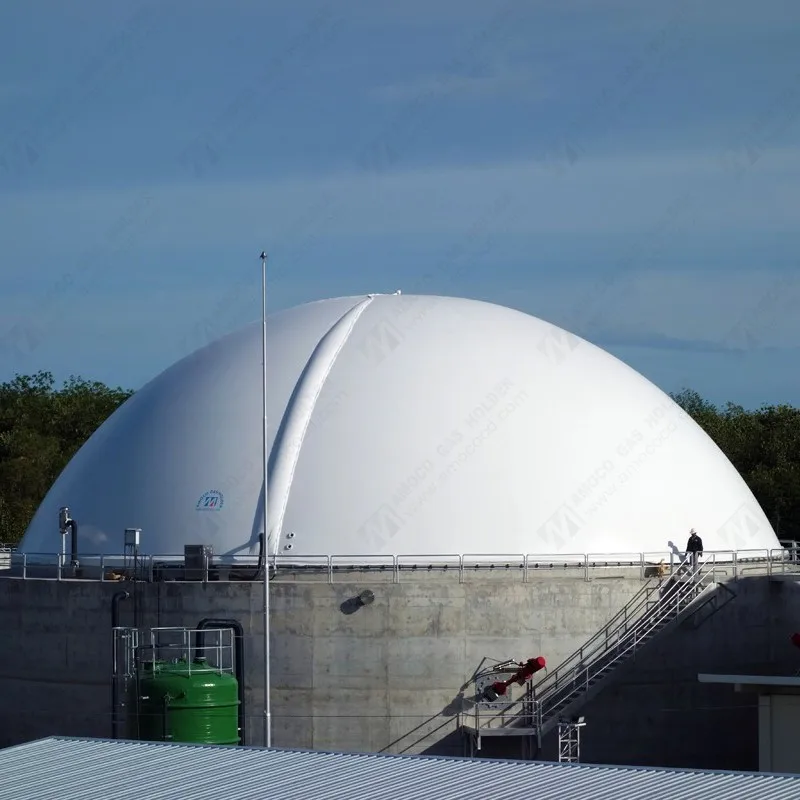

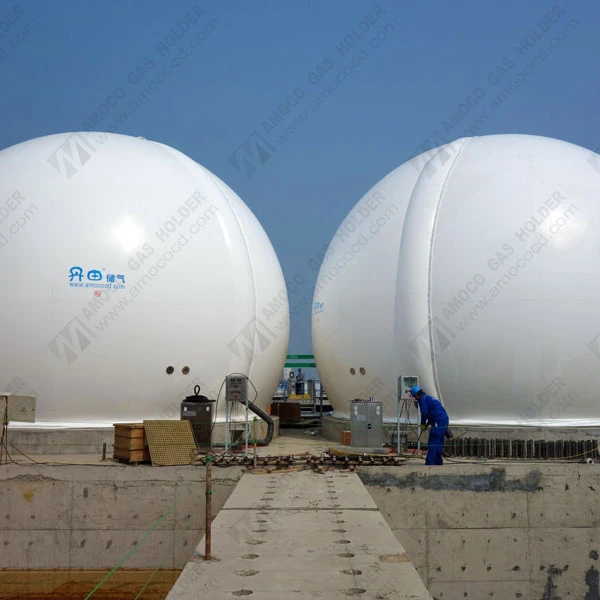

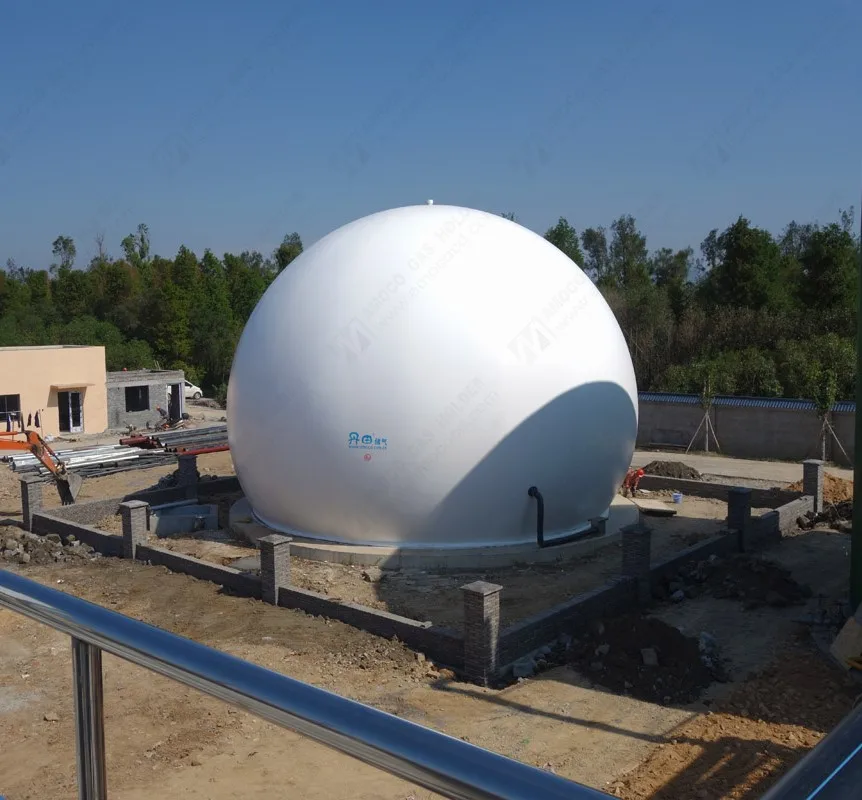

AMOCO Overseas Double Membrane Gasholder Projects Glance:

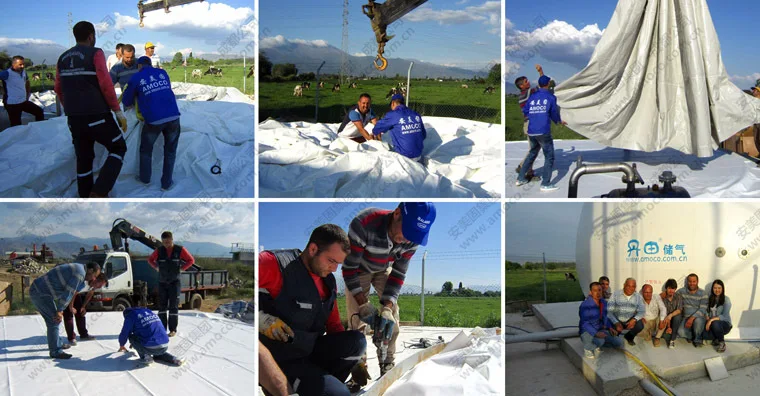

AMOCO Double Membrane Gasholder Installation Process:





















AMOCO Double Membrane Gasholder transportation:

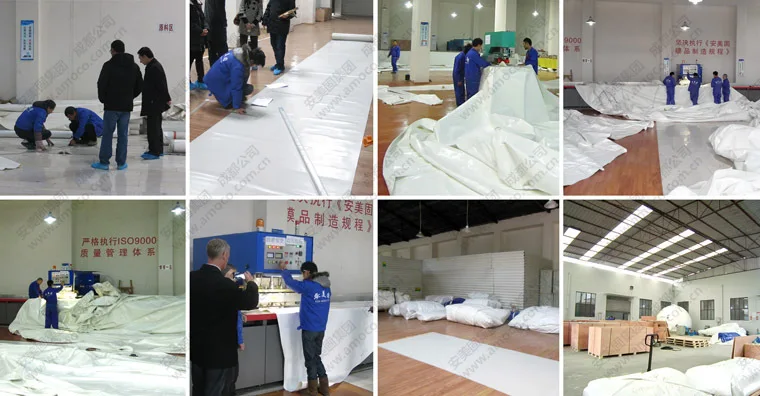

Amoco Factory Show:



















AMOCO Customers Visit:















AMOCO Certificates:























Q1: WHAT IS THE FUNCTION OF MEMBRANE GASHOLDER ?

Biogas produced in the digester is collected in our gas storage sphere to ensure a continuous supply of gas.







Q2: WHAT IS THE CAPACITY /VOLUME RANGE OF MEMBRANE GASHOLDER WE SUPPLY?



From 50 cubic meters to 100,00 cubic meters customized according to the project.

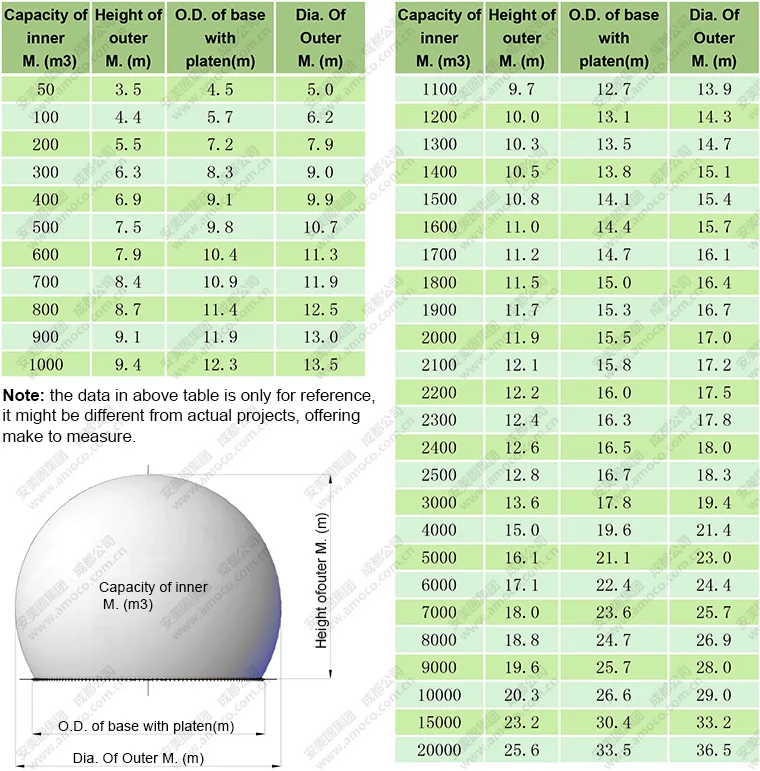

Q3: WHAT IS THE REGULAR SIZE OF AMOCO GASHOLDER ?



Please refer to the form below. The data is only for reference, it might be different from actual projects.

Any details, please contact us.













Q4:  HOW ABOUT MEMBRANE GASHOLDER INSTALLATION?



We provide free installation guidance and gas storage equipment operation training on site.







Q5:   WHAT IS THE WARRANTY OF AMOCO MEMBRANE GASHOLDER ?



For the membrane, we have 10 years warranty. For the gas storage equipment, the warranty time is 12 months. In the warranty time, if any problem, we will take charge of the shipping cost and replacement. The warranty is under standardized operation (improper operation is not included).







Q6:  WHY CHOOSE AMOCO ?





 ♦  Direct exporter : Manufacturer with import and export license -- Fast, safe;

 ♦  Pioneer of China membrane products industry, with 15 years' experience of membrane;

 ♦  Organizer of China membrane products' standard (JG/T 395-2012);

 ♦  Authentication by CE for the whole system, verified by China Quality and Technical Supervision;

 ♦  Pioneer to enter international market, sold to all over China and other 16 countries in Asia, Europe, South America

   and Africa;

 ♦  Multiple choices for membrane gas storage system, electric control system and pressure operating system;

 ♦  Membrane joint technology with at least 5 processes, guarantee of resistance to strongly tear and gas leakage;

 ♦  Detailed and standard service for pre-sales, sales and after-sale.







Q7:   HOW TO CONTACT US ?





























WELCOME YOUR INQUIRY .
