Fabric inspection machine for diameter

Product Overview

Description

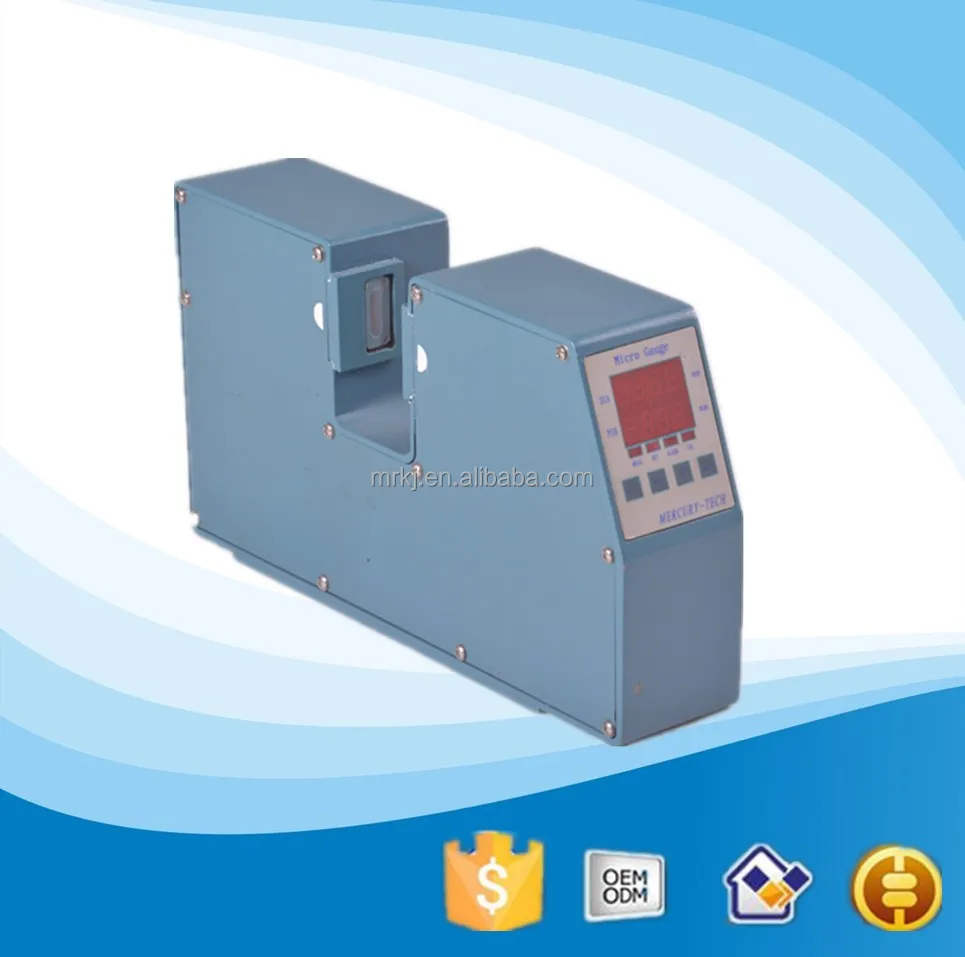

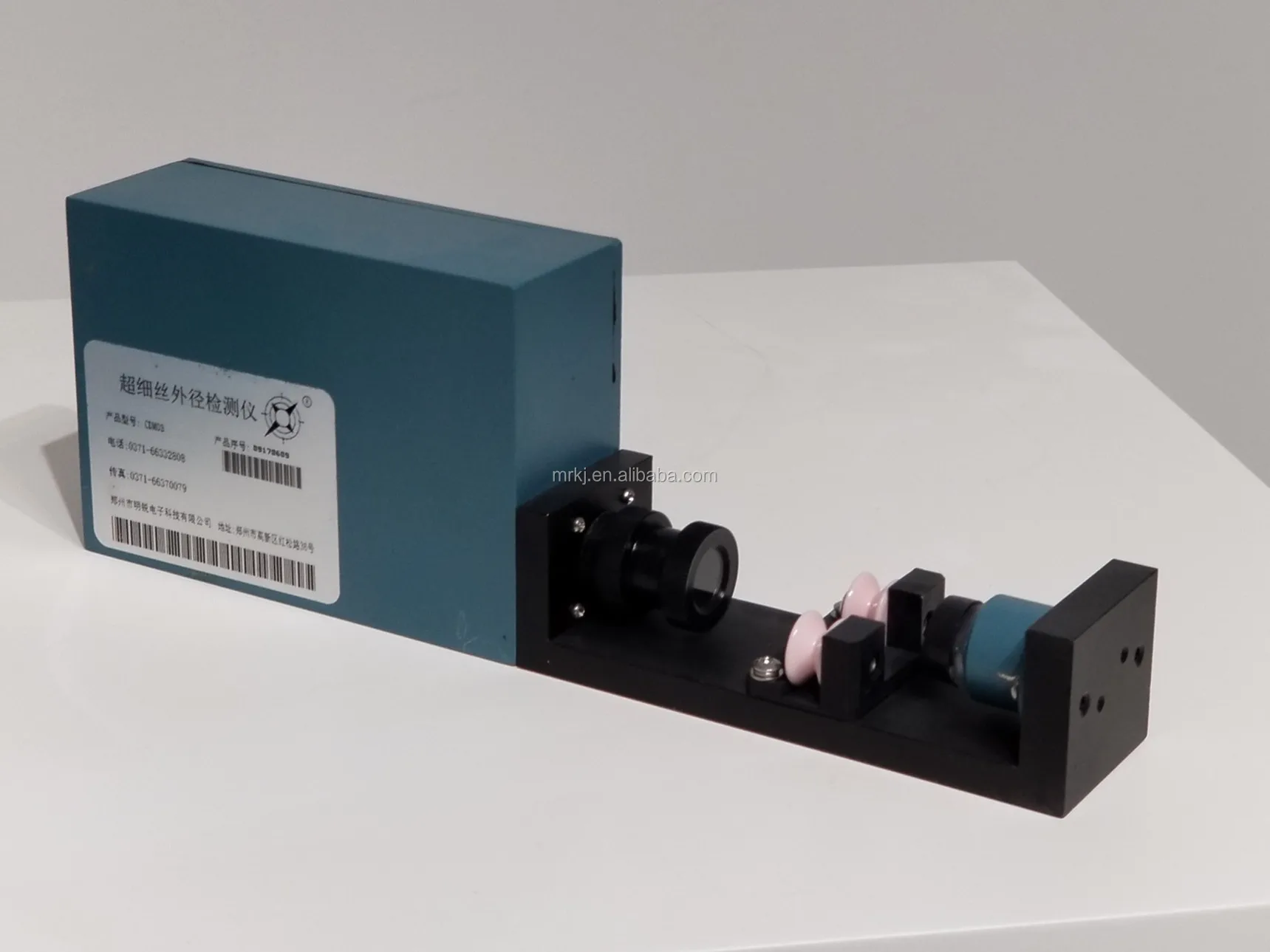

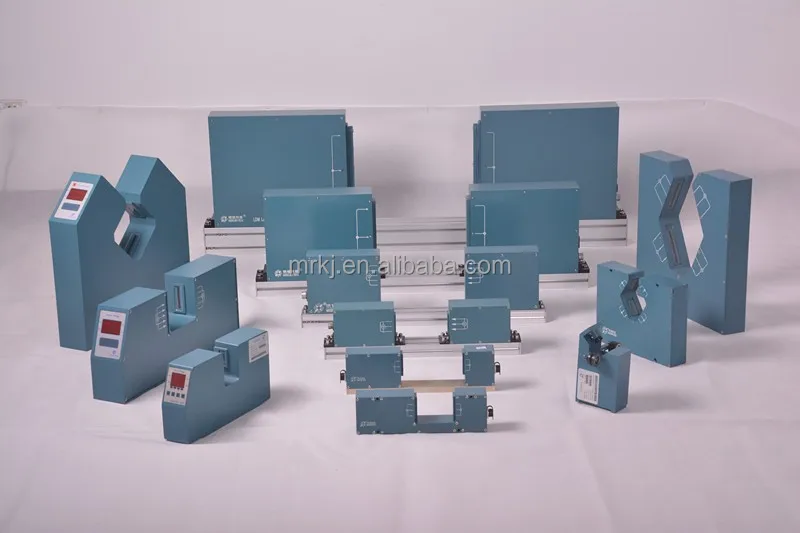

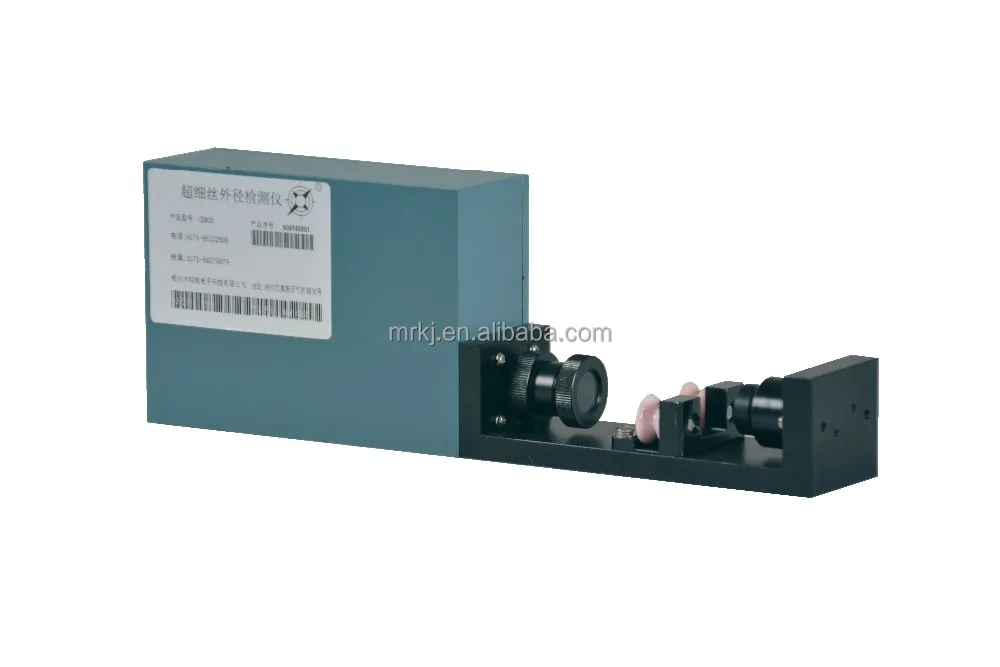

Fabric inspection machine is the high-accuracy survey installment that uses the CCD scan to carry on the no-contacts on-line survey. Green-Ray Technology makes it just hand size.



Applicable to metal sick, optical fiber , etc with the measurement and control. Green Ray  CCD measurement  can simultaneously show the silk and fiber's  diameter, roundness.



2. Technical parameters

    Model       Measuring Range    Differentiation             Accuracy

CDM-03      0.01-2mm                  0.001           ±0.02%×(Reading)±0.001mm















3. The performance indicators:
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W

Dimensions:

Measuring head: 372mm×360mm×60mm



4. The Device with the following Characteristics

1. Can be connected PLC, industrial computer.

2. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.

3. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.
