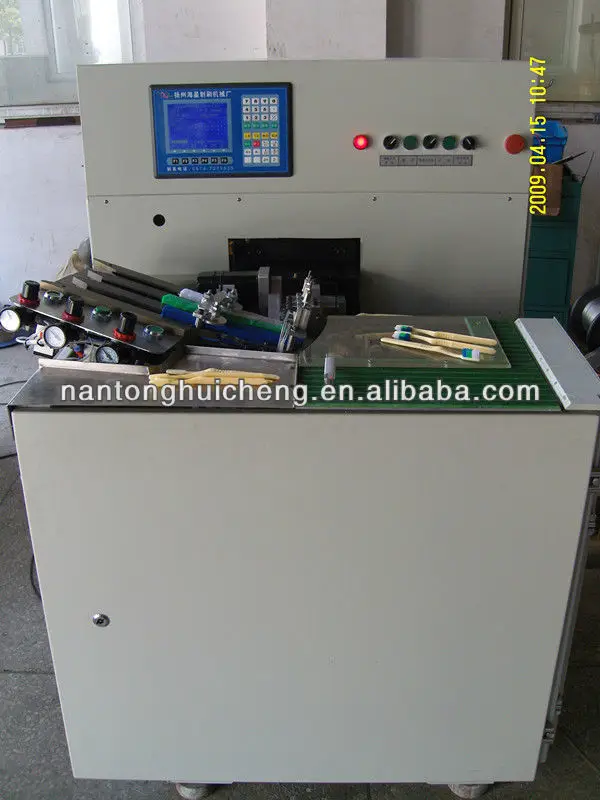

toothbrush making machine

Product Overview

Description



  toothbrush making machine can make product







Product Description

Bored with two drilling head and two planting head, high-speed processing, high efficiency.
PLC Control System, Chineseor English display, simple to understand.
Wearing parts and spare parts are standardized designs.
Models can be stored: 40 (expandable).
Power Supply: Three-phase 380V 2.5KW.
Input methods: Handheld encoder or keyboard input.
Chinese or English display, menu-driven operation, time saving.

Features

1 Automatic scanning hole coordinates

2 Automatic tracking

3 The system is stable and reliable, adapt to different environments

4 Precise positioning, easy to operate

5 The closed-loop system, strong anti-jamming capability

6 low noise, stable performance, easy to operate

7 Transfer speed can reach more than 700-800 rev/min.

Machine introduction:

Description	Unit	Parameter
Max Speed	Holes/min	750
Maximum brush holes	Holes/Piece	≤100 thousand
Hole diameter	mm	1.5-2.8
Spindle quantity	Piece	2+2
Journey X axis	mm	48
Journey Y axis	mm	25
Maximum program quantity	Piece	2000
Air pressure	Mpa	0.6-0.8
Power voltage, frequency	V, Hz	220,50
Machine power	KW	3
Contour size	mm	1400×1250×1250
Weight	KG	750



Machine Technical Parameter:

Control system	CNC Controller
Disturbance Display	Chinese or English edition
Safety protection	Overload, short circuit protection
Lubrication	Auto Lubrication System
Main Speed Control	Frequency Inverter
Fiber box	Two Colors Box



Warranty period and after sales:

One year. In the warranty period, if there are some troubles with the machines the manufacturer should send engineers to repair or replace the parts freely (expect for easy broken parts). But you need pay the come and back tickets.

About after sales we have whole life repair this machine, but you need pay the cost (ticket, hotel, food).

Technology for installation

According to the demand of buyer, our factory sends the engineers to guide to install and debug. But the charge in the buyer’s site and the traveling should be paid by buyer (including the cost of living, the round-trip ticket etc...)
