6 color non woven flexo bag printing machine

Share on (576380864):


Price:RUB 75,818.00

Quantity:


Product Overview

Description

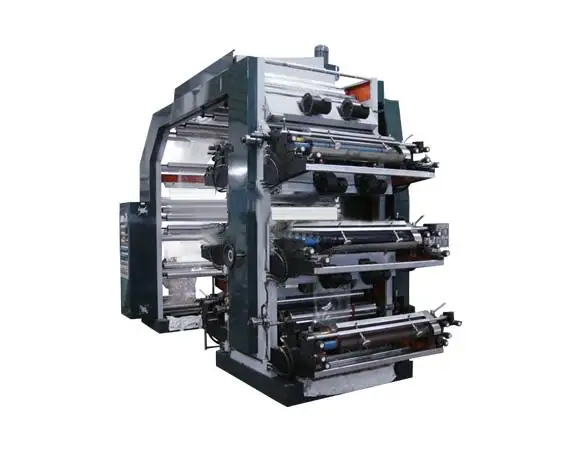

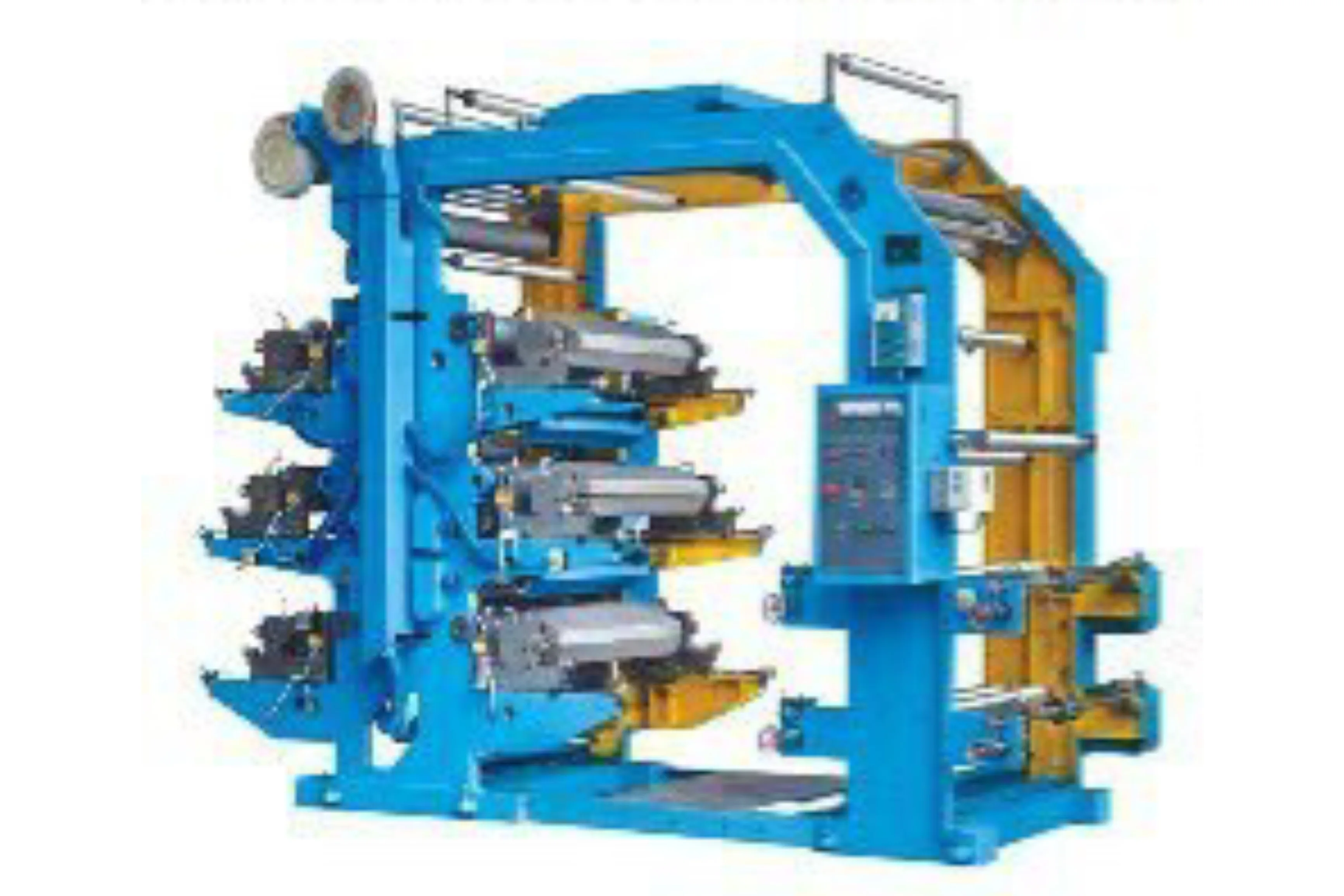

6 color non woven flexo bag printing machine




Performance and Features:

1.  The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5.360°continuous and adjustable longitudinal register device.
6. The frequency control of motor speed adapts to different printing speeds.



Main Technical  Variables:



Model of Machine

XK-6600

XK-6800

XK-61000

Max.Width of Printing Material

600mm

800mm

1000mm

Max.Printing With

560mm

760mm

960mm

Length Range of Printed Product

191-914mm

191-914mm

191-914mm

Max.Diameter of Roll Material

450mm

450mm

450mm

Printing Speed

5100m/min

5100m/min

5100m/min

Thickness of plate(Including Two-sides Glue Paper)

2.38mm

2.38mm

2.38mm

Total Power

13kw

15kw

18kw

Weight of Machine

3500kg

4200kg

5000kg

Overall Dimensions

5000*1660*2950mm

5000*1860*2950mm

5000*2060*2950mm



Sample Pictures:

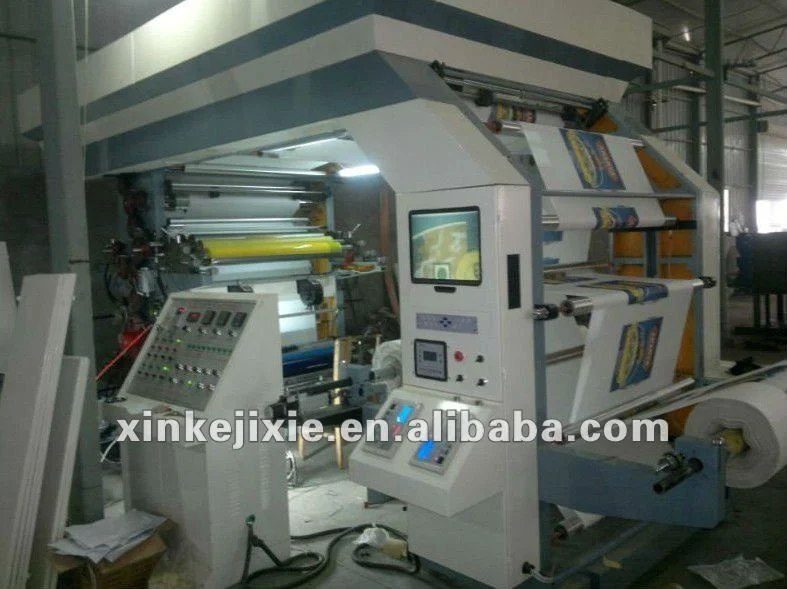

Factory Appearance:




Certification:

machine CE certificate.JPG



Packaging & Shipping:




Please contact us, I'll be glad to serve you.
