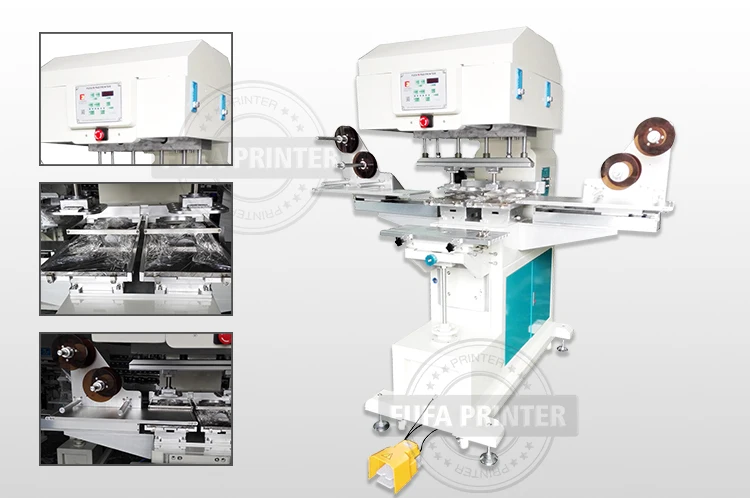

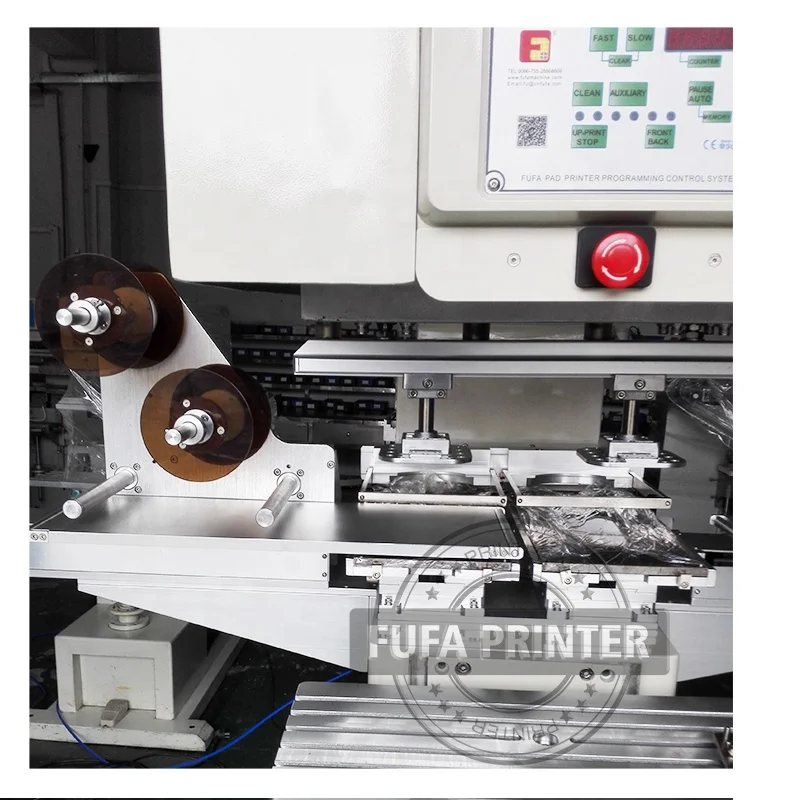

Economy 2 Color Ink Cup Tampo Printing Machine with Shuttle Working table / auto cleaning pads
- Category: >>>
- Supplier: Shenzhen Fu Fa Printer Industry Co. Ltd.
Share on (576570667):
Product Overview
Description
Commodify Name : Economy 2Color Ink Cup Tampo Printing Machine with Shuttle Working table
Product Description
Parameter
| PLATE SIZE | 200x400mm |
| INK CUP SIZE | 190mm |
| SPEED | 1300 PCS/HR |
| POWER | 220V / 50HZ 60V |
| AIR PRESSURE | 5-6BAR 200w |
| WEIGHT | 400KGS |
| MACHINE SIZE | 1500*1100*1850mm |
| Max print size | 170x170mm |
Feature :

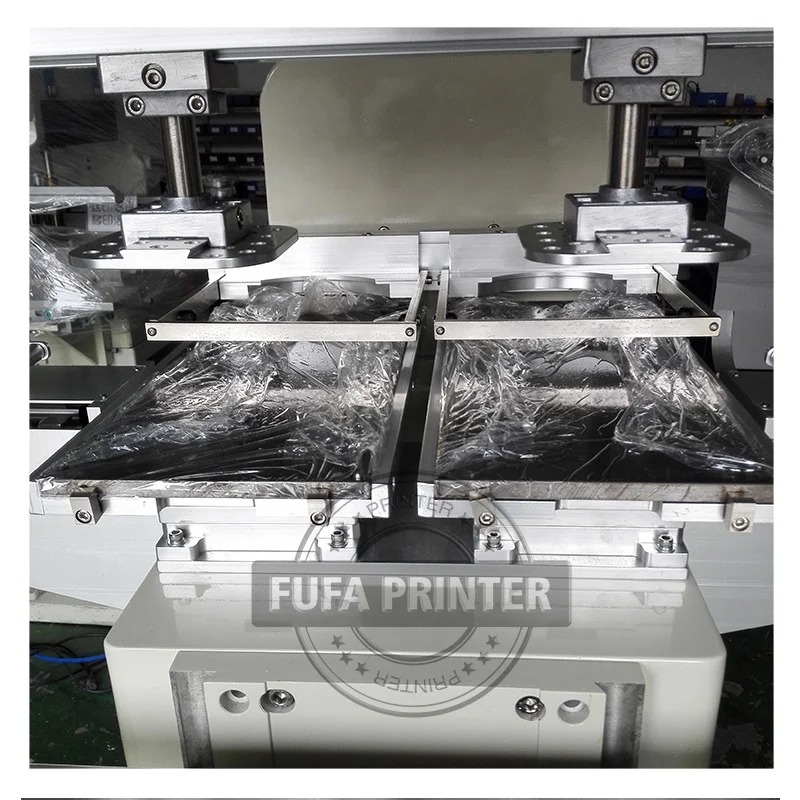

1. Two colors pad printer with shuttle / closed ink cup / 200mm big ink cup available

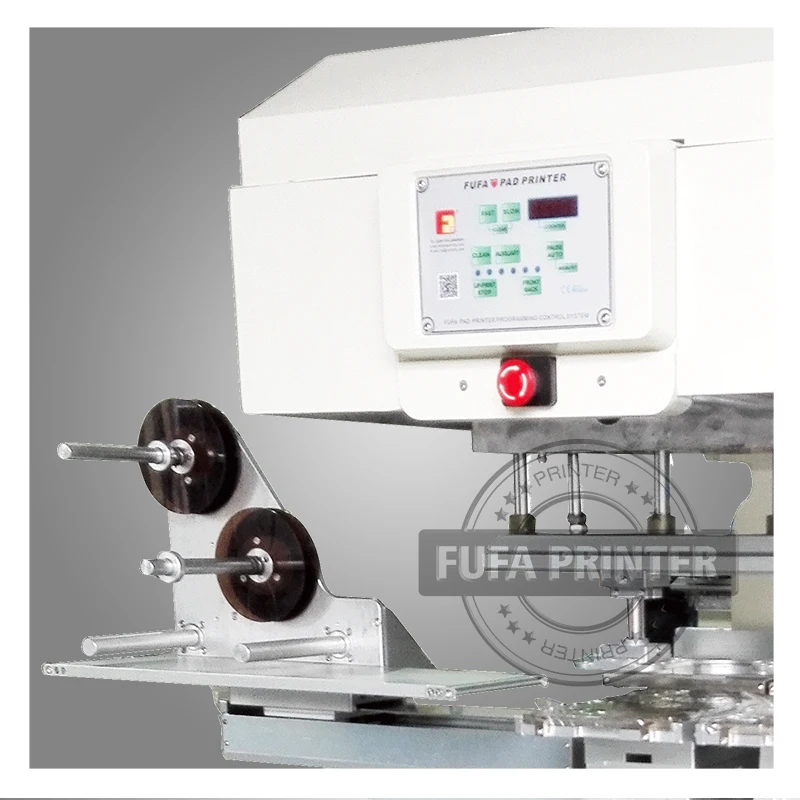

2. Touch screen control , easy operating
3. Automatic system for pad cleaning, good printing quality
4. With CE approved
5. Panasonic servo motor control , touch screen operating
6. High quality aluminum alloy is used to make structure solid and weight light;
7. Ink is applied by ink roller which is easy to remove and clean
8. Independent pad up/down stroke and speed adjustment
9.Sealed ink cup dia 200mm ( RJ-05 shape)
10. When work finished, no need to remove the ink and clean the ink cup
More option for you ( PLC control /Hot dry /Auto loading /Auto clean pads /Safety guard )

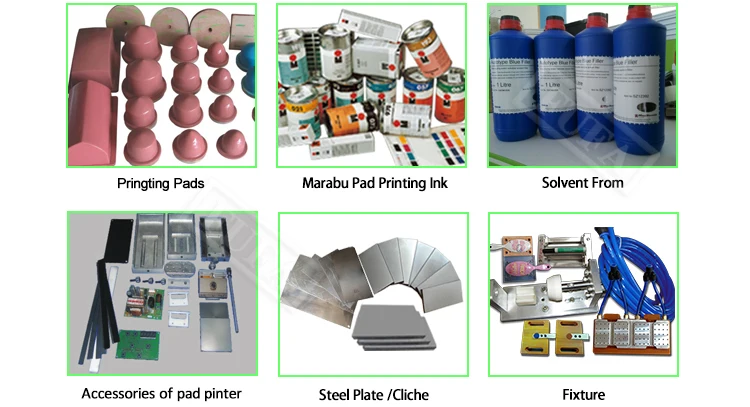

One -stop service for you . also we can supply parts and consumbles
Packaging & Shipping
27 years exported experience to ensure safety arrive at your factory ( solid standard exported plywood case)
Our Services
24 hous online to serve you
Company Information
FUFA Industry Co.,Ltd was built in 1992 ,Professional on intelligent & automatic printing equipment ,Which have more than 27 years manufacturing experience ,We can supply standard and customized pad printer , screen printing machine . hot stamping machine .Mimaki UV printer etc
EXHIBITIONS --FUFA FACTORY
The machine with CE , ISO 9001, SGS ,CO etc . Ensure the quality of machine
FAQ
1. What is the pad printing process
Pad printing ,also called cliche printing ,uses silicone rubber pads transfer ink from the printing plate on the item
2. To finish pad printing product , Which spare part we need

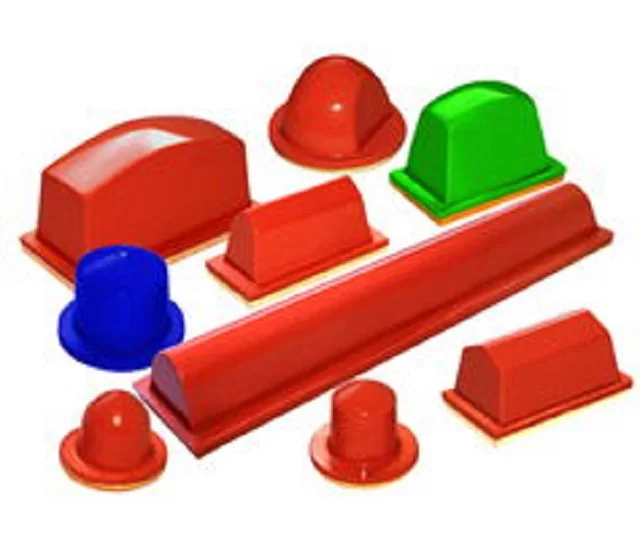

To finish the printing , we need the ink and thinner ,pad(tampon),jig and cliche with logo
3.How to place order to your company?
Kindly send inquiry with the details product via alibaba or email ID to us
The skill sale will supply the profession guidance
4, Can I need to buy some parts for stock
We used SMC made in Japan pneumatic parts on machine . you can easy find it in local if need ,But we suggest you buy some easy damaged parts ,such as sensor ,PCB and power board etc
5. Can you make the sample to test the machine before order ?
Yes,we can print your sample with our current logo and ink If make the sample as you need . we will charge parts cost only ,Will re back it after you buy the machine
6. Can you supply the training ?
Yes , we can will supply the free training and make a video for you
7. What is the delivery time?
Standard machine : in stock and 4-8 days after confirm the order
Customized machine : According to exact product calculate
8. What is your after service ?
Details operation manual +Video support
1 year warranty
Lifelong technical supports
