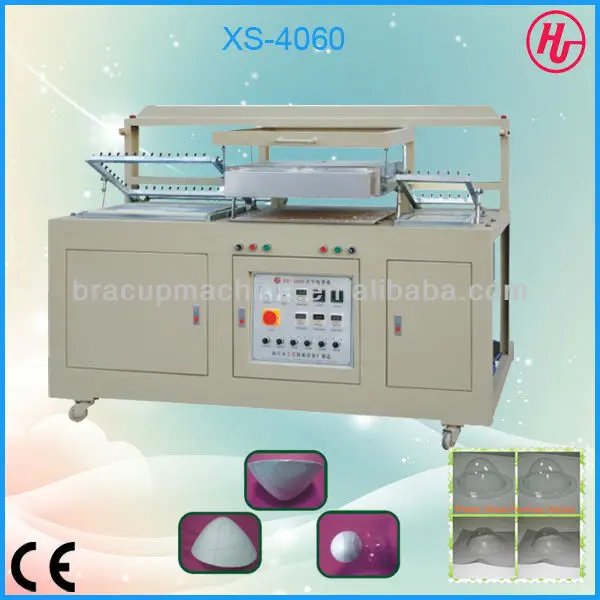

XS 4060 Plastic Shots Vacuum Forming Machine For Bra Cups

Product Overview

Description







Functions:

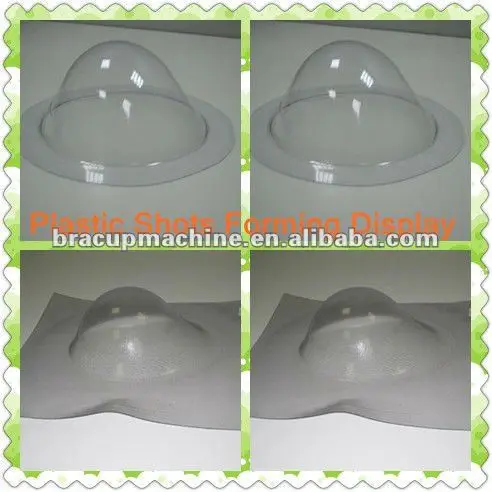

To mold plastic cup of different sizes

To be used as bra cup holder

To stabilize the shapes of bra cup

For easy measurement of bra size



Features:

1. This machine is the latest vacuum forming machine which is developed according to the thickness and molding depth of PVC cups with the diameter range between 224mm to 530mm.



2. The production of this machine has been paid great attention to its technology improvement and it has been equipped with advanced program control operating system.



3. Both clamping devices and heating furnace has been adopted auto and manual bi-directional regulating system and the embedded ceramic infrared parts to enhance the thermoforming effect.



4. Between its clamping devices, this machine has been equipped with multi temp-controllers.



Technical parameter:

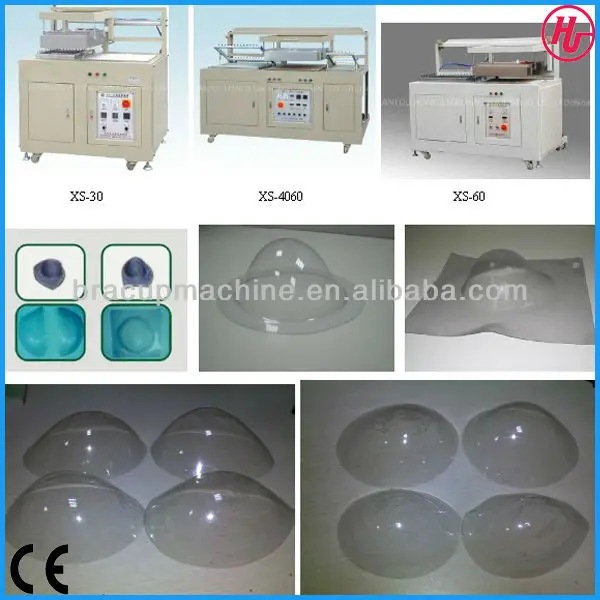

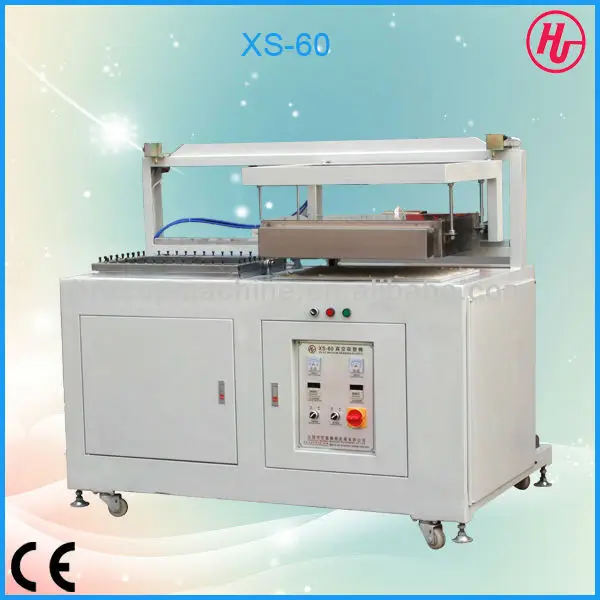

Model Mo	XS-30	XS-4060	XS-60
Power supply/Power	220V/4KW	220V/7.5KW	220V/7.5KW
Size of the moulding table(mm)	290 × 290	290mm×246mm 540mm×340mm	540mm×340mm
Size of the machine(mm)L*W*H	1100mm×710mm×1200mm	1900mm×825mm×1700mm	1575mm×1020mm×1265mm
working principle	vacuum forming
applicable raw materials	PVC materials / plastic shots / plastic sheets
applicable scope	vacuum forming /suction molding plastic shots / plastic cup
weight	220KG	300KG	300KG
