Bus air conditioner fans are all available for brushless motors, which have been widely used for air conditioner evaporator system
.
1) KLNF251/ 251F Parameters
.
Available for both blowing and Suction type
a) Voltage: 24V
b) Current: 10A
c) Static pressure: 100Pa
d) Air flow: 2200m3/h
Bus cooling axial fan used for YUTONG KINGLONG buses

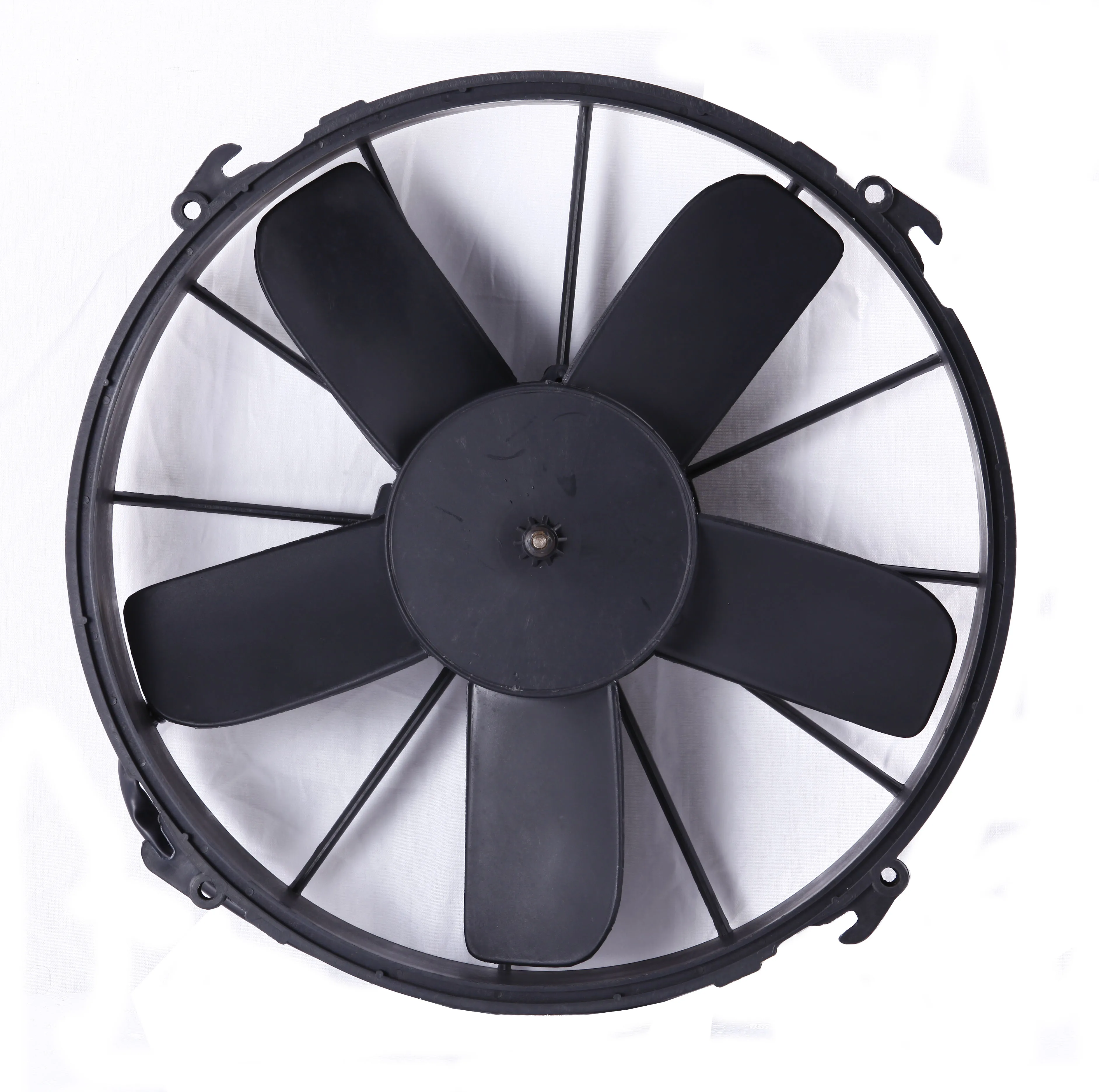

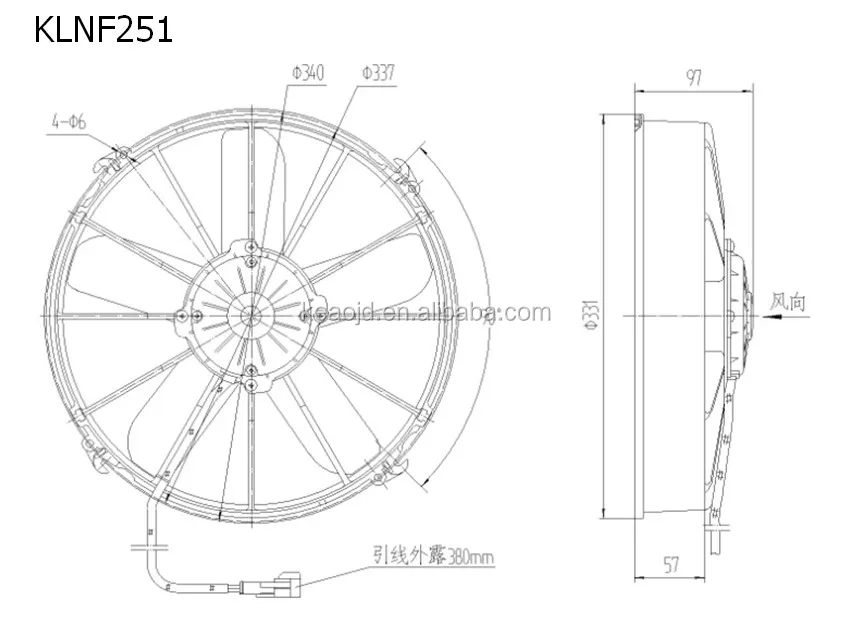

KLNF251 | |
Name | Condenser Fan |
Place of Origin | Guangdong, China |
Voltage | DC24V |
Current | ≤10A |
Speed | ≥3200±150rpm |
Static pressure | 100pa |
Air Flow | 2200m3/h |
Direction of air | Push/blowing |
Warranty | 13 months |
Life Time | ≥6000 hrs |
Packing | 4 pcs/carton |





.
Blowing type is same as SPAL VA01-BP70/LL-36S
Suction type is same as SPAL VA01-BP70/L-36A
.
Same as SPAL bus air conditioner condenser fans series
.
For further information , please don't hesitate to contact us.thank you .
