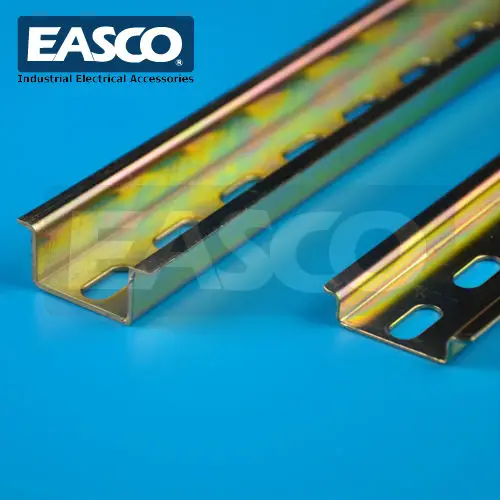

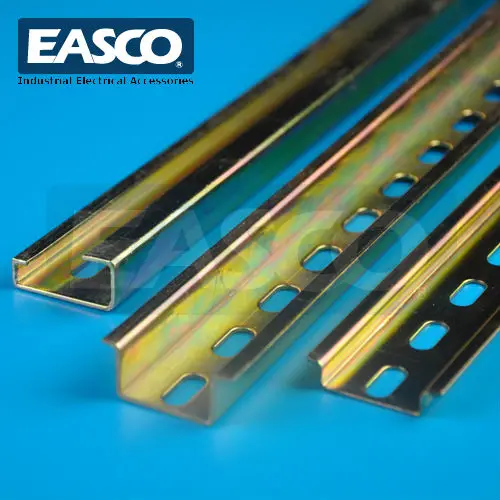

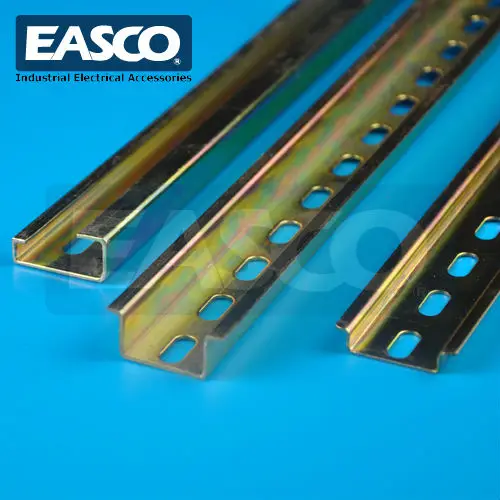

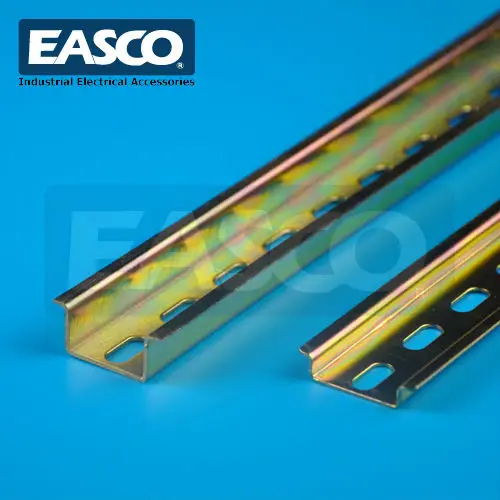

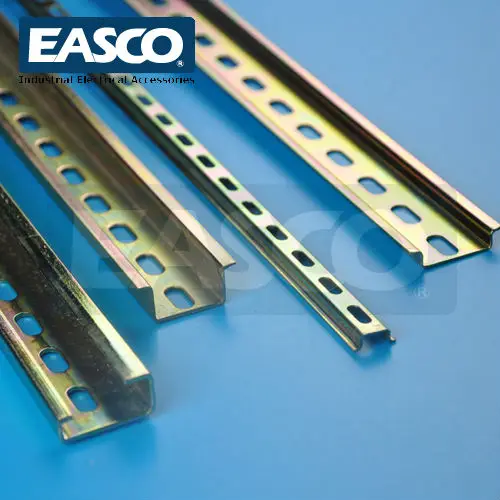

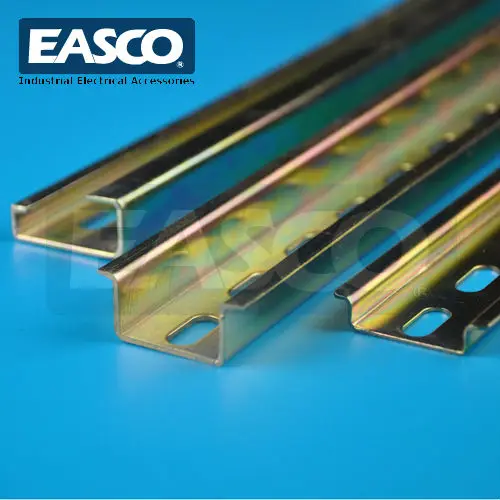

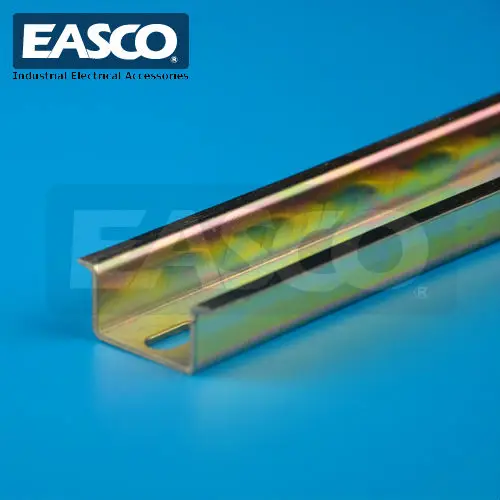

Electrical Din Rails
- Category: >>>
- Supplier: Shanghai Pudong Yuqiao Plastics Co. Ltd. [Shang China]Shanghai
Share on (577716962):
Product Overview
Description
FEATURES:
1)Steel design Din Rail
2)Zinc plating Din Rail
3)Available with 1 or 2 Meters Length.
4)Electrolitically plated according to 2002/95 EC RoHS Directive
5)No Markings On Rail
| Material | Part No. | W | H | Thickness | Length | M/Pack | G.W. | N.W. | Meas. |
| Steel | OT35/7.5/1.0 | 35 | 7.5 | 1.0 | 1M | 50M | 17kg | 16.50kg | 0.01m³ |
| OT35/7.5/1.0 | 35 | 7.5 | 1.0 | 2M | 100M | 33kg | 32kg | 0.02m³ | |
| OT35/15/1.5 | 35 | 15 | 1.5 | 1M | 30M | 21kg | 20.50kg | 0.01m³ | |
| OT35/1.5/1.5 | 35 | 15 | 1.5 | 2M | 60M | 42kg | 41kg | 0.02m³ | |
| GT32/15/1.5 | 32 | 15 | 1.5 | 1M | 30M | 21kg | 20.50kg | 0.01m³ | |
| Aluminum | OL35/7.5/1.5 | 35 | 7.5 | 1.5 | 1M | 100M | 19kg | 18.50kg | 0.02m³ |
| OL35/7.5/1.1 | 35 | 7.5 | 1.1 | 2M | 100M | 16kg | 15.50kg | 0.02m³ | |
| GL32/15/1.5 | 32 | 15 | 1.5 | 1M | 60M | 12kg | 11.50kg | 0.02m³ |
Pictures of EASCO Wiring Accessories Plant:
EASCO, founded in 1993, is a manufacturer with core competencies in the fields of wire & cable management in China.
EASCOprovides solutions to wire & cable management in the fields of industrial electrical accessories, our product categories: wiring duct made of rigid self-extinguishing PVC material and hardness lead-free PVC material, flexible conduit, nylon tie, wrapping band, electrical din rail, cable clip, cable clamp, cable gland, cable connector, bushing, cable marking, terminal, and wiring accessories. To meet the needs of users worldwide, Easco complies with the international Quality Standard Management ISO9001 as well as Environmental management ISO14001, with more products certified by UL, CE, RoHS, REACH, etc.
