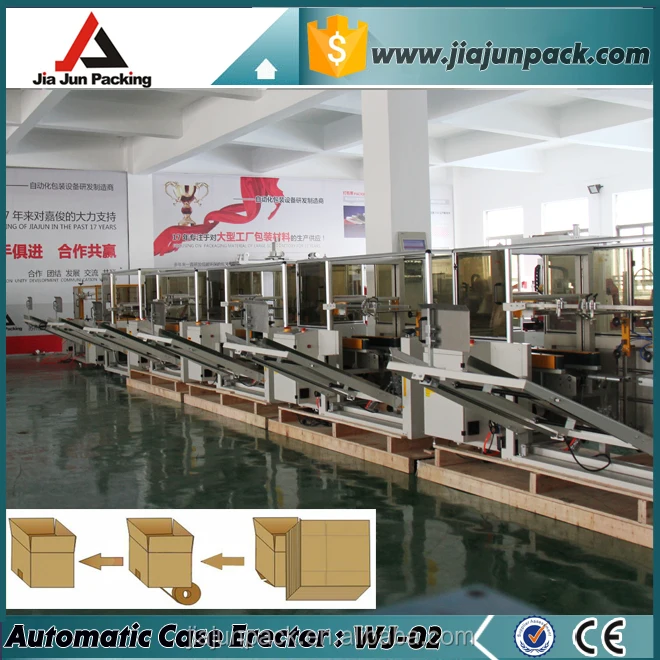

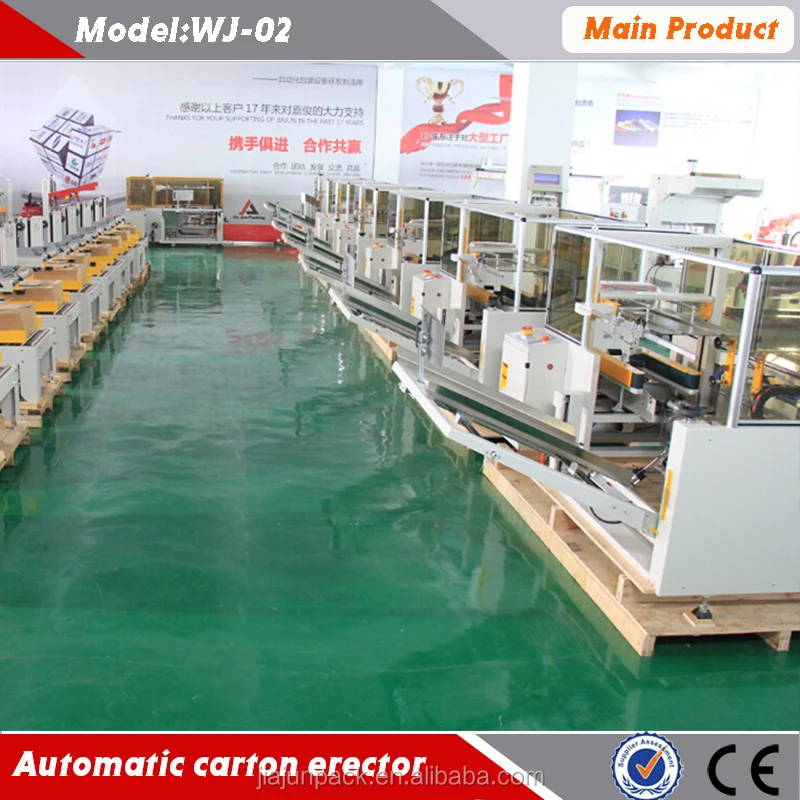

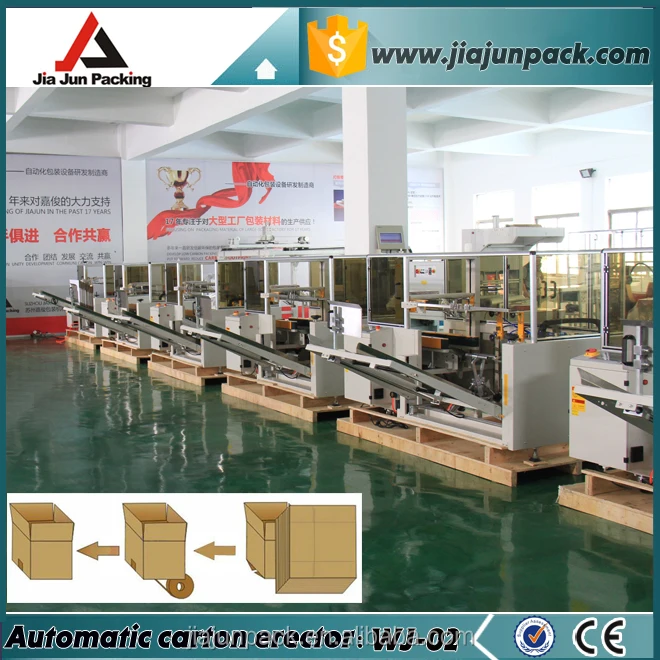

Automatic carton erector can complete the process of carton erecting, vertical forming, bottom flaps folding and bottom tape sealing automatically according to programs.
SPECIFICATIONS FOR AUTOMATIC CARTON ERECTOR
Model
WJ-02
Maximum working speed
10-12 ctn/min
Carton Length
200-450mm
Carton Width
150-400mm
Carton Height
120-350mm
Output height
600mm
Motor
0.4KW
Put Tape
Manual
Tape specification
48/60/75mm(alternative)
frame Color
White
Tape cutter
High speed steel
Pneumatic
5kg/cm3
Storage quantity
100 carton
Control Type
PLC
Lack carton Alarm system
Have
Operation panel
Touch screen
Machine Weight
350KG
Machine Size
L:2000mm W:1950mm H:1440mm
Language
According to customer requirments
Voltage
220V/110V/50HZ 1 P
HS Code
84224000
Main Features
High efficiency, high speed, easy size changeover, stable and safe in operation, reliable in performance, etc. 1 Vertical storage, cartons can be added at any time without stopping the machine; 2 Suitable for forming and sealing cartons of the same size. 3Manually adjust to change the carton sizes(finishing in 2-3minutes); 4Advanced photoelectricity induction control system 5Rationally designed, the forming, folding and sealing process are accomplished simultaneously; 6 Cutter Safety system to prevent hands form stabbed by the cutter,Heavy duty built, both steel and stainless steel types
Certifications
Detailed Images
Touch Screen
Brand: Siemens
Original: Germany
Control panel is Simens touch screen,Germany brand,more stable and low failure rate.
Electrical parts
Siemens PLC,Schneider switch and Omron relay,all electrical parts are top brands,you don't worry about the quanlity.
Machine Parts
Germany FESTO Sucker
Japan SMC Vacuum generator
Germany Leuze photoelectricity
Taiwan Shako cylinder
Japan SMC air filter.
Machine core.
On the basis of the introduction of foreign technology to design more stable equipment sealing machine, let the tape completely flat on the carton sealing position. High strength carbon steel have been assembled, more durable than traditional machine core institutions, more efficient!
Cutting Blade.
Blade material is high speed steel,Warning color blade protection cover for your safety operation.
Our Service
We have exhibitions in many countries ,we want to find a partner who is professional in packing machine ,we let our partner provide service for the end user. If you are end user ,we can support you to install machine by video, and if you are distributor ,we can support you to learn the machine ,and let you serve your customer much better .More details please contact us !
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
2 (L) * 1.2 (W) * 1.6 (D)
Weight
350kg
Packaging Details
1 set machine packed in one wooden box. Total volume:3.84 cbm Size:2x1.2x1.6m Gross weight:350KG
FAQ
How to adjust the machine's table height?
You can adjust table height by the machine foot,the table height is 600-750mm.
How to adjust the machine to fit diffrent size boxes?
There are some handles on the machine,you can adjust it by these handles.
How to adjust for storage boxes?
You can adjust these parts like the picture shows,width and height.
