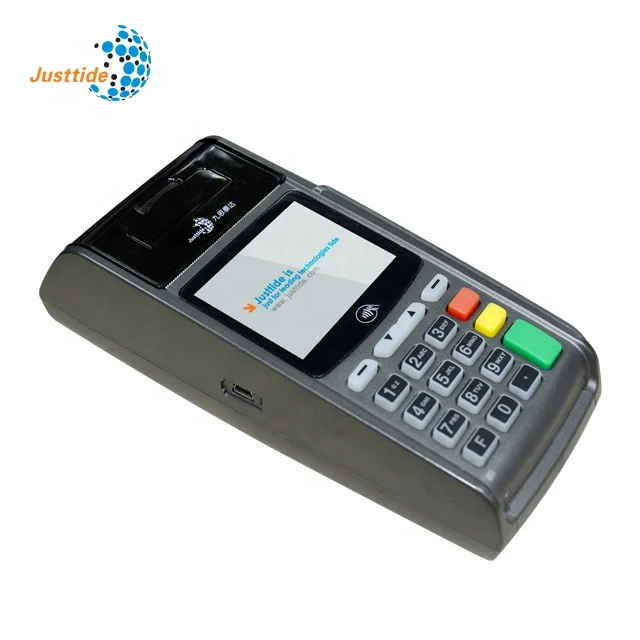

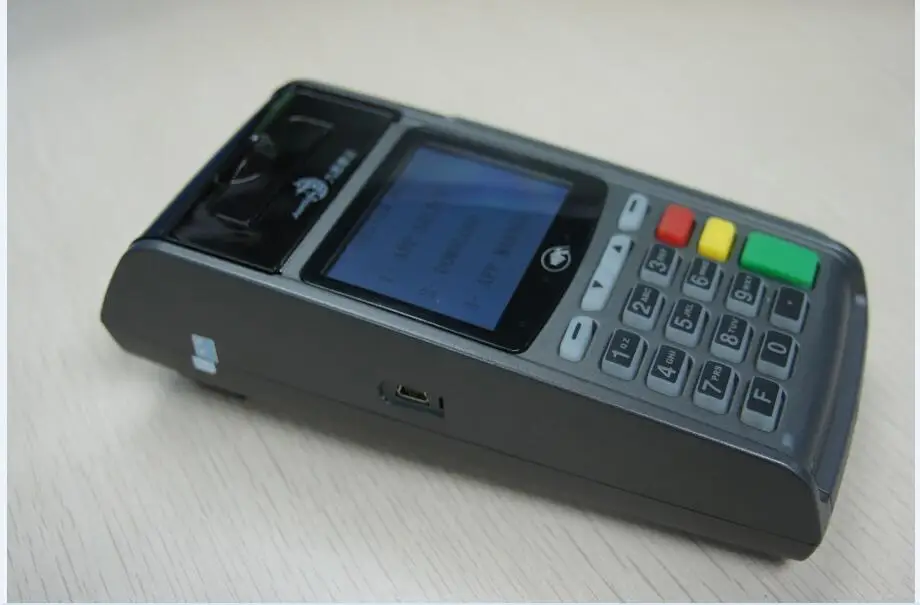

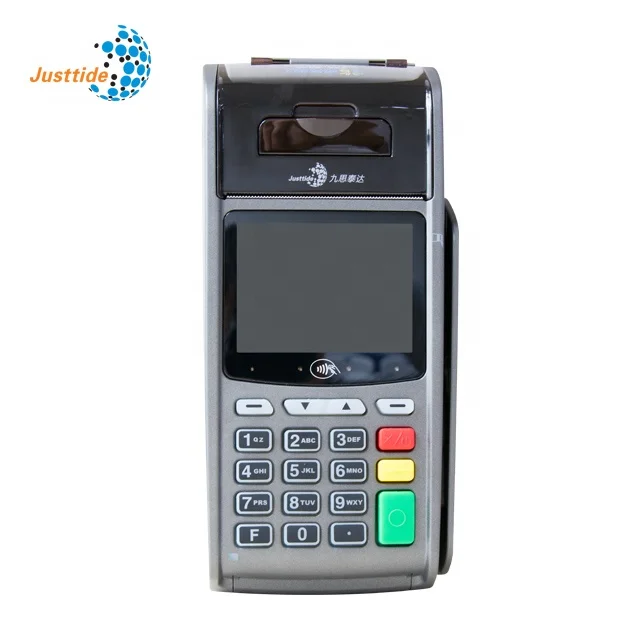

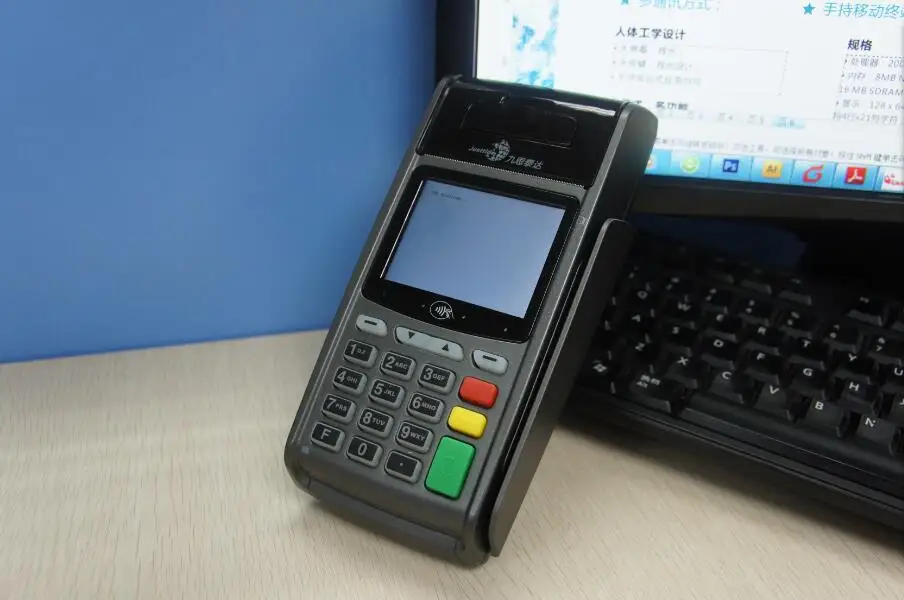

Wireless POS with PCI pinpad (PCI 3.0 pin pad)

Product Overview

Description

• It supports GPRS/CDMA, Ethernet LAN,  dial up Modem
• High speed thermal printing
• Large memory size
• MSR, chip card, contactless IC card supported
• For merchants, lottery, ticketig, restaurant, parking lot...



The high performance All-in -one touch POS terminal – Just M3000 is designed to meet a wide range of requirements where both high performance and reliability are required. It supports most of today’s payment requirements: magnetic card/IC smart card read/write (both contact and contactless). It builds in 3DES & RSA Algorithm, M/S & DUKPT Key Management to enhance security. Besides all standard POS functions, the M3000 features GPRS/GSM, CDMA, LAN, Wifi and Modem networking capability. Also, provide many value-added options such as built-in card readers, external fingerprint reader/1D, 2D barcode reader support, external writing pad for signature authentication… for easy integration into many industries. The memory size is expandable for multi-programs.



POS Technical Characteristics

• Microprocessor: ARM9 32bit
• Memory: SDRAM 16MB, Flash 8MB, Can be expanded to 64M Flash, 128M SDRAM
• Contact smart card: ISO7816 (EMV Level I,II)
• Contactless smart card: ISO14443 type A/B 13.56MHz
• Magnetic card: ISO 7812, Track1/2/3, bidirectional swipe
• Communication: GSM/GPRS module,900/1800MHz (CDMA, WIFI, dial-up modem optional)
• 3xPSAM slot, 1 Sim slot
• Backlit graphic screen: 128x64pixels, LED backlight, 16-grade gray
• Keypad:18 silicone key, dust proof

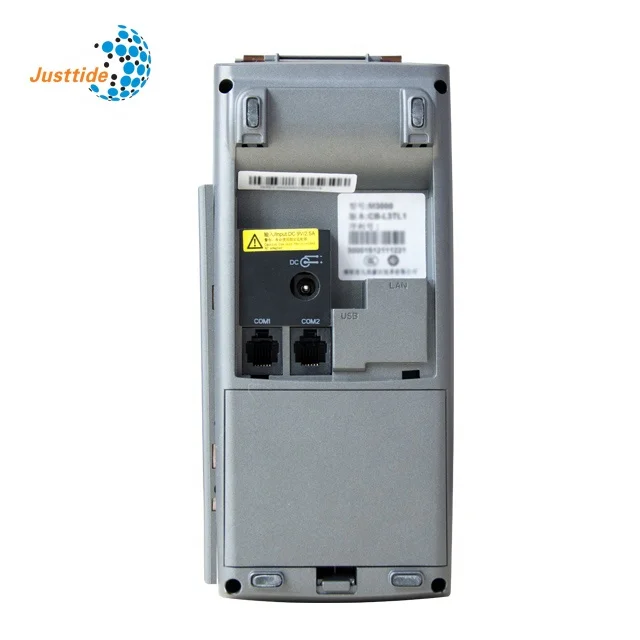

• Port: 2 RS232, 1 PSTN (RJ11 56kbps Modem),1 Ethernet (10/100  BaseT), 1 USB Host
• Base printer: High-speed thermal printer, width 58mm, roll ø40mm
• Development tool: SDK based on C language
• Handheld Weight: 200g
• Dimensions:200*87*56mm(L*W*H)
•  Input: 100-240VAC, 50Hz/60Hz
•  Output  9VDC, 4A
• Interface: RS232 (customizable)
