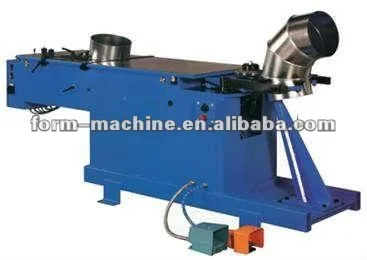

aluminium pipe elbow making machine factory

Product Overview

Description

  aluminium pipe elbow making machine factory

Scope and feature:

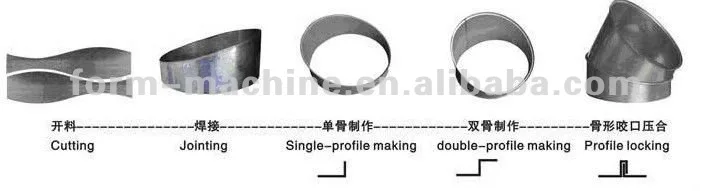

The Machine can manufacture male and female seam,have 3 function.Operate convenient and high quality forming.

 1. Dual working station.

2. Flexibility-eliminates equipment's changing over and reduces tool's changing.

3. Higher production speed.

4. Higher capacity.

5. Improved seam's quality.

pipe elbow machine steel galvanization aluminium machine

Power	380V/3PH/50Hz
Total power	1.5-3KW
Hydraulic oil	55 L
Maximum forming speed	120m/min
Diameter	125-1250mm
Net weight	750kg
Material	(Thickness ) mm
General Steel Galvanized sheet Stainless steel Aluminum	0.4-1.2 0.4-1.2 0.4-1.0 0.4-1.2
Weight	750kg
Dimensions	1400*800*900
