1) Totally open impeller, high efficency, light in weight, small axial force, and the life the driving component.
2) It is easy to maintain and the chance for blocking is very little. And it can transmit media with a certain
volume of gas.
3) The impeller was precision cast. tested with Class G6.3 dynamic balance, it can run smoothly.
Material List:
Material Code
(G)
(P)
(N)
(F)
(K)
Pump Case & Cover
Ductile Iron
Ductile Iron
Abrasion-Resistant Steel
SS304
SS316
Impeller
S304
Abrasion-Resistant Steel
Abrasion-Resistant Steel
Duplex SS
Duplex SS
Lining Board
Abrasion-Resistant Steel
Abrasion-Resistant Steel
Abrasion-Resistant Steel
SS304
SS316
Shaft
SS 3CR13
SS 3CR13
SS 3CR13
SS 3CR13
SS304
Shaft Sleeve
SS304
SS304
SS304
SS304
SS316
Bearing Body
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Cast Iron

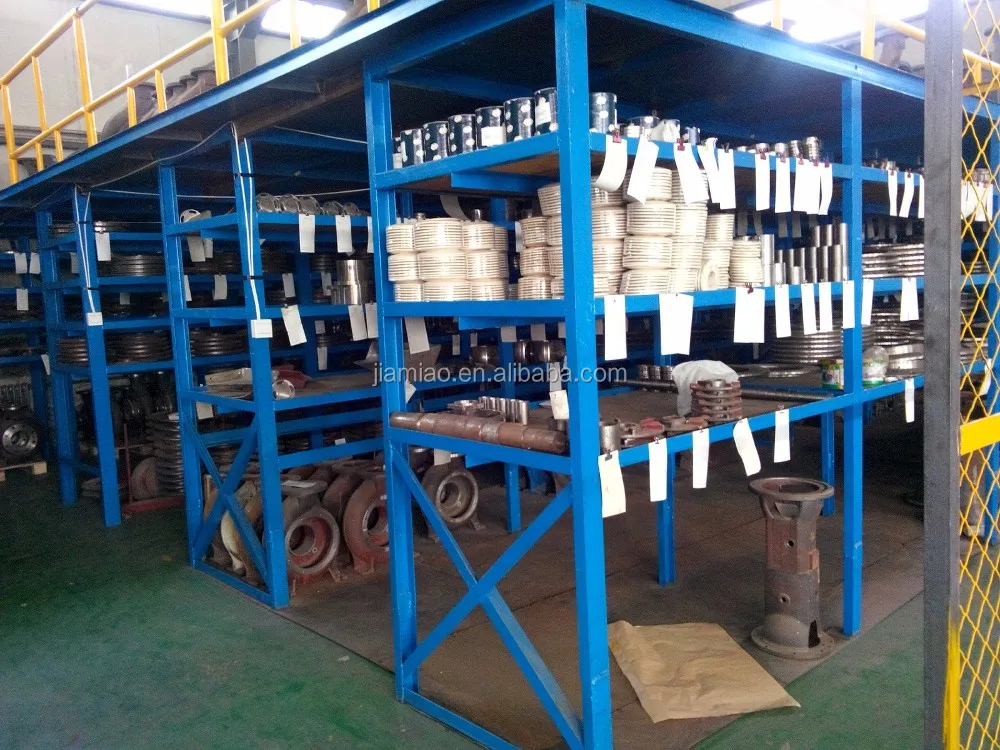

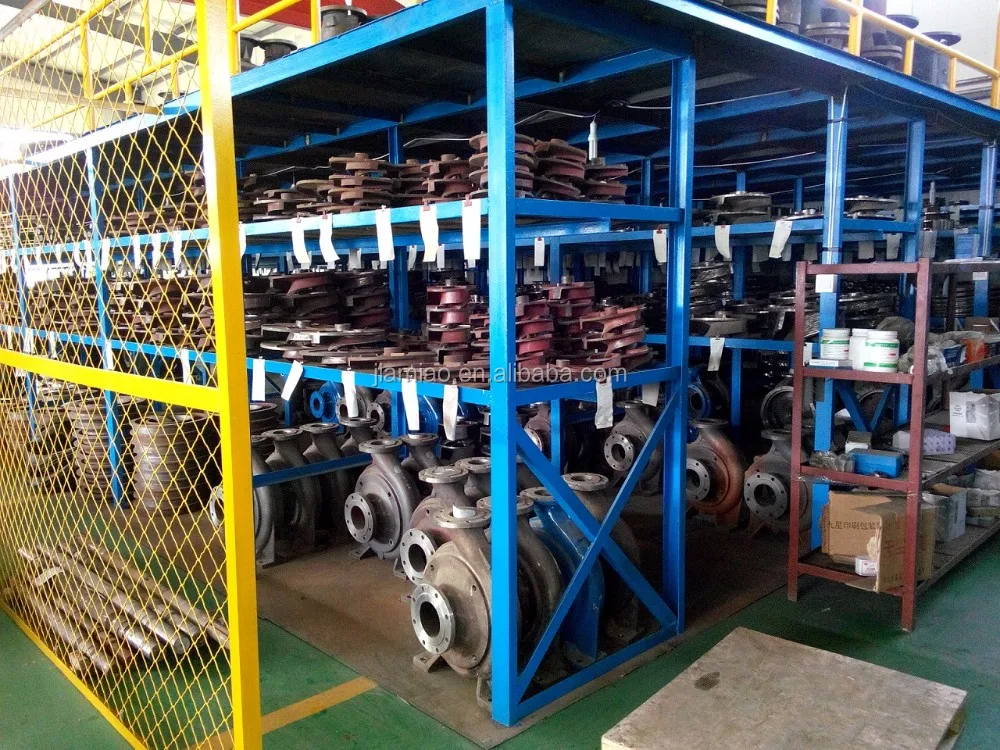

Pump Spare Parts Stock:

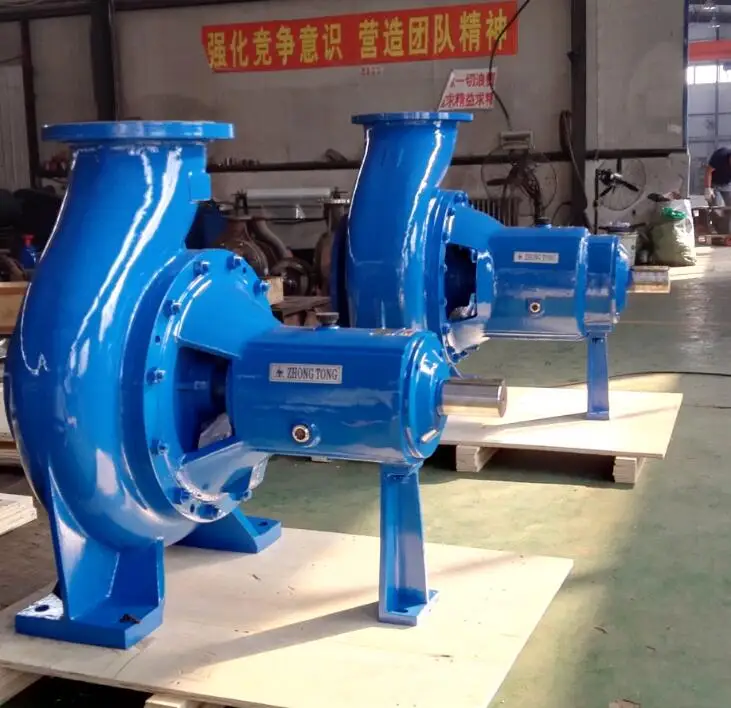

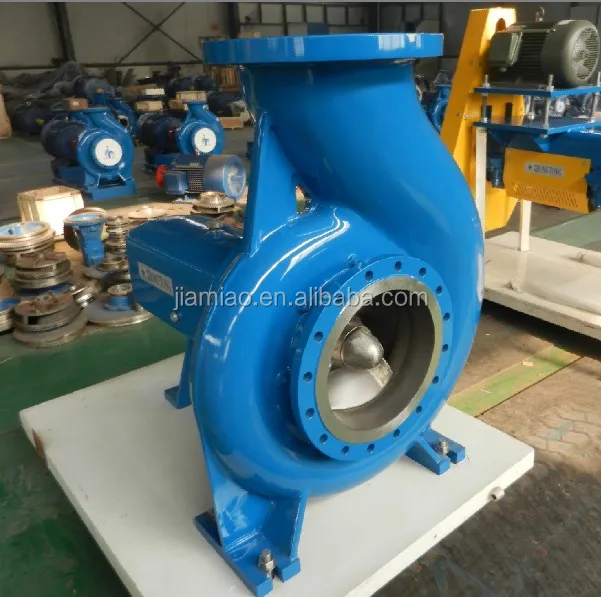

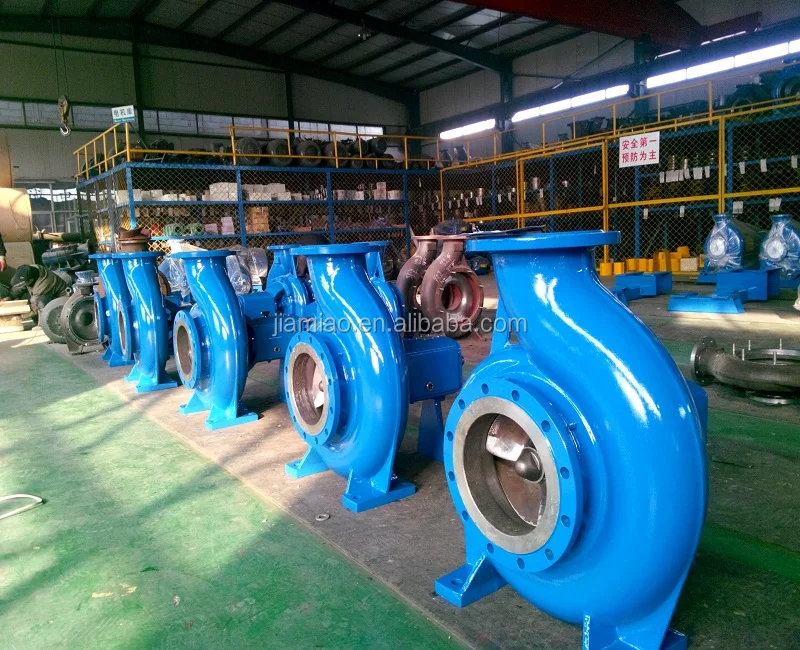

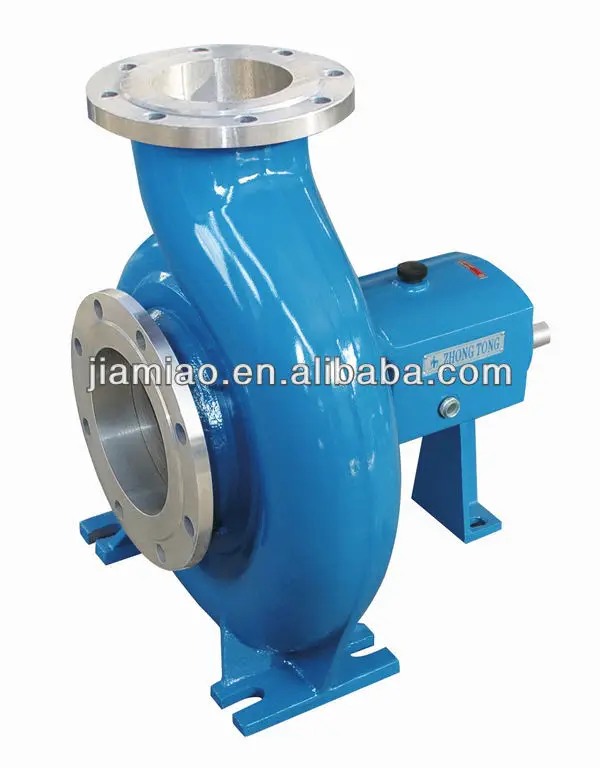

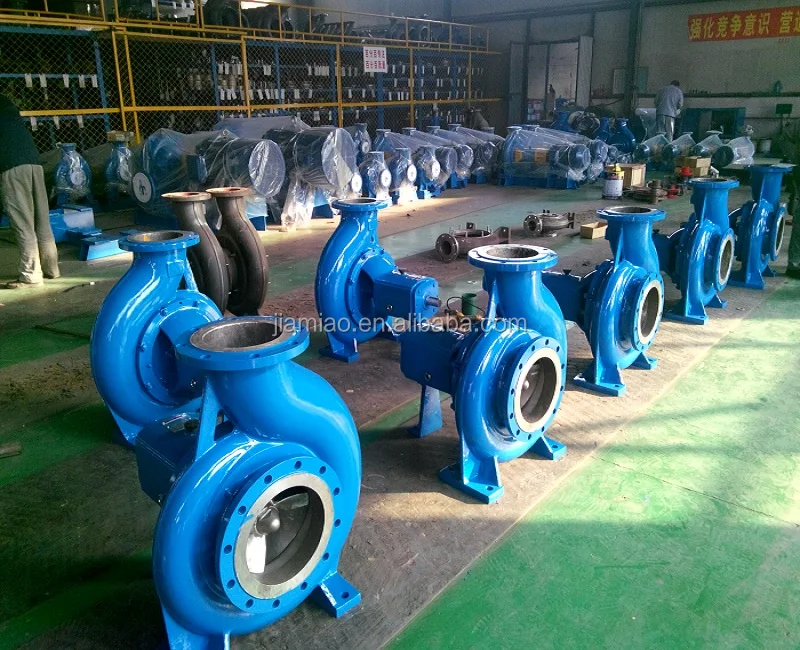

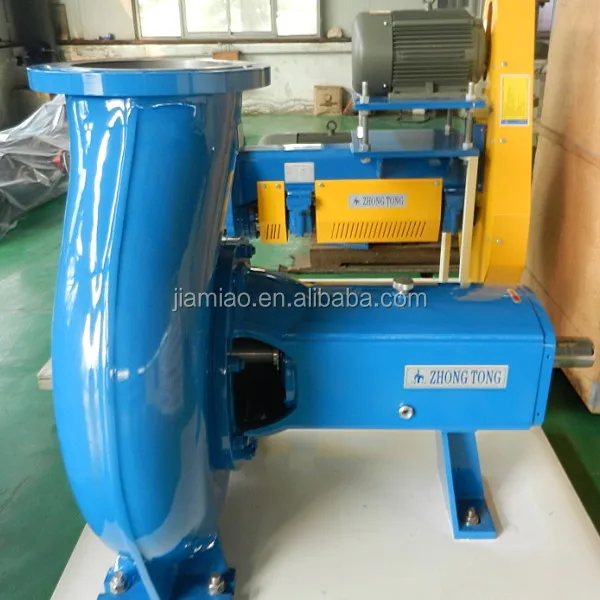

Product Picture:
Packaging & Shipping
Standard Fumigation-free export packaging.
Our Services
Our factory has been committed to the production of pulp pumps for 20 years, with professional R&D technical team and after-sales team to serve new and old customers.
Company Information
Established in 1996, fixed assets 50 million 127 employee, capacity of yearly production 4000 sets domestic and aboard, specialized in producing pulp/stock pump for papermaking industry and doing research and development and familiar with the papermaking processing and rich experience.
FAQ
Q: How about delivery time?
A:1. It is about 3-7 working days if products are in stocks. 2. If product are out of stock,The delivery time depends on the quantity. Q: Could you provide samples? A: Yes, of course. We will send samples to you against advance deposit, but the price of samplepump and the freight charge is paied by your side. Q: How about product problem solution? A: We have a professional technical team to serve you. Pump spare parts that cannot be repaired during the warranty period can be replaced free of charge.
