spal electric cooling fans thermoking Kinglong auto bus parts 12V and 24V 12inch fan carrier condenser fan from China factory

Product Overview

Description

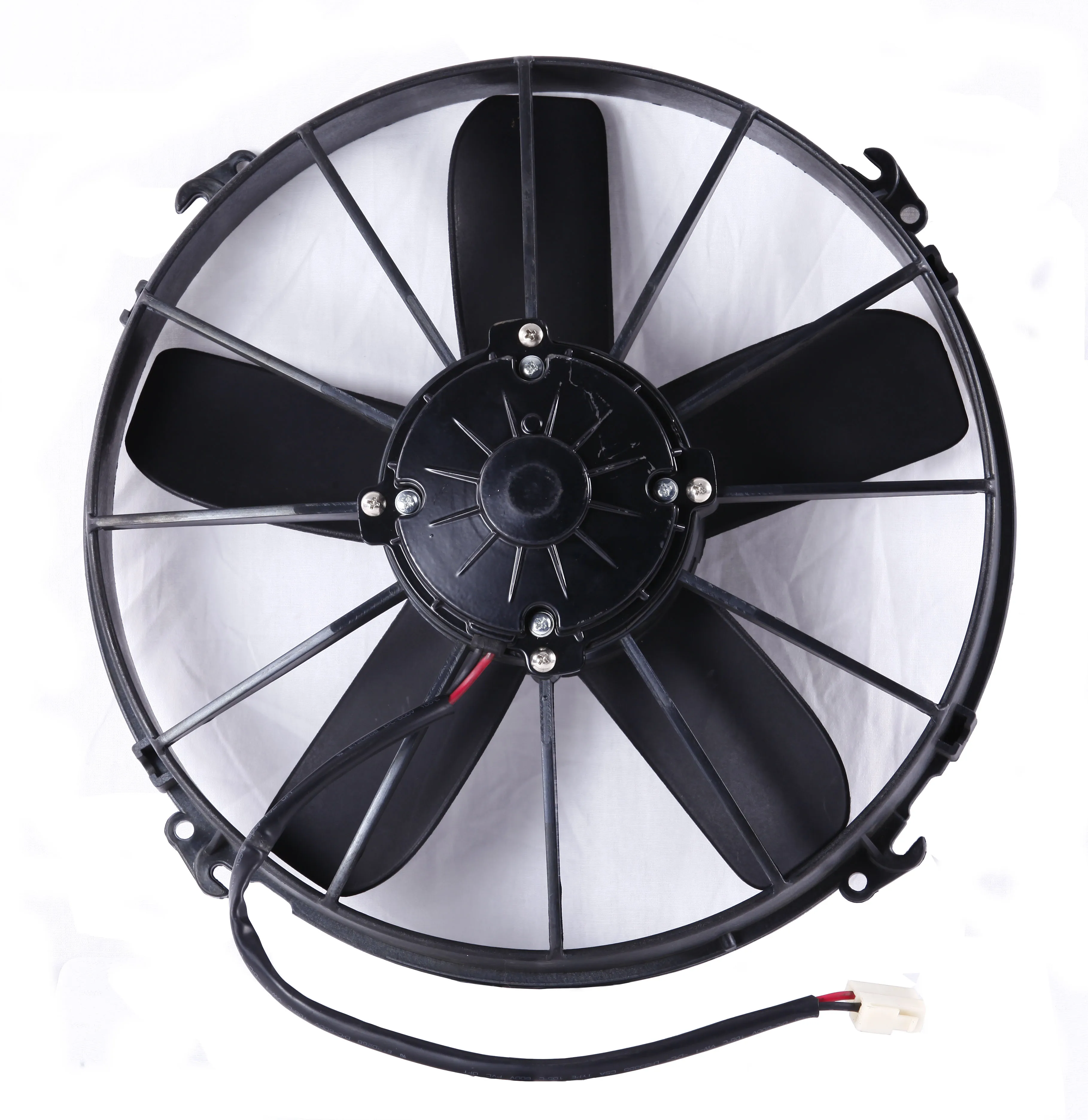

KFB25OS- KEAO bus air conditioning fan is widely used in condenser,evaporator and other refrigeration equipment  and ventilation



specfication of KEAO axial fan - KLNF251F

    a)Voltage:24V/12V

    b)Current:9A

    C)Static pressure:100 pa

    d)Air flow:2000 m3/h

    e)Speed:3000rpm

    f)  Operation temperature:-25C~85C
    g) Lifespan: 6000hours.
    h) Insulation class: B





Custom dimension and color is available.
.
For 20 years manufacturing and exporting motor fan experiences. We well understand your requirments. We cooperate customers with top quality and a very competitive price. so pls don't hesitated to contact us for more information. thank you for your attention.



Bus cooling axial fan used for YUTONG   KINGLONG buses

Part NO.	KLNF251F
Name	Condenser Fan
Place of Origin	Guangdong, China
Voltage	DC24V
Current	≤9A
Speed	≥3000±150rpm
Static pressure	100pa
Air Flow	2000m3/h
Direction of air	Pull/suction
Warranty	13 months
Life Time	≥6000 hrs
Packing	4 pcs/carton
