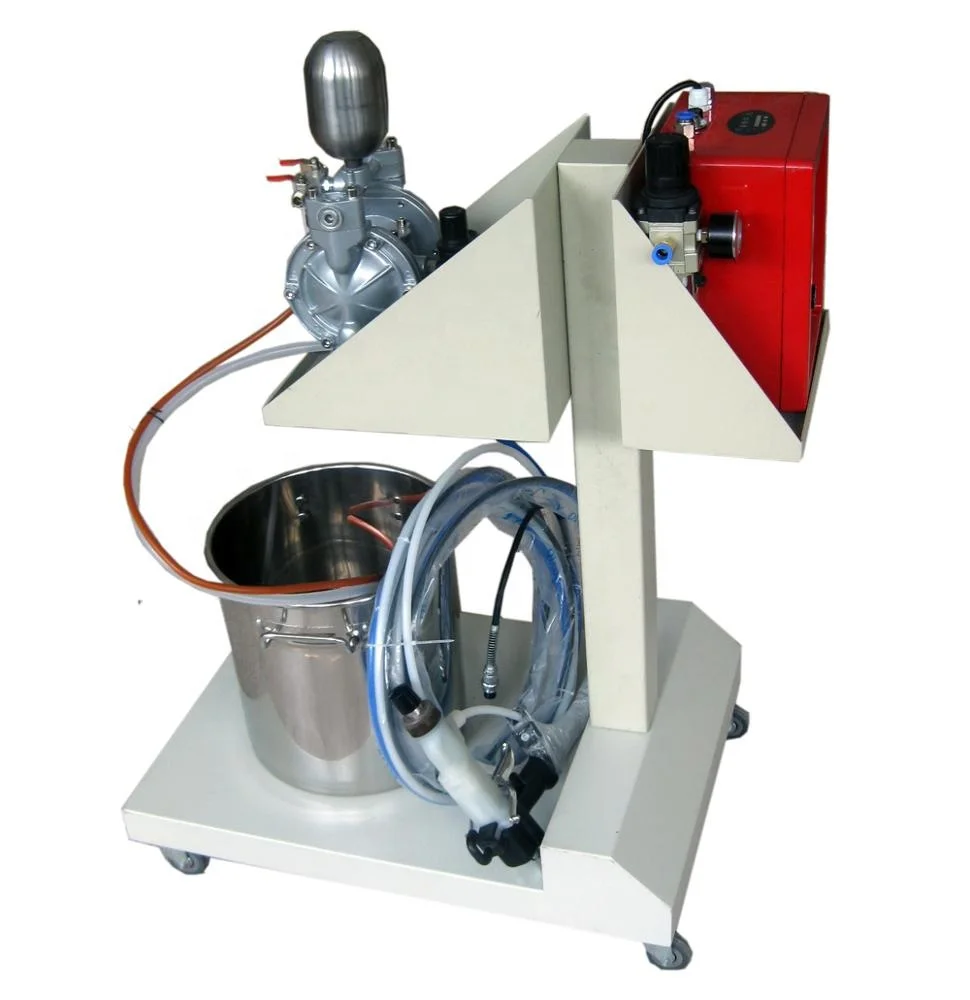

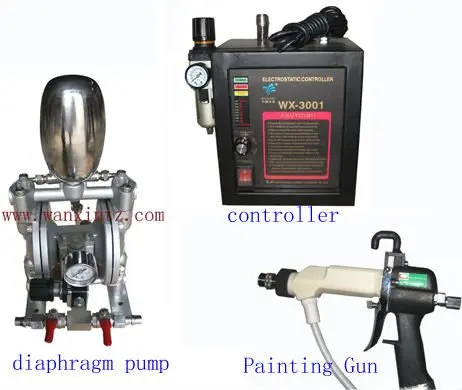

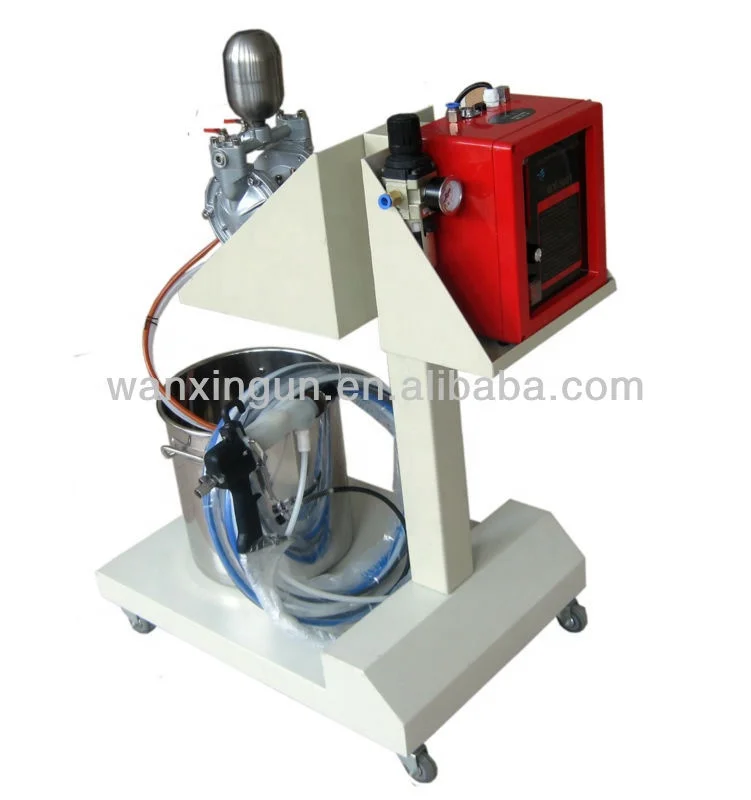

Manual Electrostatic Liquid Painting Spray Gun System WX 3001

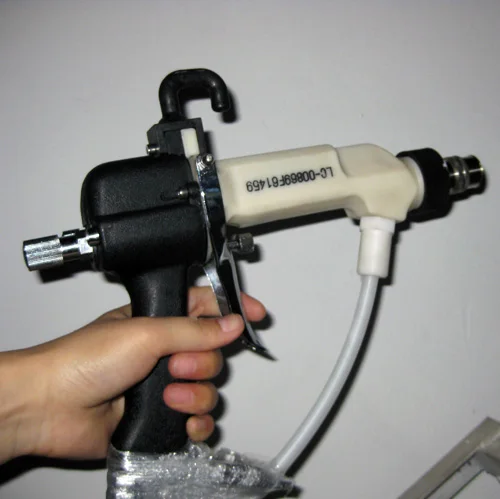

1.Electrostatic Painting Gun

1).Model :WX-3001
2)Max.output voltage : DC60KV
3)Length of gun:220mm
4)Weight of gun:460g
5)Length of gun cable:5m
6)Length of paints hose:6m
7)Length of air tube:6m
8)Paint pressure:0.3Mpa,Max.:0.62Mpa
9)Air pressure:0.3Mpa-0.55Mpa,Max.:0.62Mpa

2.Electrostatic Generator

1). Model :WX-3001
2)Input voltage:220V
3)Frequency:50Hz
4)Output voltage: DC75V
5)Current consumption at alarm:20uA-80uA adjustable
6)high pressure safety cut-out:Air-break switch
7)Dimension:W200mm x H250mm x L150mm
8)Working temperature:0-45°C,humidity:20%-85%

I.High efficiency of spray
Excellent atomization and electrostatic surround effects, which make strongly adsorptive capacity, accordingly enhance the spray efficiency.
II. Save painting
Our designer to design the spray nozzles with low pressure but high atomization performance which make painting be up to high atomization effect , Coupled with the role of high-voltage electrostatic field strength ,so that paint particles coated parts from different directions , never greatly increased the utilization of the paint

III. Operate simply
The gun body adopt the plastic composites, light in weight, feel good, the operator won't feel tired even thought long time work.
IV,.Easy to maintenance

Specially designed components, is extremely durable, easy disassembly, easy to clean and maintenance

V. High performance security

The HV generator with function of automatic protection, under the circumstances of overcurrent, which can cut off the high voltage quickly and protect the safety for equipment and workers.
