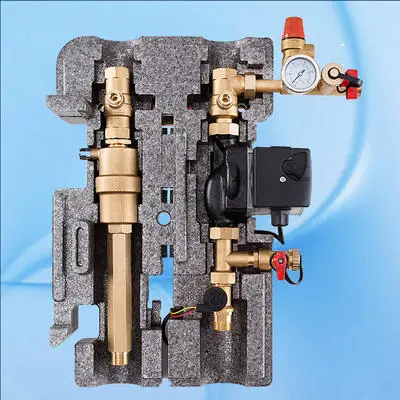

SR11L SR258 (substitute SR961S) 1.5KW EPP Integrated Single Pipeline Working Station For Solar Heating Systems
- Category: >>>
- Supplier: Changzhou 1st Sunflower Intelligence Technology Co. Ltd.
Share on (579562343):
Product Overview
Description
Product Description
Overview
* New version SR11L-SR258 EPP solar workstation is used in a split pressurized solar water heater system.
* It can be combined with the SR258 controller.
* It combines flow control, heat cycle, exhaust, pressure control, temperature display, system injection/discharge and many otherfunctions into one.
* By connecting solar collectors and split pressurized water tanks, store solar energy in the water tank.It can monitor system temperature, pressure, flow, etc. at any time.The structure of the entire assembly is compact, easy to install and use, good insulation effect.
* It can be combined with the SR258 controller.
* It combines flow control, heat cycle, exhaust, pressure control, temperature display, system injection/discharge and many otherfunctions into one.
* By connecting solar collectors and split pressurized water tanks, store solar energy in the water tank.It can monitor system temperature, pressure, flow, etc. at any time.The structure of the entire assembly is compact, easy to install and use, good insulation effect.

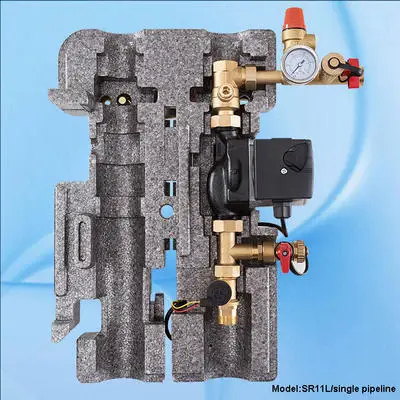

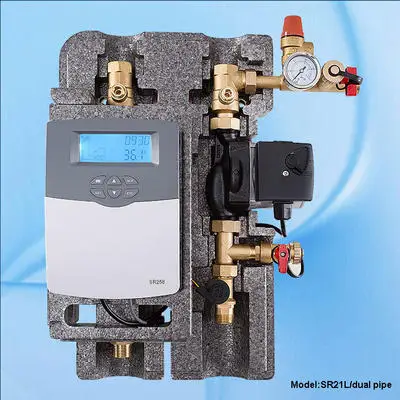

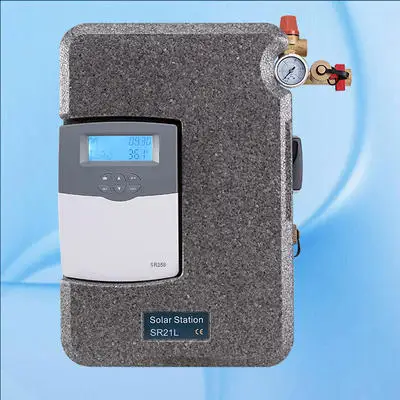

Product picture
Kits Parameter
Main functions
1.Flushing and filling the solar system
- Flushing and filling connector is already integrated in the solar station, and we still installing a filling and drainage valve horizontally at the lowest point of the solar circuit for flushing system.
2.Flow check
The flow counter is used for measurement and display of flow rate 1-20L/M, in order to guarantee the flawless function of the measuring device the system must be flushed and free from foreign substances.
3.Manual / Automatic integrative air bleeder
After filling solar liquid and commissioning the system, air bleeder will release air automatically, but you can also release air manually.
4.Electrical connection and operation instruction of controller (see manual of controller)
The controller is already integrated in the station and ready to plug in, display and digital counter are already preinstalled at factory. For maintenance or service work, it needs to take out the controller from station. For further information on electrical connection of the controller, please see manual of controller (terminal layout).

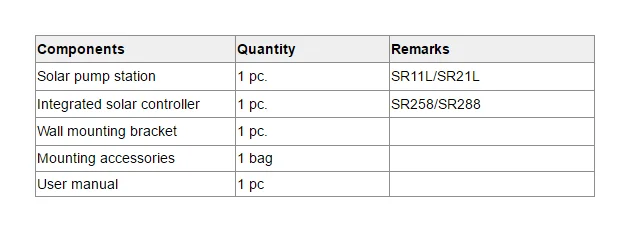

Delivery scope

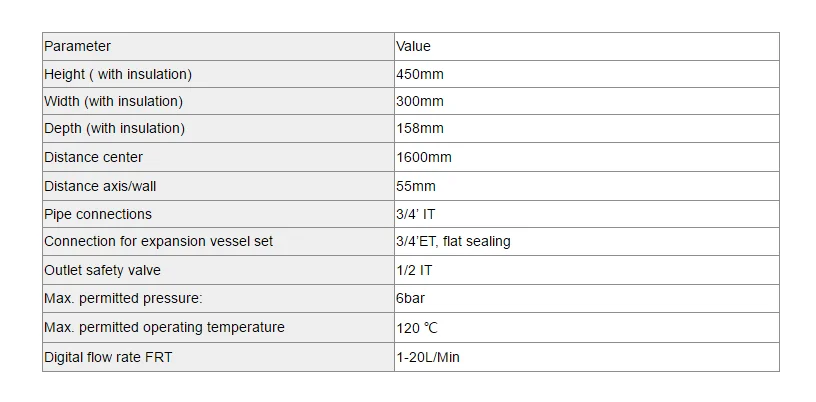

Technical Parameters

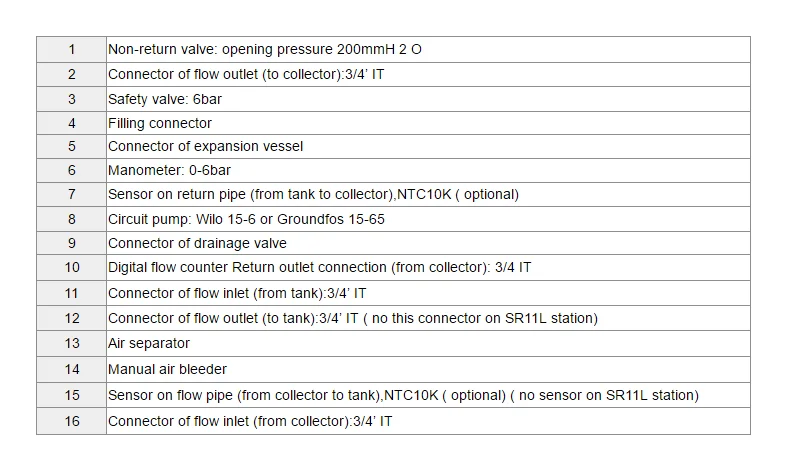

Technical Parameters

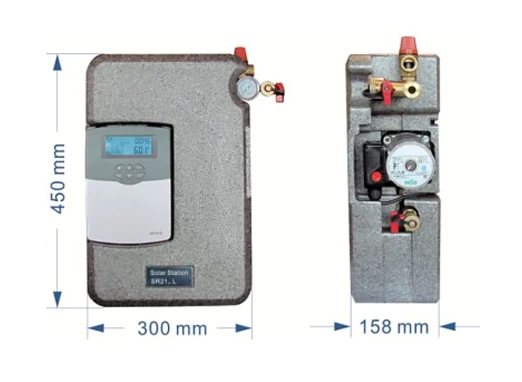

Size
Product：450*300*158mm
Package：500*400*200mm
SR11L:7KG
Optional controllers for pump station
* SR11L can be used with SR258 and other controllers.SR258 solar water heater intelligent controller is uesd for split pressure solar water heater.
* Developed with the latest high-performance microcontroller from NXP, the Netherlands,thereby achieving intelligent control.
* All devices use industrial grade standards,which can operate freely in cold, high temperature and humid environments.
* Simultaneous use of the clock chip for precise timing control.
* SR11L is LCD liquid crystal display, beautiful appearance, stable and reliable performance, easy installation, become the most ideal accessory product for solar water heaters.
* Developed with the latest high-performance microcontroller from NXP, the Netherlands,thereby achieving intelligent control.
* All devices use industrial grade standards,which can operate freely in cold, high temperature and humid environments.
* Simultaneous use of the clock chip for precise timing control.
* SR11L is LCD liquid crystal display, beautiful appearance, stable and reliable performance, easy installation, become the most ideal accessory product for solar water heaters.

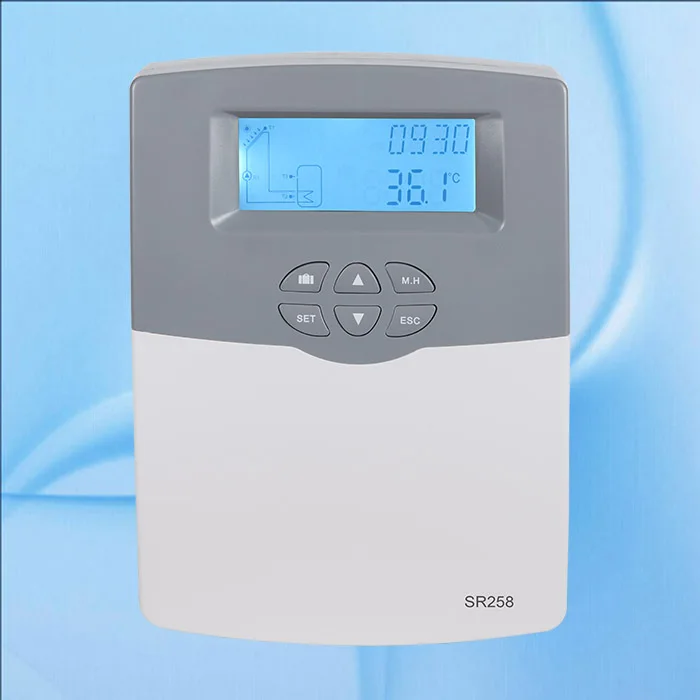

SR258 controller
Product Installation

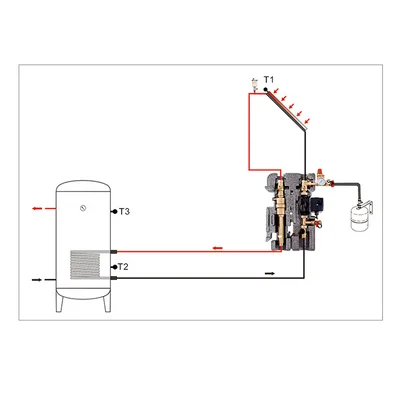

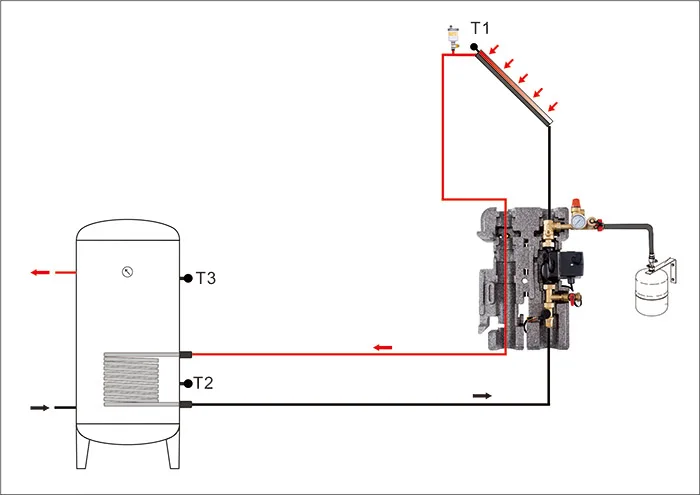

SR11L installation diagram
SR11L installation manual download:
Operation Instruction SR11L
