hot selling 220V Class II lightning absorber OBV1 C40 electrical arrester surge arrester made in china
- Category: >>>
- Supplier: Wenzhou Chuangjie Lightning Protection Electrical Co. Ltd.
Share on (579674549):
Product Overview
Description
Product Description

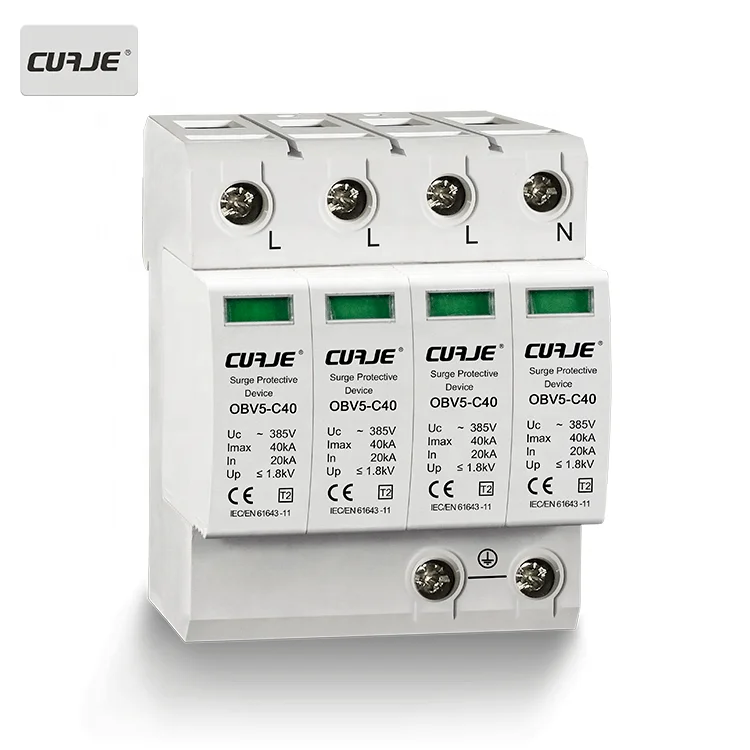

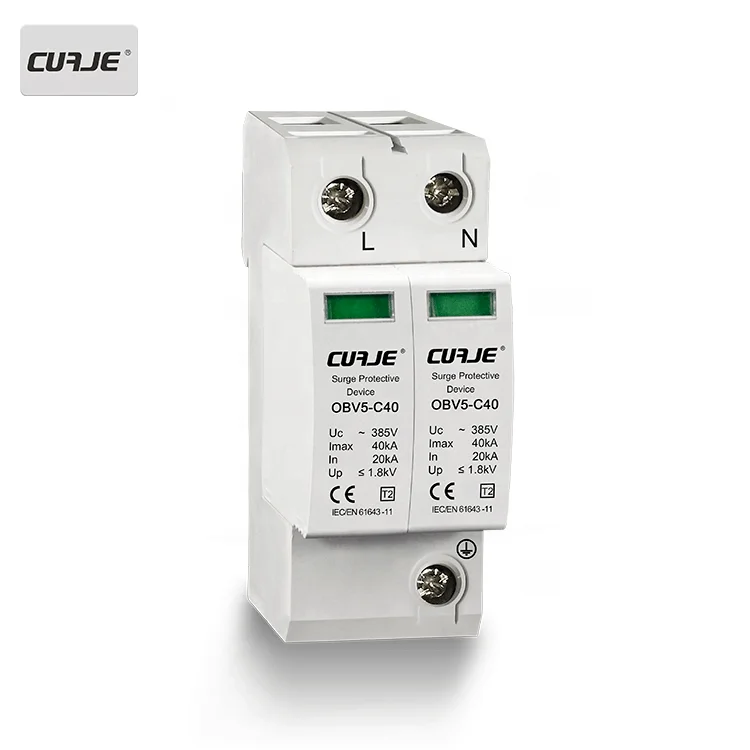

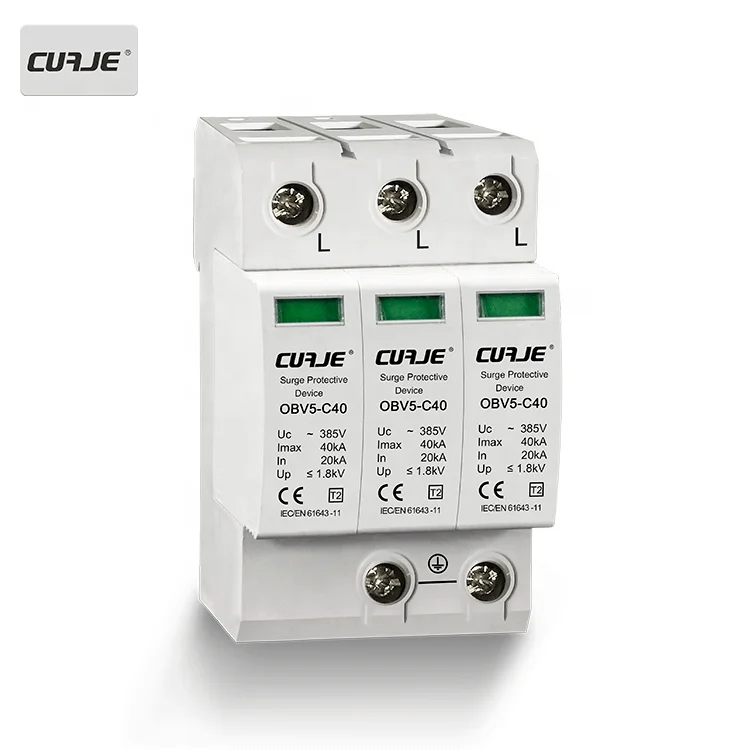

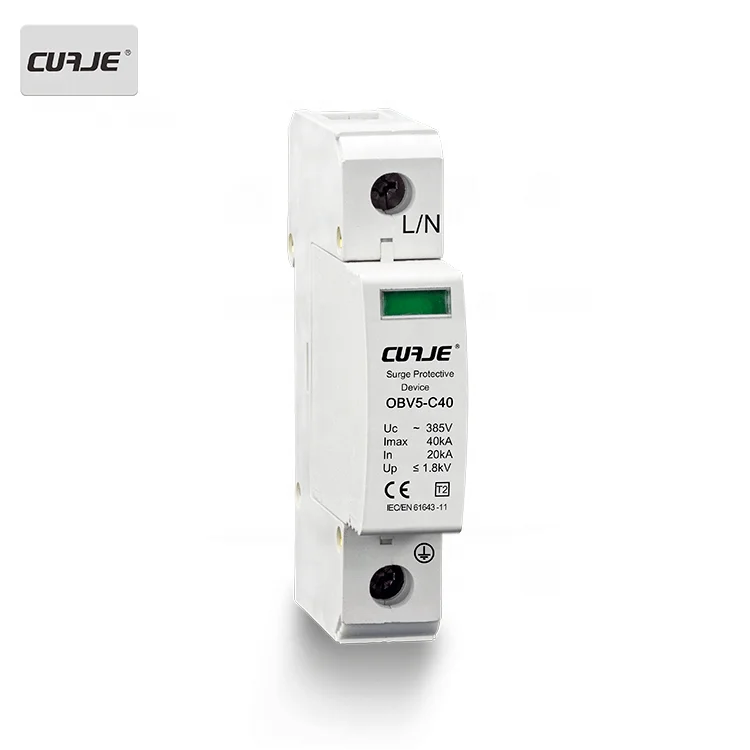

The surge arrestors OBV5-C40-LT meet the type 2 requirement class according to IEC 61643-11. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions. The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current. If circumstances are uncertain and there is a risk of fire from an overload, the internal cut-off unit disconnects the arrestor from the mains if necessary. In addition, the QR code printed on the arrestor allows disary. In addition, the QR code printed on the arrestor allows direct access to the online installation instructions.
+ Connectable surge arrestor
+ High arresting capacity
+ Visual status display
+ Available with optional remote signalling
+ Vibration-proof
+ Simple standard hat rail mounting
+ Labelled connections
+ Voltage encoding
Model: OBV5-C40-LT | |||
Maximum continuous voltage AC | Uc | V | 275/320/385/440 |
SPD to EN 61643-11 |
|
| Type 2 |
SPD to IEC 61643-1 |
|
| class II |
Nominal discharge current (8/20µs) | In | kA | 20 |
Maximum discharge current (8/20µs) | Imax | kA | 40 |
Voltage protection level | Up | kV | <1,3/1,5/1,8/2,0 |
Response time | tA | ns | <25 |
Maximum back-up fuse |
| A | 125 |
Temperature range | ϑ | °C | -40℃~+85℃ |
Protection rating |
|
| IP 20 |
Max. cable cross-section flexible (fine-wire) |
| mm² | 25 |
Max. cable cross-section rigid (single wire/multi-wire) |
| mm² | 35 |
