Wholesale High Precision 120L Automatic Fuel Nozzle For Gas Station (Fuel Dispenser Nozzle)

Product Overview

Description

fuel dispenser nozzle, automatic fuel nozzle, auto fuel nozzle



120L Auto Fuel Nozzle



Heavy-duty high-flow nozzle, for fueling to truck, bus.

Low cost, long life and durability.

High flow nozzle can help increase productivity, sales and profits.



Specification:



Inlet Thread	BSP1" / NPT1"
Spout	1"
Flow Rate	0-120L/min
Pressure	0.18Mpa
Insulator Color	Red/Green/Black/Blue/Yellow
N.W	1.42KGS/pc

Other Fuel Nozzle

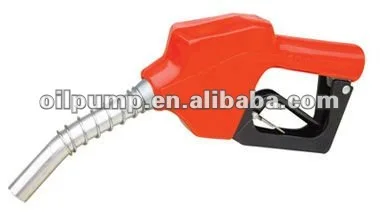

1. 11A Auto Fuel Nozzle



11A automatic shut-off nozzle can only be used on pumped dispensing systems, they will not work on gravity-fed dispensing systems.



Hanging Brackets are also available for some of our nozzles



Specification:

Inlet Thread	BSP3/4" / NPT3/4"
Spout	13/16"    /  15/16"
Flow Rate	0-45L/min  0-60L/min
Pressure	0.18Mpa
Insulator Color	Red/Green/Black/Blue/Yellow
N.W	1.14KGS/pc

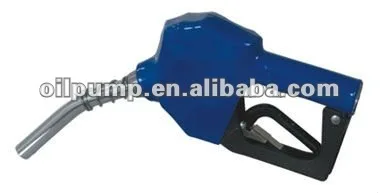

2. 11B Auto Fuel Nozzle



11B Automatic Fuel Nozzles are designed specially for self-service pre-pay of card-lock system to help prevent gasoline spills.



The 11B auto nozzle can not be opened untill the pumping system is pressurized and closes automatically when the pressure is removed. This means the 11B nozzle is closed when placed back to the dispenser.



Accurate flow control allows your customers to top off their tank to the exact amount they want, and it's easy to stop gasoline flow precisely.



Specification:



Inlet Thread	BSP3/4" / NPT3/4"
Spout	13/16"    /  15/16"
Flow Rate	0-45L/min  0-60L/min
Pressure	0.18Mpa
Insulator Color	Red/Green/Black/Blue/Yellow
N.W	1.14KGS/pc



3. XIDE Auto Fuel Nozzle



Tight Structure, cute appearance, reduction of pressure loss and increase of the flow.

Accurate flow control allows customers to fuel their tank to the exact amount they want, and it's easy to stop gasoline flow precisely.



Specification:

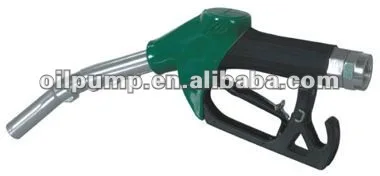

XIDE-80 Auto Fuel Nozzle

Inlet Thread	BSP3/4" / NPT3/4"
Spout	13/16"    /  15/16"
Flow Rate	0-45L/min  0-60L/min
Pressure	0.18Mpa
Insulator Color	Red/Green/Black/Blue/Yellow
N.W	1.2KGS/pc

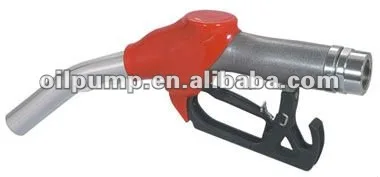

XIDE-120 Auto Fuel Nozzle

Inlet Thread	BSP1" / NPT1"
Spout	1"
Flow Rate	0-120L/min
Pressure	0.18Mpa
Insulator Color	Red/Green/Black/Blue/Yellow
N.W	1.7KGS/pc

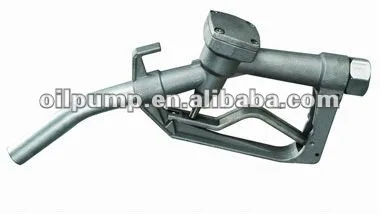

4. 13A Manual Fuel Nozzle



13A Manual Fuel Nozzle is designed for manual or electric pumps and gravity flow systems. It can be used in farms, vessels and more.

Aluminum construction with built-in hang-up hook for easy storage.

Compatible With: Diesel, Works With: Manual and electric pumps and gravity flow systems



Specification:



Min Back-Pressure Required	0 Bar / 0 PSI
Inlet	1" BSP Female
Swivel Included Y/N	Y
Spout Diameter	15/16"
Trigger Catch	No
Min Flowrate	0 lpm
Max Flowrate	120 lpm
Max Pressure
Weight	0.7 kg
