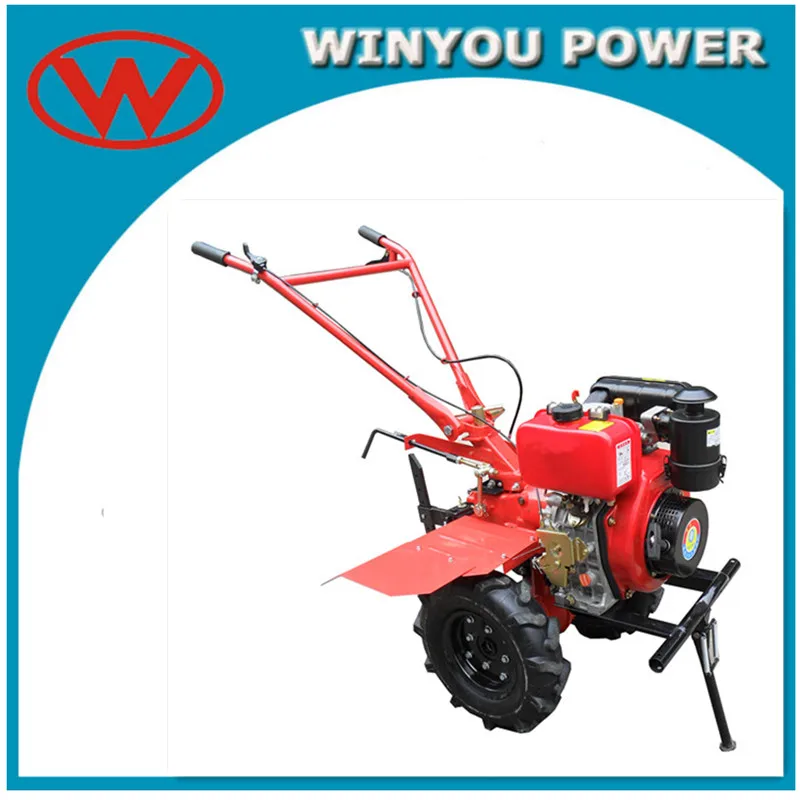

gear transimmision agricultural tilling machine cultivator shank

Product Overview

Description

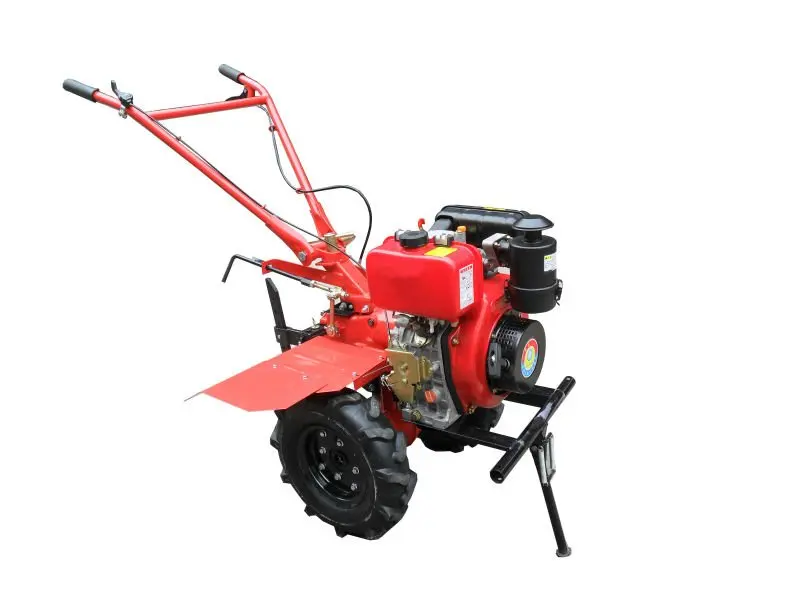

6.0HP diesel tiller

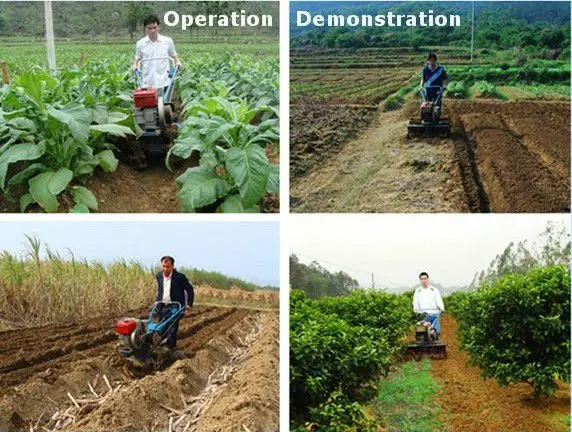

 *It can be widely meet the hills,mountains,greenhouses,orchards,paddy fields,such as a variety of different geogrophical agronomic needs.

*With related tool,dry land rototiller,paddy field rototiller,pumping.

*Transportation,threshing,ditching,spray pesticide,power,irrigation.

*Easy operate,light weight ,multi-function.



Model No.		WY1000D	WY1000E	WY1100A	WY1100B/E
5, 30, 6, 0, 5, 139, 6, 0 Bitmap Tilling
Tilling scope (mm)		800-1000	800-1000	800-1100	800-1100
Tilling depth (mm)		150-300	150-300	150-300	150-300

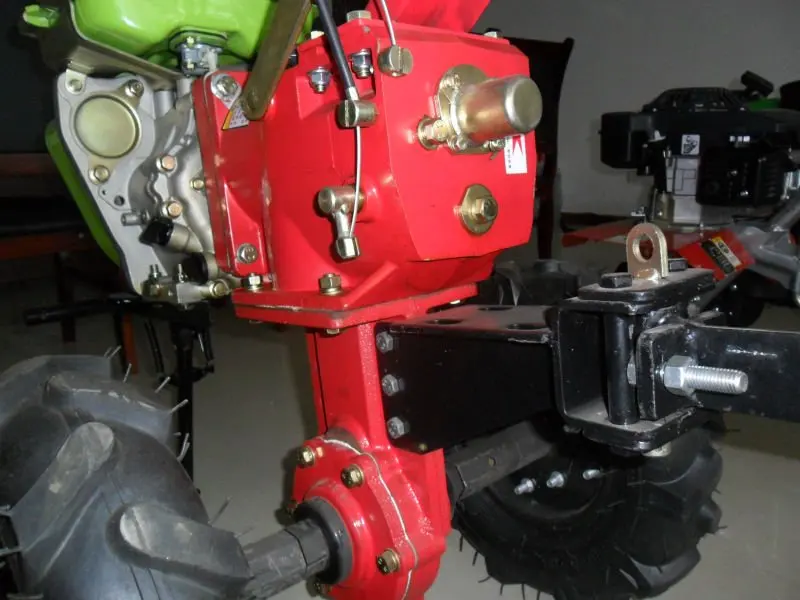

Transmission type		Gear	Gear	Gear	Gear
Transmission oil (L)		1.0L	1.0L	1.1	1.1
Transmission Material		Aluminum + Cast iron	Aluminum + Cast iron	Aluminum + Cast iron	Aluminum + Cast iron
Gear Shifting		0,1,2,3,-1	0,1,2,3,-1	0,1,2,-1	0,1,2,-1
Diesel Engine
Engine model		WY173F	WY176F	WY178F	WY186F
Engine Type		Single-cylinder, Air-cooled, Diesel Engine
Displacement (cc)		284	308	296	406
Bore×Stroke(mm)		73 x68	76x68	78x62	86x70
Horse Power (HP)		6	7	5.5	9
Max power output(HP/rpm)		4.41(6)/3000	5.15(7)/3000	4.0(5.5)/3600	6.3(9.0)/3600
Starter		Manual start/electric start
Max torque(N•m/rpm)		/	/	4.4kw/3600	6.6kw/3600
Fuel tank capacity (L)		4	4	3.5	5.5
Oil capacity (L)		0.9	0.9	1.1	1.65
Packing Details
Carton Dimension(mm)		800x540x800	800x540x800	1060x560x900	1060x560x900
N/G•W(kg)		93/401	93/104	115/135	115/135
Loading (20'/40'HQ)pc		56/180	56/180	66/132	66/132

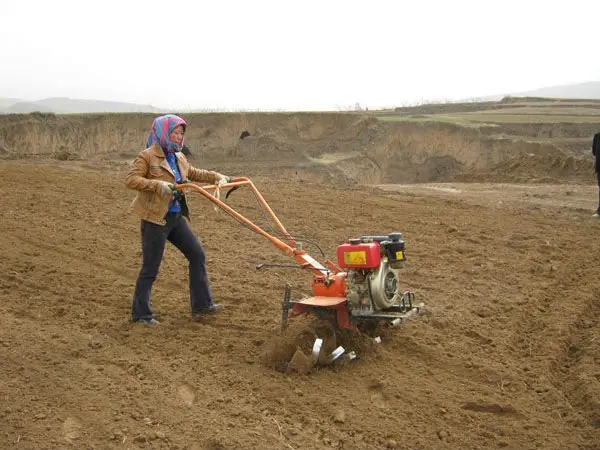

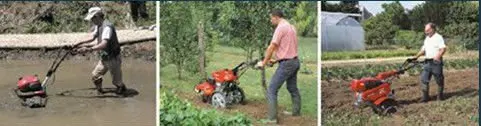

Easy operation,could tilling/plough any land ,wet land,dry land,sandy land











Standard Packing:   with iron frame inside,carton box outside



 mini gasoline rotary tiller machine/ diesel rotary tiller machine/diesel farm rotocultivator package

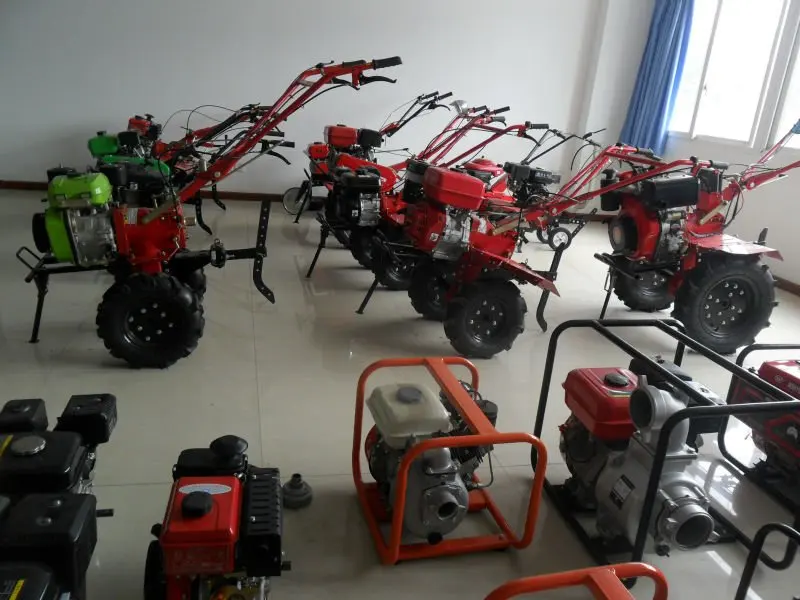

Our other products:engines,water pumps,generators,power tillers,mowers
