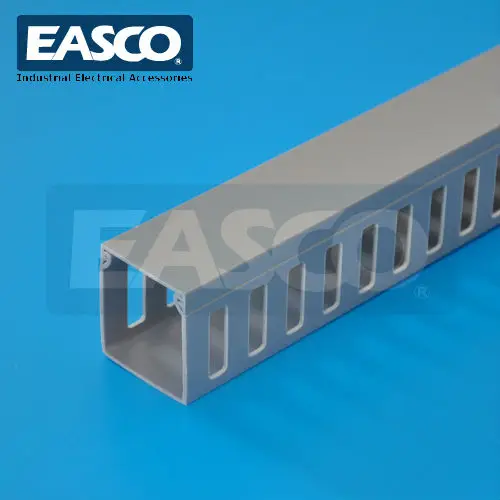

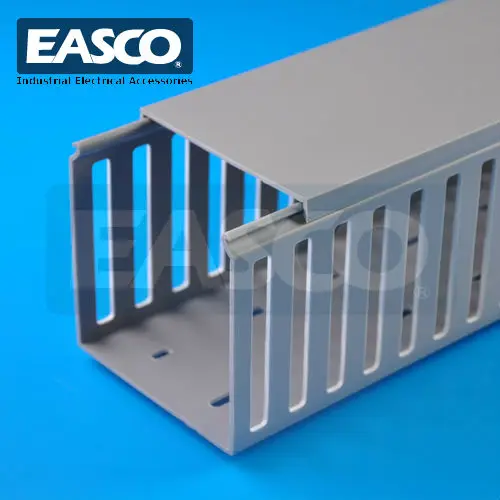

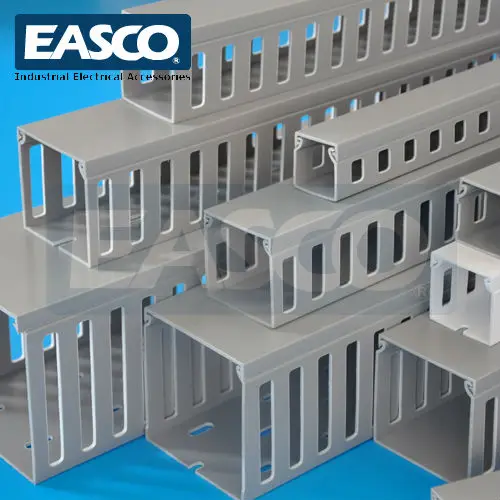

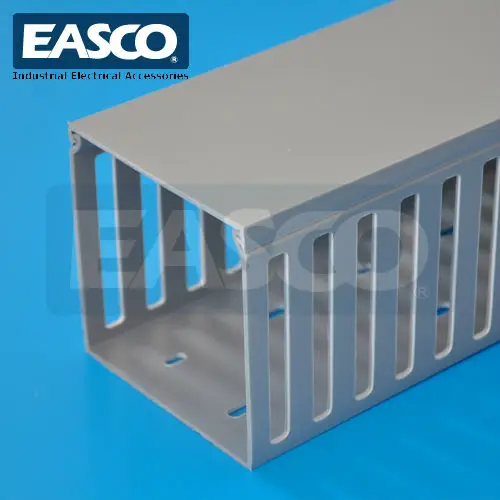

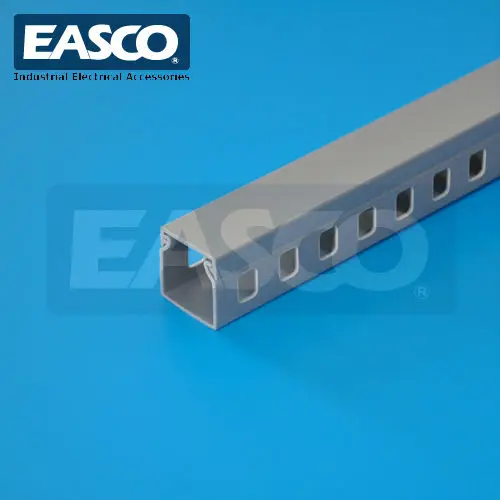

Extruding Plastic PVC Trunking

Product Overview

Description

Desp:  Extruding Plastic PVC Trunking , Cable Management

Material: Lead-Free PVC Material. Self-extinguishing.UL94 V-0

Length: 2 Meter (~78")

Part No.: WDCR















FEATURES:



1)Lead-free material eliminates health concerns with PVC wiring duct which contains lead.

2)Easy insertion and removal of cover , wire and cable.

3)Smooth edges can protect your hands and wiring insulation free from burrs or

sharp edges without abrasion.

4)With mounting holes for easy mounting.

5)Non-slip cover prevent slipping of the cover.

6)Flush cover design holds more wires than traditional duct.

7)Wire duct in sizes varying from 25x40mm to 160x100mm. Available with square

slot varying from 8.5mm to 10mm.



SPECIFICATIONS:

Part No.	WxH	M/PACK	14AWG/PCS
WDCR1525	15x25	300	5-12
WDCR2025	20x25	230	5-12
WDCR2525	25x25	180	10-25
WDCR2030	20x30	192	15-25
WDCR2530	25x30	144	15-25
WDCR3030	30x30	120	15-25
WDCR4030	40x30	100	25-35
WDCR2540	25x40	124	20-25
WDCR4040	40x40	80	60-70
WDCR6040	60x40	80	100-115
WDCR2550	25x50	100	20-25
WDCR3050	30x50	120	30-35
WDCR3550	35x50	120	40-45
WDCR4050	40x50	100	50-60
WDCR4550	45x50	80	60-70
WDCR5050	50x50	80	80-90
WDCR5550	55x50	72	80-90
WDCR6050	60x50	68	85-95
WDCR8050	80x50	52	150-170
WDCR10050	100x50	40	200-240
WDCR2560	25x60	132	40-45
WDCR3560	35x60	108	40-55
WDCR4060	40x60	93	100-115
WDCR4560	45x60	84	113-118
WDCR5560	55x60	72	115-130
WDCR6060	60*60	60	120-135
WDCR8060	80x60	44	180-240
WDCR10060	100x60	32	190-250
WDCR2580	25x80	100	100-120
WDCR3080	30x80	80	110-130
WDCR3580	35x80	72	120-140
WDCR4080	40x80	56	120-135
WDCR4580	45x80	56	130-140
WDCR5080	50x80	48	150-190
WDCR5580	55x80	48	150-190
WDCR6080	60x80	40	180-210
WDCR8080	80x80	32	240-290
WDCR10080	100x80	24	260-350
WDCR12080	120x80	24	260-350
WDCR14080	140x80	16	300-400
WDCR33100	33x100	72	110-160
WDCR40100	40x100	56	130-170
WDCR48100	48x100	48	220-250
WDCR50100	50x100	40	220-250
WDCR60100	60x100	40	240-290
WDCR70100	70x100	32	250-350
WDCR80100	80x100	32	260-350
WDCR100100	100x100	24	300-400
WDCR120100	120x100	16	330-430
WDCR160100	160x100	12	360-460





REMARKS:



*Also supply wire duct manufactured by rigid PVC, please refer to model: WDC.

*Wire duct is supplied in lengths of 2m(~78"),complete with covers, in complete packages only.

*Special color, size, length upon request of reasonable quantity.



CERTIFICATES FOR WIRING DUCT.

UL:E354081 WIRE DUCT. CSA UL:E354081 WIRING TRUNKING. ROHS FOR HALOGEN FREE WIRING CABLE DUCT. ROHS: LEAD-FREE PVC CABLE DUCT. ROHS: FLEXIBLE WIRING DUCT. CE: SLOTTED WIRING CABLE TRAY.UV EXPOSURE TEST REPORT FOR WIRE DUCT. UL94V0:WIRE DUCT. TEMPERATURE TEST REPORT :CABLE TRUNKING SLOTTED. REACH :CABLE TRAY CABLE TRUNKING.REACH :CABLE CHANNEL.







Pictures of EASCO Wiring Accessories Plant:

EASCO, founded in 1993, is a manufacturer with core competencies in the fields of wire & cable management in China.



EASCOprovides solutions to wire & cable management in the fields of industrial electrical accessories, our product categories: wiring duct made of rigid self-extinguishing PVC material and hardness lead-free PVC material, flexible conduit, nylon tie, wrapping band, electrical din rail, cable clip, cable clamp, cable gland, cable connector, bushing, cable marking, terminal, and wiring accessories. To meet the needs of users worldwide, Easco complies with the international Quality Standard Management ISO9001 as well as Environmental management ISO14001, with more products certified by UL, CE, RoHS, REACH, etc.
