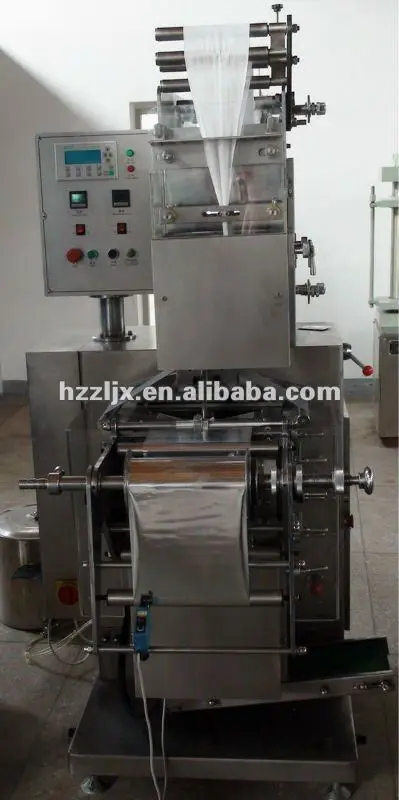

ZL 220 Automatic wet tissue machine(4 sides sealed)

Product Overview

Description

Main Performance & Structure Characteristics:

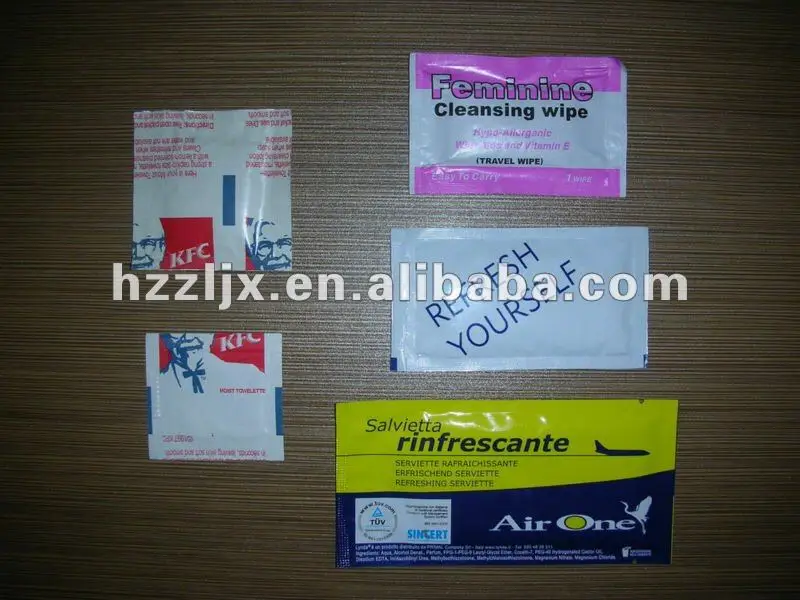

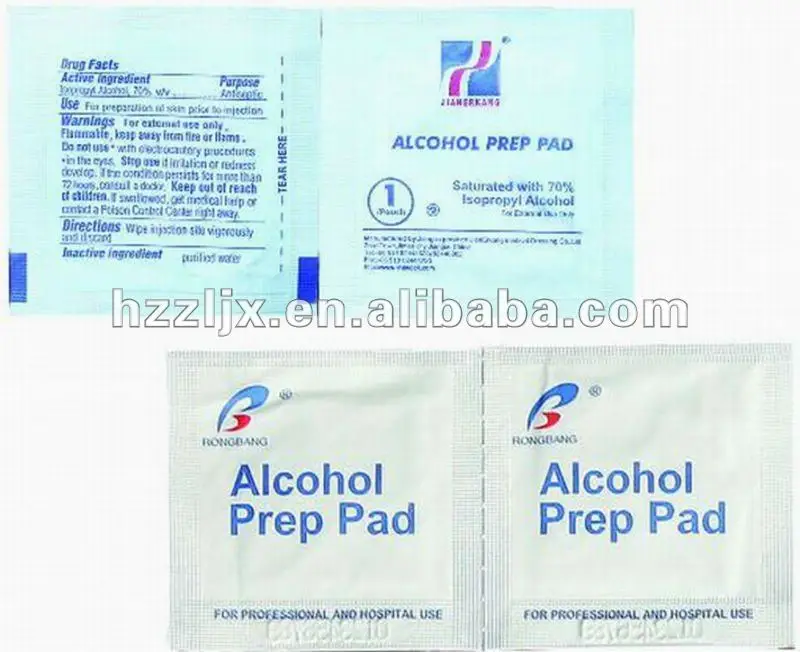

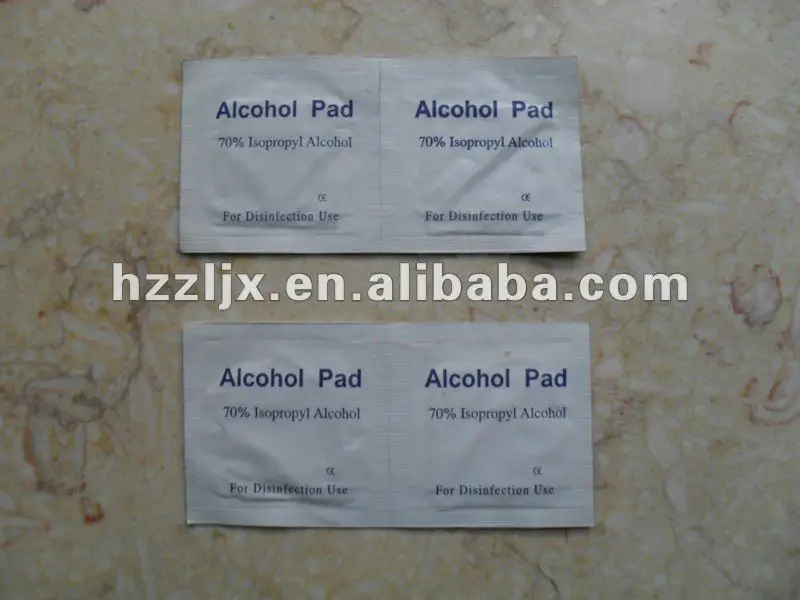

This machine is suitable to be used in medicine, hygiene materials and food industry, etc. Such as medicine plaster, antisepsis cotton tissue, antisepsis napkin, toilet tissue and fragrant napkin paper, etc. It adopts a cross deviation correction device with two degrees of freedom and an intelligent photoelectric trademark positioning system. Continuous trade-mark mode and fixed trademark mode can be switched at will. It owns the functions of folding and cutting napkin paper in the chute, forming , dropping, cutting ,printing and counting(with count preset)etc. The packed bags are four sides sealing, which are even and perfect.



Technical specifications:

Size of wet tissue (unfolded)	L: 80-220mm   W: 70-200mm
Tissue folding type	Vertical: maximum 8 folds Horizontal: maximum 4 folds
Size of bag	L: 45-150mm   W: 50-100mm
Capacity of production	50-90 bags/min
Total power	220V / 50Hz,  2.6KW
Device weight	600Kg
Size of machine (L*W*H)	1000 x 1500 x 2000 mm
