outdoor battery enclosure with double skin insulated Galvanized steel IP55 (SK 27)

Product Overview

Description

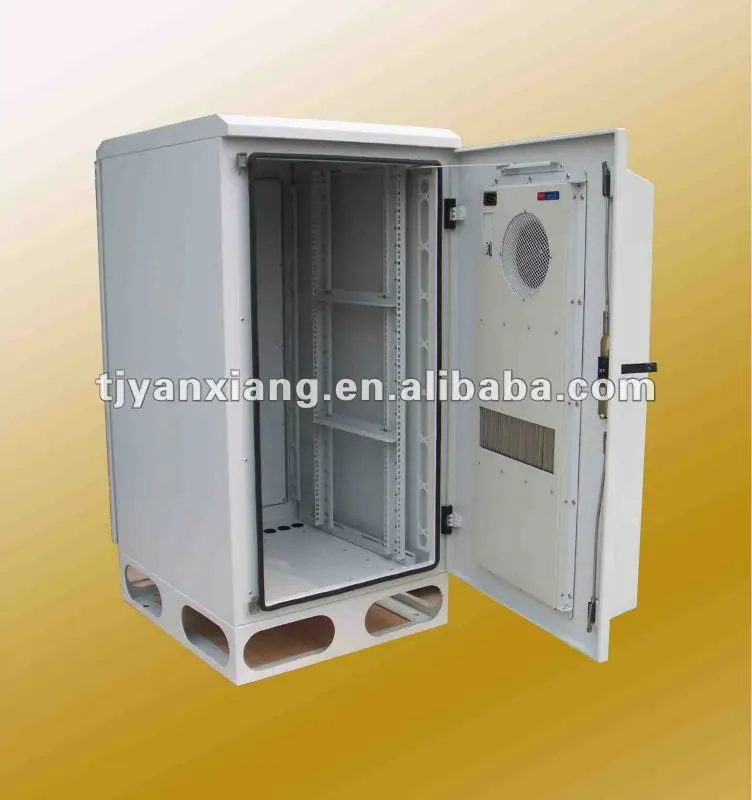

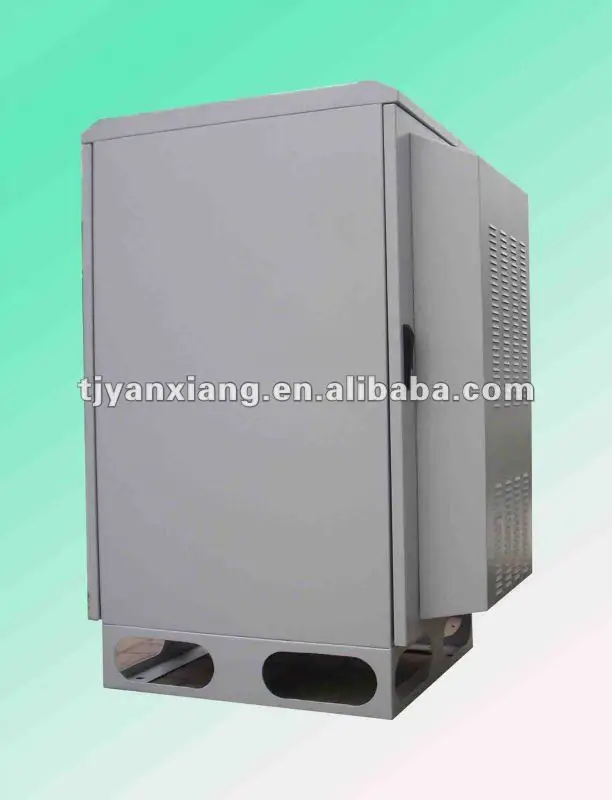

Outdoor Cabinet(SK-27B)



Product Parameter



Outer Size: 650×770×1300mm (W*D*H)(Heat Exchanger deep is 910mm )/can produce as demand

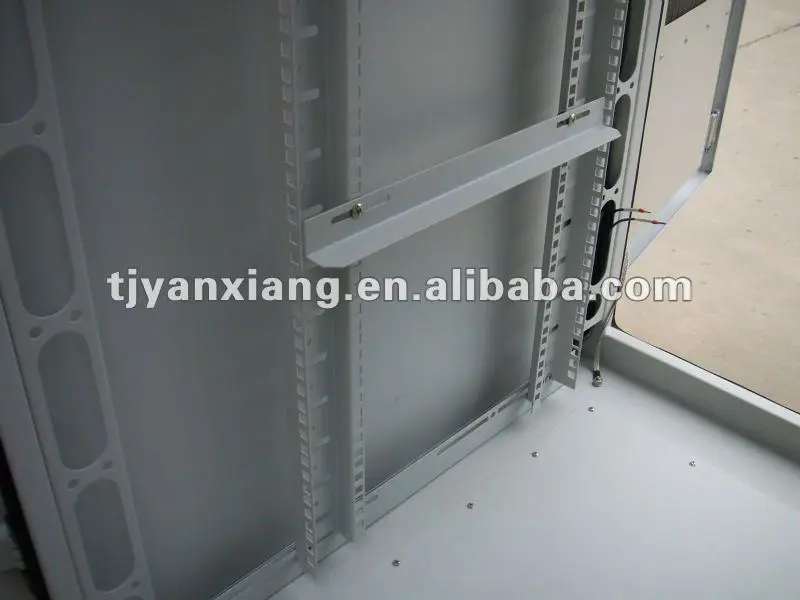

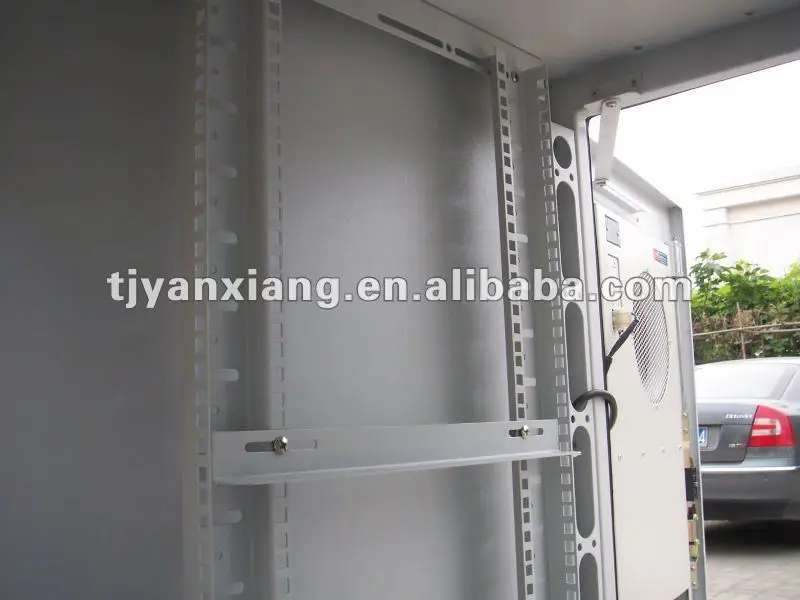

Inner Capacity: 22U 19 inch(the inner depth space from front si de to be 100mm free space, and the

                         back side of the equipments also to have about 200mm free space)

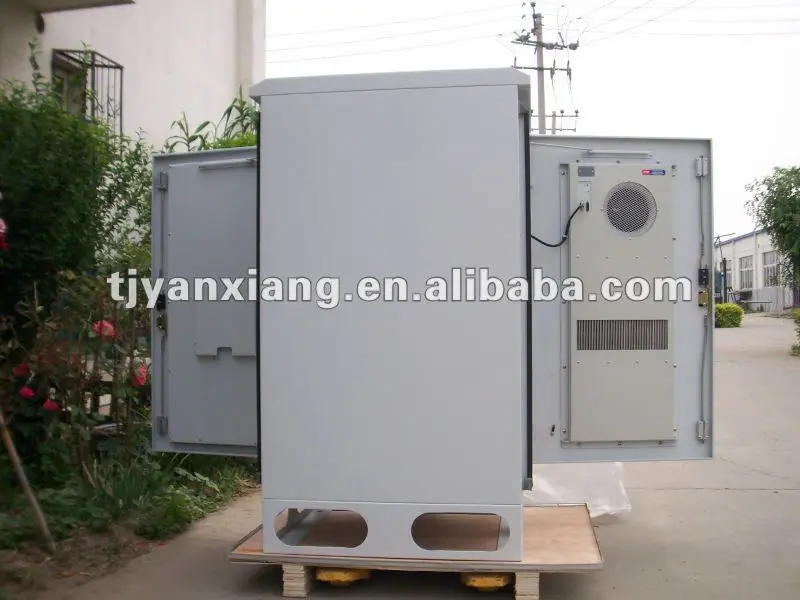

Cooling System: Adopt Heat Exchanger, Co mpressor Air Conditioner, TEC Air Conditioner)

Protection Grade: IP55

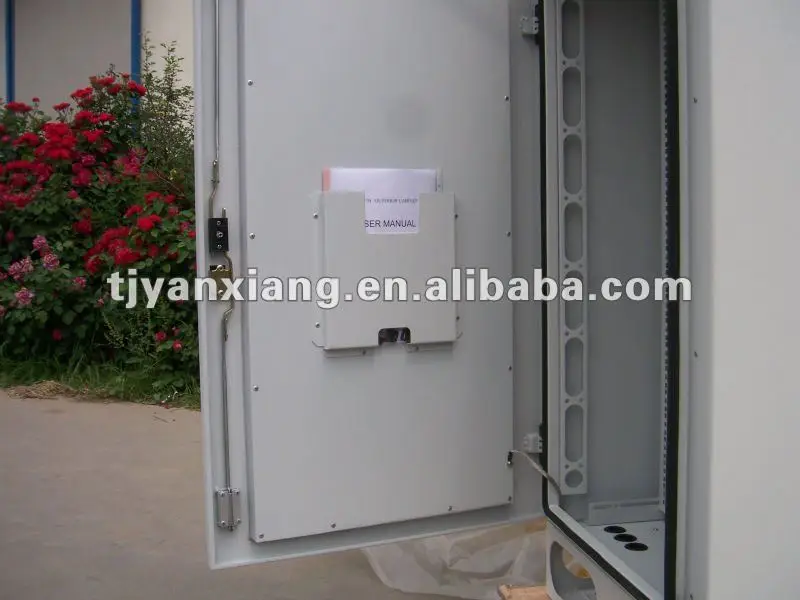

Structure: Side wall, door and top are belonged to double wall structure, and filled thermo material

                 in the gap.

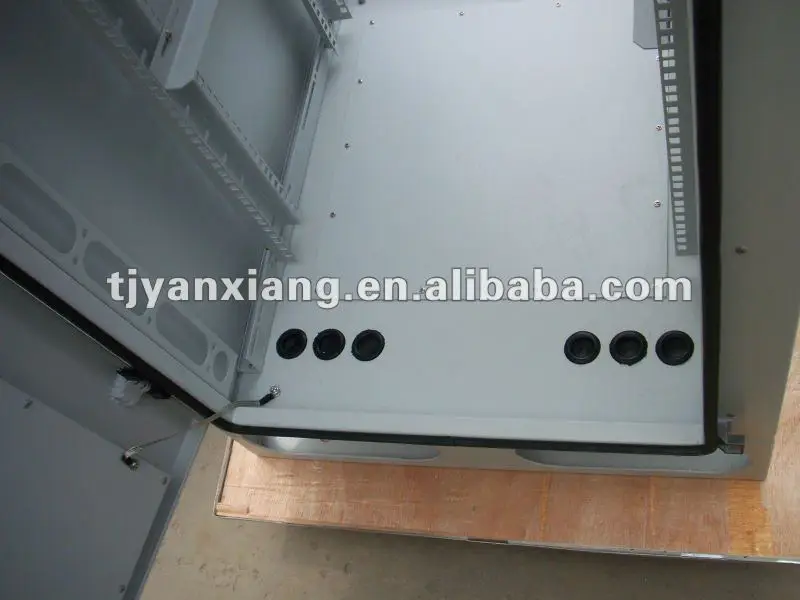

Material: Main body is1.5mm galvanizing plate,Bottom Base is 2mm galvanizing plate

Surface Treatment: Painting outdoor epoxy powder(RAL7035 )

Choose Assembly: 1. PDU   2. Control System(It could control smog, wa terlogging, temperature,

                              humidity and access.)
