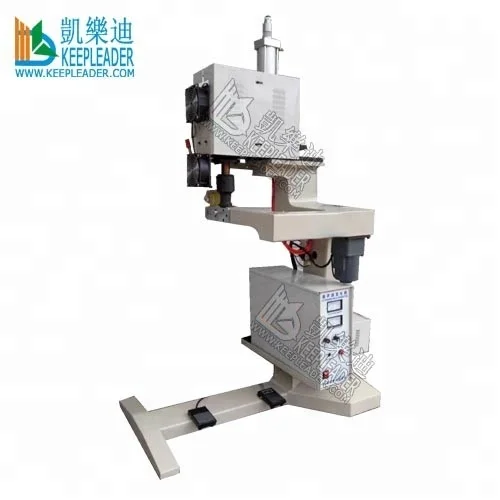

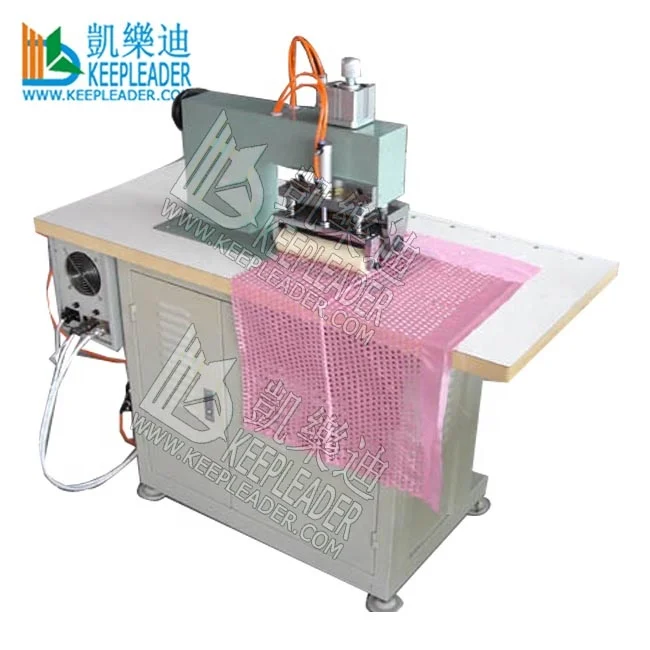

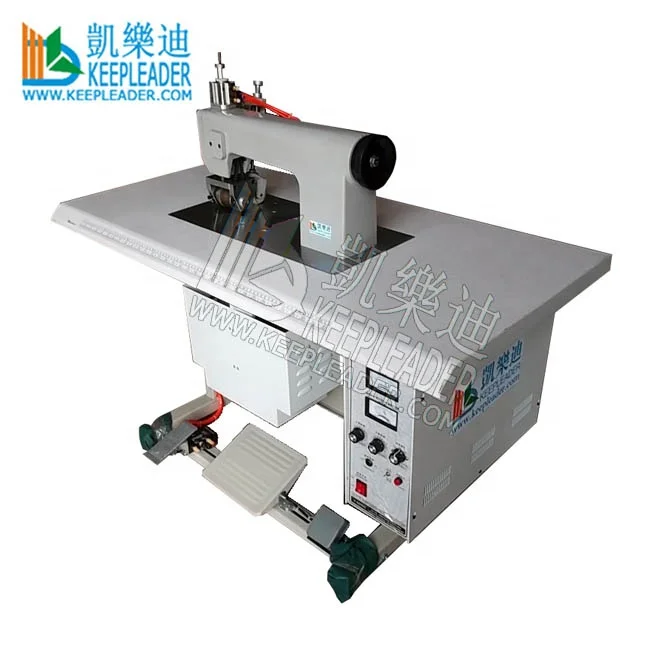

Fabric Lace Welding Ultrasonic Sewing Machine of Nonwoven_PP_Nylon Cloth Seamless Sealing_Cutting Ultrasound Stitching Equipment
- Category: >>>
- Supplier: Shenzhen Keepleader Machinery Co. Ltd.Shenzhen Ltd.
Share on (581231633):
Product Overview
Description

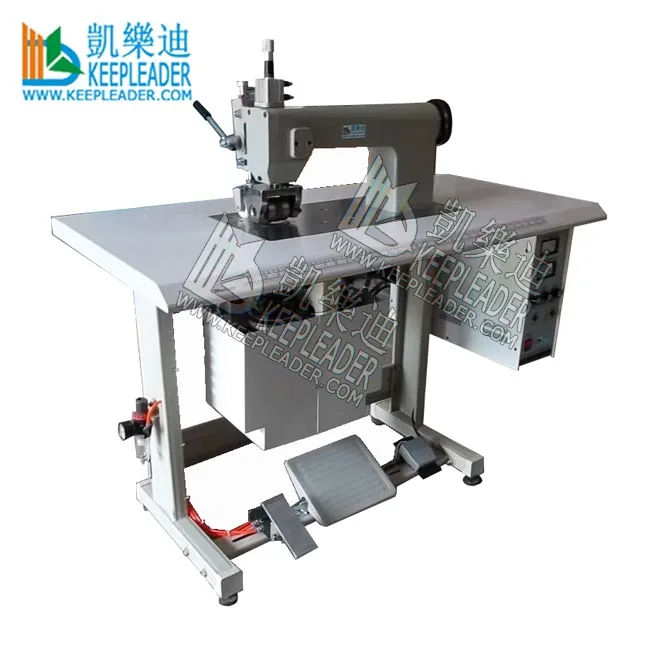

Fabric Lace Welding Ultrasonic Sewing Machine
Fabric Lace Welding Ultrasonic Sewing Machine share the same ultrasonic welding technology with popular perpendicular clamping of plunge pressing,but, continuous vibrating bonding activation for longer length seam sealing process,the high frequency electric energy is converted into high frequency vibration energy by the ultrasonic generator, and ultrasonic energy is transmitted to the seam to be sealed of the non-woven fabric by the welding head, the vibration energy instantly causes the molecules of the thermoplastic fabric to be rubbed and reaches the melting point, because non-woven fabrics dissipate heat relatively slowly, the solid material of non-woven fabrics will melt quickly, and the joint strength is close to that of a whole piece of continuous material, as long as the joint surface of the fabric is designed to match, it can be completely sealed and welded, the use of Fabric Lace Welding Ultrasonic Sewing Machine eliminate the need for needles and threads, saves the trouble of frequency needle changes, does not have the broken joints of traditional stitching, and can also neatly cut and seal non-woven textiles, different knurling wheels can be designed according to fabric needs to achieve excellent hemming, welding, fusing, cutting, embossing, embroidering, crimping, sewing, slitting and cutting effects
Product Description
Fabric Lace Welding Ultrasonic Sewing Machine
Mainly application | |||||
Fabric Lace Welding Ultrasonic Sewing Machine Applied for chemical fiber, nylon cloth, knitting cloth, non-woven cloth, PE paper, PE and aluminum film, PE and cloth composition and etc | |||||
Character | |||||
Once only fusing shaping and nothing burr, ·Platen changes convenience and pattern of all kinds of shapes and gestures The speed is quick and exempts preheats Have no use for temperature debug it is unnecessary to debug the temperature | |||||
Material is suitable for ultrasonic lace sewing/cutting/stitching/cutting | |||||
Chemical fiber cotton material and nylon cloth Knitting cloth and nothing spins cloth and spurts the glued cotton Compound materials such as PE and paper, PE and aluminum and PE and cloth etc Chiffon western-style clothes and Chiffon underwear Colored packing colored ribbon, tent, raincoat and umbrella Tablecloth, handkerchief and nothing spin the cloth gauze mask Motorcycle headgear and handicraft articles etc | |||||
Technique specifications | |||||
Model | KLC-2 | KLC-3 | KLC-4 | KLC-5 | KLC-6 |
Output power | 1200W | 1500W | 1800W | 2200W | 2600W |
Frequency | 20KHz | 20KHz | 15KHz | 15KHz | 15KHz |
Fusing speed | 5~20m per min | ||||
Fusing width | 50mm | 75mm | 100mm | 125mm | 150mm |
Power | 220v,6A | ||||
Dimension | 1200*600*1100 | ||||
weight | 110kg | 115kg | 120kg | 125kg | 130kg |
Please contact KEEPLEADERTM for more information and technical assistance for updated Fabric Lace Welding Ultrasonic Sewing Machine
Our Services
ABOUT PRODUCT
Customized design; Safe and convenient operation
ABOUT FACTORY
Comprehensive management process, leading technology and service team
EXPERIENCE
Internationalization of business process; Rich experience of Non-standard design
AFTERSERVICE
Uniform standard with special difference for each, Professional and Experienced service
MARKET
Yearly 30% Market share increased, One-to-one service

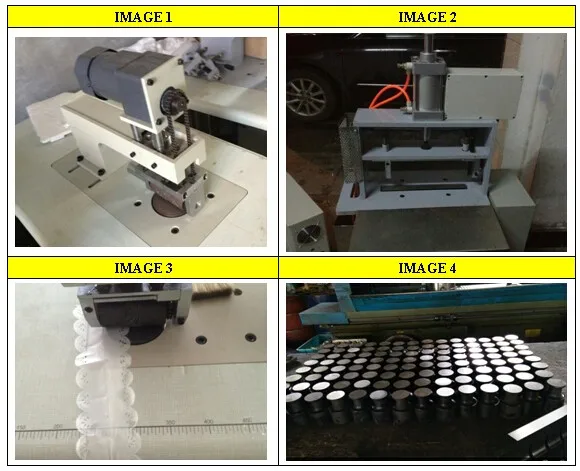

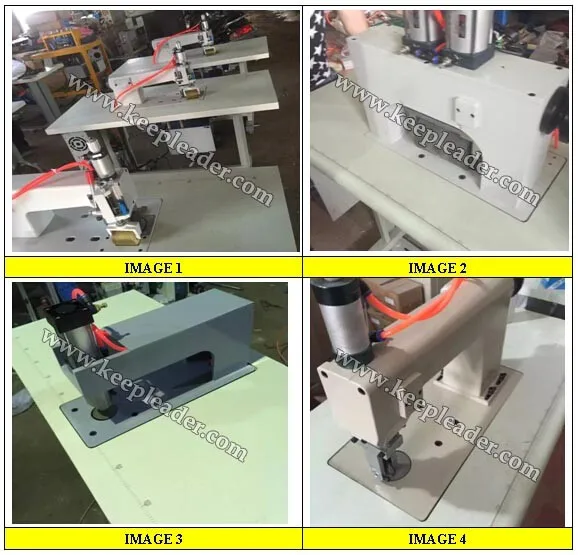

Detailed Images
Fabric Lace Welding Ultrasonic Sewing Machine is suitable for continuous welding and for simultaneous cutting and sealing of synthetic textiles and non-woven fabrics,
Fabric Lace Welding Ultrasonic Sewing Machine takes the place of conventional threaded sewing machines, because of various weld geometries, both continuous welds of different contours and spot welds can be produced,the latter are ideal for maintaining material elasticity, cutting edge is simultaneously welded, so as to prevent fraying,furthermore, several layers can be trimmed by separation welding in one process and joined together

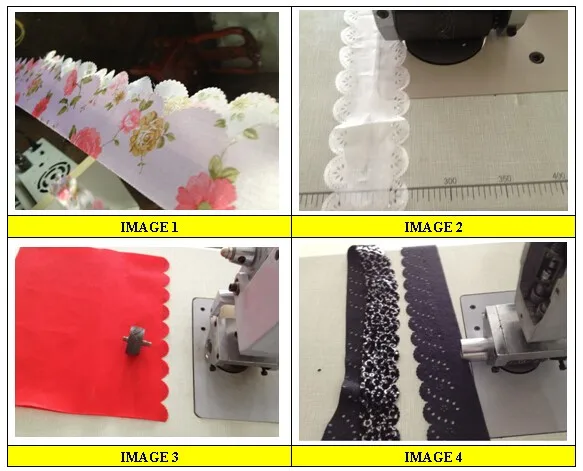

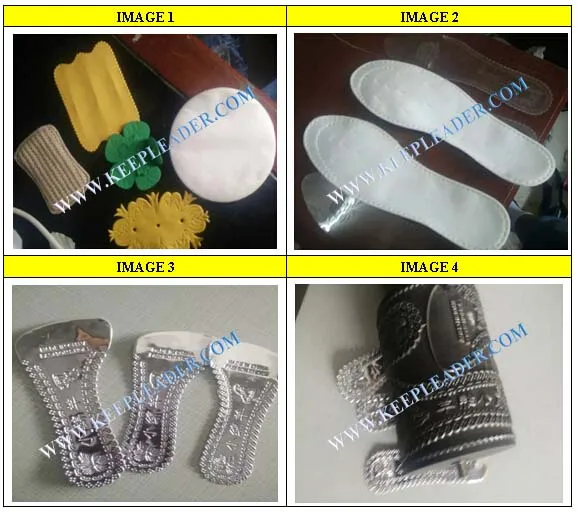

Finished Products
Fabric Lace Welding Ultrasonic Sewing Machine utilizes ultrasonic vibrating heat bonding with roller die continuous applying extended pressure, this ultrasonic welder adopts the same structure with needle sewing, motor drives knurling roller passes through ultrasonic sonotrode to attain seam seamless sealing, that takes reliability in non-woven,Nylon,textile fabric,chemical fiber, PE,PP, Spandex,acrylic textile bonding without rough selvedge, Fabric Lace Welding Ultrasonic Sewing Machine gains prevalent in fabric connection field of clothing lace, car carvers, hand straps, shopping bags, masks, surgical gowns, lampshades, filters, disposable products, protective clothing, etc, multi purpose non-woven products, medical industry, daily necessities industry, packaging industries, automobile industry, decoration industry, toy industry
Contact Us
Fabric Lace Welding Ultrasonic Sewing Machine takes efficient advantages of continuous seam sealing, avoidable consumption, edge trimming,take-off cutting,bonding synchronous process and completed hemming fabrics without rough selvedge, keepleader, we provide customers around the world with bespoke construction for individualized production, hence, consultation involved in customization, setup, operation, maintenance, enters into our gratification with deepest respect and gratitude, don’t hesitate to contact us to find more info what we can do for your application
