Bus condenser fan air conditioning systems SPAL fan 12V and 24V italy thermoking parts fan 12INCH VA01 VA15 series manufacture

Product Overview

Description

KLNF251F1- keao Bus air conditioning motor fan is widely used in condenser,evaporator and other refrigeration equipment  and ventilation it is the best replacement  of  SPAL motor fan.

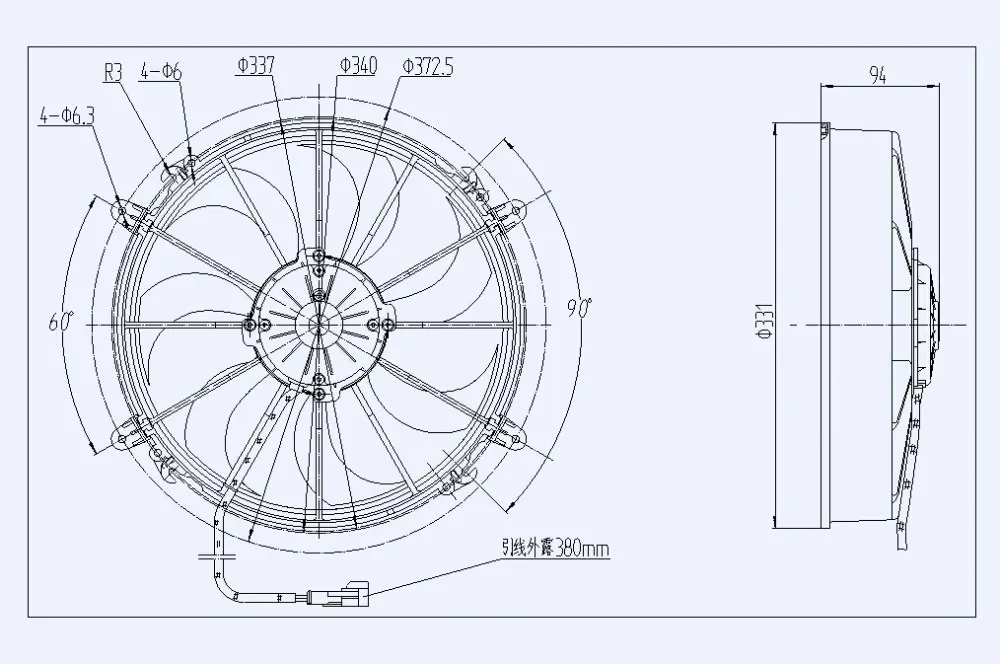

specfication of KLNF251F1  Bus air conditioning motor fan (suction type)

   a)Voltage:24V/12V

   b)Current:10A

   C)Static pressure:100 pa

    d)Air flow:2000 m3/h

    e)Speed:3000rpm

    f)  Operation temperature:-25C~85C
   g) Lifespan: 6000hours.
   h) Insulation class: B





custom dimension and color are available.
.
For over 20 years manufacturing and exporting motor fan experiences. We well understand your requirments. We cooperate customers with top quality and a very competitive price. so pls don't hesitated to contact us for further information. THANK YOU.



Bus cooling axial fan used for YUTONG   KINGLONG buses

Part NO.	KLNF251F1
Name	Condenser Fan
Place of Origin	Guangdong, China
Voltage	DC24V
Current	≤10A
Speed	≥3000±150rpm
Static pressure	100pa
Air Flow	2000m3/h
Direction of air	Pull/suction
Warranty	13 months
Life Time	≥6000 hrs
Packing	4 pcs/carton









For over 20 years experiences. we well understand your requirements. and are ready to cooperate with you. So, please don’t hesitate to contact us at any time!
