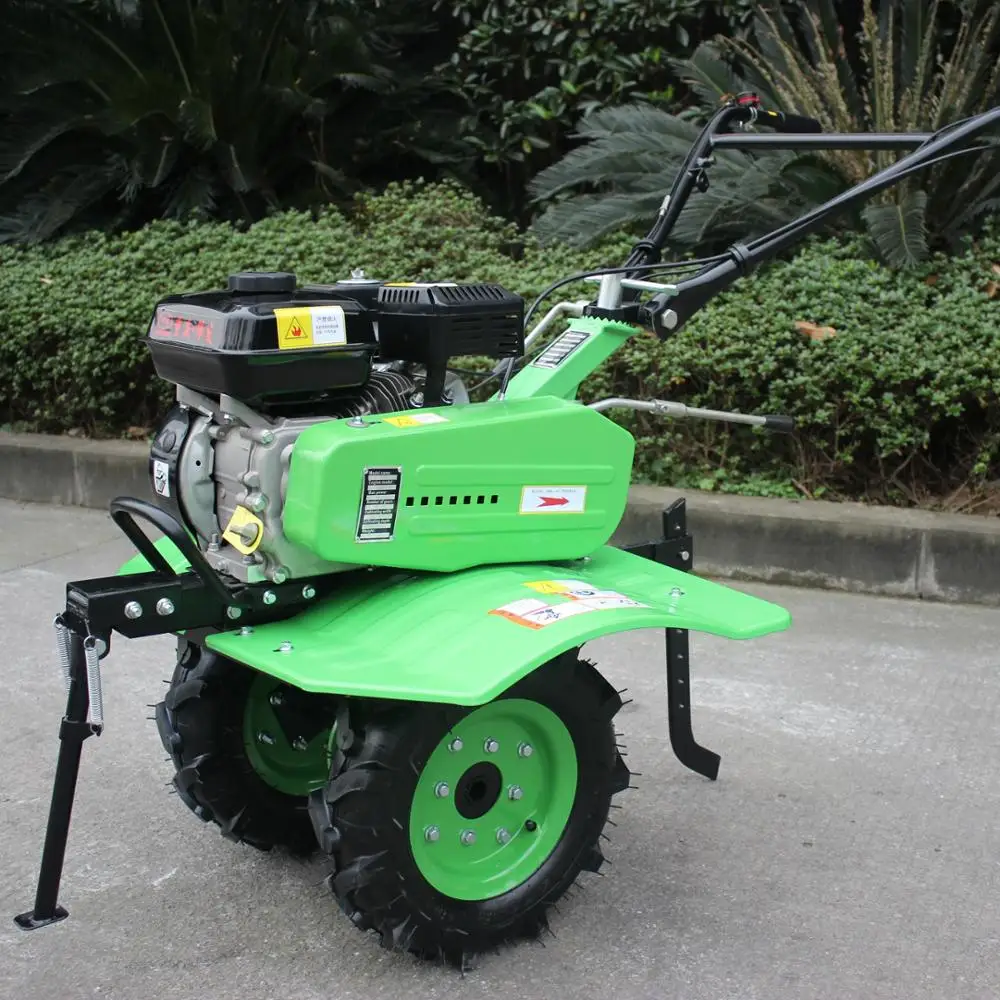

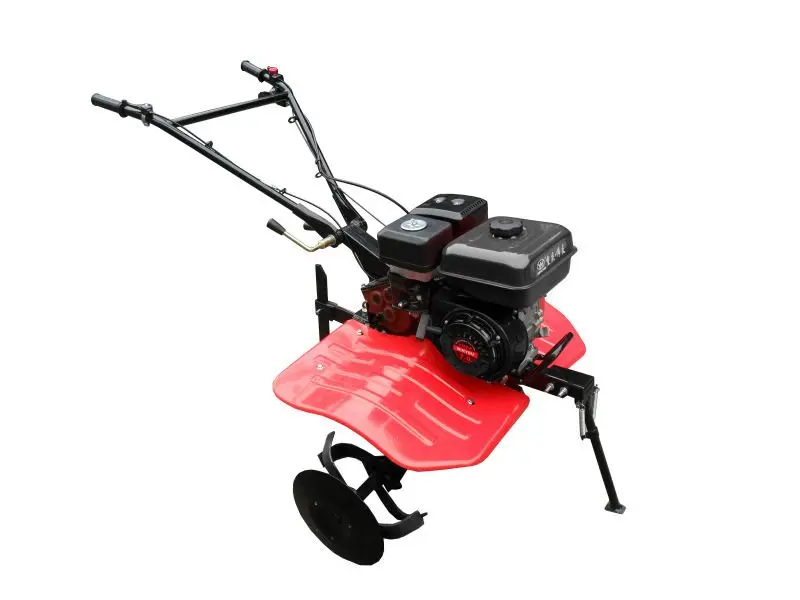

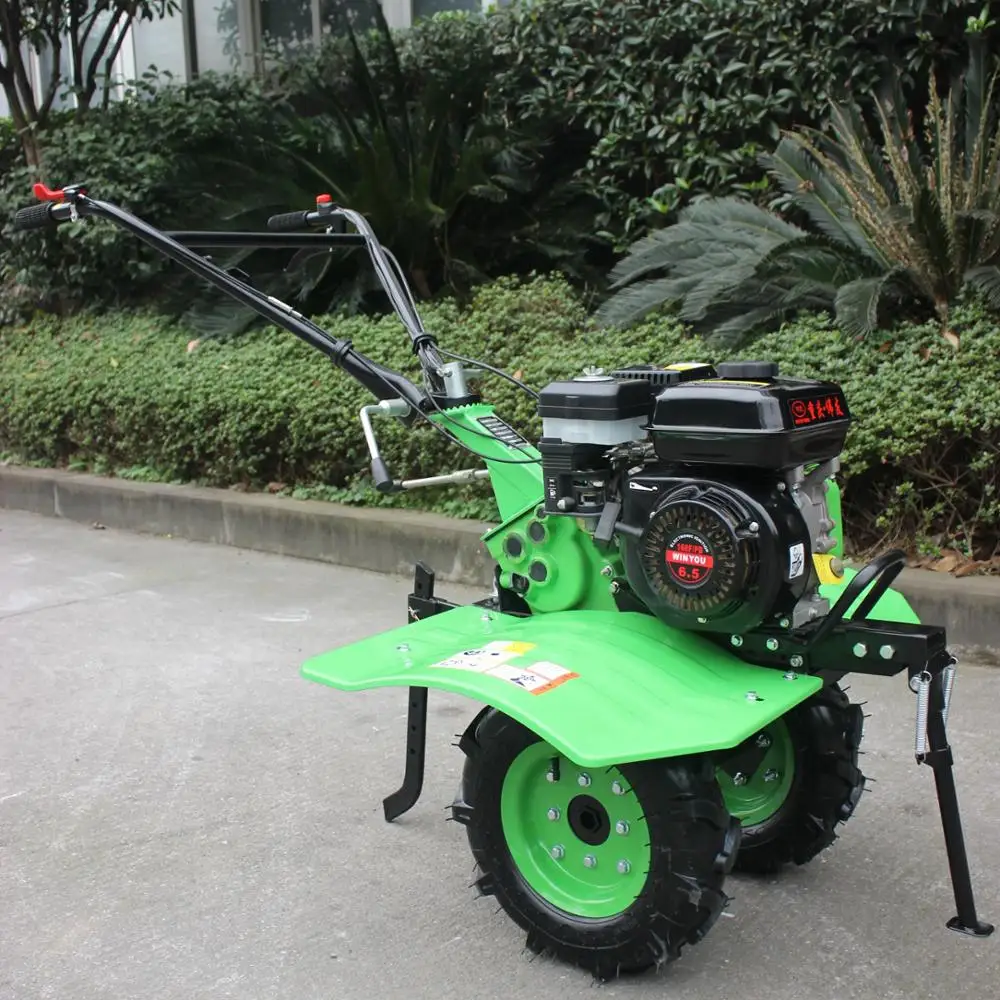

garden cultivators with chain transmission

Product Overview

Description

GARDEN CULTIVATOR/FARM TILLER

MAIN FUNCTION



◊plow vegetable lands, even in plastic house;



◊plow paddy;



◊plow fruit lands





Model No.		WY360	WY400	WY500	WY900	WY1000C	WY1100C
Tilling
Tilling scope (mm)		360	550	500-1000	800-1200	800-1000	800-1100
Tilling depth (mm)		200	150-250	150-250	150-300	150-300	150-300
Transmission type		Belt	Gear	Belt	Belt	Gear	Gear
Transmission oil (L)		0.2L	0.6	0.95L	1.1L	1.0L	1.1L
Transmission Material		Iron plate	aluminum	aluminum	Cast iron	Aluminum + Cast iron
Gear Shifting		0,1	0,1	0,1,2,-1	0,1,2,-1	0,1,2,3,-1	0,1,2,-1
Tilling blade		4-2 blades	3-4 blade	3-4 blade	3-4 blade	3-4 blade	4-4 blade
Gasoline Engine
Engine model		WY1P70FV	WY1P70FV	WY170F
Engine Type		Vertical shaft ,4 stroke, single cylinder,air-cooled		Horizontal shaft ,4 stroke, single cylinder,air-cooled
Displacement (cc)		173cc	173	212	212	212	212
Bore×Stroke(mm)		70x45	70x45	70x55	70x55	70x55	70x55
Max power output(HP/rpm)		4.3kw(6.0HP)/3600	4.3kw(6.0HP)/3600	7.0/3600	7.0/3600	7.0/3600	7.0/3600
Max torque(N•m/rpm)		9.0N.m/3600rpm	9.0N.m/3600rpm	11.5/3000	11.5/3000	11.5/3000	11.5/3000
Starting type		Manual start		Manual start/electric start
Fuel tank capacity (L)		1.7	1.7	3.6	6	6	6
Oil capacity (L)		0.6	0.6	0.6	0.6	0.6	0.6
Packing Details
Carton Dimension(mm)		700x390x700	700x390x700	680x460x710	880x460x840	1060x560x895	1060x560x895
N/G•W(kg)		34/36	34/36	60/74	70/85	105/120	110/125
Loading (20'/40'HQ)pc		238/294	238/294	120/255	90/210	90/200	65/

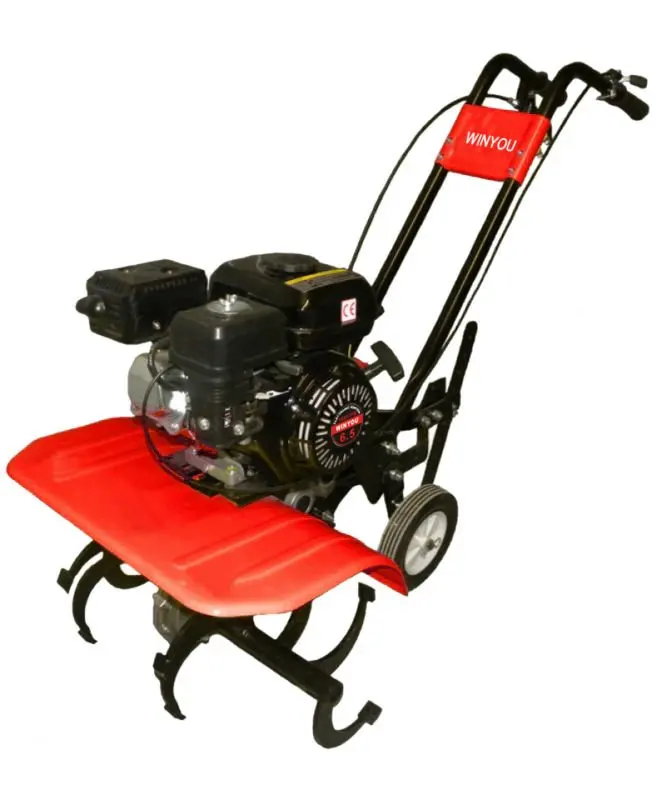

500 tiller/rototiller for farmland/garden

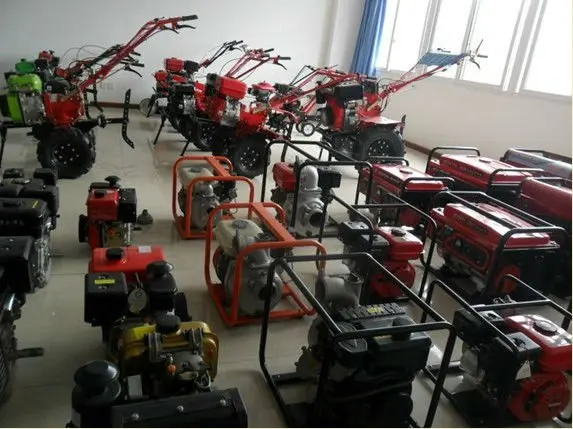

Show Room

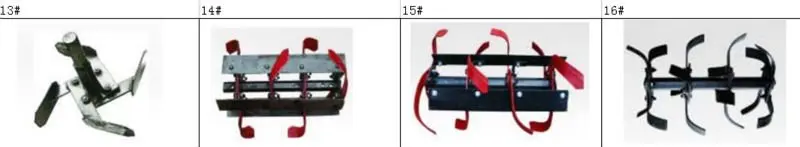

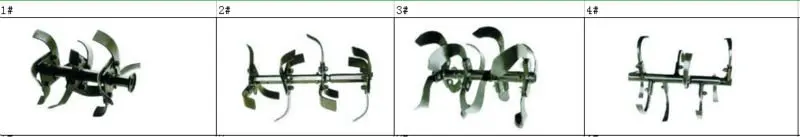

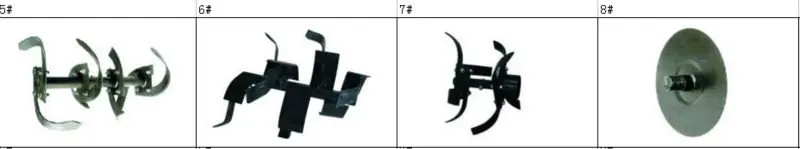

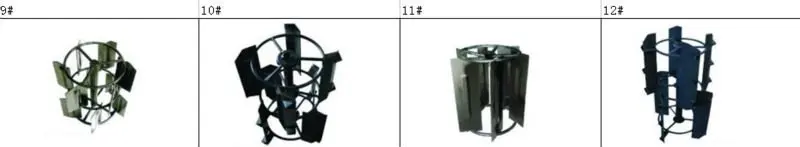

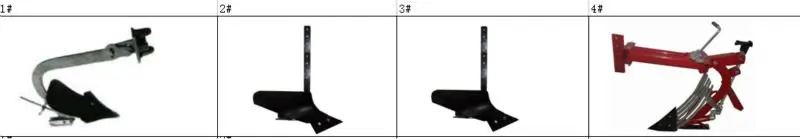

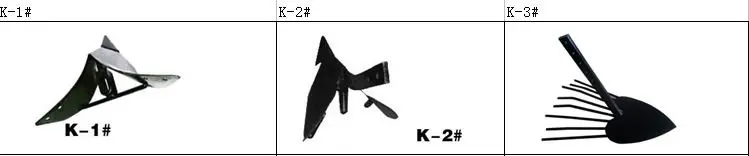

Tilling Blades and Plows /Plough /Furrow

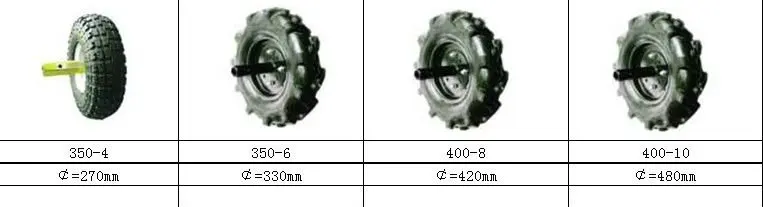

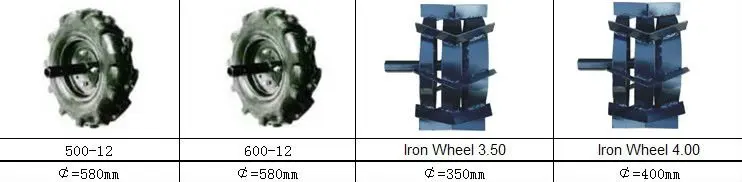

Rubber Wheels/Iron Wheels
