1) New ring type wood barker is composed of the main engine, the feeding mechanism, discharging mechanism, driven parts.
2) It is the most important equipment used in the pulping paper-making, wood processing, chips made and forest.
3) Widely used in the medium density fiberboard, paper-making plant, chipper making factory, plywood plant, and timber cutting area.
4) New ring type wood peeler works well for the curving wood, small diameter log, the max wood curving degree allowed is 8%.
5) This machine adopts the stepless speed changing technology, feeding automatically, suitable for different tree varieties, different diameter and different curving degree wood. With high peeling rate.
Main technical parameters of ring wood barker
Model
LK-160
Main electrical power
4Kw
The wood diameter allowed
3-16cm
Feeding electrical power
2.2kw
Peeling rate
>95%
The shortest wood length allowed
0.65m
Outer size
1610*1670*1200
Weight
910kg
Feeding speed
6m/min
Wood more quarter height
3cm

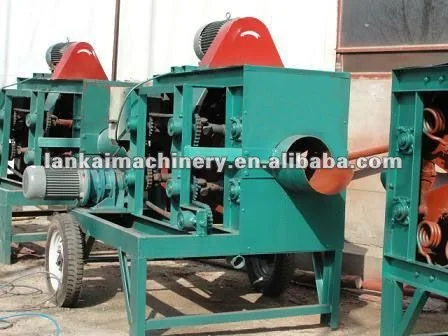

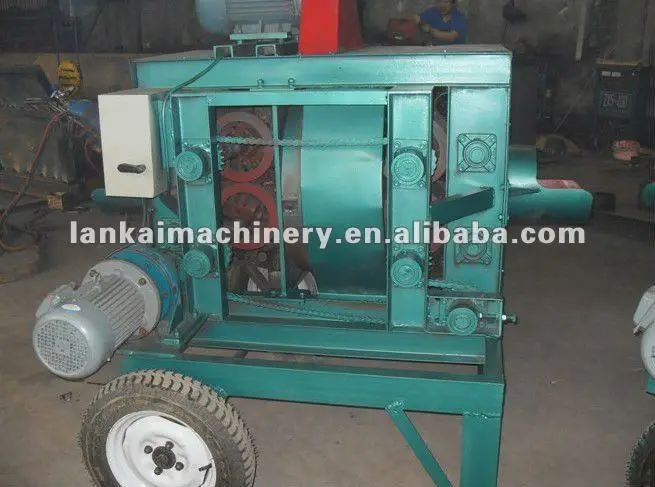

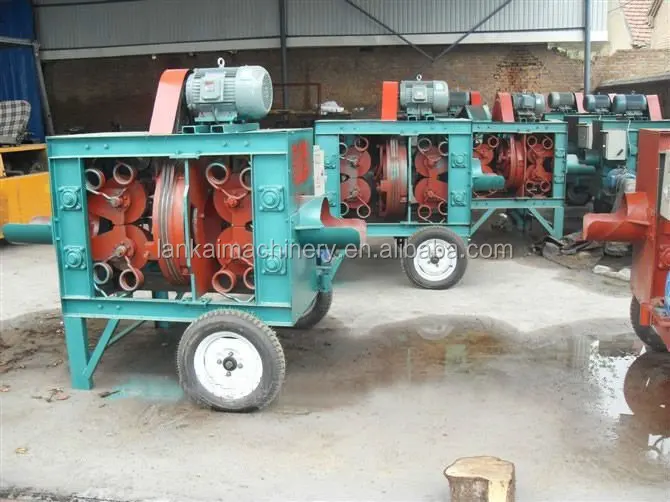

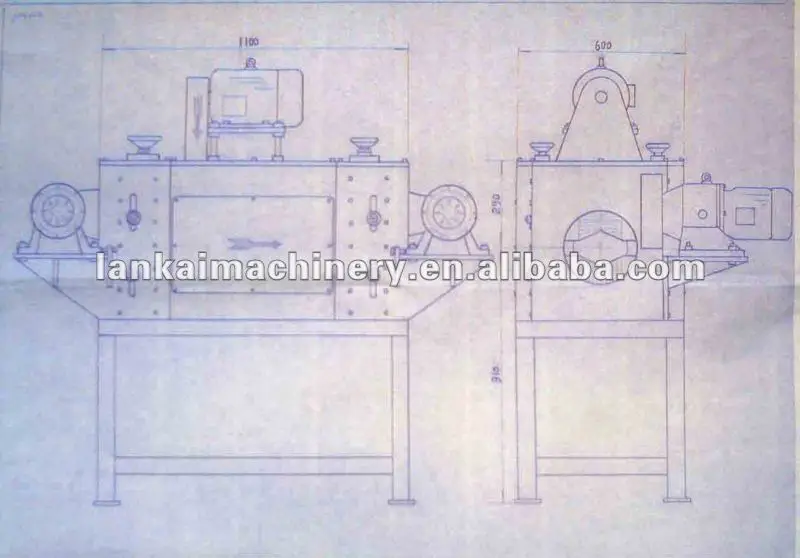

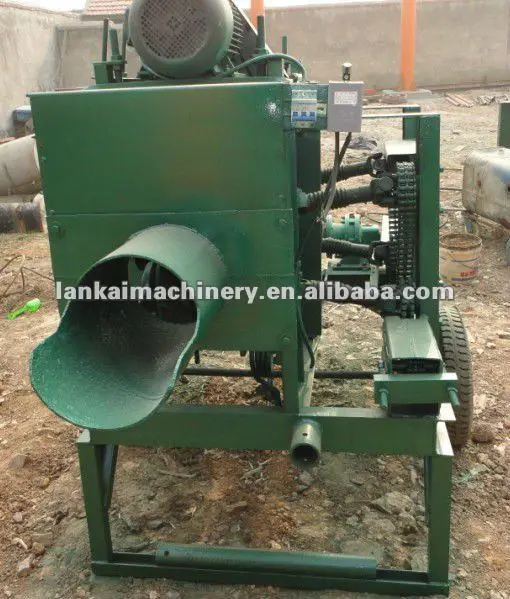

product show for wood barker:
Our Services
CONTACT US
if you are interested in wood barker,please contact me
