EASCO CE UL94V0 RoHS Plastic PVC Channel Grey Color PVC Trunking Size

Product Overview

Description

EASCO CE UL94V0 RoHS Plastic PVC Channel Grey Color PVC Trunking Size

RoHS UL94V0  CE  ISO9001 ISO14001

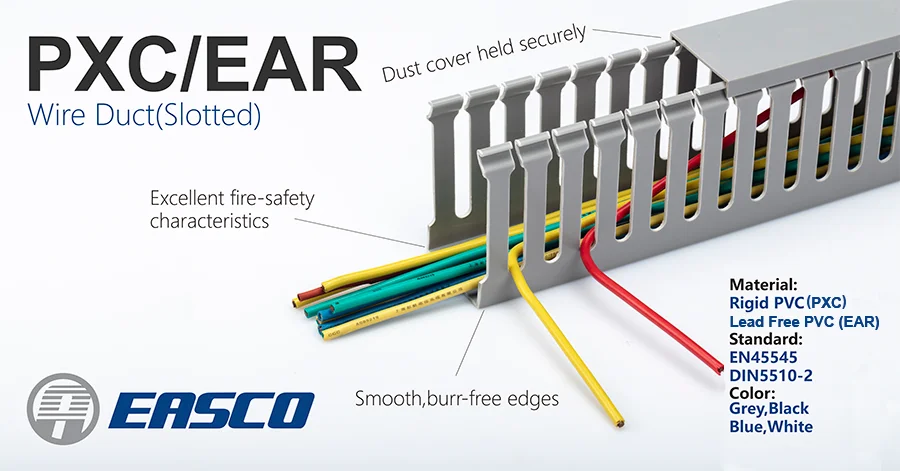

PVC provides a lightweight self extinguishing wiring duct with excellent rigidity and performance characteristics

PXC - Rigid PVC.                         Self-extinguishing.UL94 V-0

EAR - Lead-Free PVC Material  Self-extinguishing UL94 V-0

EASCO UL Approved Wire Duct Wiring Accessory E354081

Insulating, shock-resistant and self-extinguishing thermoplastic

in conformity with UL 94 V0 standard

Dimensional stability from -40 to +70 Centigrade

Conforms to EN 50085-2-3 standard mouting

EAR Conforms to RoHS directive

With mounting holes for easy mounting.

Excellent Cover Retention prevent cover slipping

Length 2 Meter (~78") complete with coer.

Article-No.	Item No.	Slot    4mm	Slot   6mm	Slot    8mm	WxHxL (mm)	Packing   (pcs/pack)
1101-00067	EAR1525	S	-	L	15x25x2000mm	150
1101-00068	EAR2025	S	-	L	20x25x2000mm	116
1101-00069	EAR2525	S	-	L	25x25x2000mm	90
1101-00070	EAR3025	S	-	L	30x25x2000mm	60
1101-00071	EAR2030	S	M	-	20x30x2000mm	96
1101-00072	EAR2530	S	M	L	25x30x2000mm	72
1101-00073	EAR3030	S	M	L	30x30x2000mm	70
1101-00074	EAR3530	S	M	L	35x30x2000mm	56
1101-00075	EAR4030	S	M	L	40x30x2000mm	50
1101-00076	EAR3333	S	M	L	33x33x2000mm	56
1101-00077	EAR2535	S	M	-	25x35x2000mm	72
1101-00078	EAR3535	S	M	-	35x35x2000mm	50
1101-00079	EAR5035	S	M	-	50x35x2000mm	50
1101-00080	EAR2540	S	M	L	25x40x2000mm	58
1101-00081	EAR4040	S	M	L	40x40x2000mm	50
1101-00082	EAR6040	S	M	L	60x40x2000mm	40
1101-00083	EAR2545	S	M	L	25x45x2000mm	54
1101-00084	EAR3345	S	M	L	33x45x2000mm	42
1101-00085	EAR4545	S	M	L	45x45x2000mm	46
1101-00086	EAR6545	S	M	L	65x45x2000mm	36
1101-00087	EAR2550	S	M	L	25x50x2000mm	50
1101-00088	EAR3050	S	M	L	30x50x2000mm	60
1101-00089	EAR3550	S	M	L	35x50x2000mm	60
1101-00090	EAR4050	S	M	L	40x50x2000mm	50
1101-00091	EAR4550	S	M	L	45x50x2000mm	40
1101-00092	EAR5050	S	M	L	50x50x2000mm	40
1101-00093	EAR5550	S	M	L	55x50x2000mm	40
1101-00094	EAR6050	S	M	L	60x50x2000mm	34
1101-00095	EAR8050	S	M	L	80x50x2000mm	26
1101-00096	EAR10050	S	M	L	100x50x2000mm	20
1101-00097	EAR2560	S	M	L	25x60x2000mm	66
1101-00098	EAR3060	S	M	L	30x60x2000mm	60
1101-00099	EAR3560	S	M	L	35x60x2000mm	50
1101-00100	EAR4060	S	M	L	40x60x2000mm	42
1101-00101	EAR4560	S	M	L	45x60x2000mm	42
1101-00102	EAR5560	S	M	L	55x60x2000mm	36
1101-00103	EAR6060	S	M	L	60x60x2000mm	30
1101-00104	EAR8060	S	M	L	80x60x2000mm	22
1101-00105	EAR10060	S	M	L	100x60x2000mm	16
1101-00106	EAR7264	S	-	L	72x64x2000mm	24
1101-00107	EAR2565	S	-	L	25x65x2000mm	60
1101-00108	EAR3365	S	-	L	33x65x2000mm	54
1101-00109	EAR4565	S	-	L	45x65x2000mm	42
1101-00110	EAR6565	S	-	L	65x65x2000mm	30
1101-00111	EAR2580	S	-	L	25x80x2000mm	50
1101-00112	EAR3080	S	-	L	30x80x2000mm	40
1101-00113	EAR3580	S	-	L	35x80x2000mm	36
1101-00114	EAR4080	S	-	L	40x80x2000mm	28
1101-00115	EAR4580	S	-	L	45x80x2000mm	28
1101-00116	EAR5080	S	-	L	50x80x2000mm	24
1101-00117	EAR5580	S	-	L	55x80x2000mm	24
1101-00118	EAR6080	S	-	L	60x80x2000mm	20
1101-00119	EAR8080	S	-	L	80x80x2000mm	16
1101-00120	EAR10080	S	-	L	100x80x2000mm	12
1101-00121	EAR12080	S	-	L	120x80x2000mm	10
1101-00122	EAR14080	S	-	L	140x80x2000mm	8
1101-00123	EAR33100	S	-	L	33x100x2000mm	36
1101-00124	EAR40100	S	-	L	40x100x2000mm	28
1101-00125	EAR48100	S	-	L	48x100x2000mm	24
1101-00126	EAR50100	S	-	L	50x100x2000mm	24
1101-00127	EAR60100	S	-	L	60x100x2000mm	20
1101-00128	EAR70100	S	-	L	70x100x2000mm	16
1101-00129	EAR80100	S	-	L	80x100x2000mm	16
1101-00130	EAR100100	S	-	L	100x100x2000mm	12
1101-00131	EAR120100	S	-	L	120x100x2000mm	8
1101-00132	EAR160100	S	-	L	160x100x2000mm	6



Factory 26+ years manufacturing experience, Alibaba 7 yrs gold supplier -------- EASCO

EASCOprovides solutions to wire & cable management in the fields of industrial electrical accessories, our product categories: wiring duct made of rigid self-extinguishing PVC material and hardness lead-free PVC material, flexible conduit, nylon tie, wrapping band, electrical din rail, cable clip, cable clamp, cable gland, cable connector, bushing, cable marking, terminal, and wiring accessories. To meet the needs of users worldwide, Easco complies with the international Quality Standard Management ISO9001 as well as Environmental management ISO14001, with more products certified by UL, CE, RoHS, REACH, etc.
