ML392 Multi Use Woodworking Machine
- Category: >>>
- Supplier: Weihai Zhongqiao Machinery Co. Ltd.
Share on (582273472):
Product Overview
Description

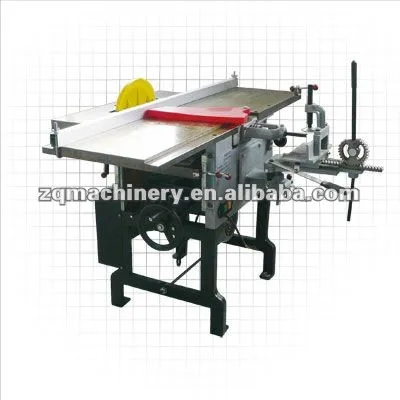

ML392 Multi Use Woodworking Machine Description
ML392 multi use woodworking machine is the light traditional model .
Multi use woodworking machine Feature:
1. adopts worm and worm gear lifting system for thicknesser (optional double one):
2. uses bevel gear mortising section, which has more stroke;
Multi use woodworking machine Specifications
Max. planing width: 260mm
Max. planing depth: 3mm
Arbor diameter: Ø77mm
Knife assembled amount: 3pcs (optional 4pcs)
Height of thicknesser entrance: 6-125mm
Min. working length of thicknesser: 110mm
Mortising capacity: 16mm
Longitudinal stroke of mortiser: 120mm
Horizontal stroke of mortiser: 165mm
Feeding speed of thicknesser: 8.3m/min
Arbor speed: 3500rpm
Max. sawing thickness: 80mm
Motor power: 1.5KW (optional 2.2KW)
Dimension: 1000 x 1020 x 1090mm
Weight: 180KGS20` container loading: 100pcs
Delivery time: 25 days after deposit
Sample available
Customer label accepted
MOQ: 20` container
