Моторизованный двигатель для штор KECO KE70A для сверхмощной электрической системы штор и небольших сценических штор с дистанционным управлением
- Category: Power Transmission >>>
- Supplier: Guangzhou Keco M&E Co. Ltd.
Share on (582787277):
Product Overview
Description
Product Description
KECO KE70A curtain motor, working as small stage curtain motor, is used in automatic stage curtain with heavy load.
The torque 2.0Nm and weight capacity 80Kg, help the KE70A electric curtain and motorized curtain system easily with big weight load.
It is remote controlling and using quality curtain accessories and parts, very suitable to use in heavy hotel curtains, home curtains and stage curtains.
Model Number: KE70A
Specifications
Voltage | Frequency | Power | Torque | Speed | Line speed | Insulation class | Protection class |
230V/120V | 50Hz/60Hz | 100W | 2.0Nm | 112rpm | 0.14m/S | E | IP41 |
Features:
1. Built-in receiver motor, automatic clutch with running noise less than 46dB;
2. It can be set random stop-start limit position on the track.
3. Memory to recover settings after power failure.
4. Various control option by RTS, switch control, intelligent low voltage;
5. Self-Correct error every start-up time, highly reliable and stable.
6. Automatic limit setting, easy debugging;
7. Built-in overload, overtime and high-voltage protection system
8. Support Curtain 12 meters, 80KGS maximum, and 20KG pull force.
9. Strong driver shaft and driver unit;
10. AVR industrial use in processor performance, making it more stable motor, control panel operating temperature range -40~+85ºC.
11. Applicable to Single motor of one-way open or two-way open by straight track or bend track;
12.Bend track radius minimum: 0.5m

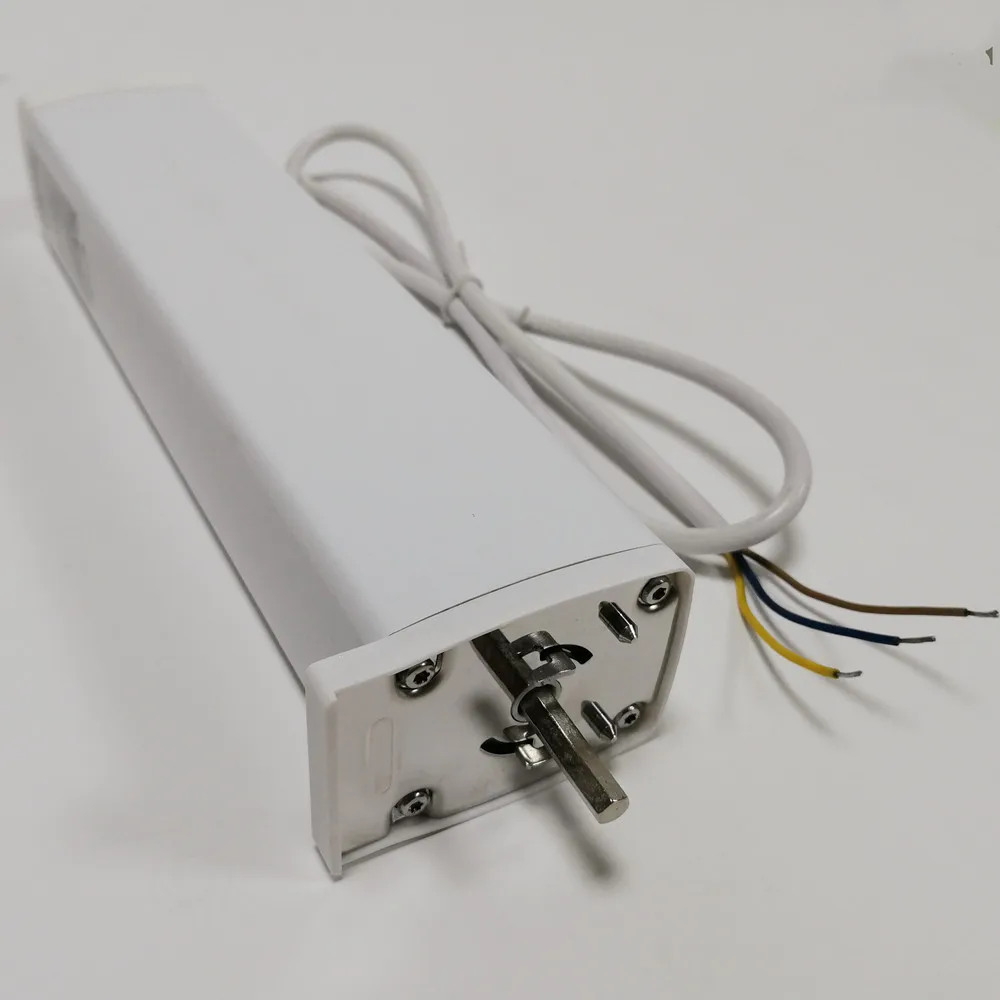

Product wiring

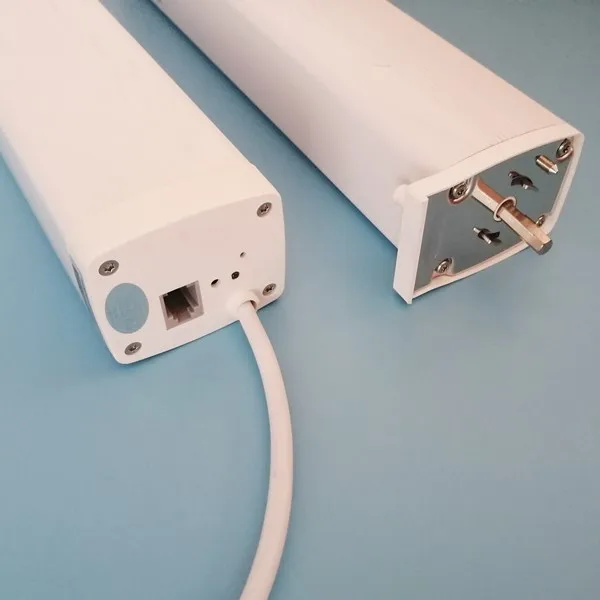

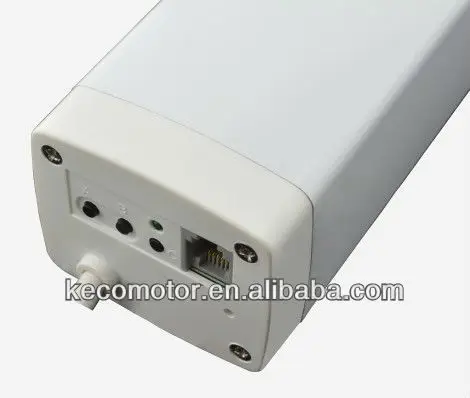

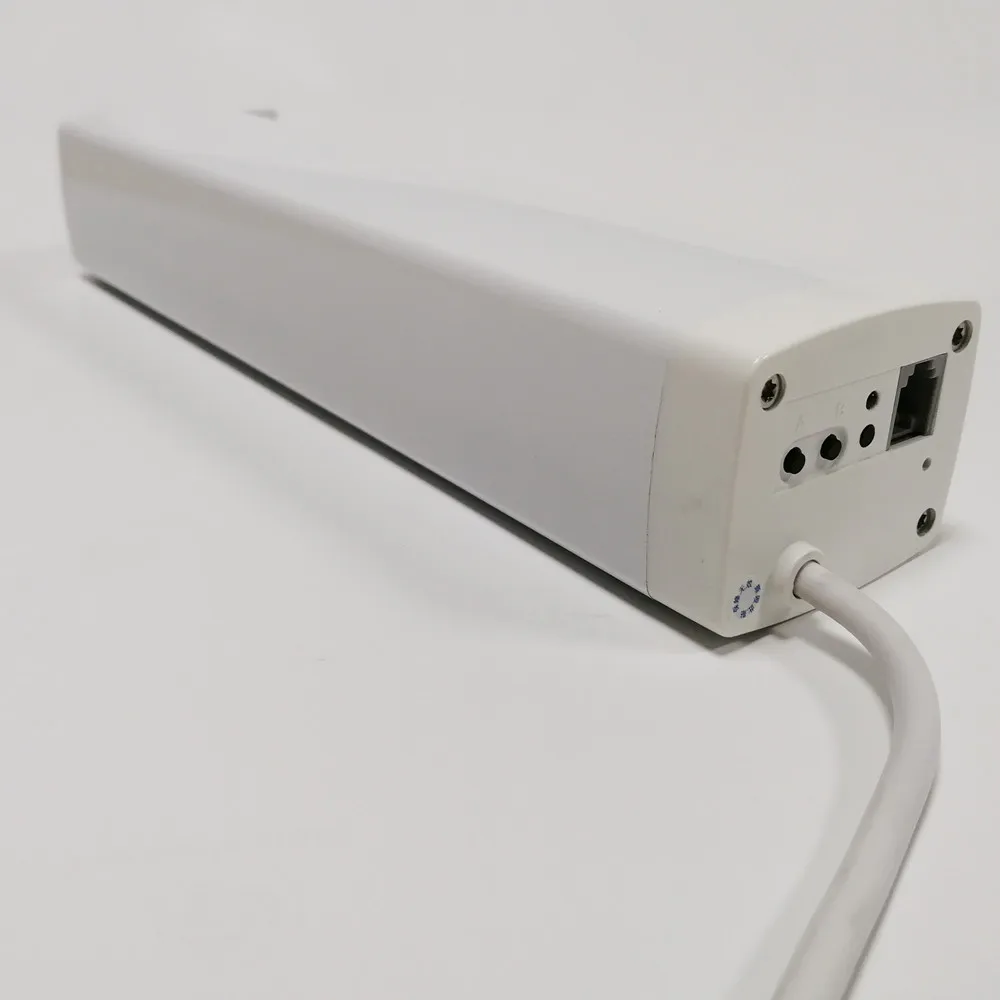

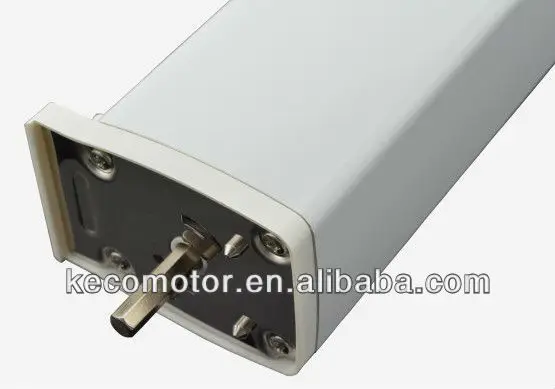

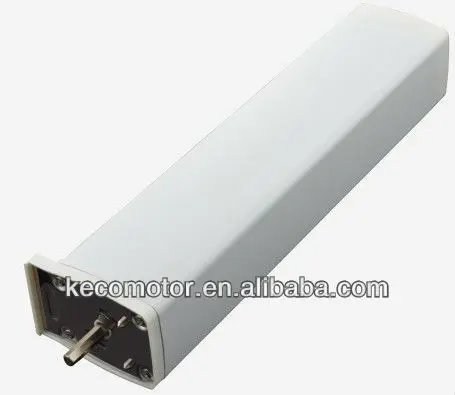

Product real photo
Various Control Option
Weight Capcity
Product dimension
Open in one-way or two-way:
Trade Term
1. Inco Term: EXW GUANGZHOU;
2. OEM Accepted;
Shipping:
