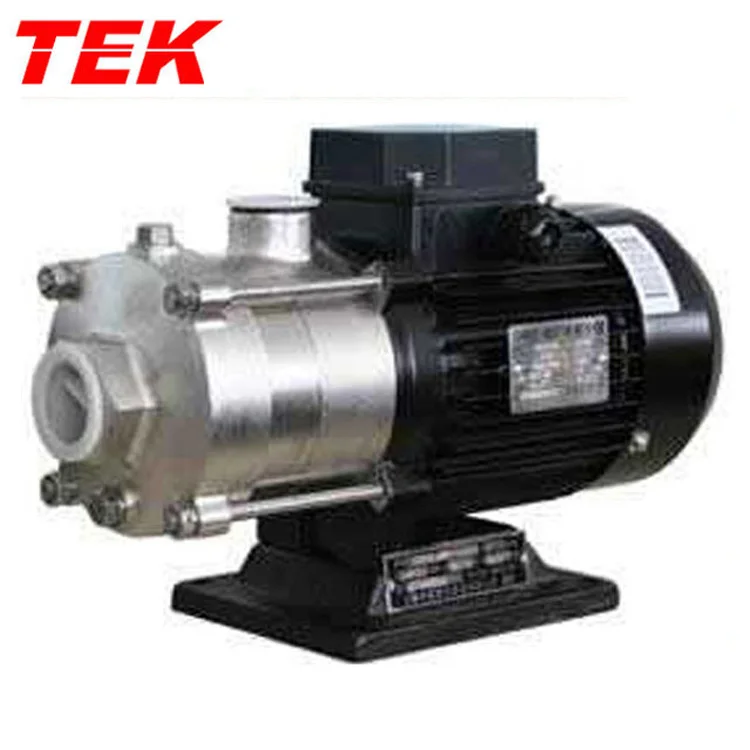

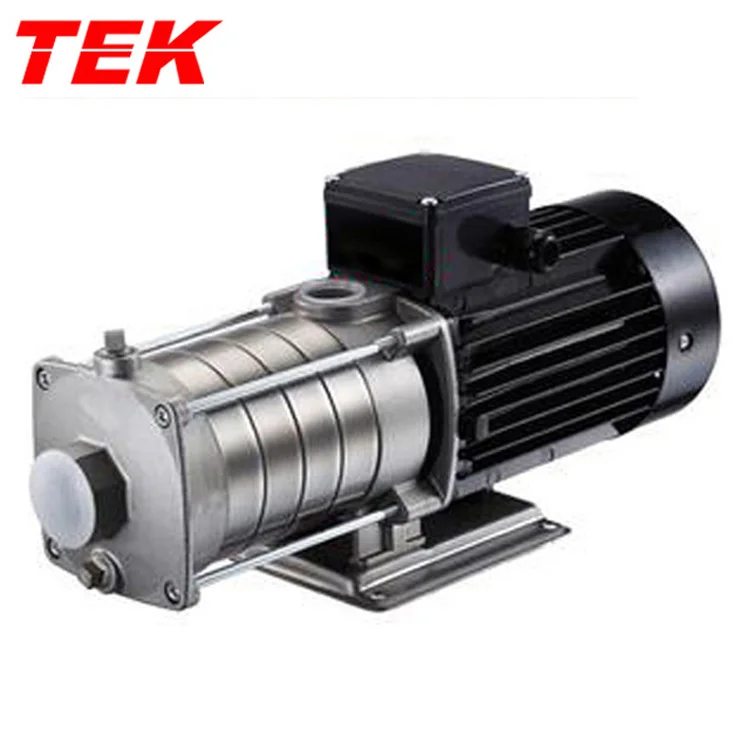

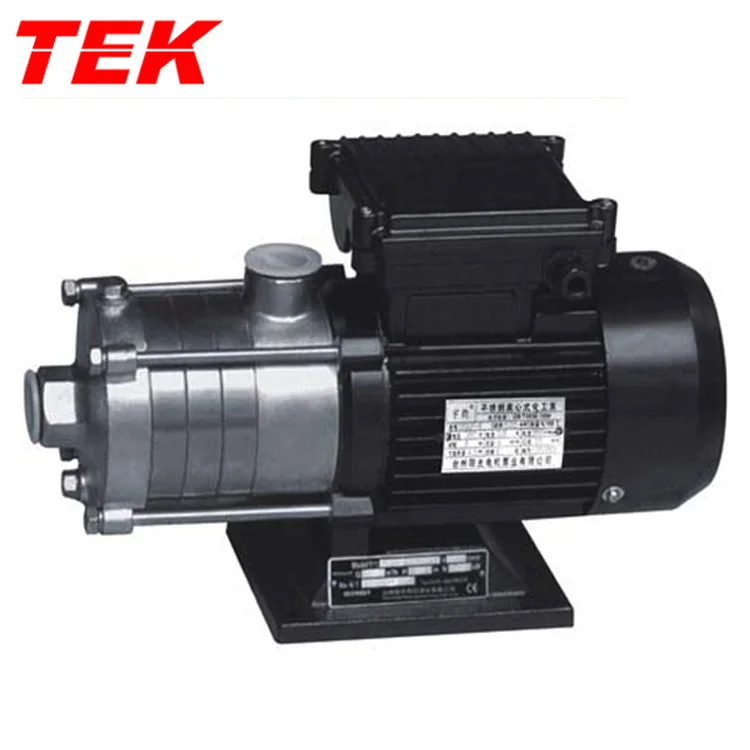

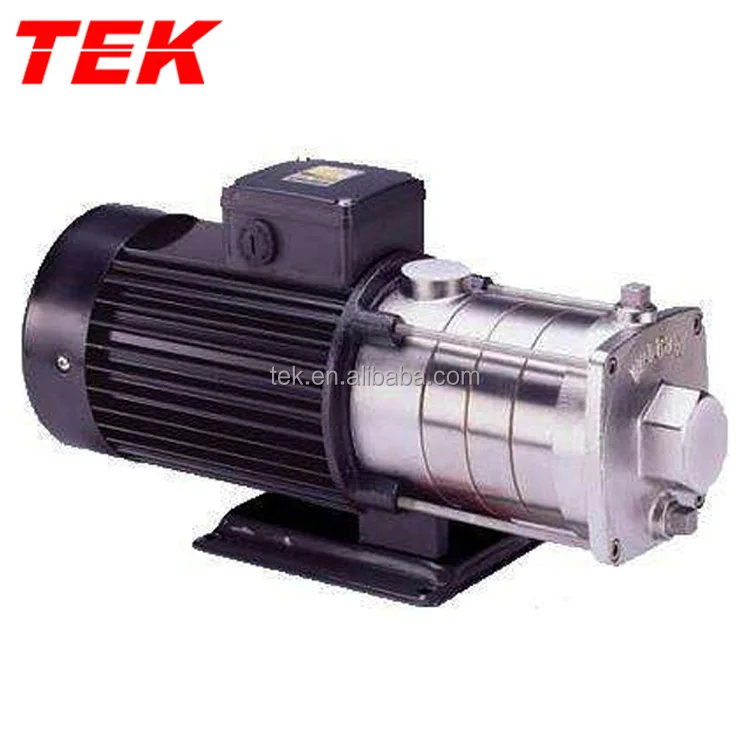

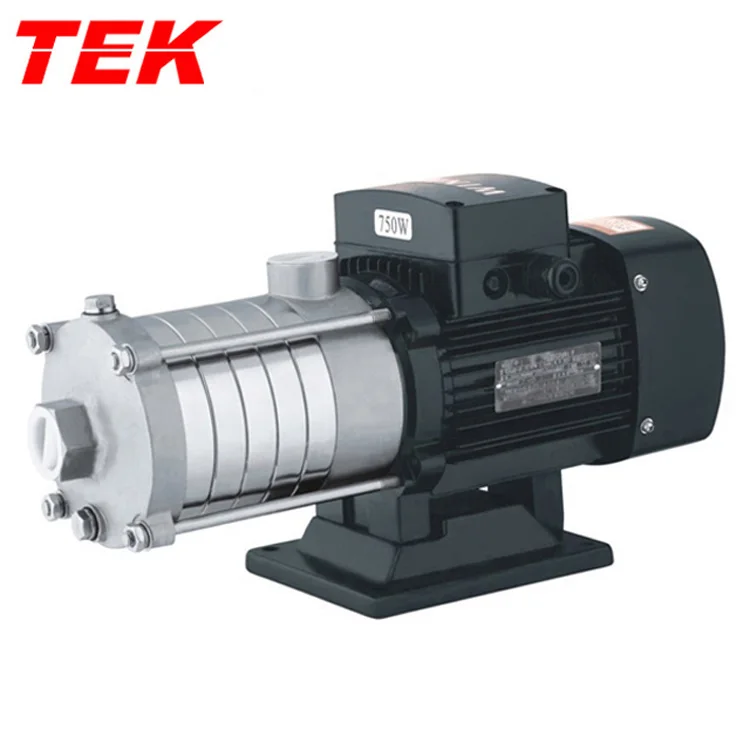

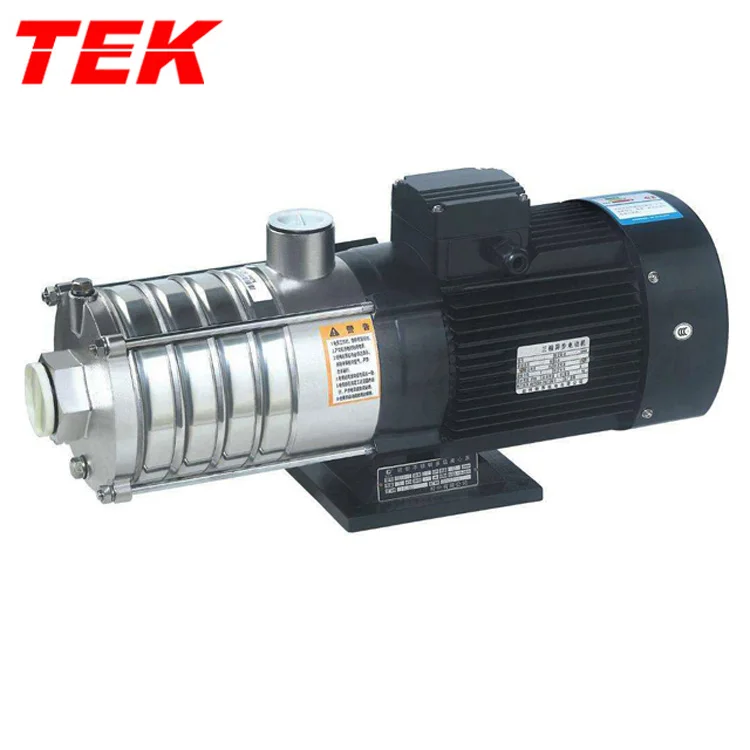

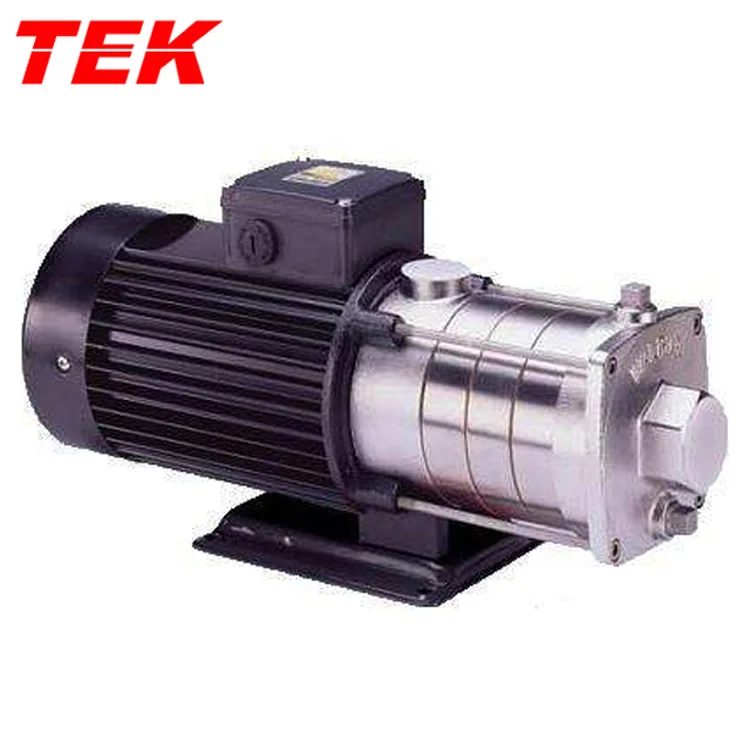

CHLF4 CHLF4 20 CHLF4 30 CHLF4 40 CHLF4 50 CHLF4 60 Light Horizontal Multi stage Stainless Steel Centrifugal Clean Water Pump

Product Overview

Description

CHLF4 CHLF4-20 CHLF4-30 CHLF4-40 CHLF4-50 CHLF4-60 Light Horizontal Multi-stage Stainless Steel Centrifugal Clean Water Pump



Application
CHLF,CHLK type pump are mainly used in industrial field:
Air-conditioning system
Cooling system
Industrial cleaning
Water treatment(Water purification)
Aquiculture
Fertilizing / metering system
Environmental application
Other special applications
Applicable medium
Thin and clean non-flammable and non-explosive liquid without solid granules and fibers.
Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.
When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power.
Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value,temperature, solvent and oil content.
Operation condition
Liquid temperature:
Normal temperature type: -15°C~+70°C
Hot water type: +70°C~+110°C
Highest ambient temperature: +40°C
Max.operation pressure :10 bar
Max.inlet pressure is limited by max.operation pressure

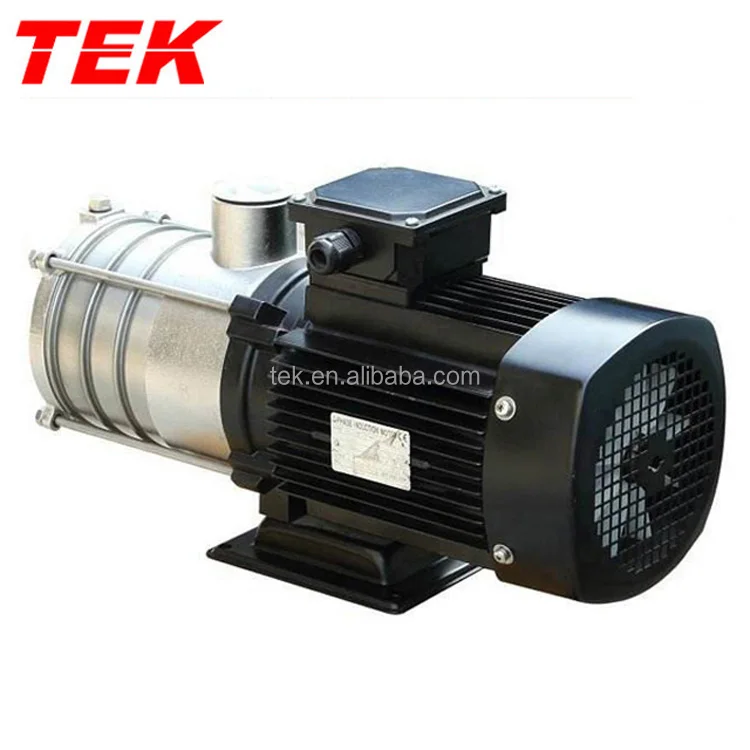

Pump
Horizontal multistage non-self-priming centifugal pump, attached with long shaft electric motor.
Compact structure renders small size of pump;axial inlet and radial outlet.

Product Power 0.37-4.4KW

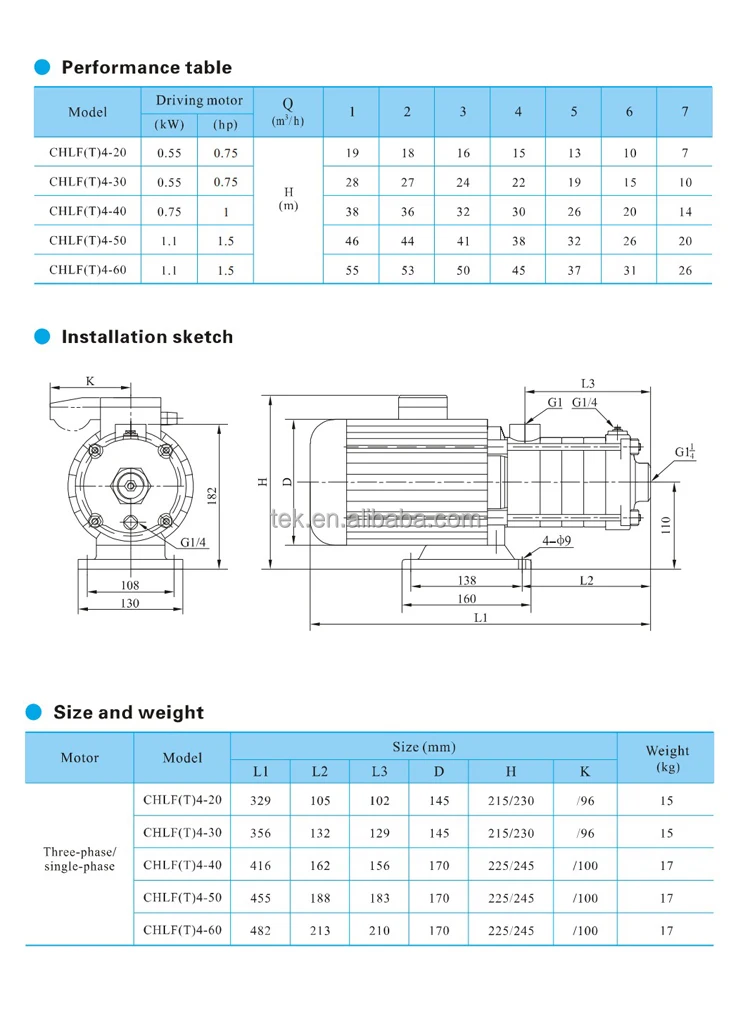

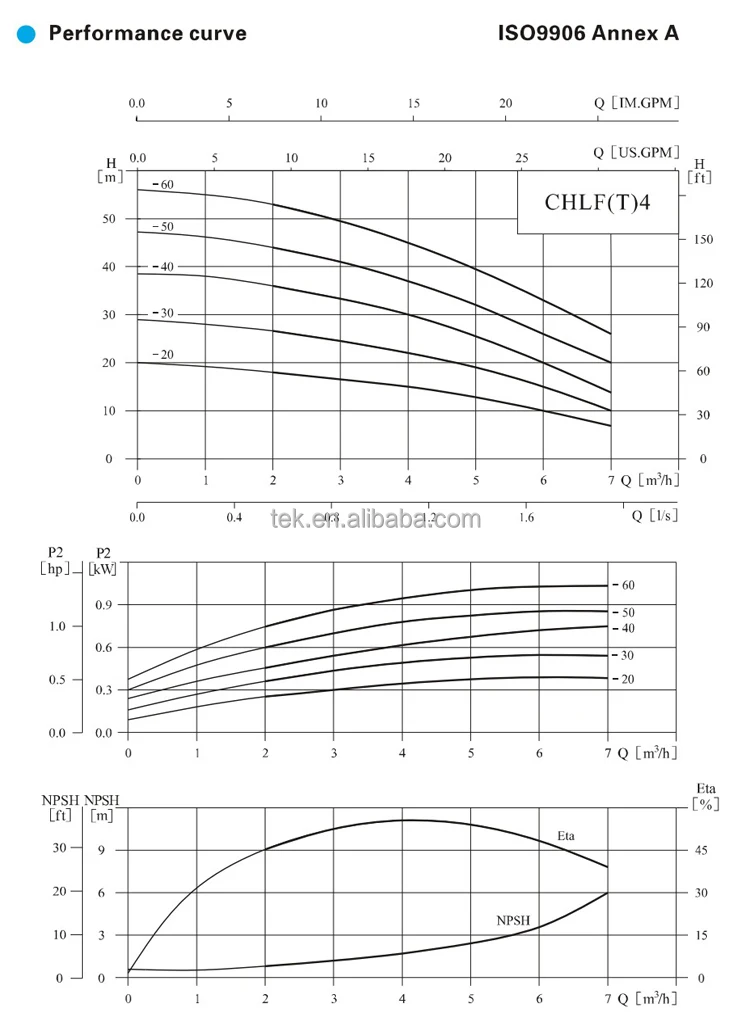

View technical



Model	Power		Flow	Head	Speed
	KW	HP	m3/h	m	r/min
CHLF4-20	0.55	0.75	4	15	2900
CHLF4-30	0.55	0.75	4	23.5	2900
CHLF4-40	0.75	1	4	31	2900
CHLF4-50	1.1	1.5	4	39	2900
CHLF4-60	1.1	1.5	4	47	2900
