3) Other material options: Brass, Stainless steel are available upon request.
4) Wide Variety of Seal Materials Available.
B) Features:
5) Dimensions & Performance Conform to ISO 7241-1A (ISO-A).
6) Proven Ball-Locking Design.
7) Poppet Style Shut-off Valve
8) Provide an additional PTFE supporting ring to protect O-ring, contributing to high pressure working environment.
9) Both crucial parts of sleeve and nipple are hardened, the couplings resistant to damage from brinelling and mechanical shock.
10) The durable-ball-locking mechanism ensures a reliable connection every time.
11) Captive valve seal assures poppet sealing. The valve seal is positively captured by the metal poppet to minimize seal washout or damage from high velocity fluid. 12) Dust caps is available, female pipe and BSPP or NPT thread are available upon request.

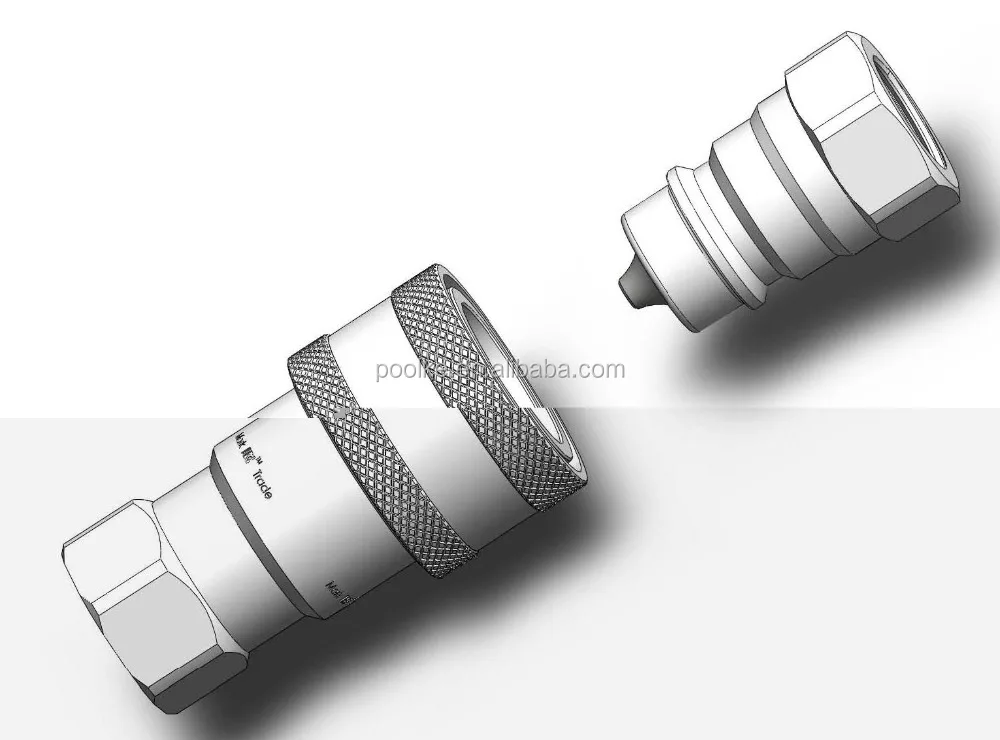

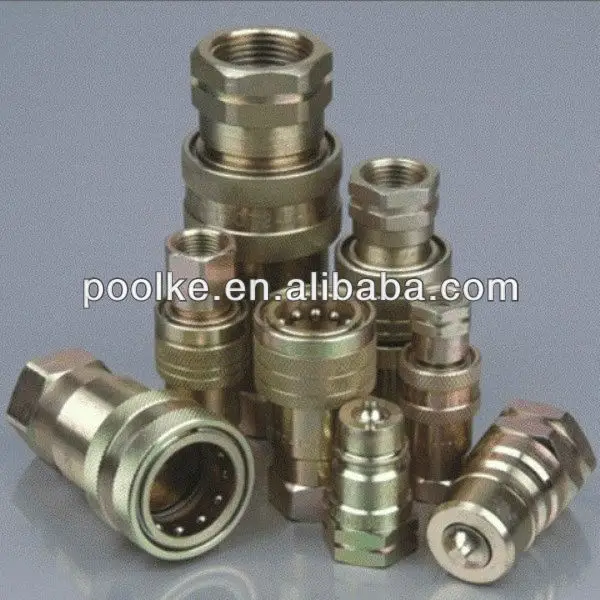

13) The KIS-A series is a general purpose coupling that is supplied in a double shut-off Configuration for use in applications such as test equipment, agriculture, mobile hydraulics,in-plant hydraulics, machine tool, plastic molding, Departments of Transportation among others.
C) Interchange:
Parker 6600; Nitto 280;Hansen HA15000; Foster A series;Faster ANV;Cejn X95.
PART NO.
ISO
Thread
L
L1
L2
D1
D2
CH1
CH2
KIS-A-G02SP
6.3
G1/4
70
49
35
26
11.8
19
19
KIS-A-G03SP
10
G3/8
85
60.5
42
30
17.3
22
22
KIS-A-G04SP
12.5
G1/2
96
70
48
38
20.5
27
27
KIS-A-G06SP
20
G3/4
114
84.5
56
45
29.1
34
34
KIS-A-G08SP
25
G1
131
99
66
52
34.3
41
41
KIS-A-G10SP
31.5
G1-1/4
150
117
75
70
45
50
50
KIS-A-G12SP
40
G1-1/2
167
133
84
82
55
60
60
KIS-A-G16SP
50
G2
216
169
108
99
65.1
75
75
Main Market: North America, Australia, Europe, Africa and Middle East
