Butterfly Needle

Product Overview

Description

Butterfly Needle
Specifications



1)    Blood collection needle (single use) is used together with Vacuum Blood Collction Tubes for venous blood collection in labs

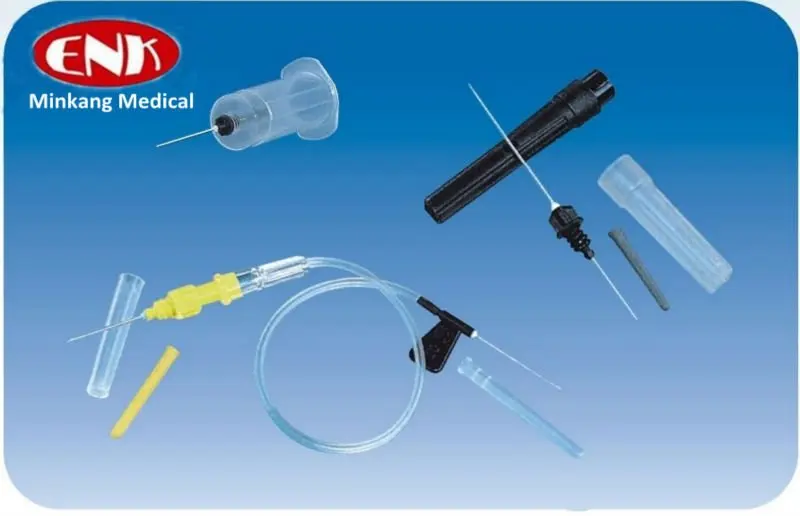

2)    Type : Multi-Sample Needle , Blood Collection Set , Butterfly Needle

3)    Material : Mainly made from plastic materials and stainless steel

4)    Sterilzed by EO gas non-toxic and non- pyrogen

5)    Sharp needle point ,light punture force, less paintp patient

6)    Single use only ,reuse is forbiden

7)    CE , ISO9001 and ISO13485 authorized

8)    Multi-Sample Needle : 22G(Black) , 21G(Green)
        Blood Collection Set : 24G(Lavender) , 23G(Blue) , 22G(Black) , 21G(Green) , 20G(Yellow)
        Butterfly Needle : 25G(Orange) , 23G(Blue) , 22G(Black) , 21G(Green)

9)    Package :

        Multi-Sample Needle: 100 PCS/Box, 6000PCS/Carton

        Blood Collection Set & Butterfly Needle:100PCS/Box,3000PCS/Carton
        Measurement Multi-Sample Needle :570×335×255MM

        Blood Collection Set & Butterfly Needle: 580×330×340MM

10)  Validity : 2 years

11)  OEM available .



In addition,we can supply Disposable Syringes, Insulin Syringes, Infusion Set, Blood Transfusion Set,Blood Bags, Urine Bags, Gloves,Vaginal Speculum,Vacuum Blood Collection Tube, etc.

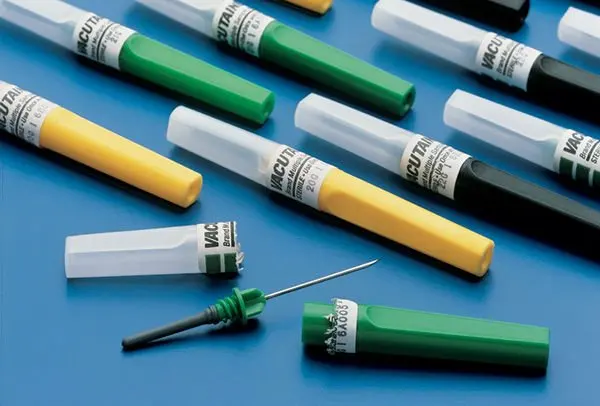

Multi-sample Needle

Blood Collection Set

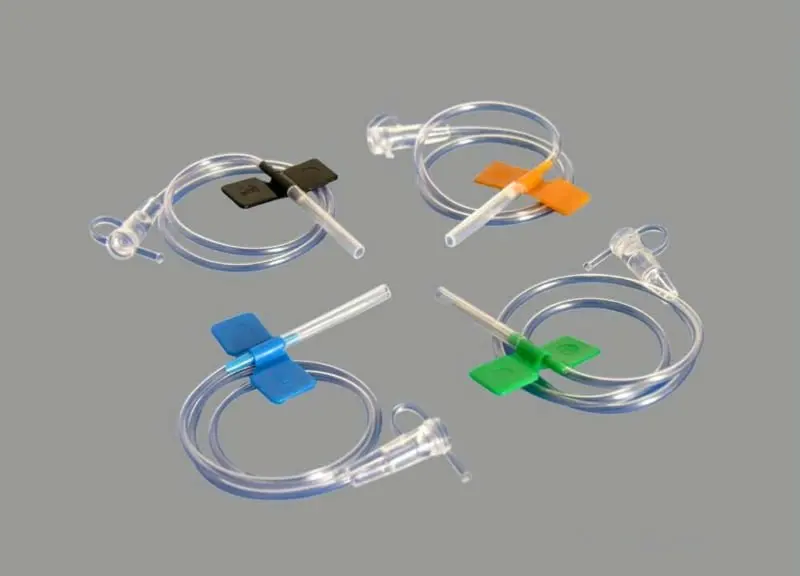

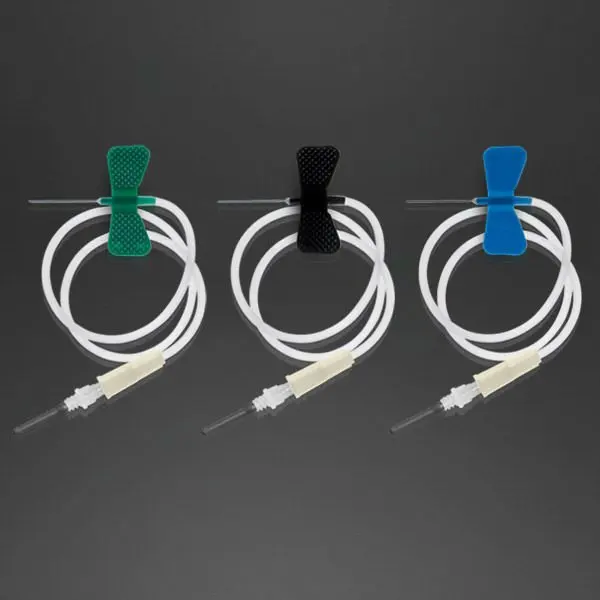

Butterfly Needle





Using Process

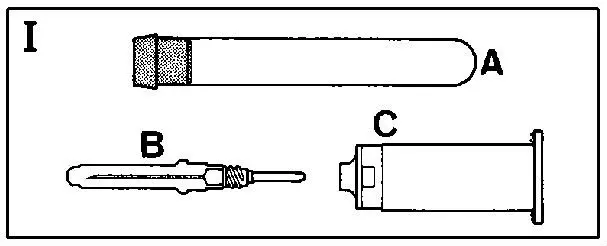

I.     A-evacuated tube (sterile interior)
       B-protected sterile needle
       C-holder



II.     Screw protected needle into holder; insert tube into holder, making sure that the needle is slightly embedded in the stopper (the stopper then meets the guideline on the holder)

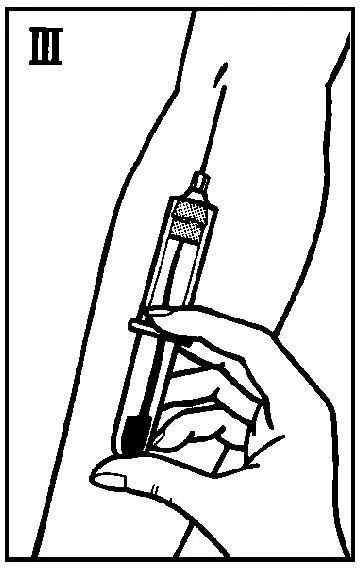

III.     When the needle is in the vein, push the tube to insert the needle through the stopper; the blood flows

         It is possible to fill several tubes, keeping the needle and holder in place

         To obtain drops, hold the tube vertically and tap the bottom of the tube

         To transfer serum, insert a second tube as if performing a venepuncture, or remove stopper and collect serum with a syringe or pipette
