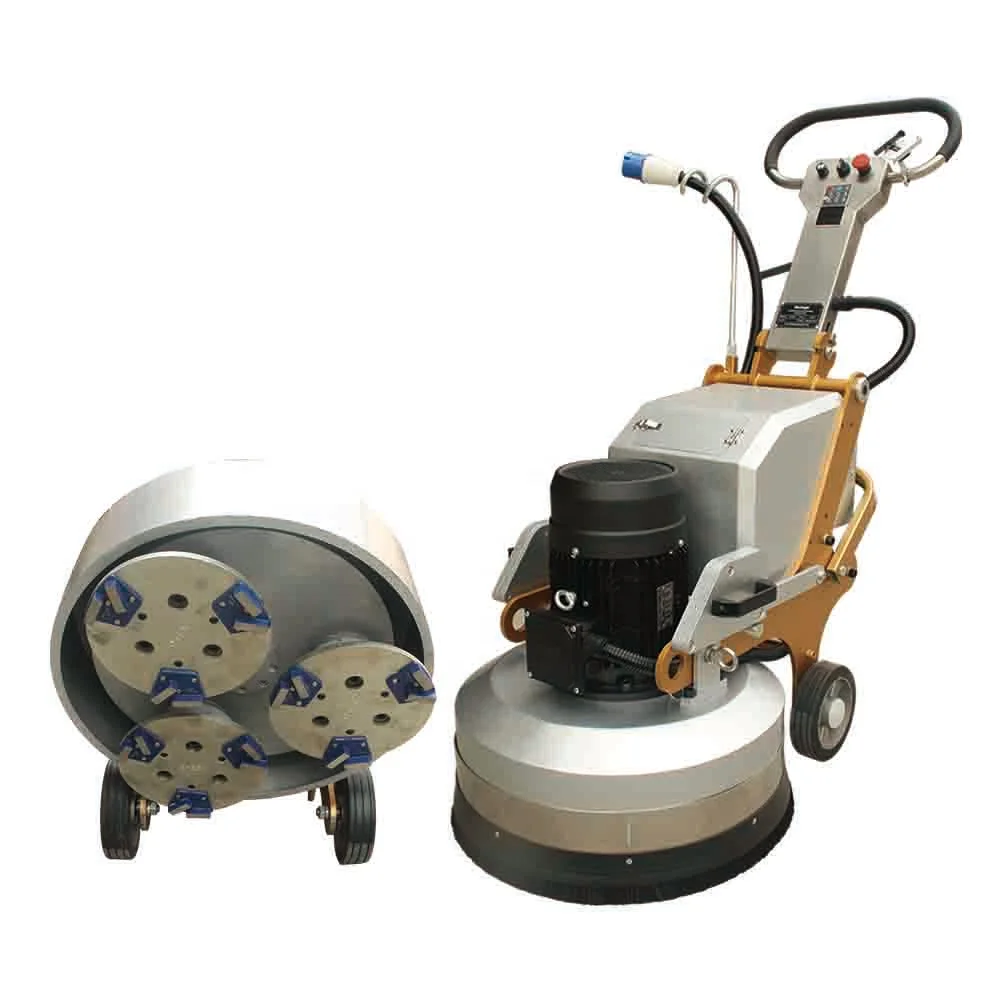

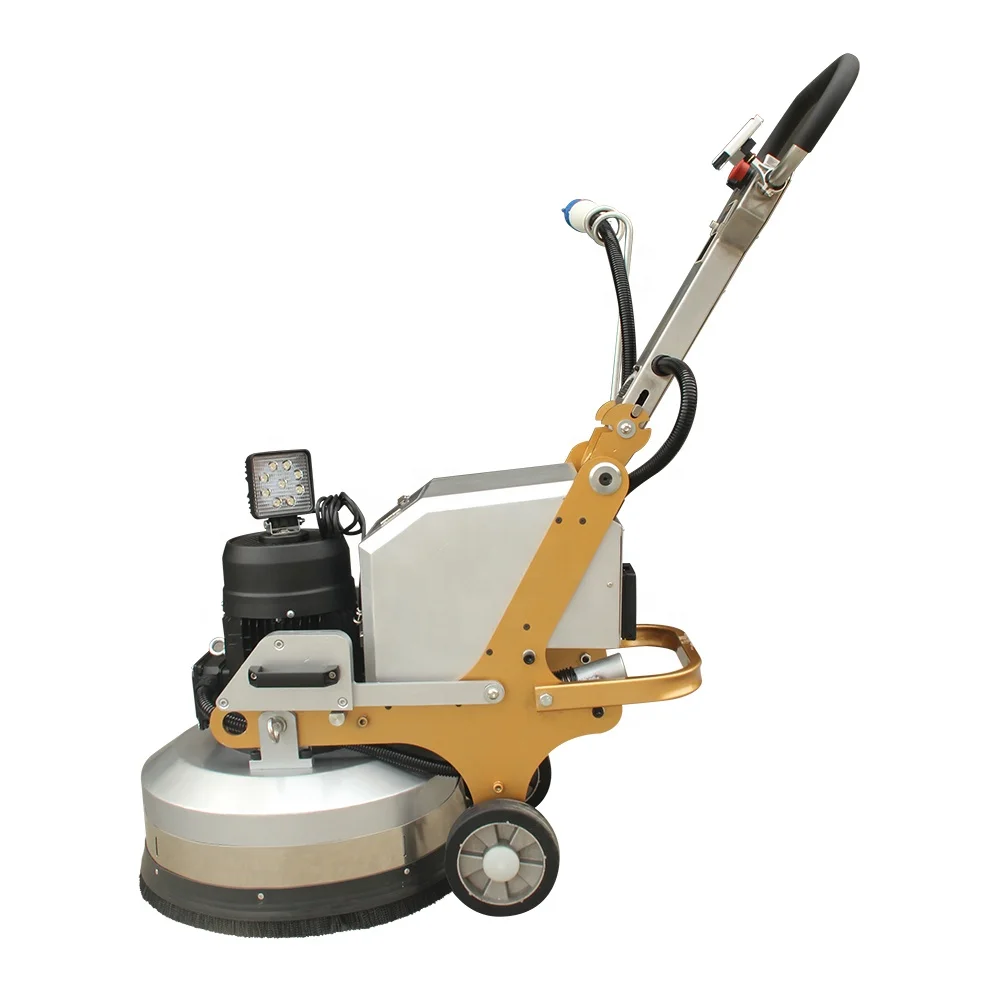

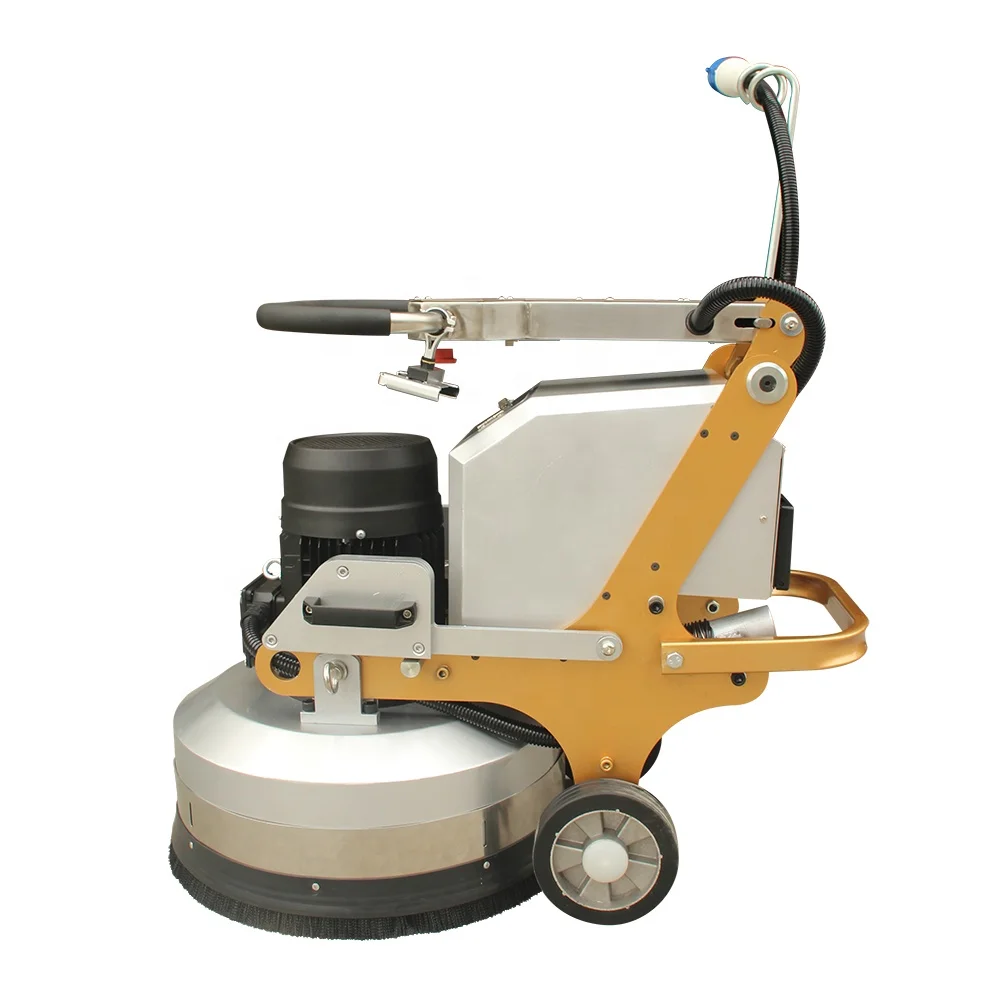

220V 9 Heads Planetary Concrete Grinder 5.5KW 240V Floor Polishing Machine
9 Heads Planetary System Floor Polishing Machine 220V Single Phase Concrete Grinder is used to produce a smooth finish on flat surfaces for free movement floors. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
High tech grinding machine S9-X-550 with unique and patented planetary 9-heads driving system, which achieve
the innovation of low maintenance gear driving planetary head rotation system.
1. S9-X-550 with the multi-functional plate which with magnetic, it's suitable for all kinds of pads, blade, like velcro-back or metal wheel.
2. Three plates with 9 pieces heads, each time need fix 9 pieces pads (blades), with planetary three-plate driving system,
S9-X-550 use aluminum alloy die-casts base plate, it's hard and won't be out of shape, stainless steel water tank.
3. Separated body and chassis can put in a car.
4. Fold handle can save space.
5. With vacuum cleaner connector could install a vacuum cleaner outside.
5. It with water tank can wet and dry grinding.
7. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
5. With vacuum cleaner connector could install a vacuum cleaner outside.
5. It with water tank can wet and dry grinding.
7. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
Model | S9-X-550 | ||||||||
Phase | 1 | ||||||||
Voltage | 220V-240V | ||||||||
Power | 7.5HP/5KW | ||||||||
Inverter | 7.5HP/5KW | ||||||||
Autorotation rate | 0-1250rpm | ||||||||
Revolution speed | 0-320 rpm | ||||||||
Work width | 550mm | ||||||||
Heads | 9 pieces | ||||||||
Grinding plate | 3 pieces | ||||||||
Water tank | 11.6 L | ||||||||
NW (KG) | 232 | ||||||||
Packing size(CM) | 98x62x93 cm | ||||||||
Available blade

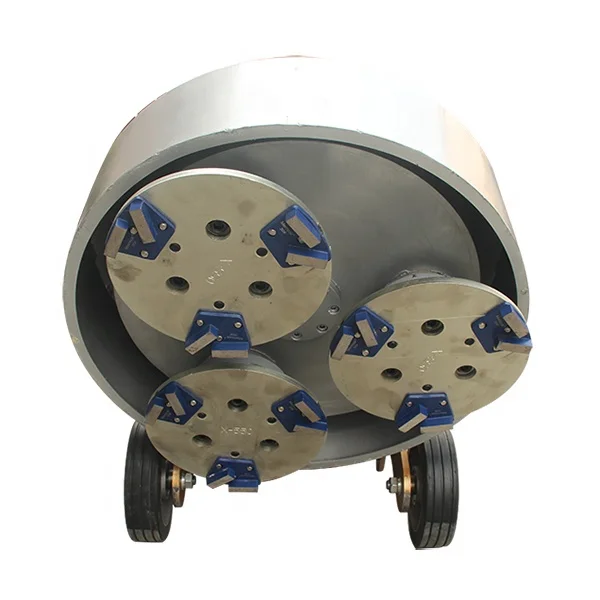

1. 220V 9 Heads Planetary Concrete Grinder 5.5KW 240V Floor Polishing Machine can use the metal diamond grinding blade in 4 inch or smaller than 4 inch.
2. The metal diamond grinding blade can use for terrazzo concrete and epoxy floor
3. J007C, J013 and PCD for removing the old epoxy.
3. J007C, J013 and PCD for removing the old epoxy.
Abailable resin pad

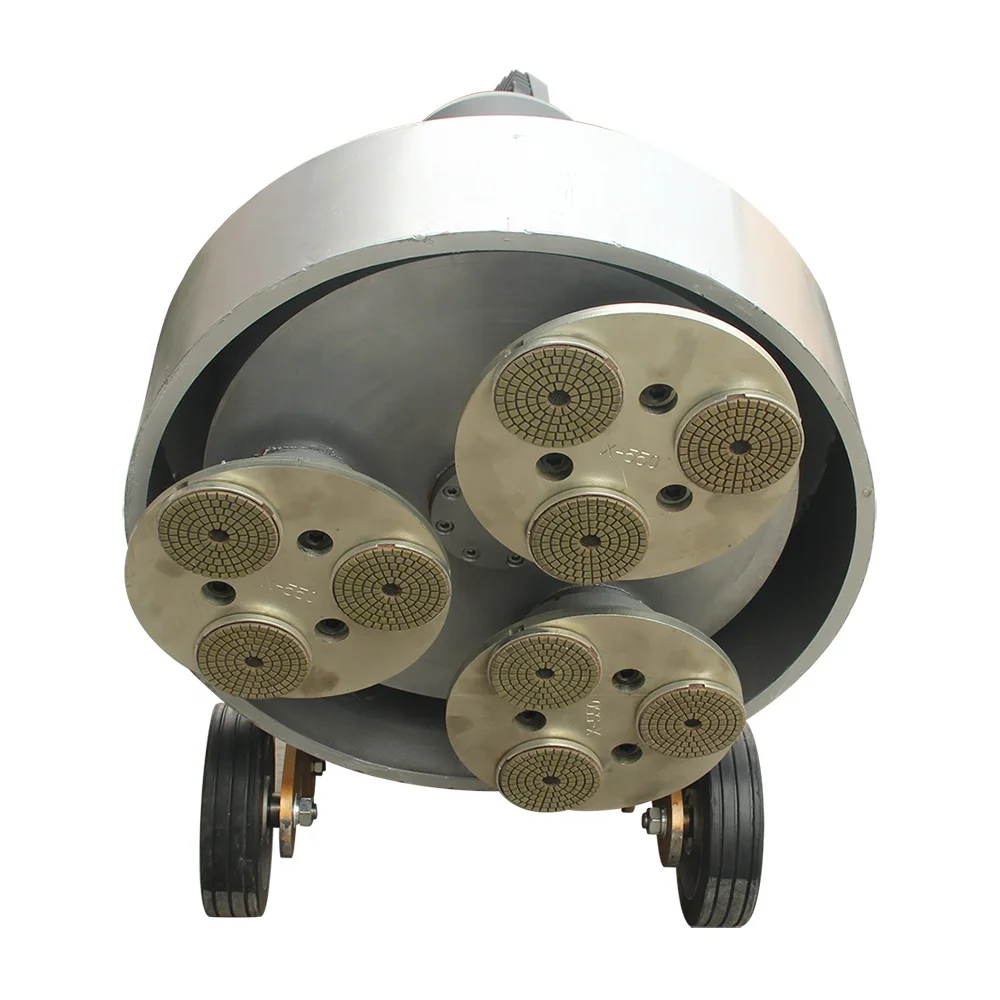

1. 220V 9 Heads Planetary Concrete Grinder 5.5KW 240V Floor Polishing Machine can use the resin polishing pad which in 4" or smaller than 4".
2. The polishing pad can use for marble, granite, terrazzo and concrete floor etc.
Related Products
Packing&Shipping
Packing in export wooden case
Packing size: 135x85x140 cm
