300 t/d Mining Beneficiation Equipment Applied In Zinc Lead Copper Nickel Lithium Graphite Gold Silver Processing Line For Sale

Product Overview

Description

300 t/d Mining Beneficiation Equipment Applied In Zinc Lead Copper Nickel Lithium Graphite Gold Silver Processing Line For Sale

Product name: Mineral processing plant with flotation cells

Applicable ores: Lead & Zinc Ore, Copper Ore, Graphite Ore, Lithium Ore, Gold Ore, Silver Ore, etc.

Capacity: 100-2000 t/d

Brand: Jiangtai

Main components: crushers, ball mills, spiral classifiers, flotation cells, pumps, filter press, dryer,and so on.

Brief introduction about Zinc Ore Flotation Plant/Zinc Processing Plant/Zinc Ore Dressing Plant

        General speaking, the  Zinc concentrate Machine composes of many equipments, such as jaw crusher, impact crusher, vibrating feeder, belt converyor, ball mill, spiral separator, mixer, rotary kiln,and so on. as to how many equipments needed for each model, it's mainly depended on your situation and your expect about the final product, such as the size of the stone, the grade of the coarse ore and your expect on the final product,etc.

Advantages of Jiangtai brand  Zinc concentrate Machine

1: all products are manufactrured with the guidance of ISO9001

2: each quality product to optimized the complete line, so it's more effective

3: the gold recovery plant is low noise

4: whole life sale service for the  ore mining equipment, so our client can rest assured

5: any spare parts is available in our factory

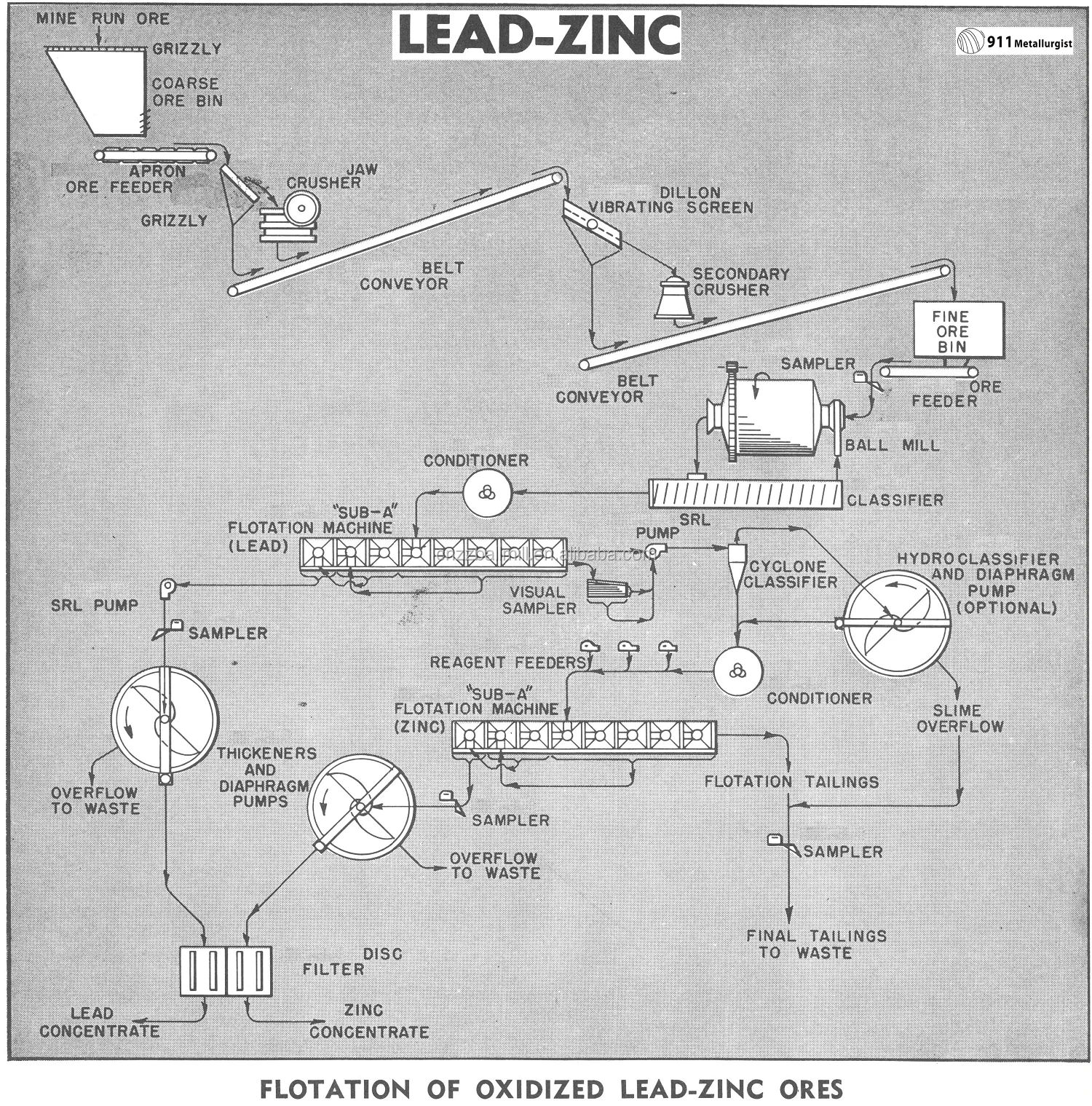

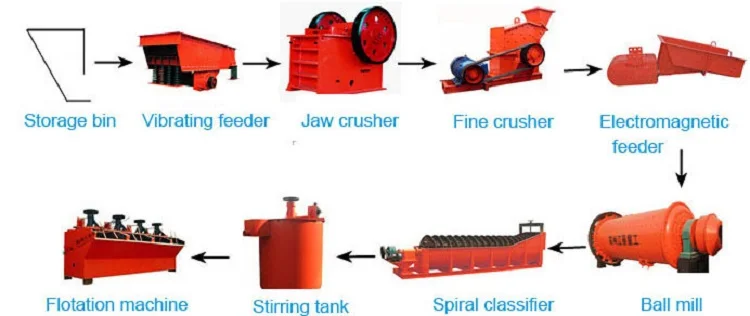

Procedures of  Zinc Ore Flotation Plant/Zinc Processing Plant/Zinc Ore Dressing Plant

1: crude ore need to be primary by coarse jaw crusher and re-crushed by fine crusher or impact crusher

2: the re-crushed particles will be sent to ball mill to get sutle powder

3: the powder will be processed by spiral separator in the next stage

4: then the mineral will be mixed with additives in the mixer

5: the flurry will be processed to extract copper in the flotation machine

6: then the rotary dryer will dry the gold ore, so the Zinc concentrate Machine is finished by now.

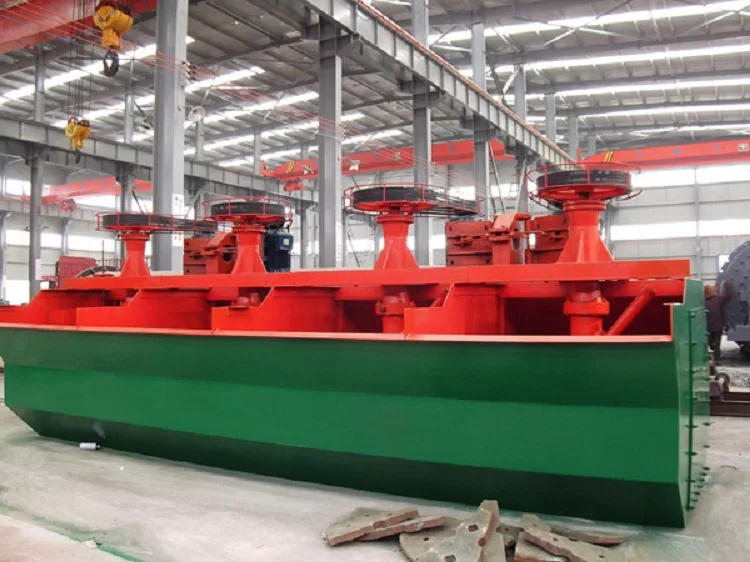

Technical Parameters of Flotation Cell used for Zinc Ore Flotation Plant/Zinc Processing Plant/Zinc Ore Dressing Plant

 Our service for Zinc Ore Flotation Plant/Zinc Processing Plant/Zinc Ore Dressing Plant

Our company is a high-tech enterprise in Zhengzhou which had achieved  ISO9001/2008. We are a professional manufacturer and supplier of mining crusher, industrial grinding mills, and beneficiation equipments.

      Our company features advanced CAD and computer simulation test system which ensures the quality of design, development, manufaturing and after-sale services. We can provide gravity separation, magnetic separation, flotation beneficiation and cyanidation beneficiation lines. Most importantly, what we can provide is not only the equipments, but the professional technology which can meets any special requirements.

      Our company has independent import-export right with an international trade department to deal weith export affires. Besides, we have a professional after-sale service faculty to provide considerate  and all-round-way services for customers.

Company Info:

Zhengzhou Jiangtai Heavy Industrial Machinery Co., LTD, which is a the famous manufacturer of crusher and screen equipment for clients in the following industries: cement industry, crushing and screening industry, beneficiation industry, AAC block industry, and the main equipment mainly include jaw crusher, vertical shaft impact crusher(VSI crusher), impact crusher, cone crusher, vibrating screen, cone crusher, portable crushing plant, sand washing machine, rotary dryer, rotary kiln, magnetic separator, ball mill, flotation machine, rotary dryer, rotary kiln, vertical shaft kiln, cement ball mill, dust collector, and some auxiliary equipment, such as belt conveyor, screw conveyor, bucket elevator, and so on. We have many technical experts for the above mentioned industries, which can make sure the solution we provide can meet the client`s requirements, and possesses the powerful ability in developing the new products. Demands of clients are deemed as our motility, we endlessly develop the new products with high performance, which could satisfy the demands of clients and reach the world level. We highly regard the quality of products, pursue excelsior on the quality of products, and guarantee to produce the high quality product with strict ISO9001: 2000 quality management systems. We have perfect after-sale service network. After strict training, the after-dale service engineer could offer clients the rapid maintenance service on demand. Moreover, we have our own foundry plant where lots of spare parts of the crushing and screening equipment are manufactured and plenty stored, which could offer clients spare parts conveniently. As the occupation ratio in domestic market increases, our products have been exporting to Russia, Mongolia, Chile, Media Asia, East Asia, Africa etc. Country and region. We insist innovating constantly, keeping improvement of products, enhancing the reliability of products, aspire to be the global brand in the crushing and screening filed, and be deeply aware of our success is based on the success of clients.
Our factory can provide the equipment for the following projects:
1: stone crushing and screening plant, which may include the washing and drying processes.
2: the mineral beneficiation plant, such as for gold ore, zinc ore, lead ore, iron ore beneficiation procession plant. including the drying & packing process.
3: LECA manufacturing plant, Oil proppant production plant, Lime manufacturing plant, cement manufacturing plant
4: AAC manufacturing plant
5: Organic fertilizer production plant
6: Double shaft shredder for waste material recycling

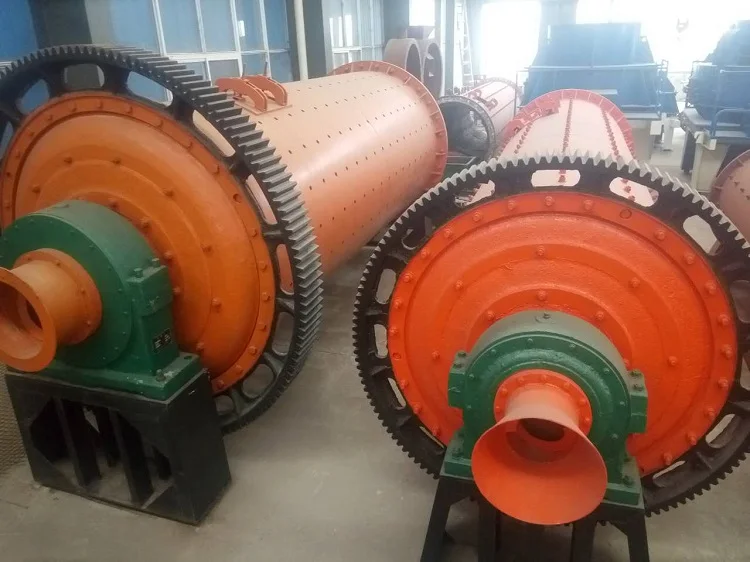

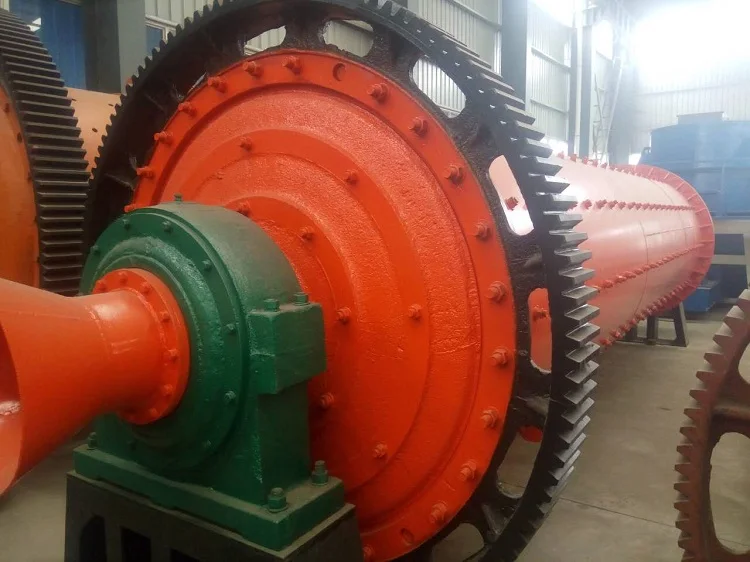

• The Technical Parameters of ball mill  used for Zinc Ore Flotation Plant/Zinc Processing Plant/Zinc Ore Dressing Plant

• main technical parameter of slag ball mill/Ball Mill For Slag/slag ball mill for sale

  Specification	Rotary Speed (r/min)	Ball media Loading(t)	Feeding Granularity (mm)	Discharging size (mm)	Output (t/h)	Power(KW)	Weight(T)
  Φ900×1800	38	1.5	≤20	0.075-0.89	0.652	18.5	3.6
  Φ900×3000	38	2.51	≤20	0.075-0.89	1.13.5	22	4.6
  Φ1200×2400	32	3.8	≤25	0.075-0.6	1.54.8	30-45	12.5
  Φ1200×3000	32	5	≤25	0.074-0.4	1.65	30-45	12.8
  Φ1200×4500	32	7	≤25	0.074-0.4	1.65.5	55	13.8
  Φ1500×3000	27	8	≤25	0.074-0.4	25.8	75-90	17
  Φ1500×4500	27	14	≤25	0.074-0.4	36.5	90-110	21
  Φ1500×5700	27	15	≤25	0.074-0.4	3.58	110-132	24.7
  Φ1830×3000	24	11	≤25	0.074-0.4	410	132-180	28
  Φ1830×6400	24	23	≤25	0.074-0.4	6.515	210	34
  Φ1830×7000	24	25	≤25	0.074-0.4	7.517	210-245	36
  Φ2200×5500	21	30	≤25	0.074-0.4	1022	370	48
  Φ2200×6500	21	31	≤25	0.074-0.4	1426	380	50
  Φ2200×7500	21	33	≤25	0.074-0.4	1529	475	56
  Φ2400×7000	21	39	≤25	0.074-0.4	1633	475	69
  Φ2400×11000	21	51.5	≤25	0.074-0.4	1635	630	99
  Φ2700×3600	21	39	≤25	0.074-0.4	1629	475	74
  Φ2700×4500	21	43.5	≤25	0.074-0.4	2035	500	80
  Φ3200×4500	18	65	≤25	0.074-0.4	25-40	800	137
