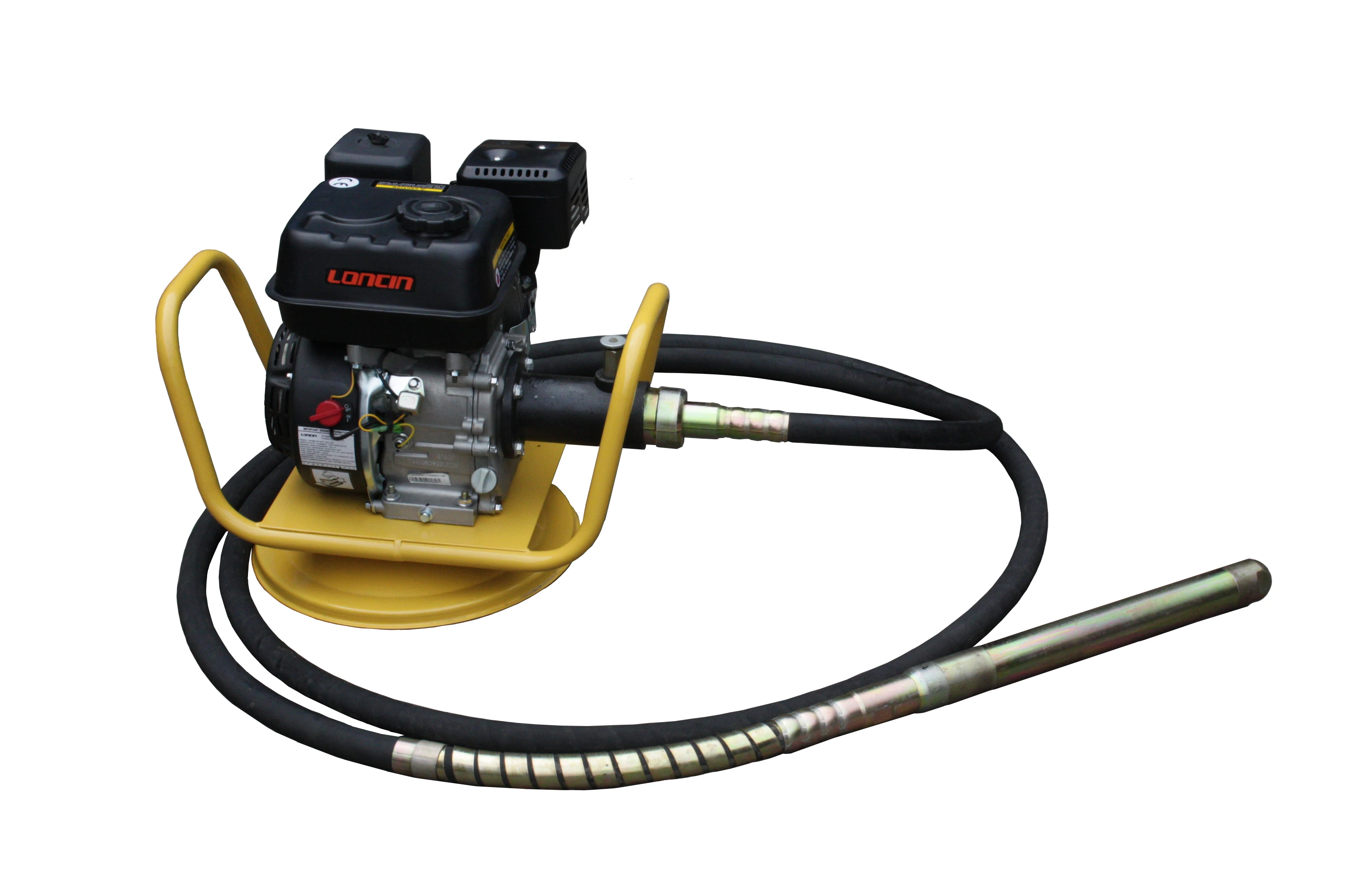

(CNVR) Gasoline Concrete Vibrator mini vibrator poker vibrator
- Category: >>>
- Supplier: Wuxi Chuangneng Machinery Manufacturing Co. Ltd.
Share on (584283865):
Product Overview
Description

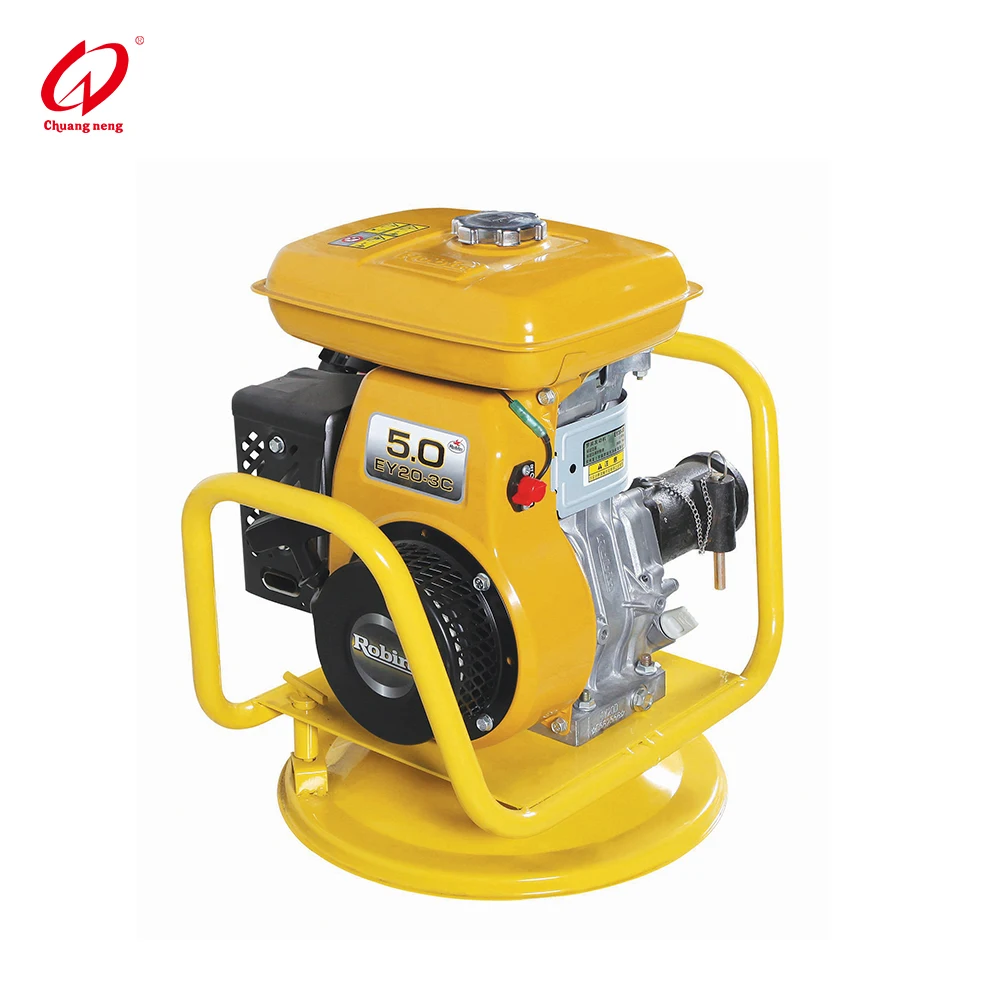

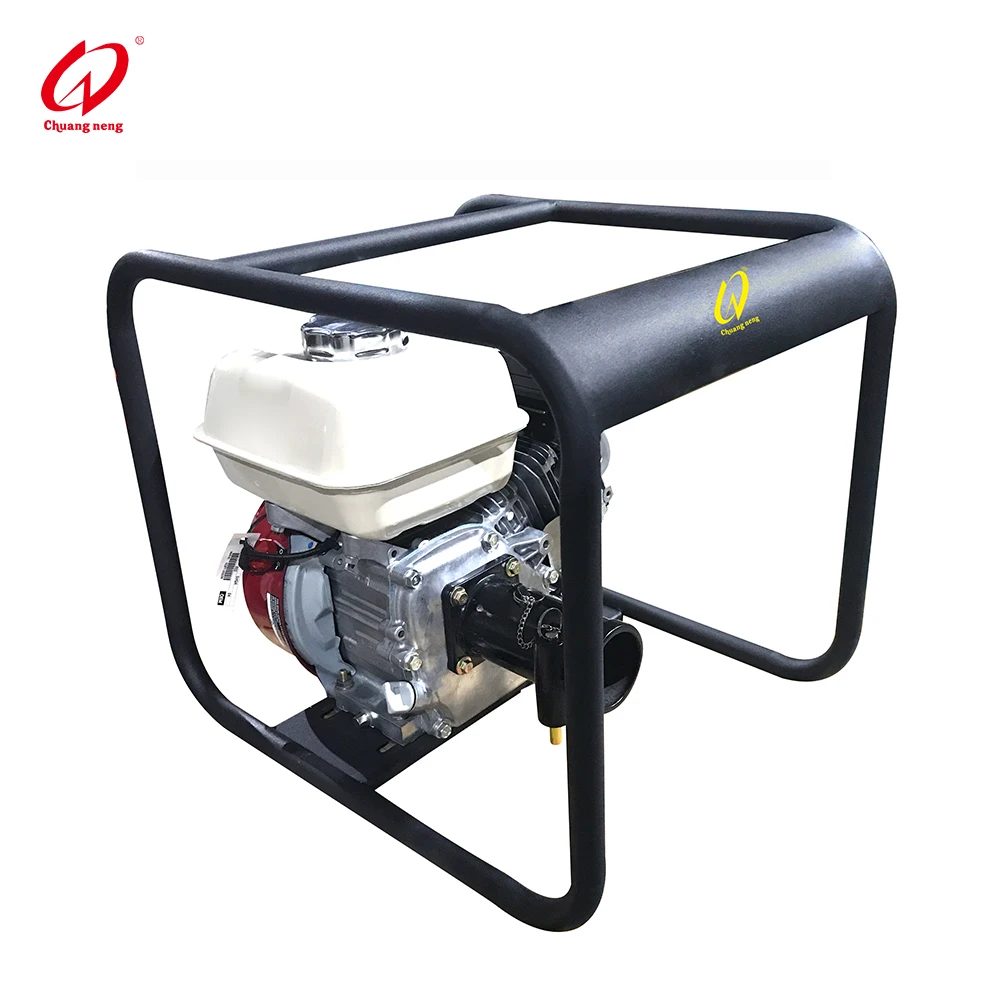

CONCRETE VIBRATOR DRIVE MOTOR
Maximal working/set efficiency of swing type oscillating stick may reach 25m3/hour. The motor rotation speed is 3000rpm, and multi-point vibration
speed may reach 12000rpm. It has the advantage of good mechanical performance, stable operation, low noise, good anti-wear performance, and reducing low working costs and labor load, it is widely applied in the word.
Product Detail
| Model | CNVR | |
|---|---|---|
| Engine Type | Chinese Petrol Engine | Chinese Diesel 173F |
| Power kw(hp) | 4.1(6.5) | 3.6(4.9) |
| Weight w/o Vibrator Head kg(lbs) | 21(46.3) | 31(68.3) |
| Vibrating Poker Length m | Available form 4m to 8m, Standard 6m | |
| Vibrating Poker Dia mm | 28;32;38;45;50;60;70 | |
| Package (without poker)mm | 520*440*440 | 520*406*630 |
