1.2v NI CD rechargeable battery 140Ah KPX140/GNC140
1.2v NI-CD rechargeable battery 140Ah KPX140/GNC140

1.2v NI CD rechargeable battery 140Ah KPX140/GNC140

Share on (584303509):


Price:

Quantity:


Product Overview

Description



Application


NI-CD battery's application
* Emergency starting power for diesel engine.

* Subways.

* Diesel locomotives

* UPS systems.

* Light Rail Vehicles.

* AGV( Automated Guided Vehicles).

* Electric Boats.

* Hospital carts.

* Tractors for airports.


Benefits of Seawill Nickel Cadmium battery
* Exceptionally Long life( expected life could reach 20 years under floating charge state).

* Wide operating working temperature range -40'C to 60'C.

* Excellent charging efficiency and smooth discharge voltage.

* Good discharge performance under low temperature.

* Excellent ultra high discharge rate performance.

* High reliability without sudden death.

* Minor self-discharging.

* High mechanical strength.

* Lower weight and reduced volume.

* Excellent resistance performance to electrical abuse( over charge and over-discharge).

* No Emission of corrosive gases, safe from flame & explosion.

* Lower maintenance cost and replacement cost during 10 years service life.

* Advanced sintered technology and production lines imported from VARTA,GERMANY.


Specification


item
1.2v NI-CD rechargeable battery 140Ah KPX140/GNC140
Warranty
Other
Application
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Brand Name
Seawill
Model Number
GNC140/KPX140
Place of Origin
China
Guangdong
Weight
8.8kg
Sealed Type
Sealed
Color
Transparent
Model type:
1.2V NI-CD kpx140
Usage
railway, train,aircraft and etc.
Size
107*165*348mm
Voltage
1.2v/cell
Maintenance Type
Ultra High rate


Product description



Seawill Locomotive battery pack: Ni-Cd and Ni-Fe rechargeable Battery (pocket type and sintered type Ni-cad rechargeable battery ) are widely used for the following locomotive and light train applications.

1) Emergency power supply for control and light.
Reference:KPH80 KPL125, KPL135, KPL165, KPM120, KPL300-(3)et.

2) Engine starting on locomotive.
Reference: KPX170, KPX190, KPM220 etc.

3) Pantograph lifting on electric locomotive .
Reference:KPL100, KPH120 , KPX180 etc.

4) Signal control on the ground for track traffic.
Reference: KPM100, KPM200 etc.

For railway and locomotive application, our products such as KPM170, KPM170-(5), KPM220, KPM190 etc. Are applied as starting power for diesel locomotives; KPL100, KPL100-(2), KPL100-(3), KPH120 etc. Are applied as power of lifting pantograph for electric locomotives; KPM100, KPM150, KPM400 etc. Are applied for railway signaling and telecommunications; And KM45P, KPH20, KPM40-(7),
KPM120-(4) etc. Are applied as emergency power supply for air-conditioned passenger cars.


Details Images

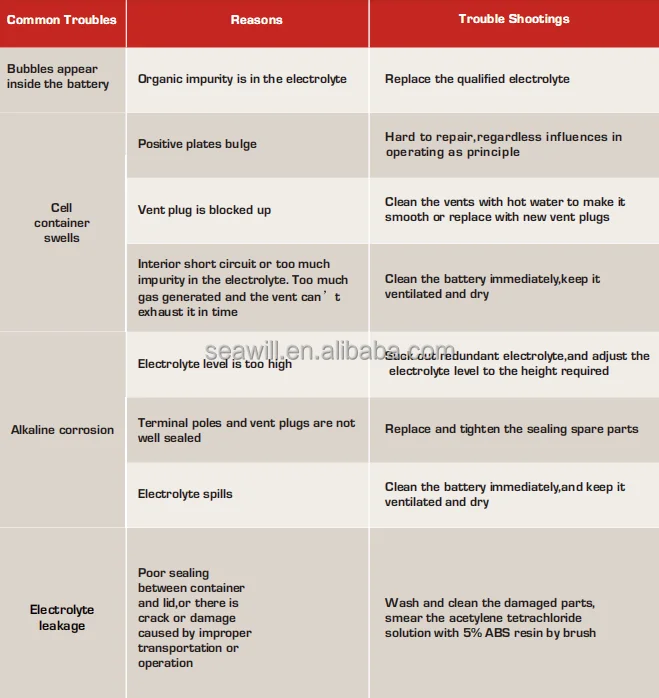

Problem and solutions of NI-CD battery




Nickel Cadmium battery's Accessories




The difference between dry battery and wet battery


Wet battery
Wet batteries are very convenient which have been filled with electrolyte , customers just need to charge the batteries before use when receive batteries.
Dry battery
For dry batteries, electrolyte in dry powder,operation manual, assembling tools and necessary accessories will be provided together with batteries to customers, customers need to mix dry powder with distilled water, then charge batteries before use.


Our service


1), Design Service:

We can design and develop other battery model according to customer’s requirement.

2), OEM Service:

Our brand is Seawill, and we can also print customer’s brand name and logo on the batteries.

3), Related complete set service:

Our mainly products are batteries, we can supply the battery rack or cabinet, or battery charger or related components if
customers have such requirements.


Connection methods:
1, For single cells:

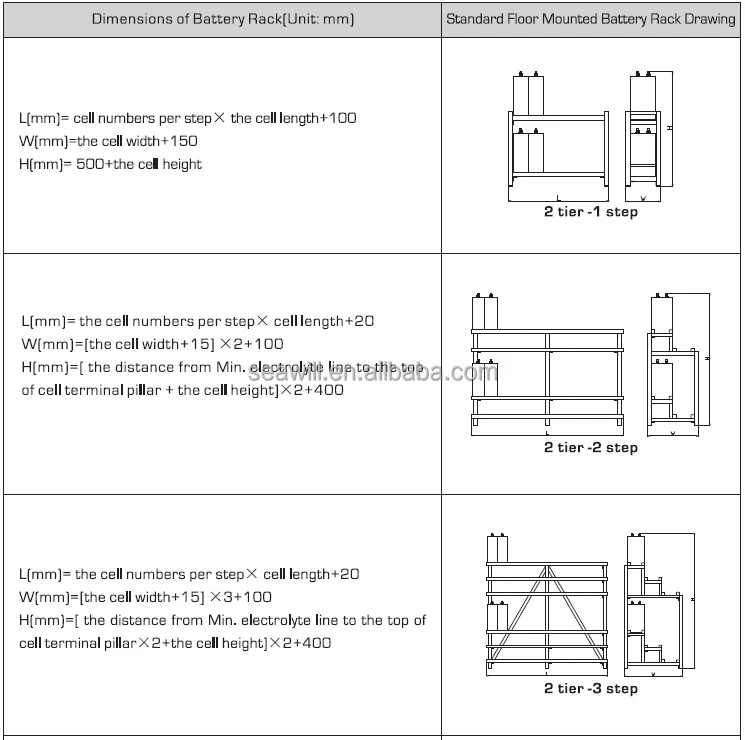

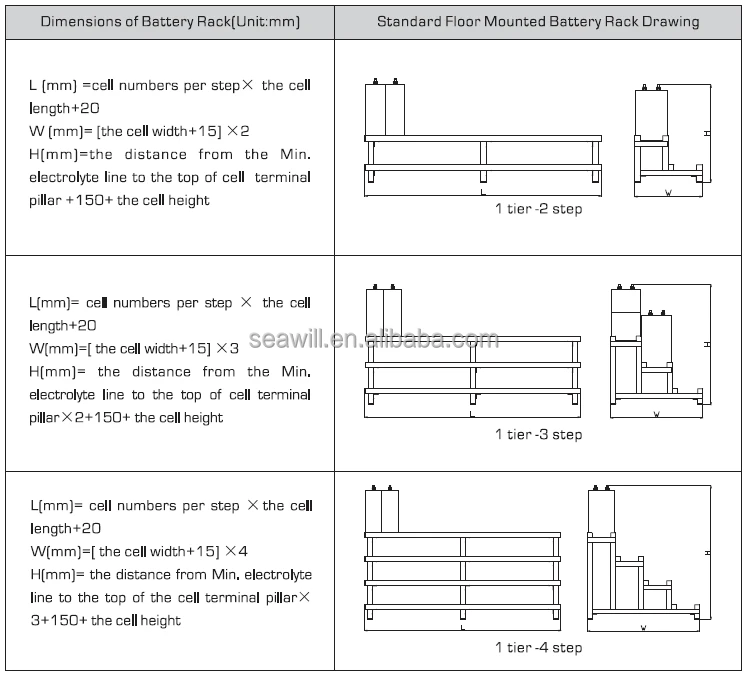

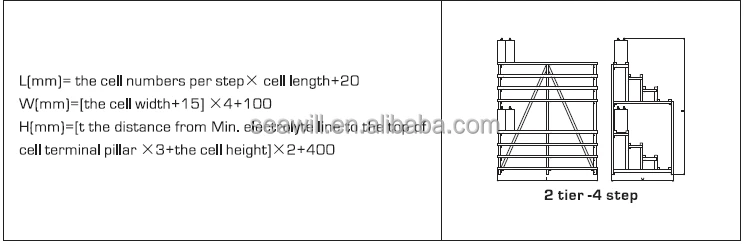

For Battery Racks:










Company Profile




Seawill Technology Co., Limited is leading professional battery manufacturer in China who has been working in this industry for over 12 years, we have three factories, one produce Valve Regulated Lead Acid battery(VRLA battery), Gel battery,OPZV OPZS tubular plate battery which located in Guangdong province, one produce traction battery, forklift battery, golf car batteries which located in Jiangsu province, and one produce the Nickel Cadmium(NI-CD) battery, Nickel Iron(NI-FE) battery and silver zinc battery which located in north of China.

Seawill company's history:
2002, Seawill Technology Co.,Limited was established in Hongkong.
2004, Set up factory in Qingyuan city,Guangdong province.
2005, The international advanced technology and equipments were introduced to Seawill factory, China.
2006, Began export batteries in large quantities.
2007, Set up factory in Jiangsu province.
2008, Acquired ISO9001 International quality system certification.
2013,Acquired CE,RoHs Certification.
2014, Acquired SGS report.
2015, Acquired IEC60623 certificate.
2022, Acquired IEC62259 certificate.

Seawill has consistently devoted efforts to offering products and service:

-Advanced processing and manufacturing facilities
-A strong R&D department
-Fast development on new products
-Hundred of models covering a full range batteries
-On-time delivery and efficient logistic systems
-High customer satisfaction and reputation

These enable us to be your best partner in China.




Production Catalogue


Traction lead acid battery
Forklift battery/Stacker walkie battery
Tractor battery


Nickel iron battery-Solar battery
Nickel cadmium battery-Pocket type
Nickel cadmium battery-Sinter type


OPZV stationary battery
OPZS stationary battery
Lead acid battery/AGM battery/VRLA battery
