GW 0.5 Medium frequency electric melting furnace for steel scrap billet
- Category: >>>
- Supplier: Zhengzhou Sutong Electric Equipment Co. Ltd.
Share on (584364803):
Product Overview
Description
GW-0.5 Medium frequency electric melting furnace for copper melting
This intermediate frequency induction furnace used for melting ferrous metal, non-ferrous metal such as copper, aluminum, etc. It can also be used for bending pipe, quenching and all kinds of metal bar’s diathermy.
Application of electric melting furnace :
This Aluminum Shell Intermediate Frequency IElectrical Melting Furnace, also called as Induction Smelting Furnace is for melting cast steel, cast iron, stainless steel, copper, aluminum and other metals or its alloy. It can also wuitable to be used together with self-heated furnaces and electric arc furnace for heating or keeping warm/holding the molten iron and molten steel.
Environment and condition usege:
1. Temperature should be at 2°C to 35°C
2, The relative humidity no more than 90%
3, installation height no more than 1000 M
4, no conductive dust and corrosive gas in working place
5, no explosion and violent vibration room around the place
6, The temperature of the cooling water should no less than 10°C, not more than 30 °C, hardness < 8 degrees, PH PH < 8.5 degrees, pressure > 0.2 MPa
7, power supply must be ac 50 HZ, three-phase, 380 v, voltage fluctuation 370 -410 volts.
Product Overviews
It's mainly used for melting cast iron, cast steel , copper and aluminum alloy scrap for casting dies
It can also be used together with selfheated furnaces and electric arc furnace for heating or keeping warm the molten iron and molten steel.
Detailed Images

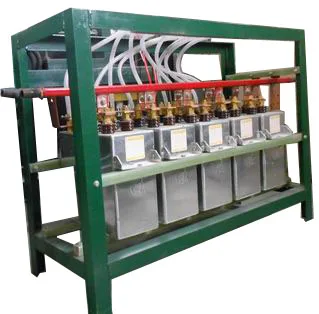

Compensation capacitor bank :

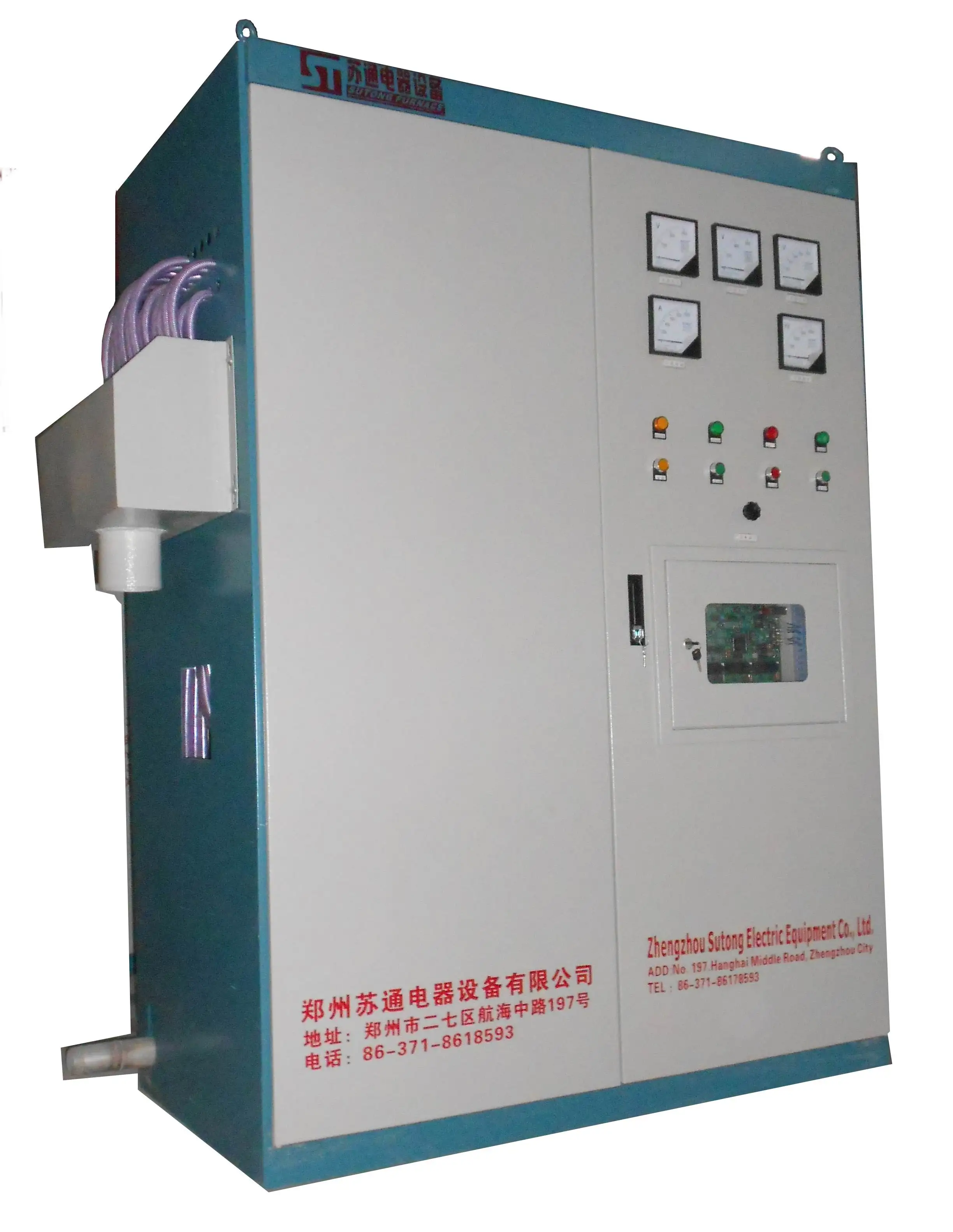

Power control cabinet :

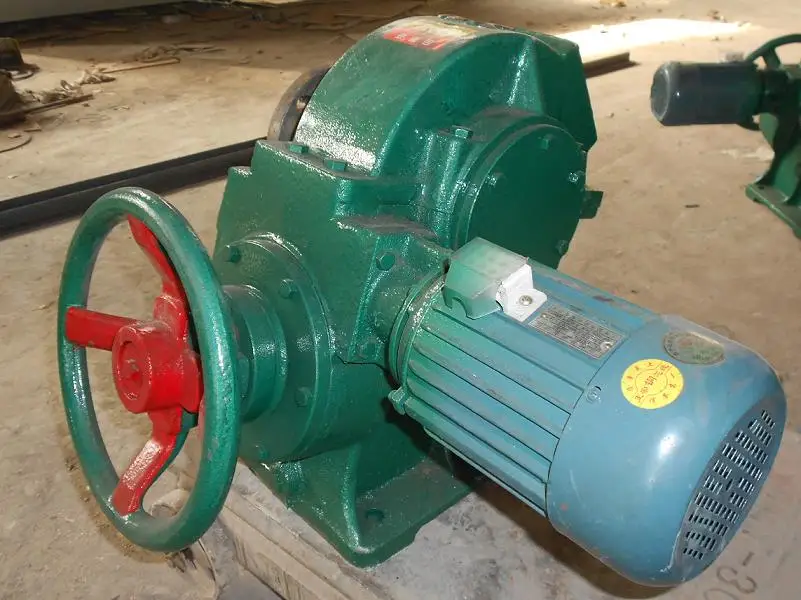

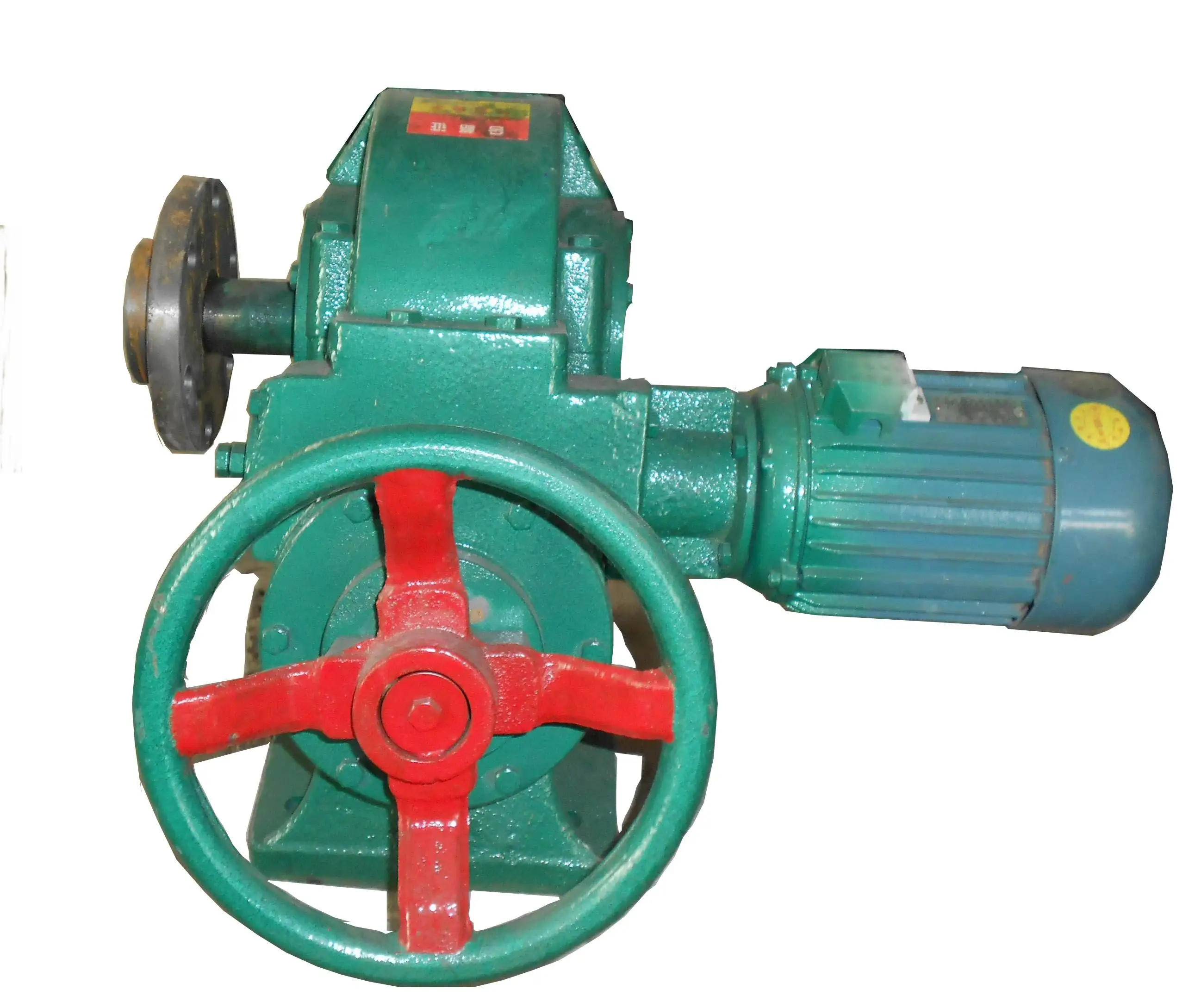

Reduction gear (tilting device for pouring)

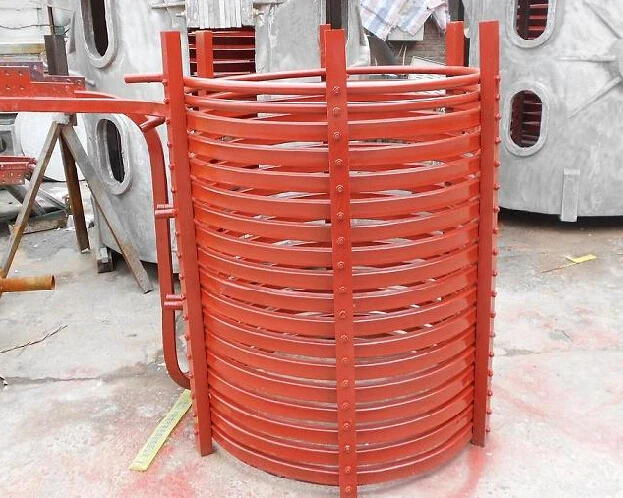

Electric melting furnace body :

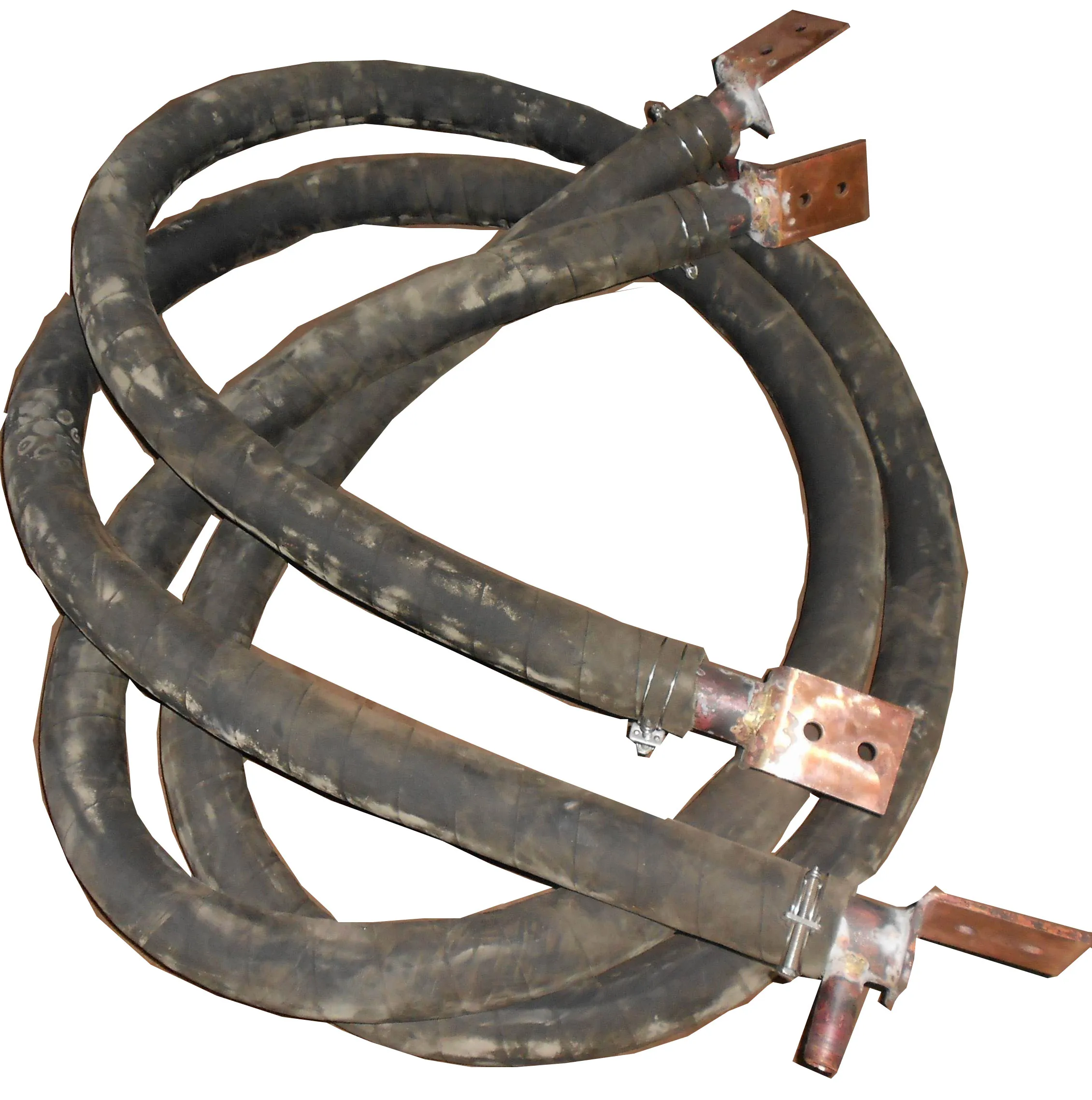

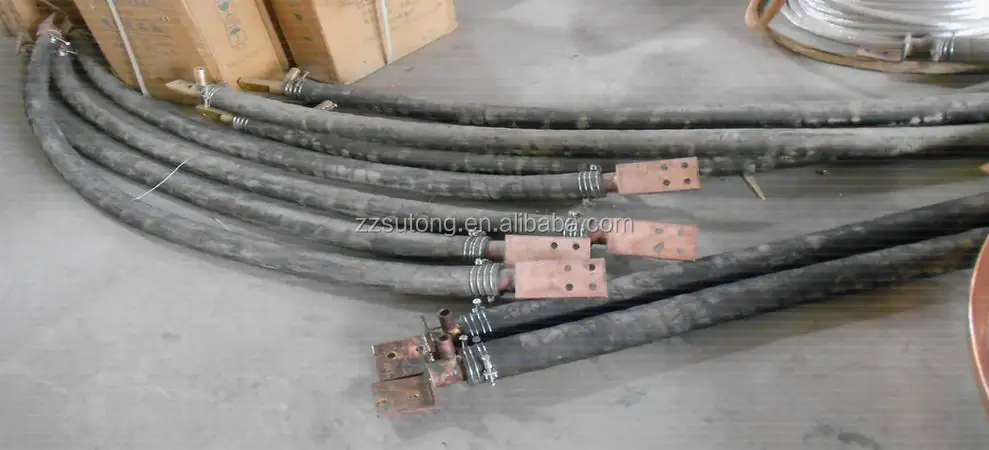

Melting furnace line:
Spare parts :

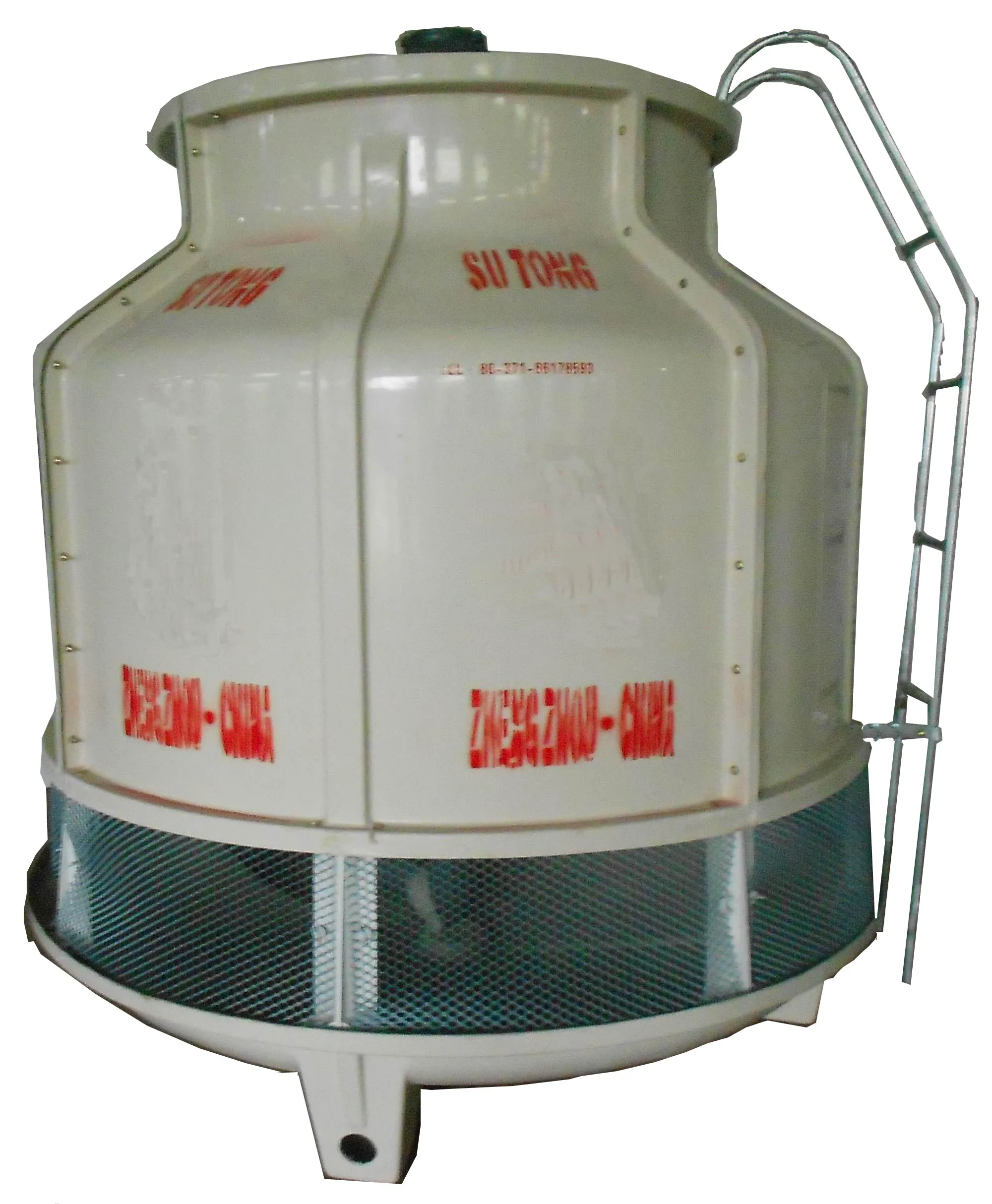

Enclosed cooling tower which is made of copper
Melting copper electric furnace main technical parameters
Type | Capacity (t) | Medium frequency Power | Input voltage (V) | Frequency (Hz) | Melting rate (t/h) | Power consumption(d/t) |
GWT-0.15 | 0.15 | 100 | 380 | 2500 | 0.15 | 600 |
GWT-0.3 | 0.3 | 160 | 380 | 1000 | 0.28 | 560 |
GWT-0.5 | 0.5 | 250 | 380 | 1000 | 0.25 | 540 |
GWT-1 | 1 | 500 | 380 | 1000 | 1 | 520 |
GWT-1.5 | 1.5 | 750 | 660 | 500 | 1.5 | 460 |
GWT-2 | 2 | 600 | 660 | 500 | 2 | 440 |
GWT-3 | 3 | 1000 | 660 | 500 | 3 | 430 |
GWT-5 | 5 | 1500 | 950 | 300 | 5 | 420 |
Our Services
· Sutong can load container at Qingdao, Tianjin, Shanghai etc.
· Sutong provide shipping method: Courier service, Air transport, Sea transport
· Sutong accept order: Full container cargo load, LCL and sample order
· Sutong provide service:EX-WORK, FOB, CIF, C&F, Door to Door etc
· Sutong has complete quality control system and after-sale service
Payment
L/C T/T, West union,etc.
Warranty
· Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost.
· This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
· Replacement will be shipped to you after photo or other evidence are provided and investigated
