CHIP 3216 ( 1206 ) Series Reverse Mount Clear Mono color with Grooved Pads type SMD LED

Product Overview

Description

Descriptions:

• The Chip 1206 Series Reverse Mount Clear Mono-color with Grooved Pads type SMD LED is available in soft orange, red, yellow, blue, green, etc.
• The low current requirement makes the device ideal for portable equipment or other application where power is at a premium.

Features:

• Longer Life Span
• Reverse Mount package
• Faster Turn-on time
• High flux output
• High current capability
• Lower Maintenance Cost
• White package
• Optical indicator
• Colorless clear window
• Ideal for backlight and light pipe application
• Inter reflector
• Wide Viewing Angle
• Suitable for automatic placement requipment
• Suitable for reflow and wave solder processes
• Available on tape and reel (8mm tape)
• Pb free
• Rohs compliant

Applications:

• Indicator and backlight for audio and vedio equipment
• Indicator and backlight for office and family equipment
• Flat backlight for LCD's, switches and symbols
• Light pipe application
• General use

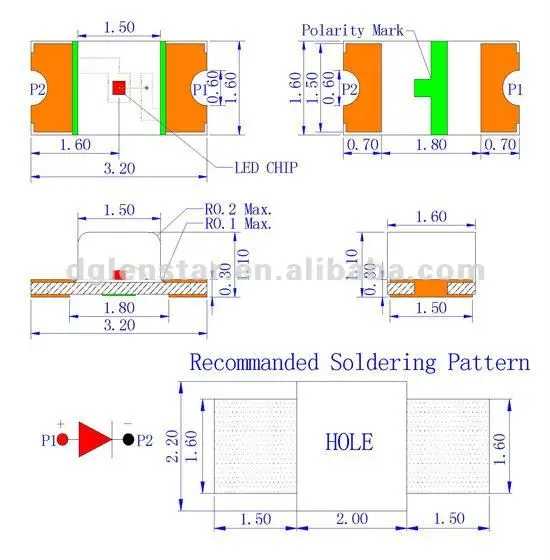

Outline Dimensions (Unit: mm) :

Electro-Optical Characteristics (Ta=25°C 60%RH):

P/N	Chip	Emitting Color	Lens	Forward Voltage		Wavelength		Luminous Intensity		Viewing Angle
				MIN	MAX	MIN	MAX	MIN	MAX
LS-LS1206CCRX-RQ	InGaAlP	Red	Clear	1.8	2.2	620	640	60	800	120
LS-LS1206CCOX-RQ	InGaAlP	Orange		1.8	2.2	600	620	60	800
LS-LS1206CCYX-RQ	InGaAlP	Yellow		1.8	2.2	580	600	60	800
LS-LS1206CCBX-RQ	InGaN	Blue		2.8	3.6	460	480	60	350
LS-LS1206CCGS-RQ	InGaN	Pure Green		2.8	3.6	515	535	100	800
LS-LS1206CCGL-RQ	InGaAlP	Yellowish Green		1.8	2.2	565	575	10	100
LS-LS1206CCVX-RQ	InGaN	Purple		2.8	3.6	380	410	10	200

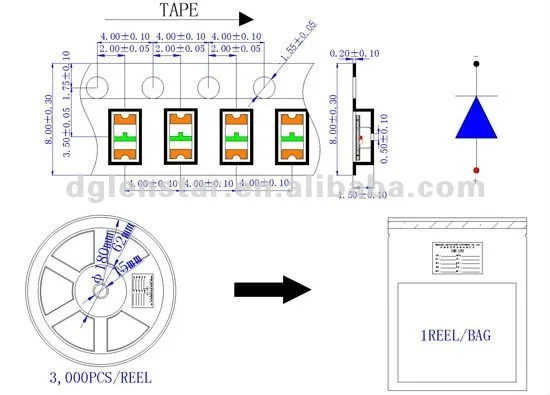

Packing:

• 3,000PCS/Reel, Reel Diameter: 180mm
• 1Reel/Bag, Gross Weight: 0.13KG
• 10Bags/Box, Box Size: (L)24cm*(W)19cm*(H)13cm, G.W.: 1.5KG,
• 5Boxes/CTN, CTN Size: (L)67cm*(W)27cm*(H)22cm, G.W.: 8KG.

Notice:

• It is recommended to store the products in the following conditions: Humidity: 60% RH, Max Temperature: 5°C ~ 30°C (41°F ~ 86°F)
• Shelf life in sealed bag: 12month at <40°C and <90%RH.
• After the bag is opened, devices that will be subjected to infrared reflow, vapor-phase reflow, or equivalent processing must be: Mounted within 1 year at factory conditions of <30°C / 60%RH, or stored at <20%RH within zip-lock sealed.
