tray type plastic drying machine

Product Overview

Description

Plastic Cabinet Dryers:

 1)For plastic granule.

 2)Not only fast and save space.

 3)The novel appearance and  light .



FEATURES:

1) Accurate P.I.D. temperature control to achieve an even drying effect.

2) Air-proofed insulative door can maintain temperature constantly inside toreduce energy consumption.

3) Stainless steel tray and liner bring no contamination to materials.

4) Unique design of adjustable air inlet and exhaust.

5) 24 hours timer, easy to operate.

6) Overheat protector can prevent excessive drying.

7) Motor overload relay.

8) Visible alarm to indicate troubles immediately.

9) Power would be automatically cut off when drying temperature exceeds set deviation value to protect thermal fuse.



Specifications:

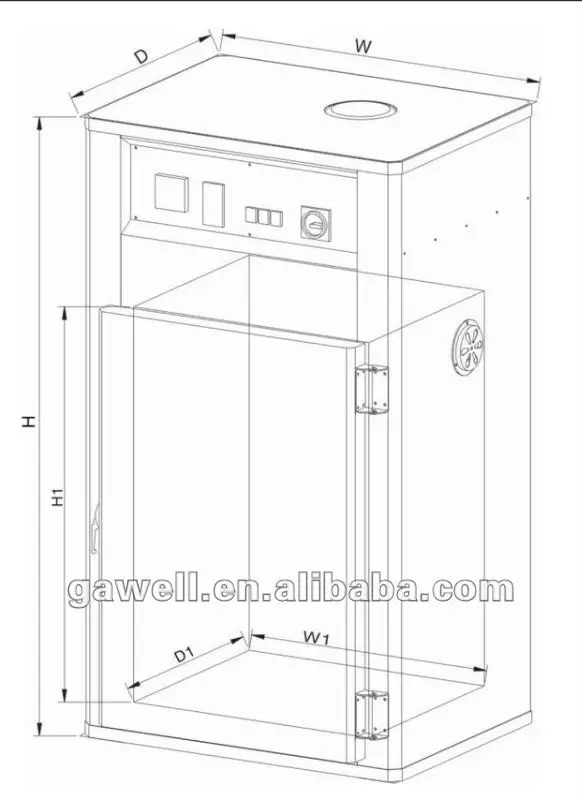

Model	Pipe Heater (kW)	Blower Power (kW)	Temperature Range (°C)	Number of Trays	Total  Tray Capacity (kg)	Outer Dimensions H×W×D (mm)	Inner Dimensions H1×W1×D1 (mm)	Weight (kg)
CD-5	4	0.37	200	5	50	1200×800×610	660×600×550	150
CD-5-HT			250			1380×860×731		200
CD-9	4.5	0.37	200	9	90	1440×800×610	900×600×550	180
CD-9-HT			250			1640×920×731		252
CD-20	9	1.5	200	20	200	1700×1210×860	1000×990×800	415
CD-20-HT			250			1887×1310×1032		587
CD-20L	18	1.5	200	20	350	1865×1800×1060	1200×1600×1000	550
CD-20L-HT			250			2052×1900×1232		778
