Product Overview
Description

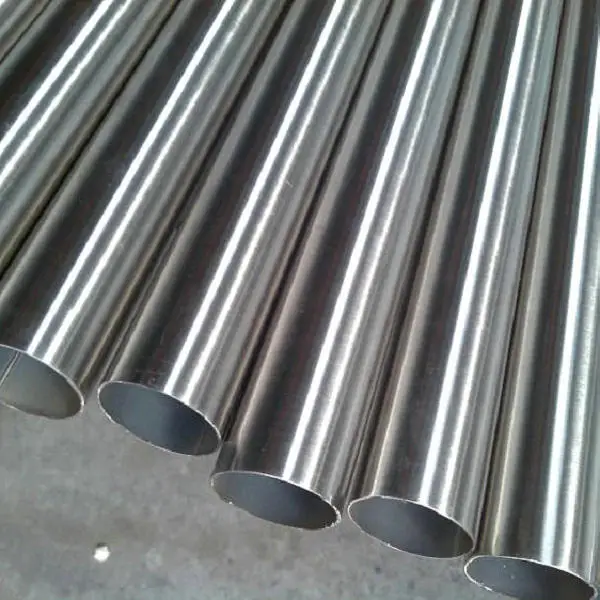

ASME B36.10M Industrial Fluid Conveying Pipe
| Detailed information | |||||
| 1 size | A) OD: 9mm-1200mm | ||||
| B) WT: 0.5mm-20mm | |||||
| C) Length(max): As required | |||||
| We can manufacture the specification you required | |||||
| 2 | Materrials: 310S,TP304, TP304L, TP310S, TP316L,TP316,321,200,201 | ||||
| 3 | Standard:GB, ISO, DIN, ASTM, JIS, BS, EN | ||||
| 4 | Application:Salt water equipment, chemical, papermaking, dyes, acetic acid, reclaiming facility along the coast. | ||||
| 5 | Packing: According to your requirement. | ||||
| 6 | Payment: L/C, T/T | ||||
| Mechanical propcrites | |||||||||
| Tensile Strength | Yied Strength | Elongation | Hardness | ||||||
| MPA | MPA | % | HRB (HV) | ||||||
| ASTM | TP304 | ≥75(515) ≥70(483) ≥75(515) ≥70(483) | ≥30(205) ≥25(170) ≥30(205) ≥25(170) | ≥35 ≥35 ≥35 ≥35 | ≤90 ≤90 ≤90 ≤90 | ||||
| TP304L | |||||||||
| TP316 | |||||||||
| TP316L | |||||||||
| JIS | SUS304 | ≥75(520) ≥70(481) ≥75(520) ≥70(481) | ≥30(206) ≥25(177) ≥30(206) ≥25(177) | ≥35 ≥35 ≥35 ≥35 | ≤90 ≤90 ≤90 ≤90 | ||||
| SUS304L | |||||||||
| SUS316 | |||||||||
| SUS316L | |||||||||
| GB | 0Cr18Ni9 | ≥75(520) ≥70(480) ≥75(520) ≥70(480) | ≥30(210) ≥25(180) ≥30(210) ≥25(180) | ≥35 ≥35 ≥35 ≥35 | ≤90 ≤90 ≤90 ≤90 | ||||
| 00Cr19Ni10 | |||||||||
| 0Cr17Ni12Mo2 | |||||||||
| 00Cr17Ni14Mo2 | |||||||||
| EN10217-7 | 1.4301 | (500~700) (470~670) (510~710) (490~690) | ≥(195) ≥(180) ≥(205) ≥(190) | ≥40b ≥40b ≥40b ≥40b | ≤90 ≤90 ≤90 ≤90 | ||||
| 1.4307 | |||||||||
| 1.4401 | |||||||||
| 1.4404 | |||||||||
