multi-functional concrete slab forming machine for
steel wire reinforcements core slab
Product description
Haitian slip former machine is ideal for the manufacture of many different kinds of pre-stressed products, from hollow-core slabs and solid floor planks to ribbed slabs, beams and even vineyard posts. Our slipformers are ideal in cases when there is a need for especially thin products, or when there is a need to quickly change product specifications or change to new products. Other slipformer benefits include fewer parts and less need for maintenance.

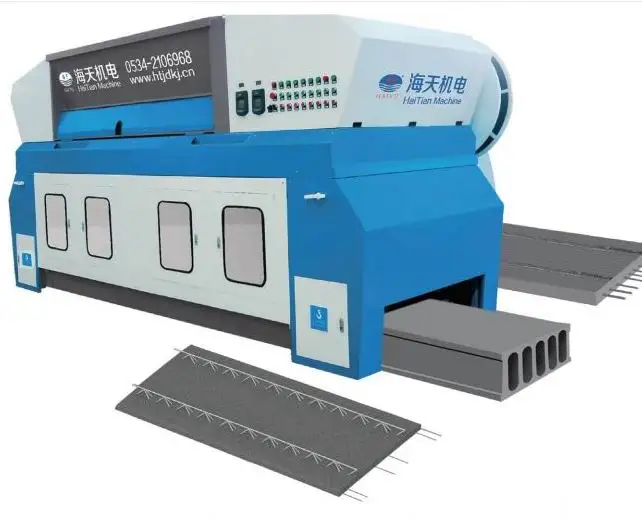

HTY Hollow core slab machine
Motor Power(kw)
Main VibratorPower(kw)
Inner vibrator power(kw)
Forming speed(m/min)
Holes no.
Hole shape
Weight(kg)
200x900
11
3.6
0.8
1-1.2
6
Peach
2600
250x900
11
4.7
0.8
1-1.2
6
Peach
3700
300x900
11
4.7
1.1
1-1.2
5
Peach
4500
200x1200
11
11
1.1
1-1.2
8
Peach
3100
250x1200
15
11
1.1
1-1.2
8
Peach
4500
300x1200
18.5
15
1.5
1-1.2
6
Peach
5100

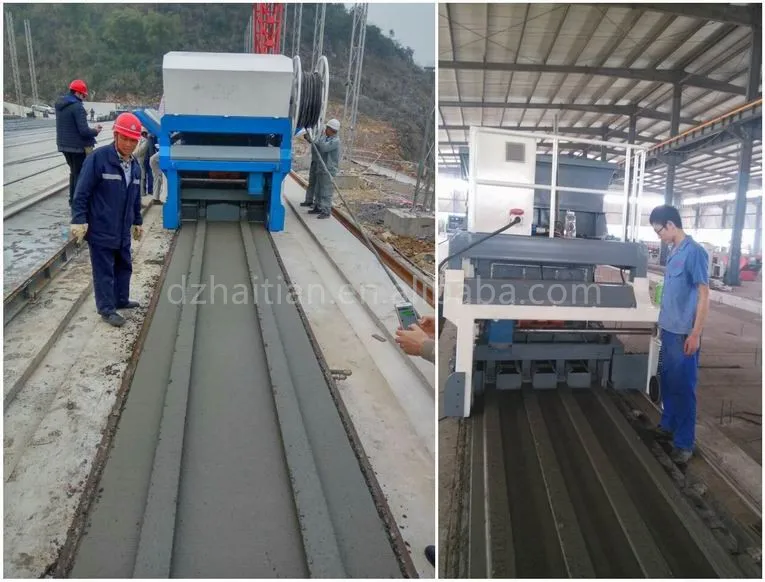

Production site

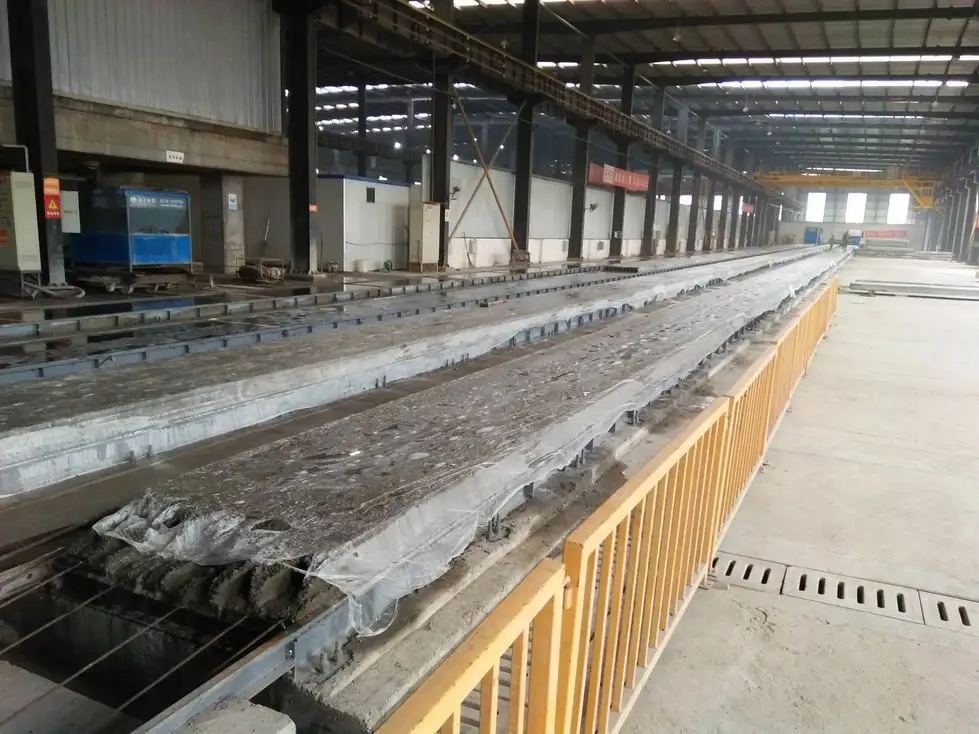

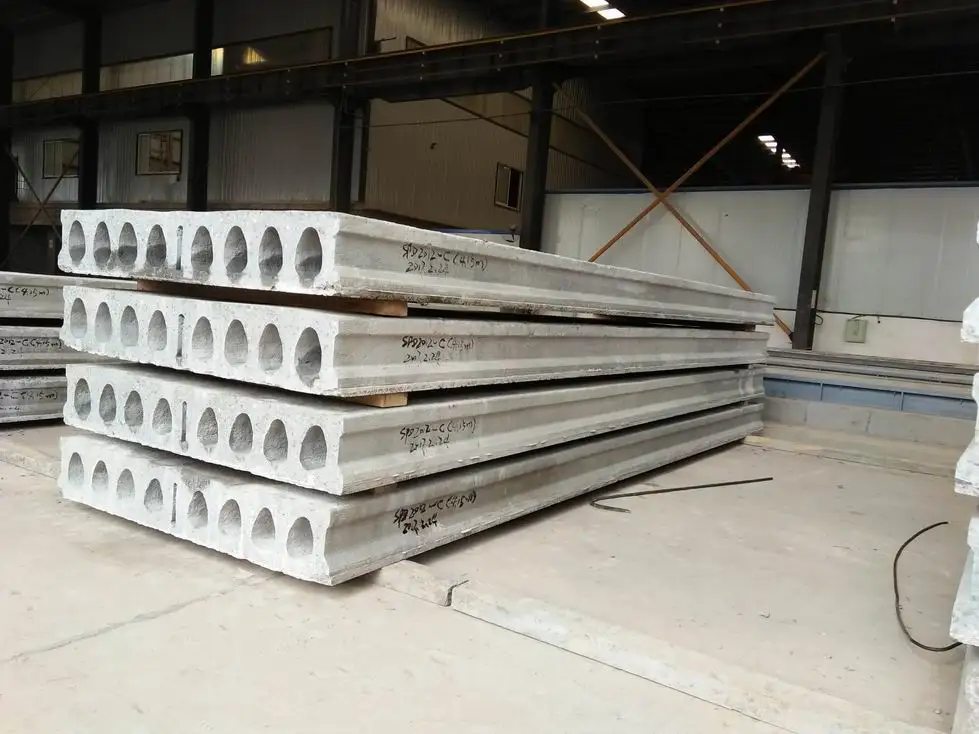

slipformer produce hollow core slab:
slip former machine cast double t slab, half slab
slipformer machine makes concrete rib slabs:

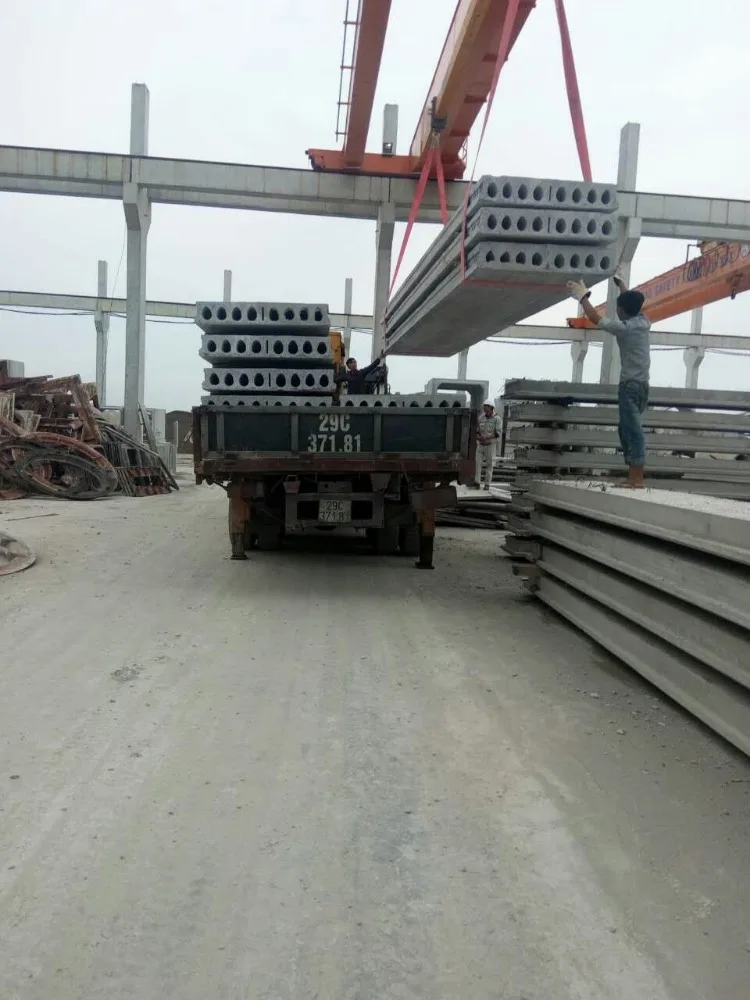

Engineering cases
This is an industrialized way of construction with advantanges of:
1.High capacity - enabling the realization of massive projects 2.Factory-made products mean consistent high quality 3.Shorter construction time - less than half of conventional cast in-situ construction
4.Independent of adverse weather conditions 5.Continuing erection in winter time up to -20°C 6.Quality surveillance system.
Company Information
Dezhou Haitianwas founded in 1997. We have obtained 20 China national patents, products approved ISO9001:2008 certificate, CE certificate and EU Customs Union CU-TR certificate. For the past several years Haitian has been rated "AAA grade quality and integrity of Chinese brands". We are also the Vice President Enterprises of “China National Precast Concrete and Cement Products Association” Our main products: 1. HTSF Multi-functional Slipformer hollow core slab production line 2. Precast concrete Moulds (tilt table mould, staircase mould, beam column mould, box culvert mould etc) 3. GLY/TW series Pushing vibration type hollow core slab machine 4. Precast fence post machine 5. Precast concrete beam/lintel machine (concrete t beam/H beam machine) 6. Precast concrete boundary wall panel machine 7. Hectec Automatic Extruder hollow core wall panel production line 8.HLJ Vertical type CLC Wall Panel Molding Machine 9. HFJ Automatic EPS sandwich wall panel machine10.Precast prestressed concrete ribbed slab(half slab) production line
