4*4mm Fiberglass and Kevlar Mesh Conveyor Belt

Share on (585391714):


Price:

Quantity:


Product Overview

Description

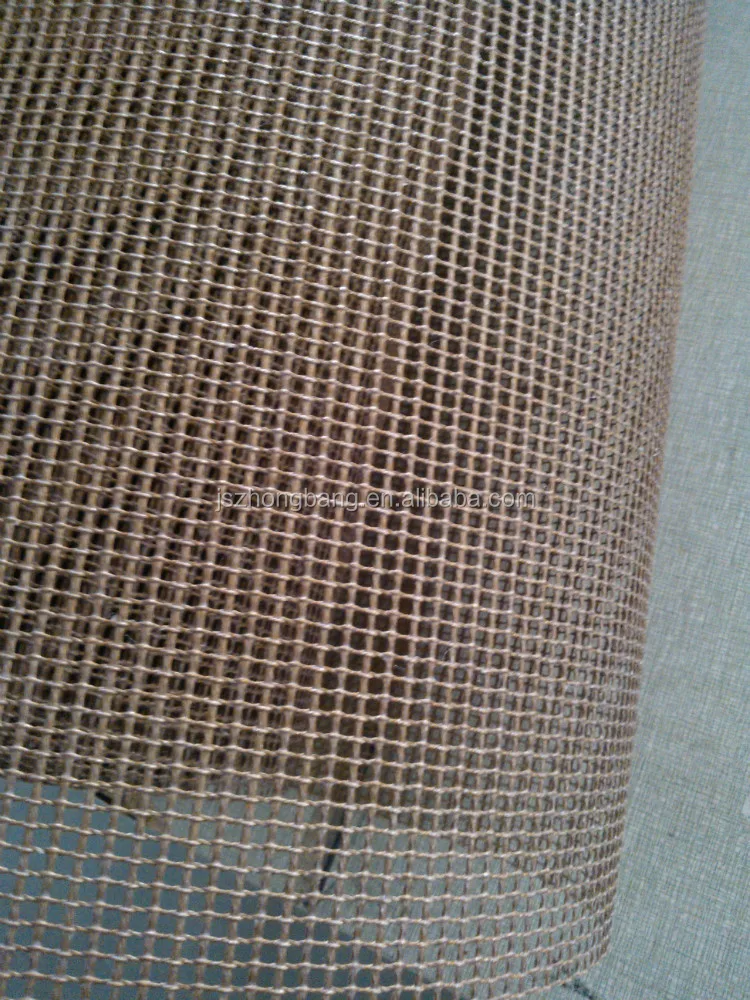

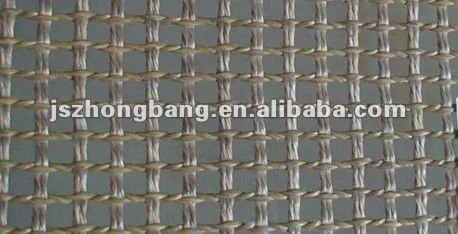

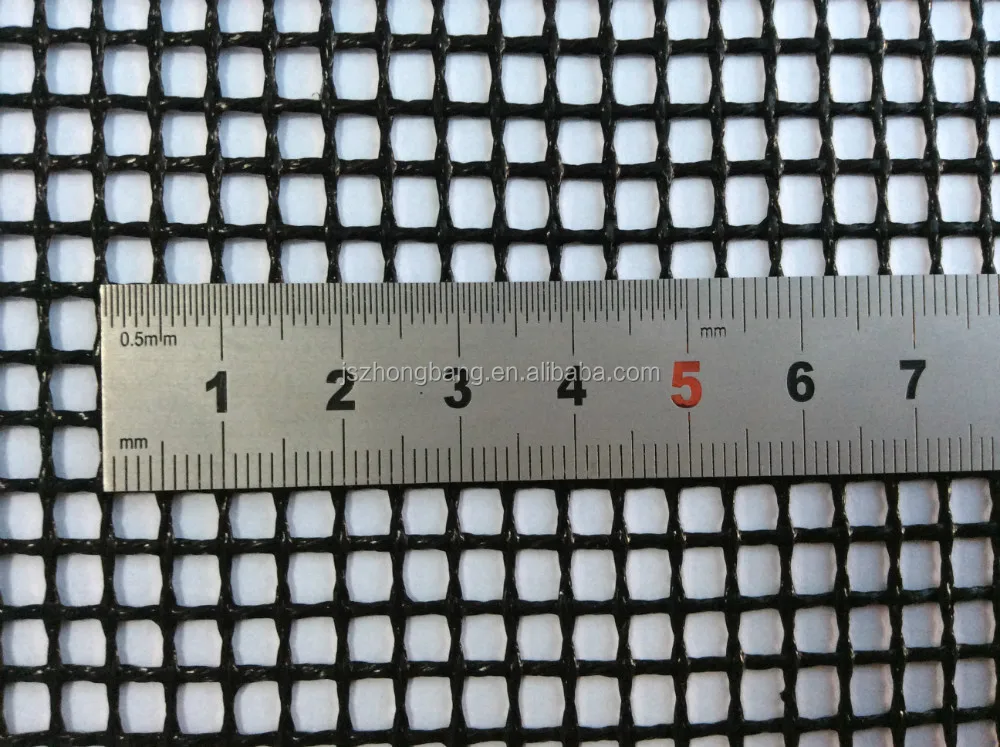

4*4mm fiberglass and Kevlar mesh conveyor belt



super width to 4.1m
brown & black color
single & double weft
suitable for printing,UV dryer,baking...



Features:
1) High temperature resistance - it can continuously work under -70 to 260 centigrade
2) Permeability - it can avoid wasting heat and improve drying efficiency for it's permeability
3) Chemical resistance - it can resist all most of chemical medicines
4) Adherence resistance - it can easily remove all kinds of adhesives such as resin, paint and chemical medicine
5) Good flex fatigue resistance - it has high tensile strength and excellent  flex fatigue resistance, It's better for small wheels


Applications:
1) Drying machine for non-woven textile, textile printing, silk- printing and dyeing machine
2) Shrinking machine for garment fabric, high-frequency and UV dryer
3) Conveyer belt for hot-air dryer, various of food baking, quick-frozen machinery
4) Oiling machine for paper glazing and waxing, plant engineering
5) Separating sheet for hardboard production



ISO 9001 certificate

.



Including pin seam, bulnose seam, etc.



It is widly used on FOOD INDUSTRY, PACKING INDUSTRY, GARMENT INDUSTRY AND PRINT INDUSTRY.



Item NoMesh SizeMaterialThickness  Weight  Resistance  Max Width  Tensile Strength
  60011x1mmfiberglass  0.5mm  390g/m²  -70-260° C  4000mm  1600/1500N/5cm
  60022x2mmfiberglass  0.7mm  450g/m²  -70-260° C  4000mm  2200/1500N/5cm
  60034x4mmfiberglass  1.0mm  500g/m²    -70-260° C  4000mm  2100/1500N/5cm
  60044x4mmfiberglass   1.0mm  480g/m²    -70-260° C  4000mm  2100/1500N/5cm
  60074x4mmfiberglass+kevlar  1.2mm  560g/m²    -70-260° C  4000mm  3300/2800N/5cm
  60084x4mmfiberglass  1.0mm  570g/m²    -70-260° C  4000mm  2800/1580N/5cm
  60104x4mmkevlar  1.0mm  460g/m²    -70-260° C  4000mm  3500/3300N/5cm
  60124x4mmfiberglass  1.0mm  580g/m²    -70-260° C  4000mm  2800/1500N/5cm
  601310x10mmfiberglass  1.0mm  450g/m²    -70-260° C  4000mm  1100/1000N/5cm
  60140.5x1mmfiberglass  0.5mm  420g/m²    -70-260° C  4000mm  2200/1500N/5cm
  60152x2.5mmfiberglass  0.9mm  470g/m²    -70-260° C  3000mm  2200/1500N/5cm
