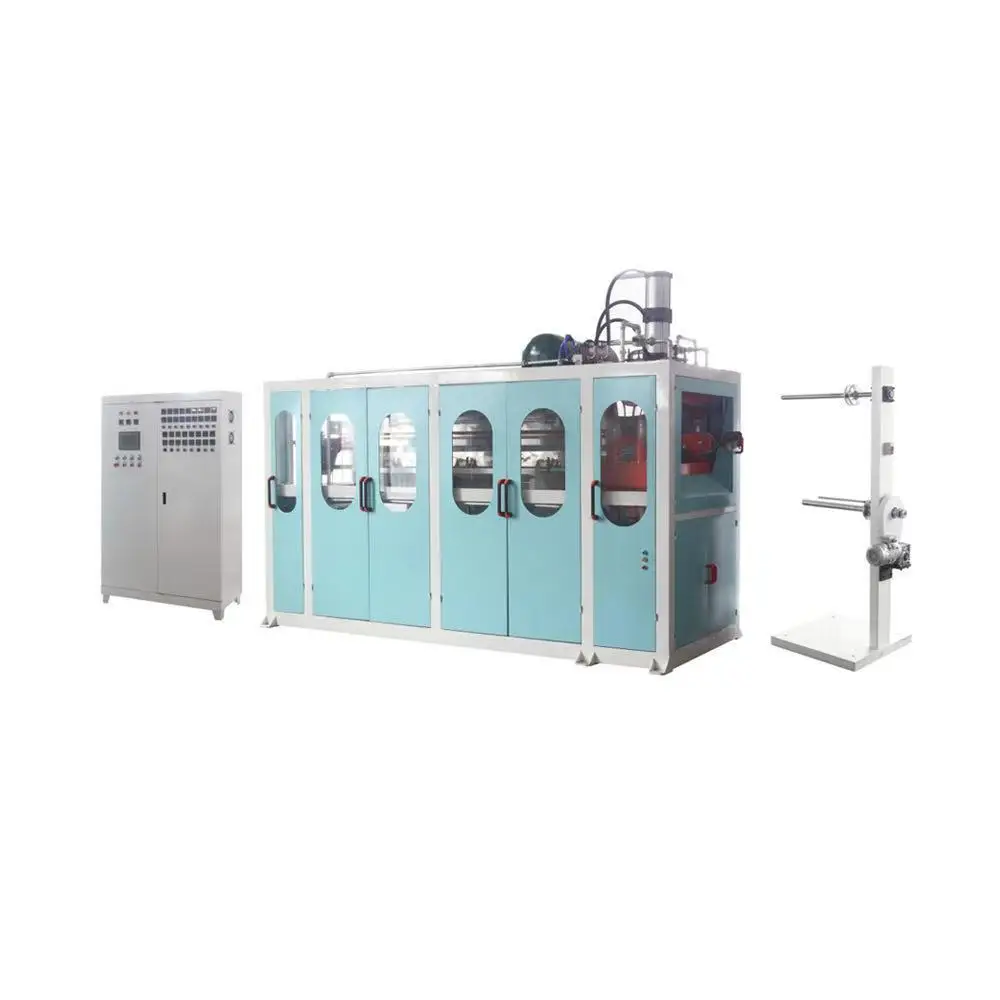

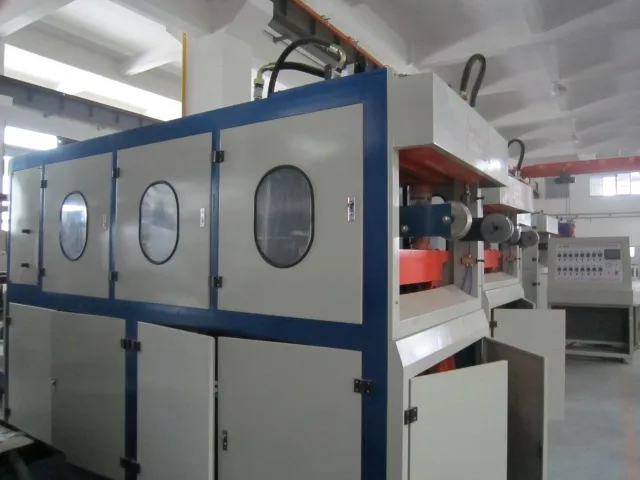

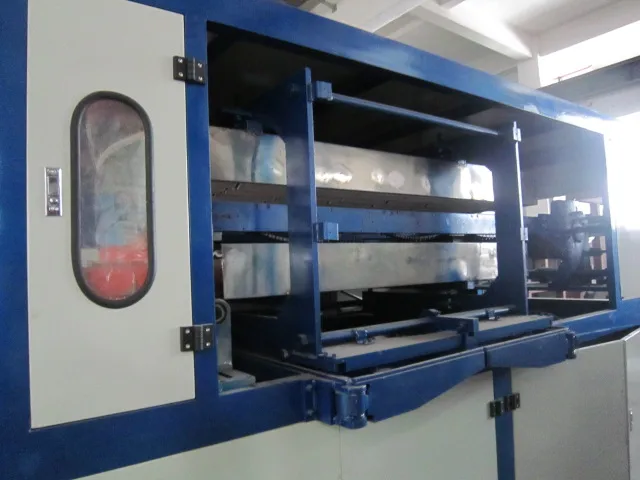

PP,PS,PET Plastic disposable cup making machine price
- Category: Plastic Product Making Machinery >>>
- Supplier: Zhejiang Wylong Machinery Co. Ltd.
Share on (585966657):
Product Overview
Description
PP,PS,PET Plastic disposable cup making machine price
APPLICATION:

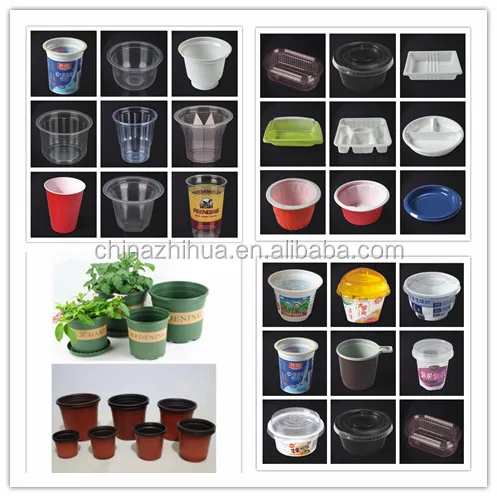

The thermoforming Machine Can produce various kind of disposable plastic cup, plastic containers of cooling drinks, sour milk, ice-cream, fast food, or instant noodle, as well as different kinds of merchandise packages of medicine, toy, journal. textile and light industry, etc.
SPECIFICATIONS:
| NU750/450 |
Sheet Materials | PP.PS.PET.PE.ABS |
Sheet Width | 600-750mm |
Sheet Thickness | 0.3-2.5mm |
Max. Forming Area | 750x430 |
Max. Cup Height | 160mm |
Forming Pressure | 0.5-0.8Mpa |
Productivity(cycles) | 10-35cycles/min |
Motor Power | 11kw |
Heading Power | 120kw |
Total Weight | 5ton |
Water Consumption | 40-45L/min |
Air Consumption | 2500-3500L/min |
Overall Dimensions | 4000x1700x2200mm |
CONFIGURATION LIST:
PARTS NAME | ORIGIN |
Oil Pump | USA (PARKER) |
Motor | CHINA |
Hydro-cylinder | JAPAN (Yuciyuken) |
Reversing Valve | JAPAN (Yuciyuken) |
Spill Valve | JAPAN (Yuciyuken) |
Magnetic Valve | Japan (SMC) |
Air Cylinder | China Taiwan (Airtac) |
Relay | Schneider |
Temperature controller | Japan (YAMATAKE) |
PLC | Japan (Panasonic) |
Touch screen | Taiwan (WeinView) |
Other Electrical equipment | Schneider |
Feeding Servo motor (Optional) | Japan (Yaskawa) |
Forming Servo Motor (Optional) | Japan (Yaskawa) |
Robot Hand System |
|
Remarks: The standard offer does not include servo motor, if customer need to change to servo motor, the offer will be different, for Robot Hand System, it is the same case.
