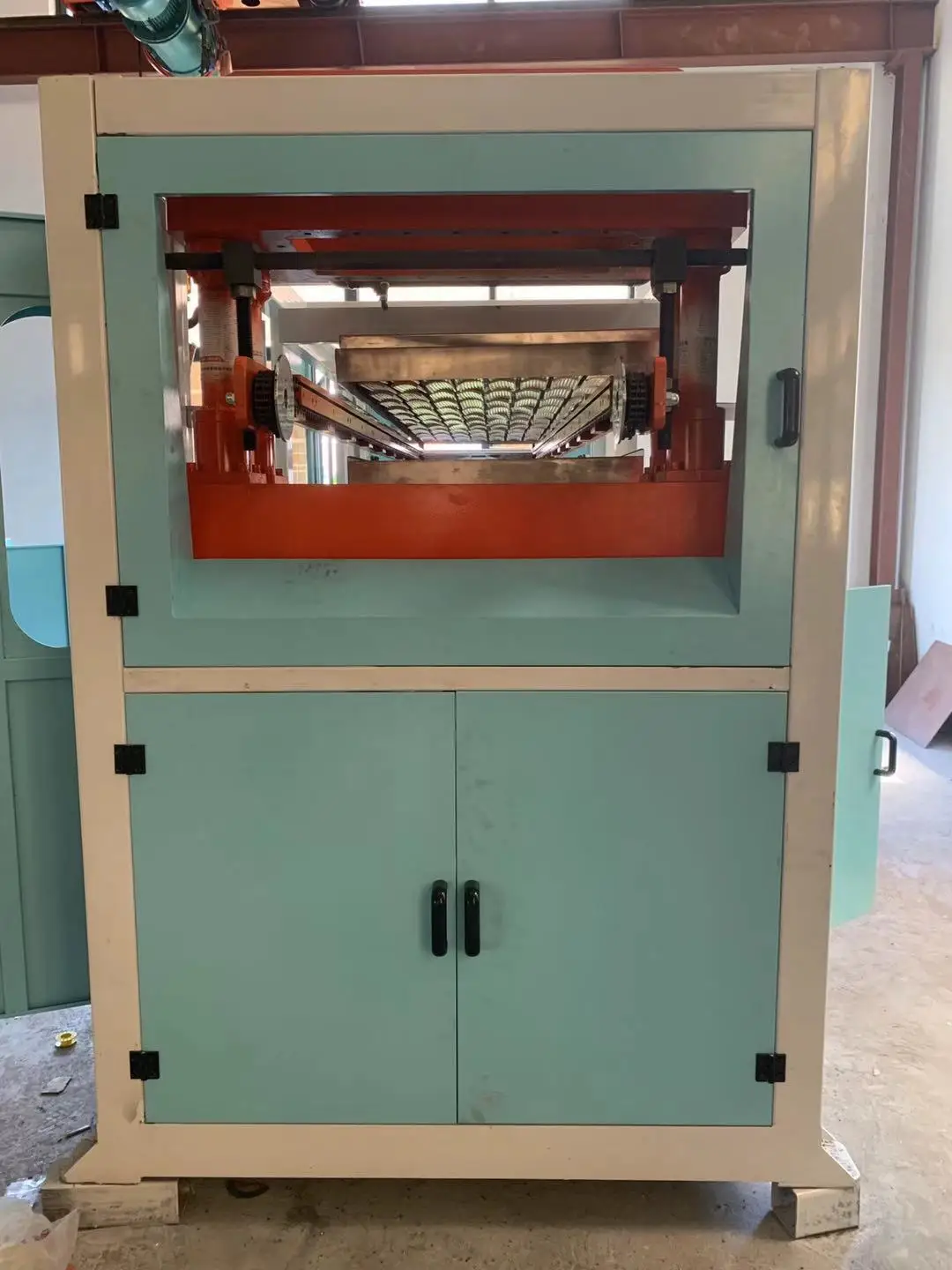

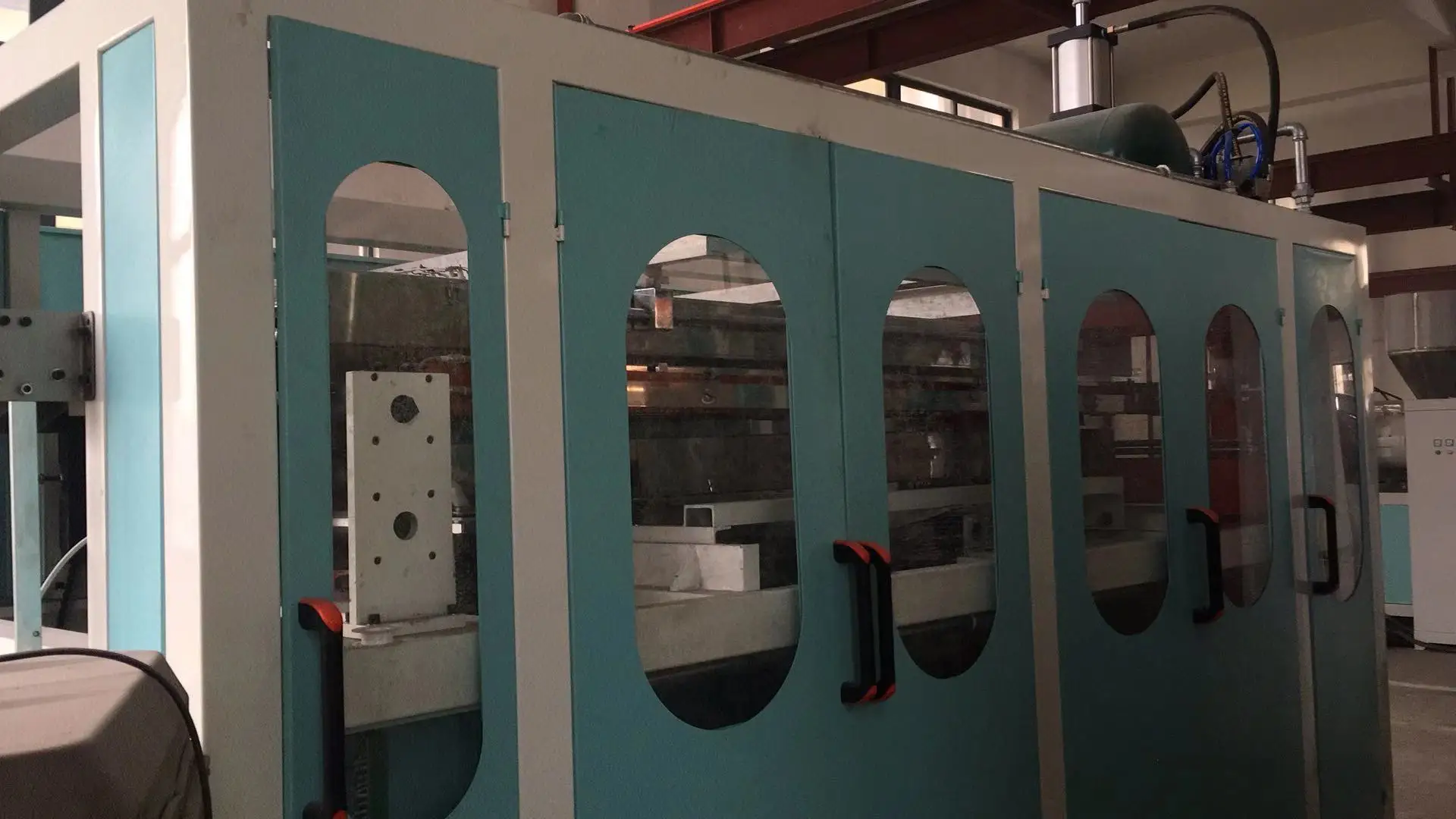

Full Automatic Thermoforming Machinery NU 660

Sheet Materials

PP.PS.PET.PE.ABS

Sheet Width

500-650mm

Sheet Thickness

0.25-2.5mm

Max. Forming Area

620x320mm

Max. Forming depth

140mm (Can be adjust to220mm with request)

Forming Pressure

0.5-0.8Mpa

Productivity

10-35 mould/min

Rated Heading Power

67Kw

Starting Power

70K w

Total Weight

4.5ton

Water Temperature

>30°C

Overall Dimensions

3300x1500x 2200 mm

Oil Pump

USA (Parker)

Reversing Valve

Japan (Yuciyuken)

Spill Valve

Japan (Yuciyuken)

Magnetic Valve

Japan (SMC)

Servo motor

Japan (YASKAWA)

Relay

Japan (Omron)

Relay Plate

Japan (Omron)

Temperature controller

Japan (Omron)

PLC

Germany (SIEMENS)

Touch screen

Germany (SIEMENS)

Other Electrical equipment

Schneider
