Low cost automatic paper recycling pulp egg tray production line

Brief introduction

This machine is a kind of environmental protection equipment. It can make egg box, paper egg tay, fruit tray, industrial tray and so on. The material is waste paper, which can help you save cost. We own vast experience in this line and will not let you down. Hope that we can be good partners later.

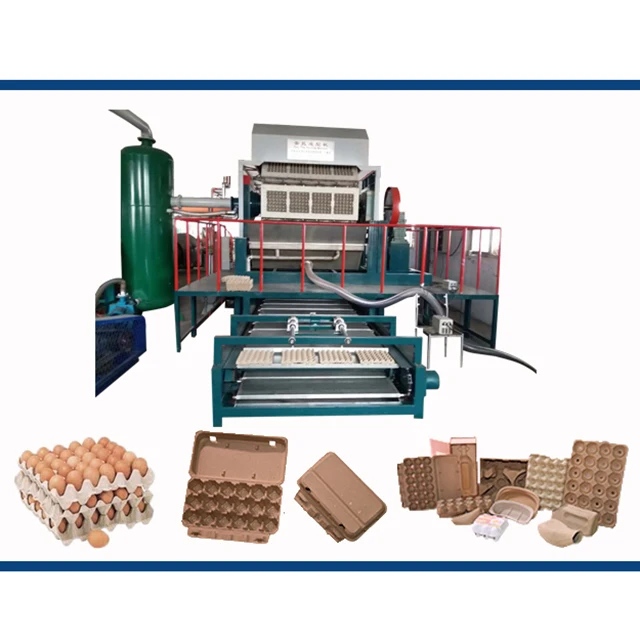

Paper Egg Tray Machine used for the making the molded pulp products,such as egg tray,egg carton/box from waste paper.

Processing Type: Pulp Molding Machine
Rotary: 8  Faces/3 Molds
Capacity: 3000 pcs/hr (30-egg tray)

Drying method: Metal single layer or multi-layer drying oven

Fuel type: Natural gas, LPG, diesel oil, coal, wood, biomass, etc

Approval: CE
Warranty: 12 Months

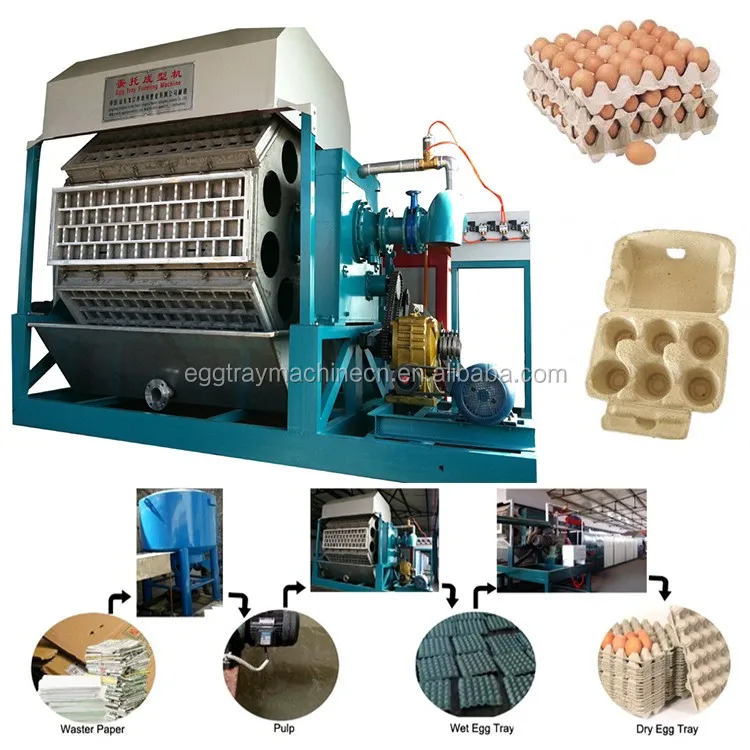

Equipment Process
1. Pulping system
(1) Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp and store it in the storage tank.
(2) Put the pulp in the slurry tank into the pulping tank, adjust the pulp concentration in the pulping tank, and further stir through the homogenizer through the white water of the return pool and the thick slurry of the storage tank. After adjusting to the applicable pulp, put it into the feeding pool to be used in the molding system.
Equipment used: pulping machine, homogenizer, slurry pump, vibrating screen, pulp disintegrator

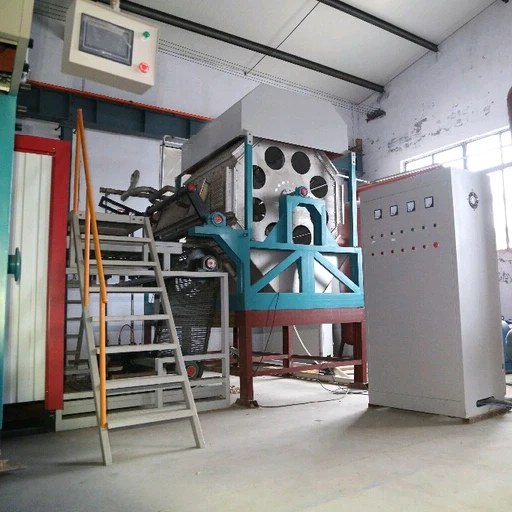

2. Forming system
(1) The pulp in the supply tank is supplied into the molding machine, and is adsorbed by the vacuum system, and the pulp is left on the mold by the mold on the equipment to be formed, and the white water is sucked and transported back into the pool through the vacuum pump.
(2) After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold.
Equipment used: molding machine, mold, vacuum pump, vacuum tank, pump, air compressor, mold cleaning machine
3. Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood,A heat source such as liquefied petroleum gas.

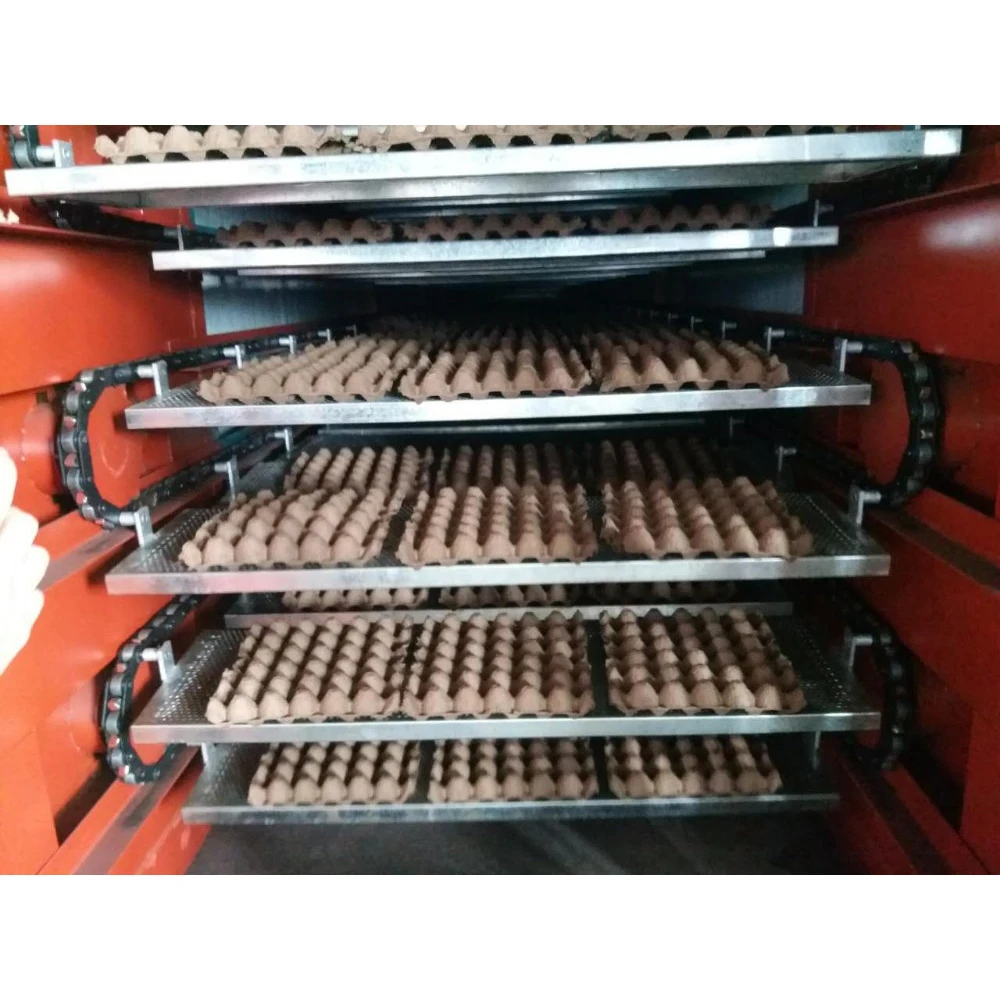

(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy compared to transmission drying. The main heat source is clean energy such as natural gas, diesel oil, liquefied petroleum gas and methanol.
4. Finished product auxiliary packaging
(1) Automatic stacking machine
(2) Baler
(3) Transfer conveyor

Raw material type

The raw materials are mainly from various pulp boards such as reed pulp, straw pulp, slurry, bamboo pulp and wood pulp, and waste paperboard, waste paper box paper, waste white paper, paper mill tail pulp waste, etc. Waste paper, widely sourced and easy to collect.

 Product Applaication

All models

About Us

Founded in 1994, our company has nearly rich experience designing and manufacturing experience and all the machines are customized based on customers' requirement. Meanwhile,we have very strong technical team and manufacturing strength.Our main products include: Egg Tray Machine, EPE foam machine, Knotless packing net machine, etc.

Depending on high products quality and excellent after-sales service, our company enjoys great reputation among our customers. Products have been exported to all over the world, and won high praise among the domestic and foreign customers. Our excellent after-sales service could always guarantee regular technical support to our customers. Our company adheres to the customer's demand as own duty, constantly to proceed product research and development and technological innovation, actively forge ahead in the pulp molding machine and plastic packaging machinery industry, constantly improve, to ensure that the product is the industry leader. Our company will take the enterprise conception of high quality, honesty, factualist and innovate, sincerely welcome the friends from all over the world to visit us!

Certificate

Pre-sales services

* All information about our machine by email/phone will be replied ASAP.

* We help customers to design the layout of the machine in workshop.

* according to the customers’ requirements and circumstance to make the best egg tray production line design .

* support factory to prepare.

In the sale of services

* we are in charge of installing,debugging and training

* technical guidance

* test the machine in the factory before the delivery

After-sales service

* one year guarantee for whole machine include the spare parts

* calling, network or door-to-door service

* use friendly English software, user manual and detailed Videos/CD

* engineers can be sent to the buyers' countries
