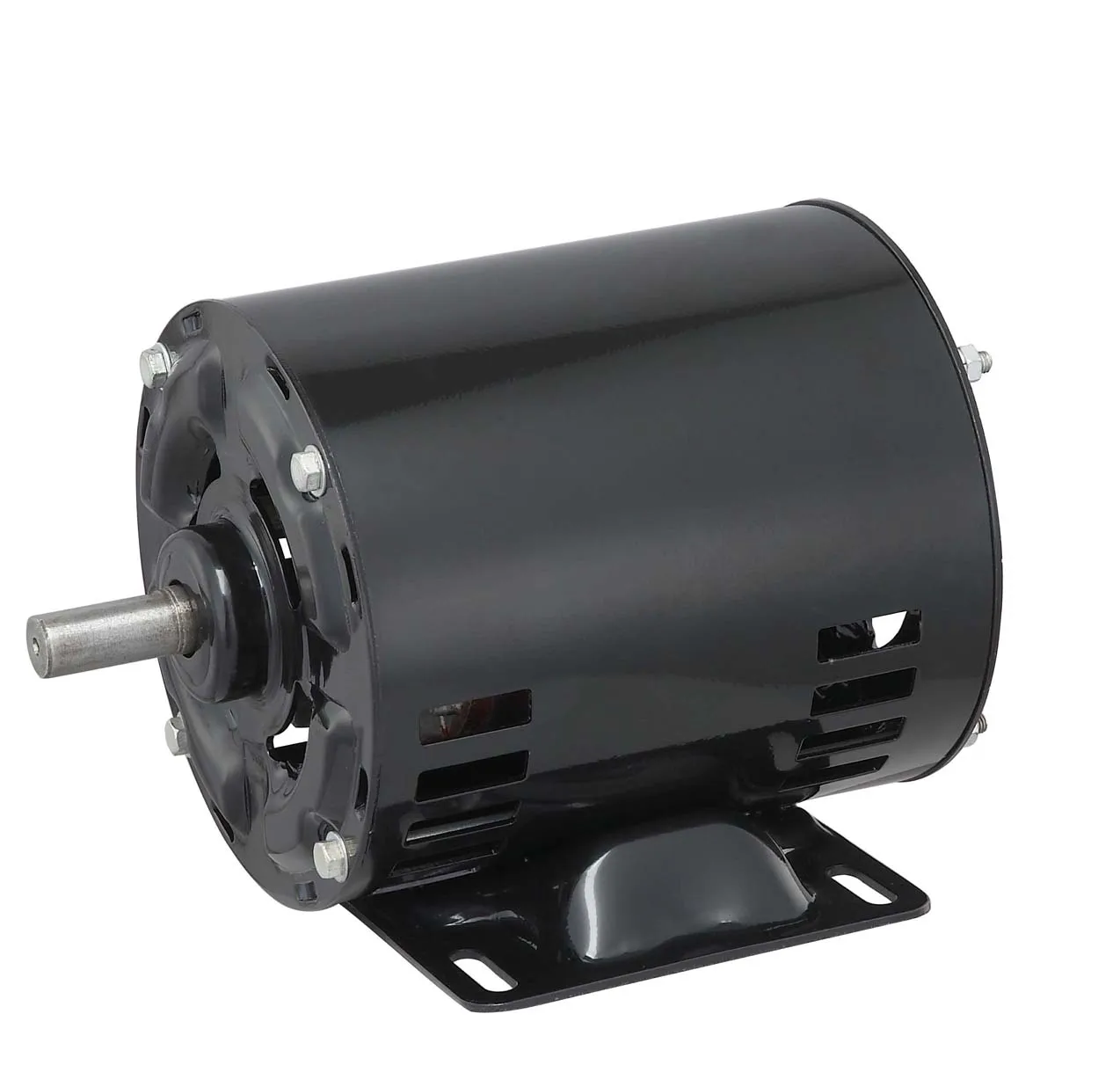

SBD single phase for fan,blower and air cooler

Product Overview

Description

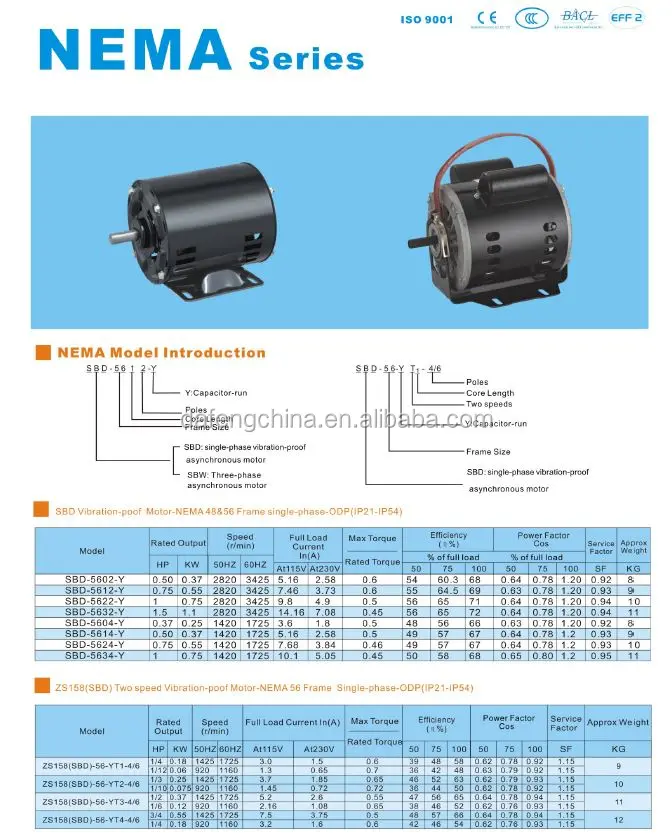

SBD single phase for fan,blower and air cooler

Specifications:
1) Frame sizes: 56
2) Rated power: 0.25kW
3) Rated voltage: 110 - 120V, 200 - 240V
4) Frequency: 50Hz, 60Hz,50Hz/60Hz
5) Protection class: IP24
6) Insulation class: F
7) Materials: steel
8) EFF: EFF2
9) Poles: 4
10) Speed: 1,450rpm(50Hz)
11) Cooling method: ODP (open drip proof)
12) Mounting types: IMB3
13) Operating mode: S1
14) Ambient temperature: -35°C < θ < 40°C
15) The altitude should be lower than 1,000m above the sea level
16) Relative humidity: not higher than 90%
17) Special motors can be designed according to customers' requirements
18) Export markets: Europe, North America, the Middle East, Africa,
Southeast Asia, East Asia, South America

Inner packing:
Foam box, carton box

Conveyance:
Qty/20' FCL: 3,600pcs

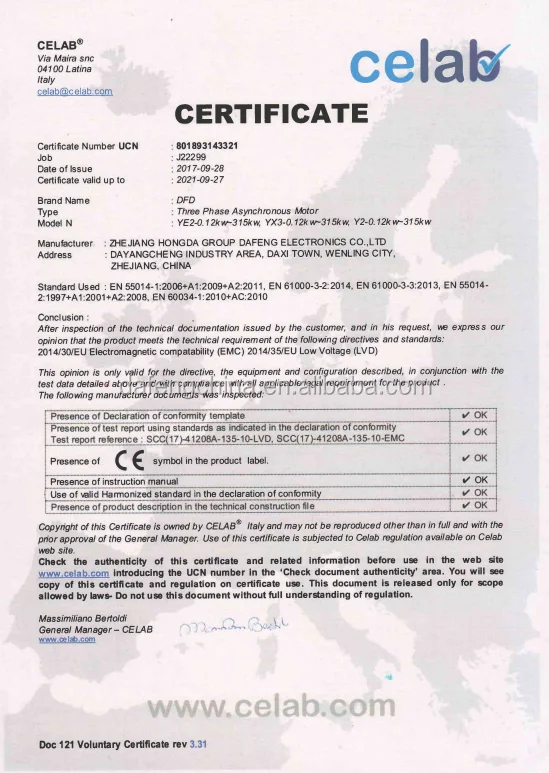

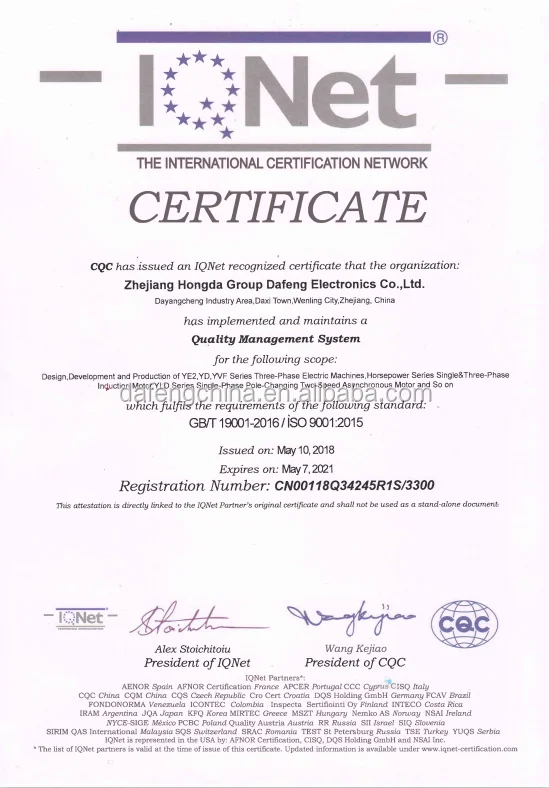

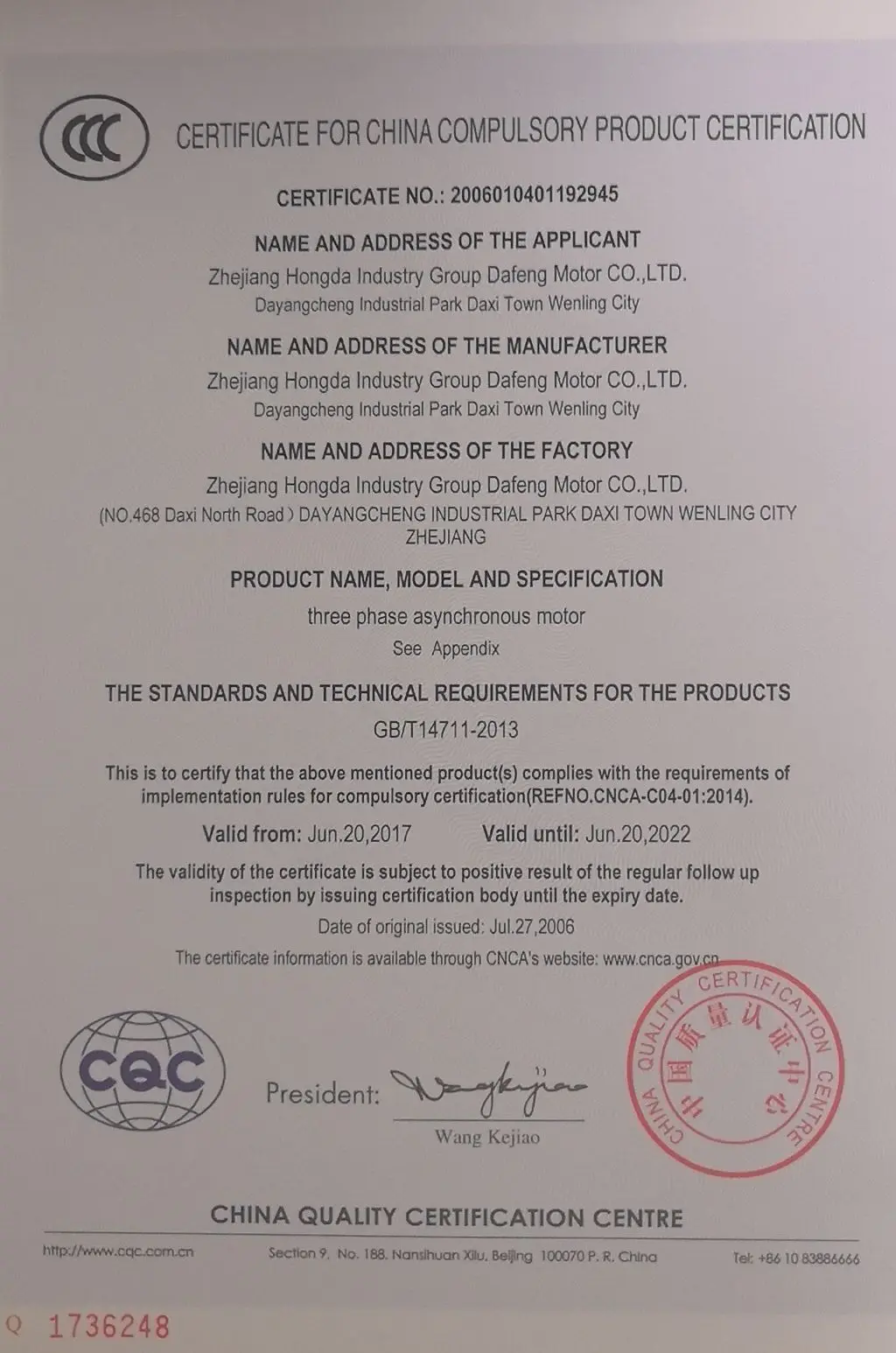

Certificate:
