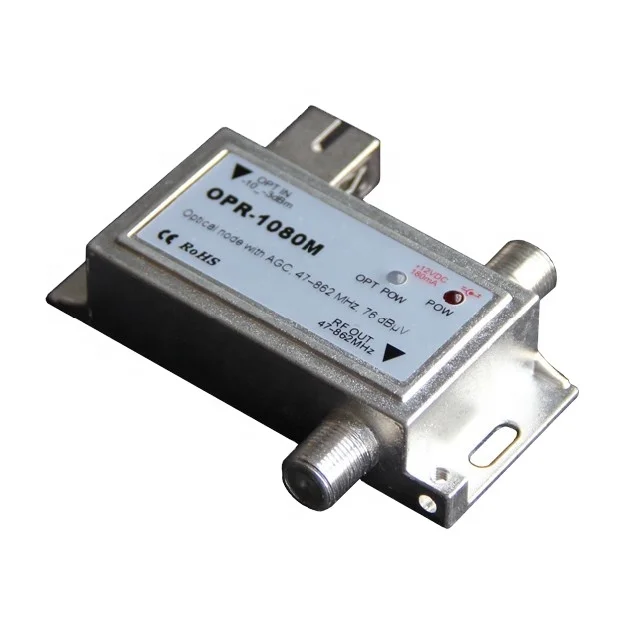

OPR-1080M is designed for FTTH networks. Micro housing like a tap, external power supply which reduces the maintenance cost, Power input is in F connector, optical input in SC/APC or FC/APC, RF output in F connector. With 2 stage LED indicator for optic input power, simple structure, easy to use and maintain.
Features
(1) Micro housing design
(2) Automatic Gain Control(AGC) circuit
(3) Designed for FTTH network
(4) 2-stage LED optical input power indicator
(5) Low consumption
(6) Aluminum die-casting housing
Technical Specifications
Item | Unit | Parameters |
Optic parameter | ||
Input level range(PIN) | dBm | -10…-3,0 |
AGC range | dBm | -10…-3,0 |
Optical return loss | dB | ≥40 |
Optical input wave length | nm | 1100-1650 |
Max.input level | dBm | 3 |
Output power indicator | dBm | Diode LED indicator: |
Red: PIN>-3 | ||
Green:-10<PIN<-3 | ||
OFF:PIN<-10 | ||
Optical connector | N/A | SC/APC |
RF Parameters | ||
Frequency range | MHz | 45~862 |
Output return loss | dB | ≥14 |
Flatness of frequency response | dB | ±1.0 |
Output level | dBuV | 76 |
Nonlinear parameters | ||
CTB | dB | ≥60 * |
CSO | dB | ≥60* |
CN | dB | ≥46** |
RF Output Stability in AGC range | dB | ±1.0 |
General Parameters | ||
Optical voltage (external power supply) | VDC | 12/180 |
Power consumption | W | 2 |
Output connector | N/A | F |
Operating temperature range | °C | -20~+55 |
Weight without power supply | kg | 0.1 |
Dimension(S*W*G) | mm | 74*64(including F and fiber adaptor*17 |
Test Condition: CENELEC(85 channels), 0 dB slope, 3.5% OMI, -10dBm Optical power
