High quality intermediate frequency 100kg bronze brass alloy melting induction furnace
- Category: Industrial Furnace >>>
- Supplier: Foshan Hengyang Furnace Manufacturing Co. Ltd.
Share on (586577937):
Product Overview
Description
PRODUCT DESCRIPTION
How the furnace working ?
The intermediate frequency melting furnace is mainly composed of a power supply, an furnace body with a induction coil and a crucible. Metal material will be put in the crucible built with refractory cement. After turned on power, an alternating magnetic field is generated in the induction coil, and then a induced eddy current is created to heat and melt the metal material.
Equipment design： Furnace will be customized to meet your production needing and environmental condition (maximum ambient temperate, humidity, altitude,etc) .
Drawings delivery：Technical drawing will be send to the buyer after geting the deposite, so the buyer can build basic contruction before the furnace arrived.
Drawings delivery：Technical drawing will be send to the buyer after geting the deposite, so the buyer can build basic contruction before the furnace arrived.
TECHNICAL PARAMETERS
Parameters | Unite | Datas |
rated capacity | kg | 100 |
bronze brass output | kg | 100 |
working temperature | ºC | 0-1100 |
Highest temperature | ºC | 1800 |
transformer capacity | KVA | 65 |
Power factor | 0.9 | |
rated power | KW | 50 |
rated input current | A | 80 |
rated input voltage | V | 380 |
IF voltage | V | 750 |
startup success rate | % | 100 |
rated working frequency | KHZ | 1-2.5 |
working noise | db | ≤75 |
Remark:
The parameters can be customized according to your local power parameters.

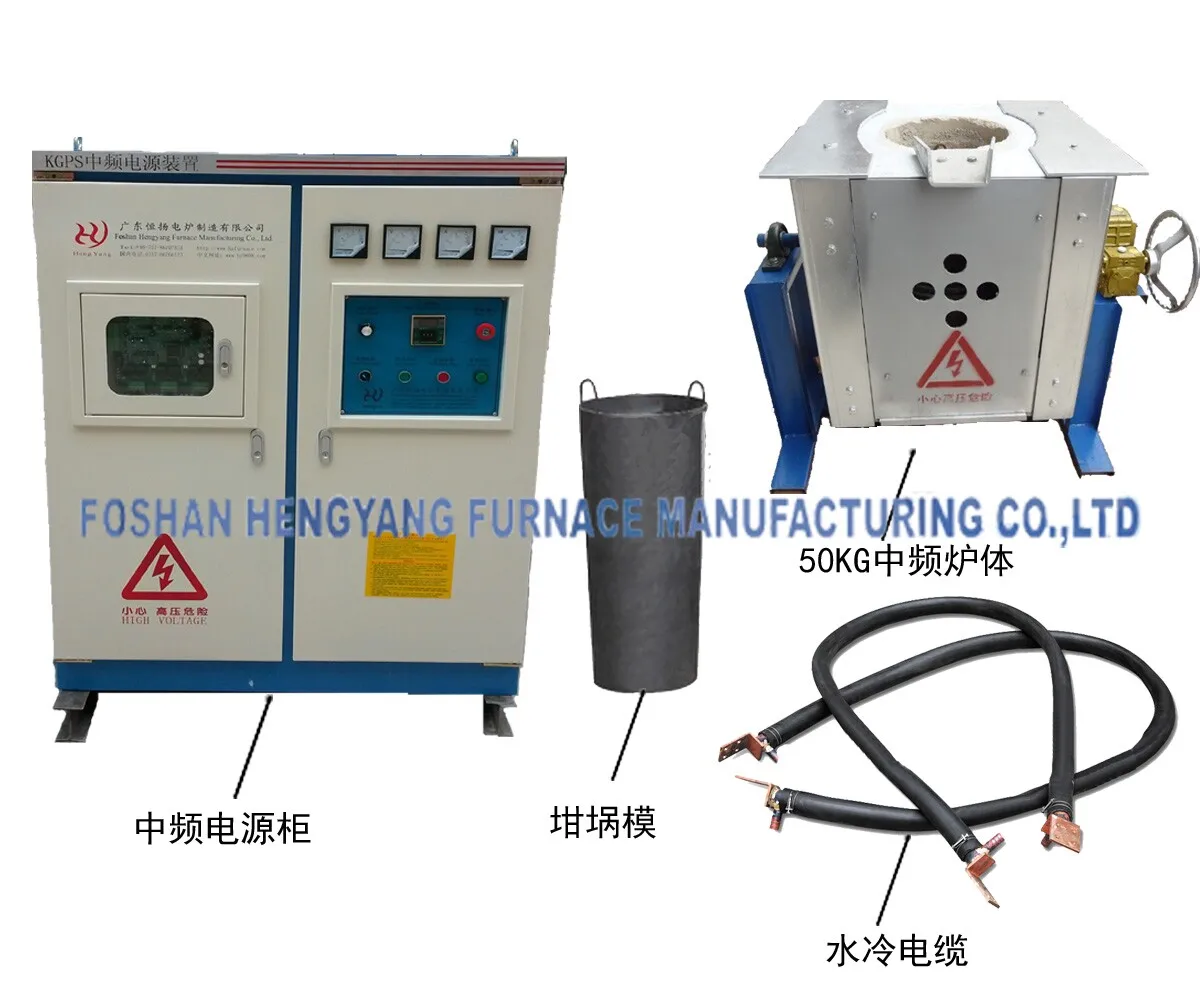

WHOLE SET DISPLAY
Power supply cabinet
KGPS parallel electric cabinet existed at the beginning of the factory in 1999, it have advantages of mature technology, stable performance, simple operation and convenient maintenance. It is still a hot sale type now. Recommended for customers who are new to the metal casting industry.
KGCL series electric cabinet is a newly developed electric cabinet in 2012, which is electrical energy-saving , without harmonics. One electric cabinet can run two or three furnaces at the same time, which can continuously supply metal solution, which is suitable for continuous casting industry. Recommended for customers who have high power requirements and urgently need to increase production and plan to establish a fully automatic production line.

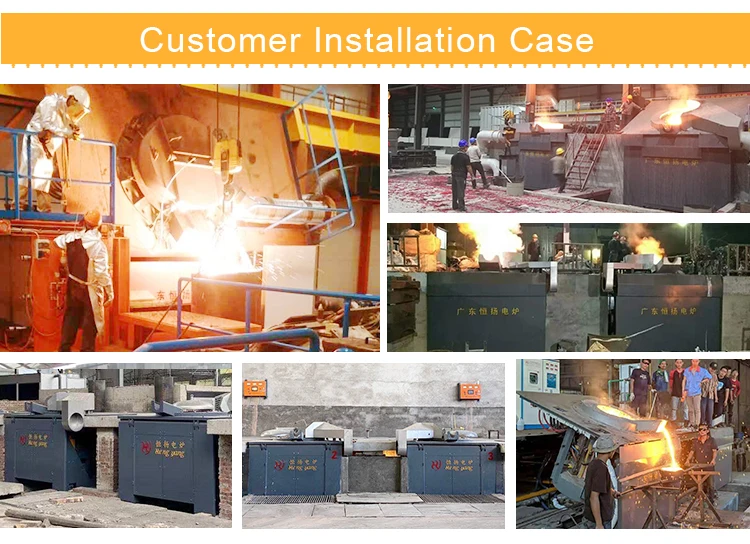

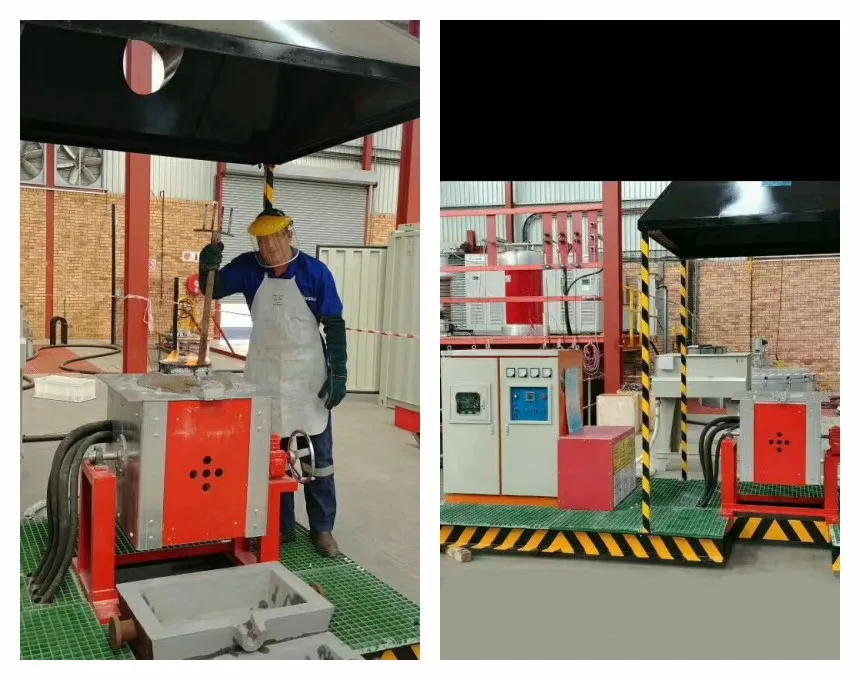

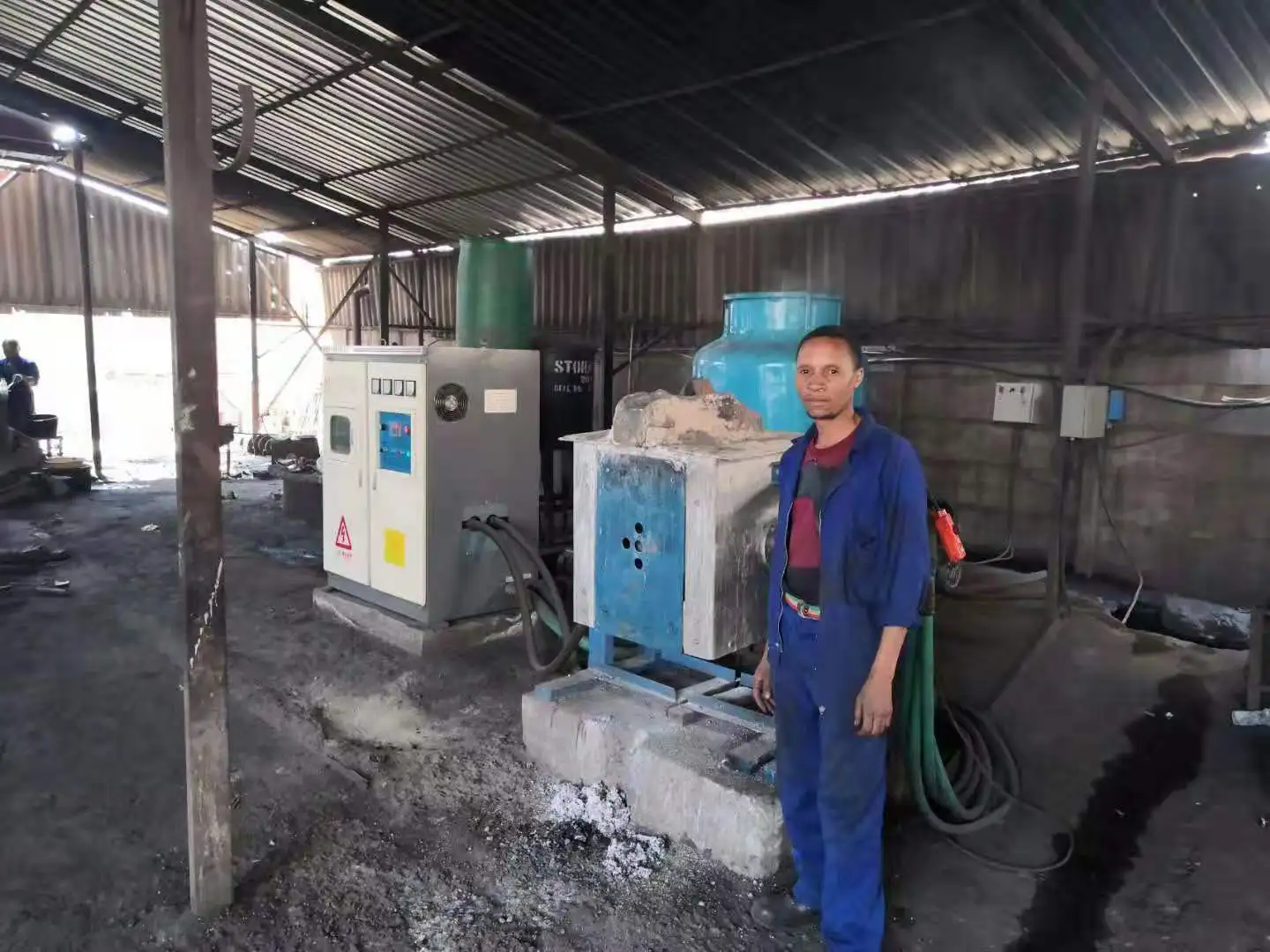

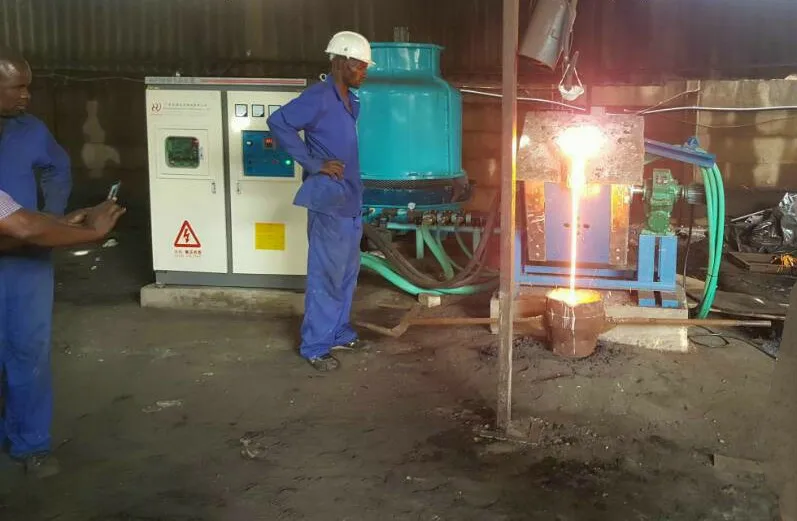

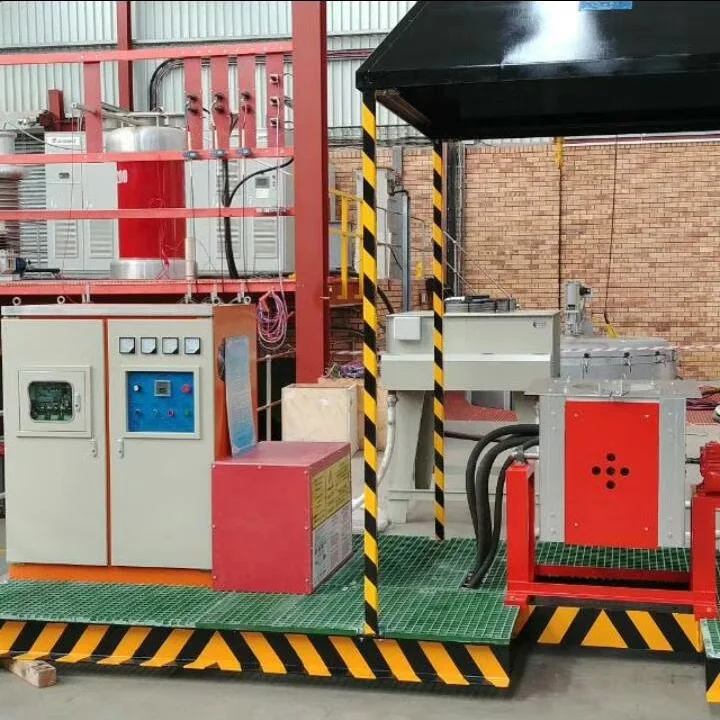

OPERATIONAL CASES
We have exported to more than 40 countries. Our main market are most countries from Africa and Asia ,and some countries from Europe and South America.
COMPANY PROFILE
Company introduction
-------------------------------
Foshan Hengyang Furnace Manufacturing Co., Ltd is one of the leading manufacturer of medium frequecy induction
furnace in China. Its headquarter is located in Foshan city, Guangdong province, China, where is only 20km away
from Guangzhou Baiyun International airport, so it is very convenient for you to visit. It has sub-factory located in
Cairo, Egypt, and have after-sale office in Zimbabwe and Russia. Up to new, more than thousands sets of melting
Turnkey project is our commitment. We promise not only to provide high quality and reliable equipment, but also to
and heating equipment have been exported to more than 70 countries.
online service to give direct solutions to your actual production problems.
offer perfect after-sale service. There is a group of experienced after-sale team of 20 personnel, offering 24 hours
