SZG Series no pullution rotary vacuum dryer/drier/drying machine/vacuum drying equipment

Product Overview

Description

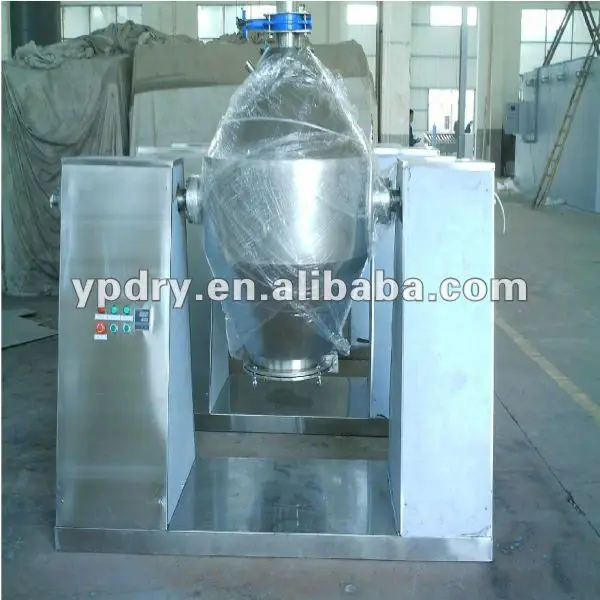

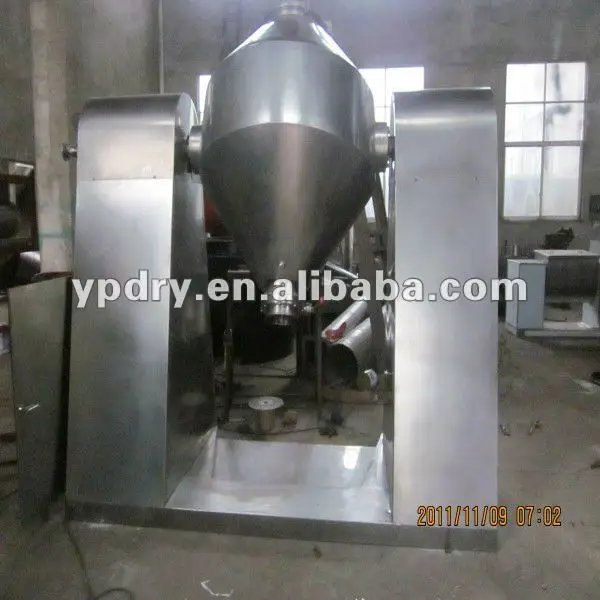

SZG Series Double Tapered Vacuum Dryer

1.The principle of work

In airtight sandwich tube such as heat energy (hot water, low pressure steam or heat conduction oil), the quantity of heat inside the shell to be dry material. In power drive, tanks a slow rotation, tank material continuously flipping, mixed, from inside the wall surface accept quantity of heat, so as to achieve the purpose of aggrandizement is dry. The materials under vacuum condition, the steam pressure drop make the material of surface water (solvent) reached saturation and evaporation, and the vacuum pump discharge recovery in time.

2. Product features

A ROM watts embellish valve high vacuum the unit may be produce high vacuum degree, limits the vacuum high vacuum evaporation dry, meet the thermal material low water content low temperature drying requirements.

A double cone drying machine clip set inside the heating medium low temperature steam, because the water vapor in the process of heating have clip, heat transfer K value for hot water heating of 3 times. So in double cone drying machine this unit volume heat transfer area slants little dryers can still fast effective provide dry heat .

3. Applications

It is suitable for the raw materials that need to concentrate, mix and dry at low temperature(for example, biochemistry products in chemical, pharmaceutical and foodstuff industries). Particularly it is suitable for the raw materials that are easy to oxidize, volatilize and have strong heat sensitive and toxic .

4.Technical parameters

Type	Total volume(L)	Working volume (L)	Heating area	Speed (rpm)	Power (KW)	Height of rotating	Weight
SZG100	100	50	1.16	3-13	0.75	1600	550
SZG200	200	100	1.5	3-13	1.1	1800	700
SZG300	300	150	2	3-13	1.5	1800	800
SZG500	500	250	2.63	3-13	1.5	2060	1100
SZG1000	1000	500	4.61	3-13	3	2500	1300
SZG1500	1500	750	5.58	3-13	3	2800	1500
