Metal Thickness Meter SA40 equipped with four different probes

Product Overview

Description

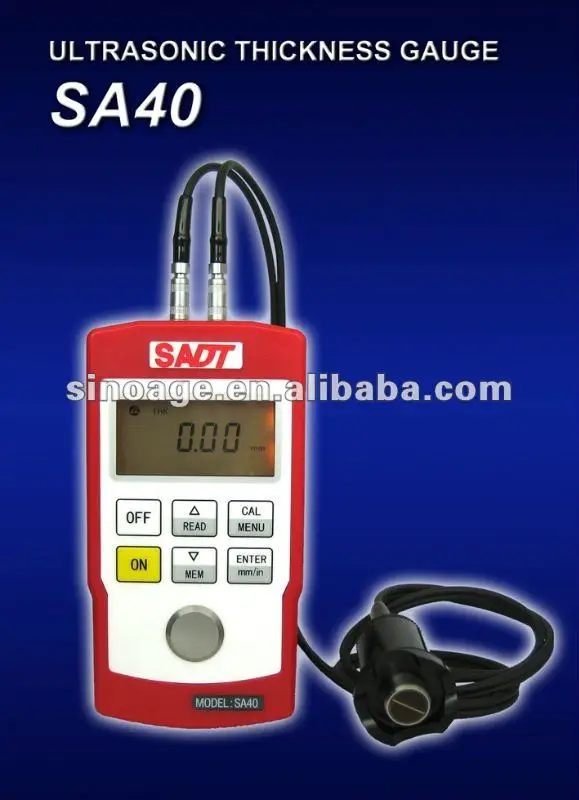

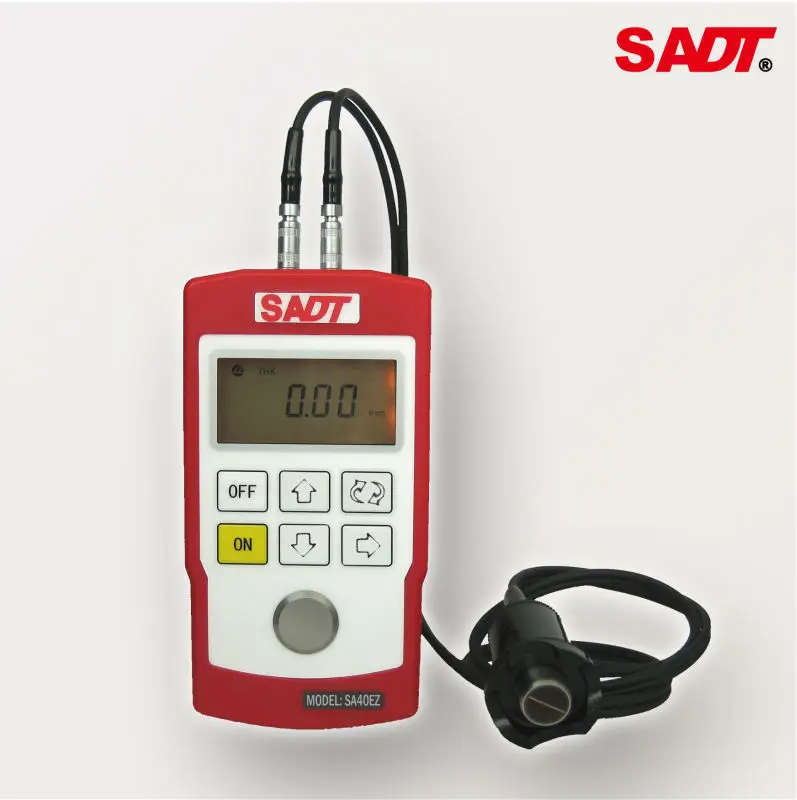

SA40 Of Digital Ultrasonic Thickness Meter



SA40 of Digital ultrasonic thickness meter are the miniaturized ultrasonic thickness gauges that can measure wall thickness and velocity. Our intelligent gauges are designed to measure the thickness of metallic and nonmetallic materials such as steel, aluminum, brass, silver and etc. They are quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.



Specificiations

Model	SA40
Display	4 Digits LCD
Backlight	Yes
Measuring Range	0.7~300.0mm In Steel With PT-5 Probe
Resolution	0.01mm from 0.70~99.99mm, 0.1mm from100.0~300.0mm
Accuracy	0.70~9.99mm ±0.05mm / 10.00~99.99mm ±(0.5%+0.01)Mm 100.0~300.0 ±(1%+0.1)Mm
Unit	Mm/Inch
Velocity	1000~9999m/S
Coupling Indicator	Yes
Calibration	Auto
Memory	400 Data
Low Battery Indicator	Yes
Working Environment	0~40oC, 20~90%RH
Power Off	Auto
Power Supply	AA Battery X 2
Dimension (Mm)	127x66x29
Net Weight (G)	240
Standard Probe	PT-5
Optional Probes	XT-5 / GT-5 / CT2.5

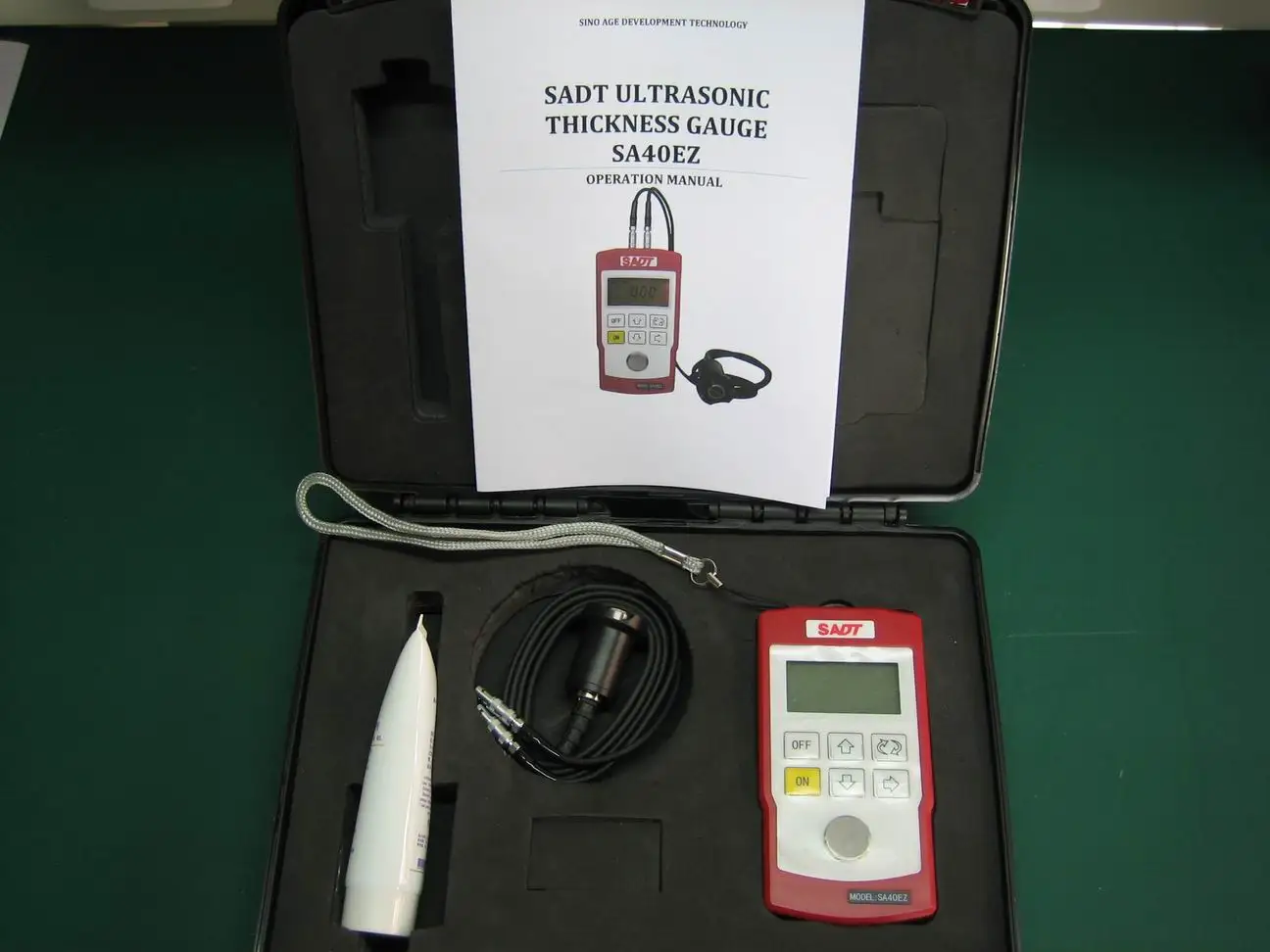

Standard Package - SA40

SA40 main unit 1

Standard 5MHz probe PT-5 with probe holder 1

Built-in calibration block 1

Coupling paste for normal tem perature 1

Test certificate 1

Operation manual 1

Carrying case 1
