Corona treating machine

Product Overview

Description

Corona treating machine



characteristics:



      This machine is mainly used to do the treatment on the surface of plastic film and aluminium foil etc, enhancing the penetrating and adhesive strength of printing ink on the film surface.





1.It adopts high voltage fast-switching power transistor for invert circuit





2.High efficiency, high operating frequency.(8-25KHz)





3.Power output is continuous adjustable.





4.Electronic protection and low speed automatic off.





5.It is suitable for film producing printing gluing and compound machinery.







main technical parameters:



Item   Type	Disposal width(single surface)(mm)	Power(kw)	Volume of machine (L*W*H)	Weight of machine (kg)
CTE 1200	1200mm	1	200*200*250	5
CTE 2400	2200mm	2	200*200*330	12
CTE 3600	3200mm	3	200*200*330	15
CTE 7200	6000mm	6	400*210*500	5

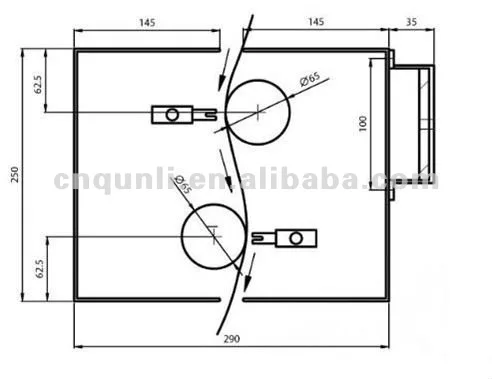

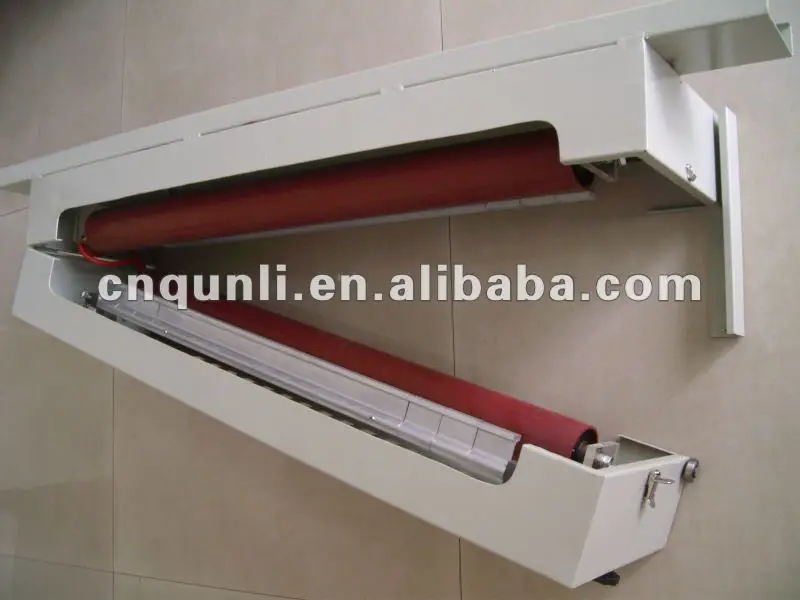

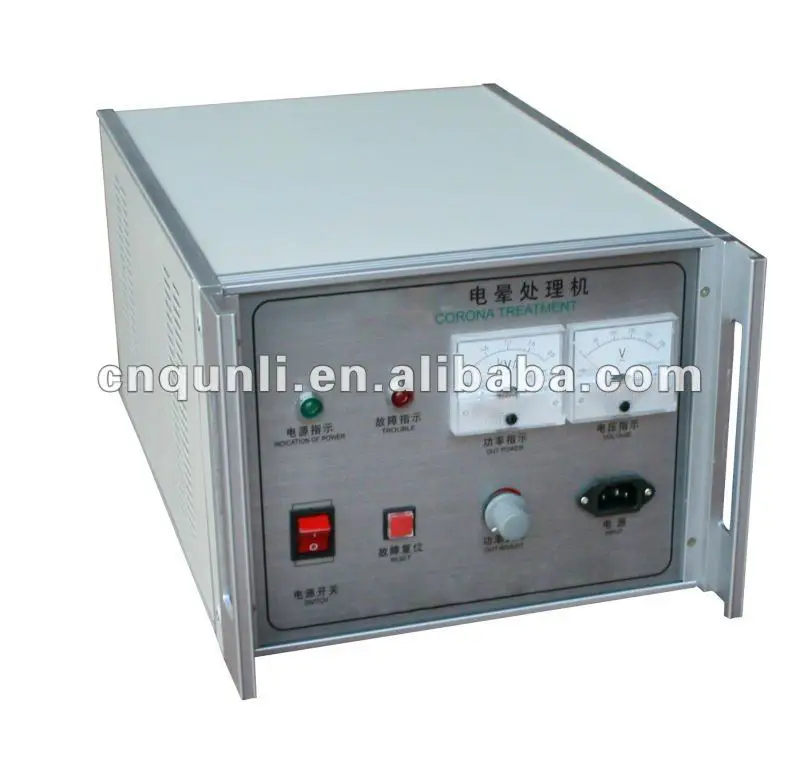

Machine details:
